The Making of a Premium Stainless Steel Magnet: Inside Our Magnetic Iron Separator

2025-11-26

Ever wondered how a truly reliable magnetic iron separator is born? It's a journey of precision engineering and rigorous testing. We're pulling back the curtain to show you the entire creation process of our high-standard stainless steel magnet, from its initial concept to its final validation. This ensures you get a separator that performs flawlessly in your specific application, safeguarding your product purity and equipment.

The Making of a Premium Stainless Steel Magnet: Inside Our Magnetic Iron Separator

Phase 1: Precision Definition & Conceptual Design

Anchoring Your Needs

It all starts with you. We analyze your material's characteristics—viscosity, flow rate, and the content and size of ferrous contaminants. We also factor in your pipe diameter, working pressure, temperature, and hygiene standards, like those for food or pharmaceutical grade. This data precisely defines the core performance metrics for your custom stainless steel magnet.

Phase 1: Precision Definition & Conceptual Design 1

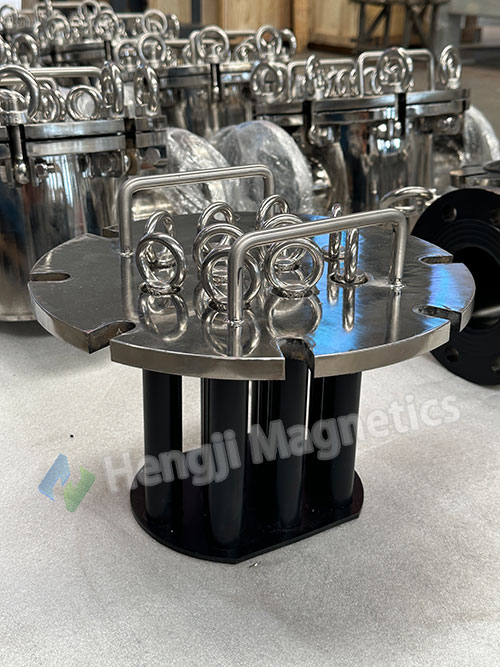

Phase 1: Precision Definition & Conceptual Design 2

Mastering Magnetic Circuit Design

Our engineers then use advanced computer simulation software to optimize the magnetic circuit. The goal is clear: to determine the ideal arrangement, number, and spacing of the magnetic rods. Using high-performance Neodymium Iron Boron (NdFeB) magnets, we ensure the magnetic iron separator generates an intense, high-gradient magnetic field with uniform flux distribution and zero dead zones inside the pipe.

Smart Structural Design & Material Selection

The structure is designed for smooth fluid flow, minimal pressure drop, and easy installation and cleaning, featuring standard flange or clamp connections. For materials, we strictly select premium SUS 304 or 316L stainless steel. Based on your corrosion resistance needs, we specify surface finishes like mirror polishing for high hygiene or satin finishing, making this a durable and cleanable stainless steel magnet.

Phase 2: Lean Manufacturing & Precision Machining

Material Preparation & Verification

We begin fabrication by procuring standard-compliant stainless steel plates and tubes. Each batch is verified with a Material Test Certificate (MTC) before entering our production line, ensuring the quality of your future magnetic iron separator starts with its core components.

The Art of Precision Machining

Precision is paramount. We use plasma cutting for blanking and employ expert TIG welding. The welds must be full-penetration, free of pores and undercuts, guaranteeing structural integrity and a perfect seal. Post-welding, all seams are polished to the same smoothness as the parent material, eliminating any potential bacterial harborage points in your stainless steel magnet.

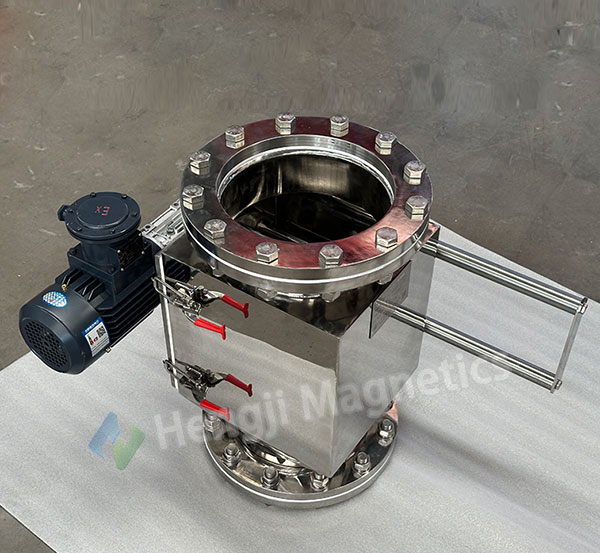

Phase 2: Lean Manufacturing & Precision Machining 1

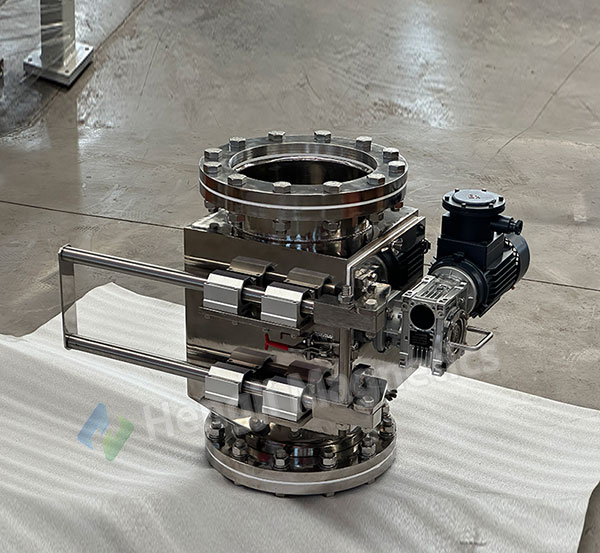

Phase 2: Lean Manufacturing & Precision Machining 2

Assembling the Core: The Magnet Rods

This is a critical step. The powerful NdFeB magnetic cores are carefully inserted into seamless stainless steel tubes, and the ends are hermetically sealed. This process is conducted in a controlled, clean environment to ensure absolute seal reliability, preventing any oxidation of the magnetic core and securing the long life of your magnetic iron separator.

Final Assembly & Meticulous Checks

The assembled magnet rods are then precisely installed into the housing at the designed spacing, and all connections are securely fastened. Throughout this assembly, we conduct repeated checks to guarantee every stainless steel magnet rod is securely positioned and perfectly aligned within the magnetic iron separator.

Phase 3: Rigorous Testing & Quality Validation

A Flawless Finish: Appearance & Dimensional Check

We scrutinize the internal and external surfaces of the equipment. The polish must be mirror-smooth, completely free of scratches or dents. Critical dimensions, like flange hole pitch and interface caliber, are rechecked with precision tools against the drawings, ensuring a perfect fit for your magnetic iron separator.

The Core Test: Sealing & Pressure Integrity

This is a non-negotiable test for integrity. The separator's cavity is sealed, and we introduce compressed air or water, pressurizing it to 1.5 times its rated working pressure. This pressure is held for a specified duration. The standard is uncompromising: all seals must be leak-proof with no pressure drop, validating the welding and assembly quality of your stainless steel magnet.

Proving Performance: Magnetic Strength Verification

Here, we validate the heart of the equipment. Using a high-precision Gauss meter, we measure the magnetic field strength at specific points on the magnet rod surfaces. The results must meet or exceed the design value, confirming the powerful ferrous capture capability of your magnetic iron separator. This is the final exam for its core function.

Final Audit & Documentation

A quality inspector reviews all test data and completes the final Product Inspection Report. Upon passing, your stainless steel magnet is cleared for shipment, accompanied by a full set of technical documents, including the product certificate, material reports, and user manual, providing complete traceability for your magnetic iron separator.

Your Partner in Purity

The birth of a high-standard stainless steel magnet is a meticulously linked chain of precision. From needs-based design to impeccable manufacturing and rigorous validation of core features like sealing and magnetic force, every single stage adheres to the highest standards. This rigorous process guarantees that every magnetic iron separator we deliver will operate with maximum efficiency, reliability, and longevity on your production line, steadfastly guarding your product purity and operational safety.

We don't just make a stainless steel magnet; we engineer a reliable magnetic iron separator solution tailored for you. Explore the difference precision makes.
