Magnetic Head Pulley or Magnetic Drum? Choosing the Right Magnetic Solution for Your Conveyor System

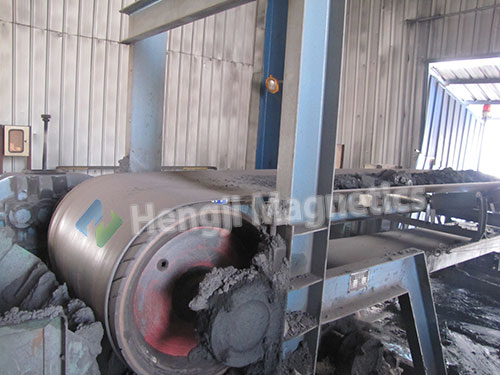

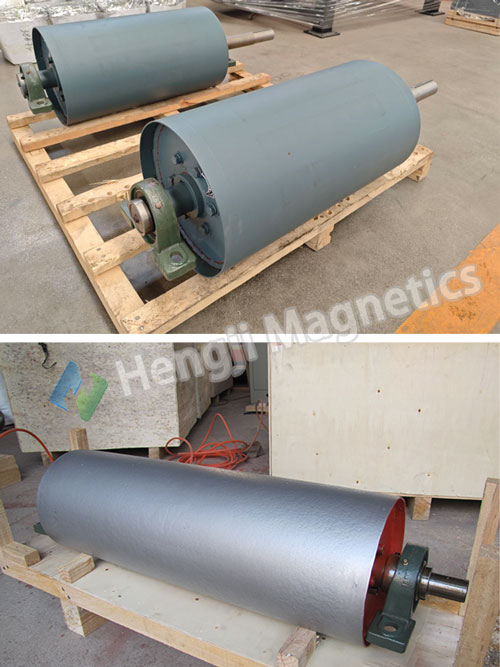

Solution 1: The Magnetic Head Pulley – Your Conveyor's Built-In Defender

• How It Works: As material is discharged from the belt, the powerful magnetic field generated by the magnetic head pulley reaches into the falling stream. It captures ferrous contaminants—especially those hidden deep within the material bed—holding them against the pulley's surface. These trapped metals are carried underneath and released away from the clean product flow.
• Key Advantages:
  • Unmatched for Deep-Buried Metal: Excels at removing tramp iron that settles at the bottom of thick, heavy material loads, a task where overhead magnets are less effective.
  • Space-Saving & Integrated: Requires no extra footprint or major conveyor modifications; it becomes the conveyor's terminal pulley.
  • Zero Energy & Low Maintenance: As a permanent magnet solution, it operates without power and has no moving parts beyond its rotation, ensuring decades of reliable service.
• Ideal For: Primary protection at conveyor discharge points in aggregate, mining, recycling, and bulk handling where the goal is to safeguard crushers, mills, and screens from large, damaging ferrous objects.

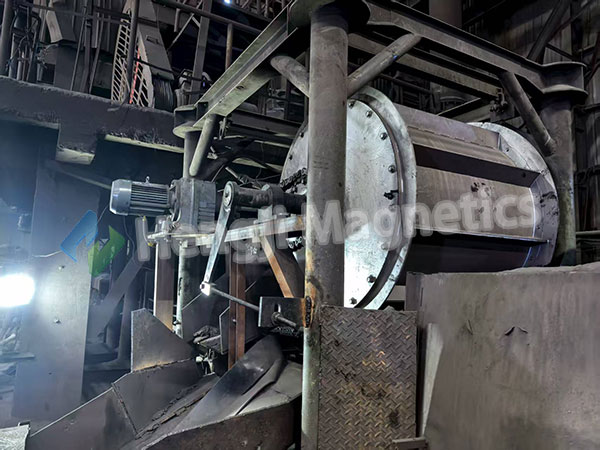

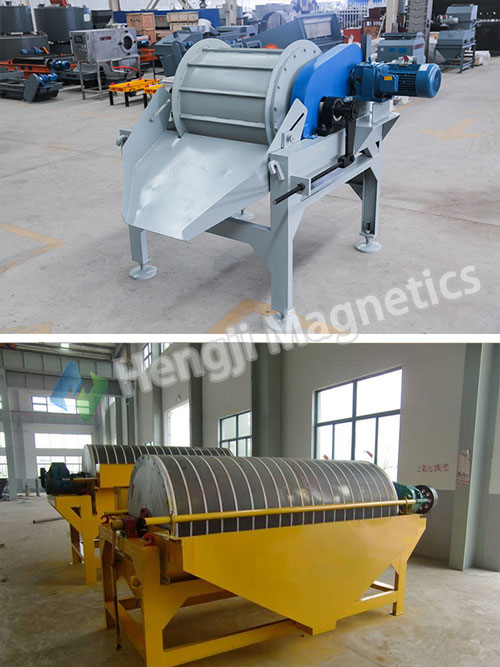

Solution 2: The Magnetic Drum – The Precision Separation Specialist

• How It Works: Material is presented via a chute or feed belt onto the rotating shell of the magnetic drum. Magnetic particles are pinned to the drum and carried to a separate discharge point, while non-magnetic material falls freely along a different trajectory. This allows for a clean, deliberate split.
• Key Advantages:
  • High-Purity Output: Provides superior separation purity by ensuring all material is exposed directly to the magnetic field in a controlled manner.
  • Process Flexibility: Can be used as a single unit or in multi-stage configurations for complex separation tasks (e.g., separating strong, medium, and weakly magnetic minerals).
  • Optimized Control: Feed rate, drum speed, and splitter positions can be adjusted to fine-tune results for different materials.
• Ideal For: Product upgrading, mineral concentration, and precision removal of fine iron contaminants. Common in processing industrial minerals (e.g., silica sand, quartz), powders, and in applications where producing a high-grade non-magnetic product is the goal.

Your Selection Guide: Magnetic Head Pulley or Magnetic Drum?

1. Define Your Primary Goal:

   • Goal: Protection. To prevent machinery damage from large tramp metal → Lean towards a magnetic head pulley.
   • Goal: Purification/Recovery. To improve product grade or recover valuable minerals → A magnetic drum is likely necessary.

2. Analyze Your Material:

   • Thick, heavy, fast-moving loads? The magnetic head pulley is your champion for deep cleaning.
   • Controlled feed of finer, dry, or granular material? The magnetic drum offers the precision you need.

3. Consider Your Site Layout:

   • Seeking a simple, retrofit solution with minimal space? The integrated magnetic head pulley is ideal.
   • Have space for a dedicated processing station? A magnetic drum separator provides maximum flexibility.
