Drum Magnetic Separator: Boosting Mining Beneficiation Efficiency with Stable Drum Separation

2026-07-06

In roughing, cleaning, and scavenging operations, efficiently separating magnetic minerals from large ore volumes while controlling tailings grade and reducing processing costs is a core concern for every mine operator. For strongly magnetic minerals like magnetite, pyrrhotite, roasted ore, and ilmenite, separation stability, throughput capacity, and maintenance convenience directly determine a concentrator's profitability. The drum magnetic separator has earned a strong reputation in mining applications with its rotating drum design and proven permanent magnet technology. It encloses a high-performance permanent magnetic system inside a stainless steel drum, achieving continuous separation of magnetic minerals from non‑magnetic gangue through steady drum rotation, making it a reliable core asset in modern beneficiation circuits.

How Does a Drum Magnetic Separator Work for Mining?

The magnetic separators for mining featuring drum design combine practicality with high efficiency. Slurry enters the feed box through a flange, is diluted by the feed pipe, and is washed to the lower part of the permanent magnetic drum via a water spray pipe. Under the combined action of magnetic force, gravity, and water flow, magnetic minerals are attracted to the drum surface, carried out of the magnetic field, and rinsed into the concentrate launder. Non‑magnetic minerals flow into the tailings box. This continuous, stable process ensures high throughput. The internal permanent magnetic system uses rare earth composite magnets, bonded with high‑strength adhesive (J‑39) and epoxy‑potted, with the surface reinforced by stainless steel strapping to prevent loosening and demagnetization. End seals with gaskets and sealant prevent slurry and moisture ingress, adapting to harsh mining conditions.

Key Customer Concerns About Magnetic Separators for Mining

Separation Efficiency and Concentrate Grade

Strongly magnetic minerals like magnetite and pyrrhotite are effectively captured in conventional fields, but fine particles and locked grains require well‑distributed fields for liberation. The drum magnetic separator features a specially designed magnetic circuit with optimized field distribution for improved separation. The drum surface uses a directly vulcanized high‑wear rubber layer (4mm thick, bond strength 3.5 MPa), providing 2‑3 years of wear life. The feed box is designed to generate proper slurry flow, significantly improving magnetic mineral recovery.

Stability and Durability

Concentrators often run 24/7, making equipment reliability critical to output and costs. The drum magnetic separator drum is rolled from stainless steel plate, supported on the shaft through end covers, bearing housings, and bearings, with a drum‑to‑magnetic system gap not exceeding 4mm for high‑precision separation. The drive uses a cycloidal gearmotor, sprocket, chain, and drive shaft for smooth, efficient rotation. The specially designed tank resists plugging and material loss, handling mixed coarse and fine particles. The simple, rugged construction ensures long‑term stability even in dusty, high‑vibration environments.

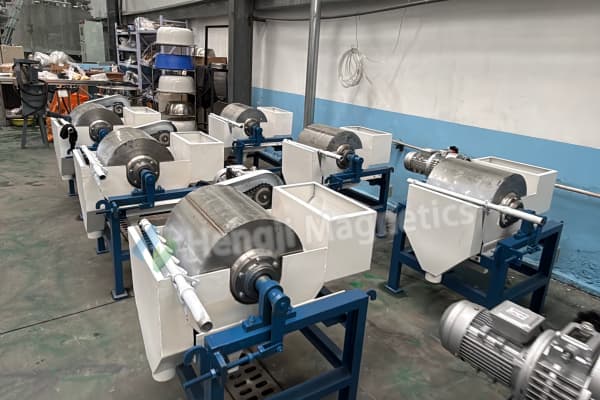

Key Customer Concerns About Magnetic Separators for Mining

Operational Simplicity and Maintenance

Mine operators are experienced but busy; ease of operation and maintenance directly impacts daily management efficiency. The drum magnetic separator features a magnetic angle adjustment mechanism—operators simply turn the nut on the pull rod to change the magnetic angle, easily adapting to different material characteristics. There is no complex electrical system; the permanent magnetic system requires no external power. Daily maintenance focuses on bearing greasing and gearbox oil changes. Bearings require #2‑#4 calcium‑based grease monthly (fill to 2/3 capacity). Gearboxes use #40‑#50 mechanical oil, replaced every six months with cleaning. These standardized procedures are easy for mine personnel to master.

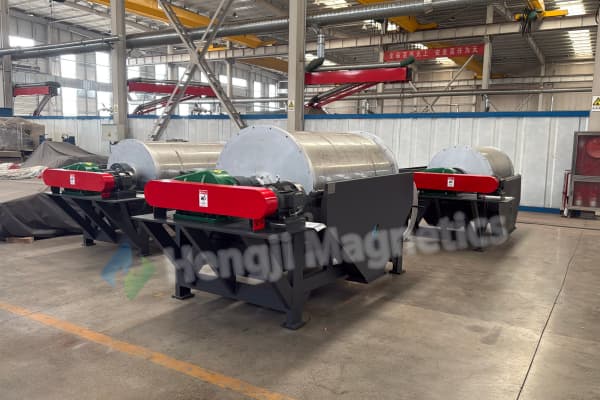

Key Customer Concerns About Magnetic Separators for Mining 2

Adaptability and Configuration Flexibility

Different ores and processes demand different separation equipment. The magnetic separators for mining in drum form offer three tank types—concurrent, counter‑current, and semi‑counter‑current—for roughing, cleaning, and scavenging. Left‑hand and right‑hand drive options suit site layouts. Various capacities are available, from lab‑scale to hundreds of tons per hour. Users simply provide ore characteristics, throughput, and process requirements to receive the optimal drum magnetic separator recommendation.

Applications of Drum Magnetic Separators in Mining

Drum magnetic separators are widely used in mining applications, including:

Iron ore beneficiation: Upgrading magnetite, hematite, and roasted ores.
Coal processing: Recovering magnetite heavy media and removing tramp iron.
Non‑ferrous and industrial minerals: Removing magnetic contaminants from copper, lead‑zinc, and industrial mineral feeds.
Scrap recycling: Recovering steel and iron from slag and demolition waste.

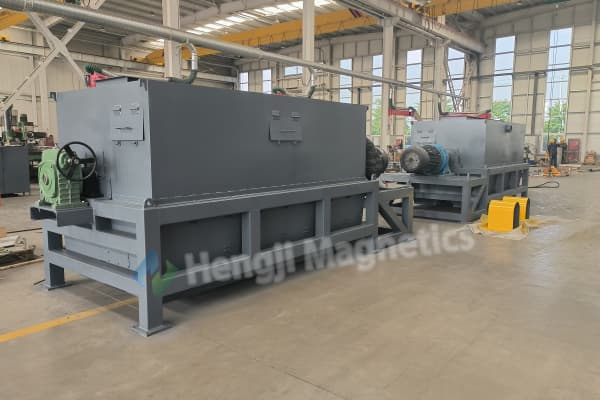

Applications of Drum Magnetic Separators in Mining

Conclusion

The drum magnetic separator is a classic choice for mining applications, offering robust drum separation, efficient permanent magnetic design, reliable stability, and simple maintenance. For any concentrator seeking separation performance, operational efficiency, and economic returns, choosing a reliable drum magnetic separator is a long‑term guarantee of beneficiation stability. Whether for magnetite, pyrrhotite, or roasted ore, magnetic separators for mining with drum technology deliver consistent, cost‑effective results.
