Dry Drum Magnetic Separator: Enhancing Pre‑Concentration in Dry Magnetic Separation of Iron Ore
2026-06-23
Across the globe, an increasing number of iron ore beneficiation projects face challenges from water scarcity or harsh climatic conditions. For magnetite ores or dry‑ground ores in these regions, adopting an efficient dry drum magnetic separator for dry magnetic separation of iron ore has become a critical path to improving feed grade for grinding, reducing operating costs, and achieving sustainable development. The dry drum magnetic separator continuously and automatically separates strongly magnetic minerals from dry powders without consuming large volumes of water, significantly boosting overall efficiency in downstream crushing and grinding circuits. This article explores how this equipment addresses customer concerns about pre‑concentrate grade control, throughput capacity, and particle size adaptability in dry magnetic separation of iron ore.
How Does a Dry Drum Magnetic Separator Work for Dry Magnetic Separation of Iron Ore?

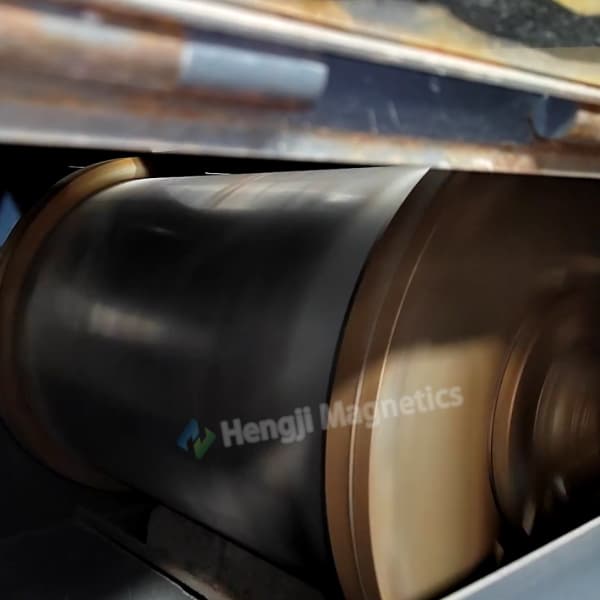

The separation principle of the dry drum magnetic separator relies on precise synergy between magnetic and mechanical forces. Its core is a rotating drum—made of stainless steel—that encloses a fixed, semi‑circular magnetic system. After crushing and screening to a 0‑12 mm size fraction, the dry iron ore material is fed in a thin, uniform layer onto the rotating drum surface via a vibratory feeder.
Strongly magnetic mineral particles (e.g., magnetite) are instantly attracted to the drum shell by the powerful magnetic field, carried through rotation to the lower non‑magnetic zone, and then discharged by gravity into the concentrate outlet. Non‑magnetic or low‑grade gangue minerals, influenced by gravity and centrifugal force, follow an external trajectory through the magnetic field and drop into the tailings outlet. Throughout this dry magnetic separation of iron ore process, the dry drum magnetic separator achieves precise magnetic field construction with a simple mechanical structure, effectively avoiding mechanical entrainment of fine gangue particles and ensuring separation purity.
How Does a Dry Drum Magnetic Separator Control Pre‑Concentrate Grade and Minimize Losses?
For customers using a dry drum magnetic separator for dry magnetic separation of iron ore, the key concern is how to control tailings losses—improving concentrate yield while maintaining grade. This is the core technical challenge addressed in the design.
A well‑engineered dry drum magnetic separator includes an adjustable magnetic angle mechanism—a magnetic field adjustment lever or gearbox handle. Operators can fine‑tune the magnetic angle and field coverage during production based on actual ore properties, thereby changing the magnetic particle retention time and trajectory on the drum surface. When the magnetic angle is optimally set, the captured strongly magnetic particles fall precisely into the concentrate launder, while fine gangue particles adhering to magnetite surfaces separate under gravity and residual centrifugal force during discharge. This maintains high recovery while keeping concentrate grade within the desired range. The equipment undergoes preliminary magnetic field tuning before shipment, ensuring reliable initial performance.
How Does a Dry Drum Magnetic Separator Adapt to High Throughput and Wide Particle Size Ranges?
Another key advantage of the dry drum magnetic separator in dry magnetic separation of iron ore is its strong adaptability to high throughput and a broad particle size range. The wide magnetic coverage and large wrap angle ensure sufficient retention time and contact area as material passes over the drum surface. A unique material splitting structure allows flexible control of concentrate and tailings grade.
To meet varying capacity requirements, the dry drum magnetic separator is typically equipped with a variable‑frequency drive for speed control. By adjusting drum speed and feeder rate, throughput can be increased up to 1.5 times that of standard configurations, achieving both high output and high precision. The stainless steel drum surface provides excellent wear resistance, and the sealed bearings at both ends effectively prevent dust ingress. These structural optimizations ensure that the dry drum magnetic separator remains highly competitive in pre‑concentration of magnetite and dry‑ground ores, making it a reliable technical solution for mines in water‑scarce or freezing regions.

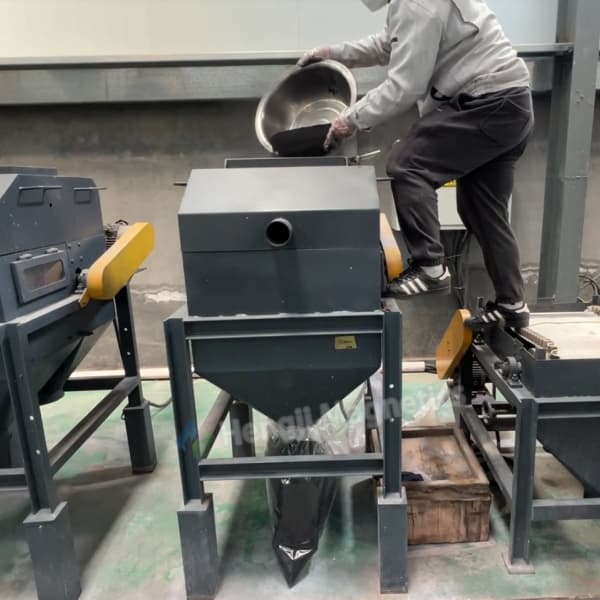

What Are the Key Operating Parameters for a Dry Drum Magnetic Separator?
To maximize performance of a dry drum magnetic separator in dry magnetic separation of iron ore, operators should monitor and adjust the following parameters:
-
Magnetic angle: Adjust to control the balance between concentrate grade and recovery. Moving the angle forward increases grade; moving it backward increases recovery.
-
Drum speed: Slower speed improves capture of fine, weakly magnetic particles; faster speed boosts throughput for coarse, strongly magnetic feeds.
-
Feed layer thickness: Keep as thin and uniform as possible using a vibratory feeder with adjustable amplitude.
-
Feed moisture: For effective dry separation, keep feed moisture below 5‑6% to prevent fines adhesion and clogging.
-
Splitter position: Adjust the splitter plate to achieve a clean separation between concentrate and tailings streams.
Which Applications Benefit Most from a Dry Drum Magnetic Separator?
The dry drum magnetic separator is widely used for dry magnetic separation of iron ore in many global mining regions:
-
Australia: Pre‑concentration of magnetite‑hematite ores before grinding, discarding 20‑40% of waste rock early.
-
Chile: Dry upgrading of magnetite from copper flotation tailings, recovering additional iron value without extra water.
-
South Africa: Processing low‑grade iron ores by dry magnetic separation, reducing transport costs of waste material.
-
Russia and Canada: Dry concentration of magnetite quartzite in freezing climates where wet plants would be inoperable.
-
Middle East and North Africa: Dry processing of iron ore fines where fresh water is prohibitively expensive.
Conclusion: The Dry Workhorse for Water‑Constrained Iron Ore Processing
The dry drum magnetic separator is a proven, robust solution for dry magnetic separation of iron ore in water‑scarce and challenging environments. With adjustable magnetic angle, high‑capacity throughput, wide particle size tolerance, and low maintenance, it effectively upgrades run‑of‑mine ores into higher‑grade feed for downstream grinding and beneficiation. For mines seeking to reduce water consumption, cut operating costs, and maintain reliable production in extreme climates, the dry drum magnetic separator is the equipment of choice.
