Grain Magnetic Separator: How Magnetic Separating Grates Protect Flour, Rice & Feed Processing

2026-05-21

In grain processing—whether flour, rice, animal feed, or starch—ferrous contaminants like nails, screws, and iron filings are a persistent headache. They damage expensive roller mills, hammer mills, and other precision equipment, and they directly threaten food safety. The solution is a robust grain magnetic separator built with magnetic separating grates. This article explains how these devices work, why they are so effective, and how to integrate them into your existing line.

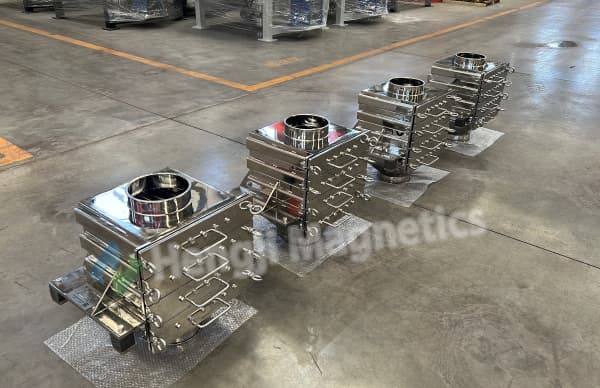

How Do Magnetic Separating Grates Work as a Grain Magnetic Separator?

Many customers ask: how can such a simple grate capture iron from flowing grain? The answer lies in powerful rare earth magnets. Unlike basic magnetic traps, magnetic separating grates use multiple moving magnetic cartridges combined with high-grade Neodymium magnets to create an intense, high-gradient field. As grain flows through the pipe or chute, ferrous particles are instantly captured on the grates. The moving magnetic assembly then carries the captured iron to a discharge point, where it is ejected through a sealed outlet. Clean grain continues downstream. This is a true grain magnetic separator that operates continuously and automatically.

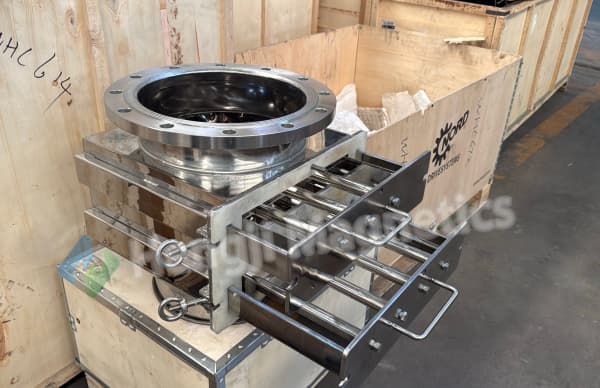

Is Installation Complicated? Can It Fit My Existing Grain Line?

This is the most practical question. Magnetic separating grates are designed for easy retrofit. The unit installs directly into the conveying pipe or chute, typically at a 50-60 degree incline so that grain moves by gravity. Simply cut a section of your existing pipe, insert the grain magnetic separator, and secure it. No major line modification is needed. Once installed, the magnetic separating grates run automatically—no operator required. This saves labor and integrates seamlessly with automated plants.

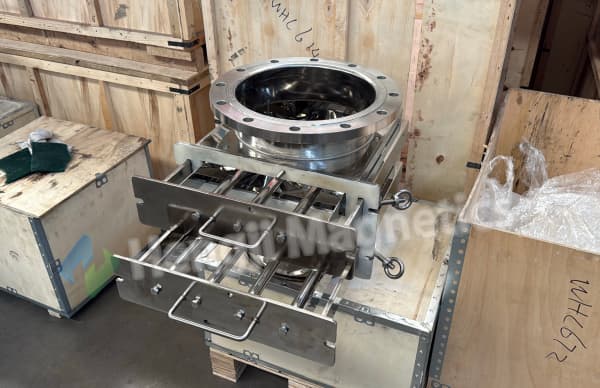

How Effective Is This Grain Magnetic Separator? Does It Carry Over Good Product?

For grain processors, efficiency and yield are everything. Magnetic separating grates with high-strength Neodymium magnets and moving magnetic cartridges achieve extremely high removal rates. The key is the separation point design: as material reaches the discharge zone, non-magnetic grain follows a natural parabolic trajectory due to inertia. Iron, however, is held magnetically and directed to the iron outlet. The discharge chute is designed so that ejected iron carries almost no grain. This means your grain magnetic separator removes contaminants without wasting valuable product.

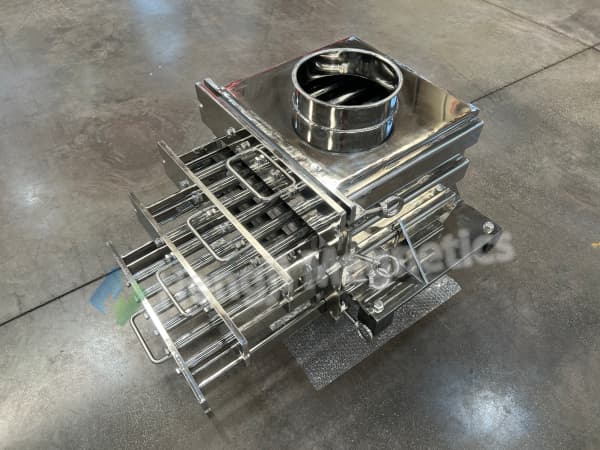

What About Maintenance and Durability of Magnetic Separating Grates?

Maintenance is where magnetic separating grates truly shine. The magnetic assembly is fully sealed inside a stainless steel housing. The design keeps the magnets isolated from the product stream, so wear is minimal. There are no moving parts in contact with grain. The result: virtually no daily maintenance. The only routine check is to ensure the iron discharge port remains clear. Because high-grade Neodymium magnets have excellent stability, this grain magnetic separator will retain its magnetic strength for many years, delivering long-term reliability with near-zero upkeep.

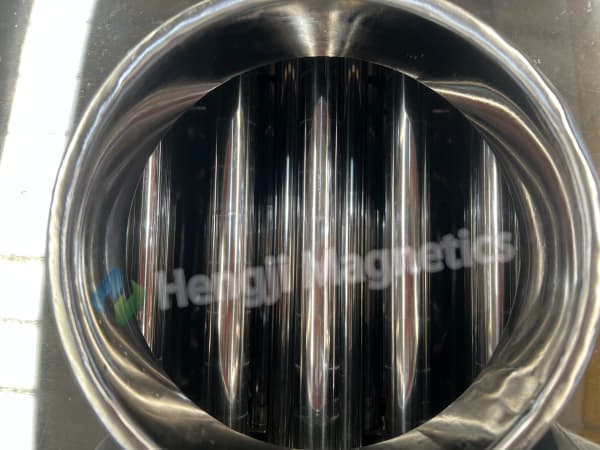

Which Grain Processing Stages Most Need a Magnetic Separator with Magnetic Separating Grates?

Any application where ferrous contamination threatens equipment or product quality:

Flour & Rice Milling: Protect roller mills, plansifters, and polishers from tramp iron damage. Improve flour purity.
Animal Feed Production: Remove metal from feed ingredients to protect hammermills and ensure animal safety.
Starch & Food Processing: Clean corn, wheat, or other raw materials before milling or extrusion.
Brewing & Pharmaceutical: Pre-treat grains to prevent metal from affecting fermentation or drug purity.

In every case, magnetic separating grates act as the first line of defense.

Conclusion

The grain magnetic separator built with magnetic separating grates offers an ideal solution for removing ferrous contaminants from flour, rice, feed, and other grain products. With powerful rare earth magnets, continuous self-cleaning operation, easy installation, and minimal maintenance, it protects your expensive equipment, ensures food safety, and maximizes yield. For modern grain processing lines, installing magnetic separating grates is a simple but transformative step toward higher efficiency and purer products.
