The Ultimate Guide to Our Grate Magnetic Separator for Fine Powders

2025-12-08

Processing ultra-fine powders presents unique challenges. Materials like titanium dioxide or battery precursors are incredibly valuable. They are also notoriously difficult to handle. Contaminants like microscopic iron can ruin an entire batch. Our engineered solution is the grate magnetic separator. This guide details how this specific type of permanent magnetic separator masters the art of purifying fine powders.

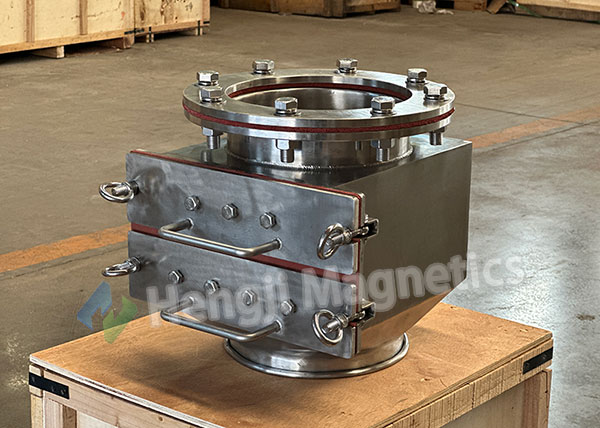

The Ultimate Guide to Our Grate Magnetic Separator for Fine Powders

Understanding the Core Challenge

Fine powders behave differently than granules or flakes. They are lightweight and highly fluid. These particles can drift and behave almost like a gas. Capturing micron-sized iron within this dynamic stream is the primary hurdle. Our permanent magnetic separator technology is specifically designed to solve this exact problem.

Why a Grate Design is Essential

A standard magnetic plate or single rod is insufficient. Fine powders can easily flow around a simple magnetic field. The grate magnetic separator uses a different approach. It employs a dense grid of powerful magnetic rods. This creates a multi-dimensional capture zone with no easy escape routes for ferrous particles.

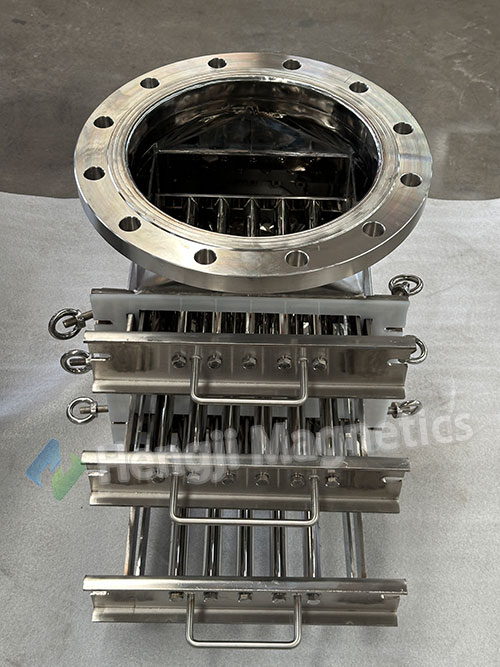

Part 1: The Science of Effective Contaminant Capture

Creating a Powerful Magnetic Matrix

The heart of our system is its magnetic core. We use high-grade Neodymium (NdFeB) magnets. These are arranged in a tight, layered grid pattern. This transforms the unit from a simple magnet into a sophisticated permanent magnetic separator filter. The dense matrix ensures any iron particle is always close to a powerful magnetic field.

Engineering the Perfect Flow Path

Magnetic force alone is not enough. The powder must flow correctly through the field. Our grate magnetic separator features a meticulously designed internal chamber. It promotes smooth, laminar material flow. Turbulence and dead zones are eliminated. This ensures every particle is exposed to the magnetic capture zone.

Implementing Multi-Stage Filtration

Contaminants come in different sizes. Our system uses a staged approach. The first layer of the grid captures larger ferrous particles. Subsequent layers trap progressively finer impurities. This multi-stage design of our permanent magnetic separator guarantees a high capture rate, even for sub-micron contaminants.

Part 2: Preventing Leakage for Total Protection

Defining the Two Types of Leakage

In powder processing, "leakage" has two meanings. First, iron contaminants can leak into your clean product. Second, the valuable powder itself can leak into your facility. A premium grate magnetic separator must prevent both.

Stopping Iron Contaminant Leakage

Performance depends on maintenance. Adsorbed iron must be regularly and thoroughly cleaned from the magnet rods. If rods become saturated, their effectiveness plummets. This causes "magnetic leakage." Consistent, disciplined cleaning is non-negotiable for peak permanent magnetic separator performance.

Eliminating Powder Product Leakage

A leaky separator creates mess and waste. Our grate magnetic separator is built with sealing integrity in mind. The drawer mechanism and flange connections use high-performance gaskets. A robust compression system ensures a dust-tight seal. This protects your product yield and your workplace environment.

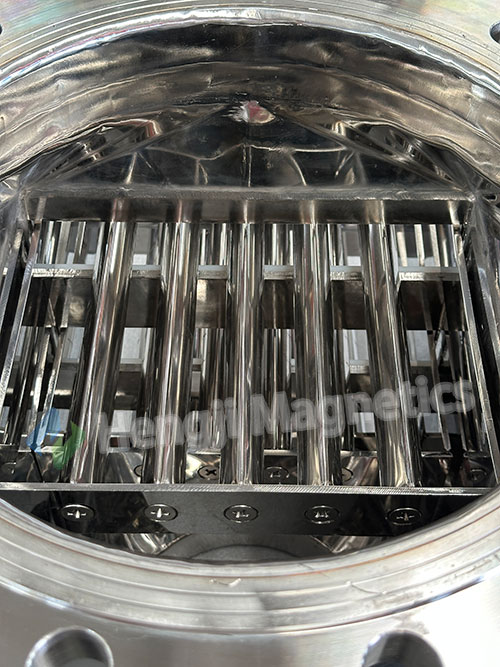

Part 2: Preventing Leakage for Total Protection

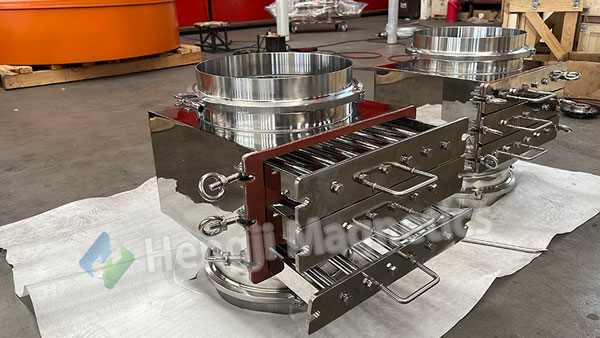

Part 3: Specialized Features for Demanding Applications

Selecting the Right Materials of Construction

Material compatibility is critical. All wetted parts in our permanent magnetic separator are crafted from high-grade stainless steel (SUS 304/316). Internal surfaces are polished to a mirror-like finish. This minimizes powder adhesion and allows for rapid, complete cleaning between batches.

Addressing Electrostatic Challenges

Many fine powders are prone to static buildup. This can cause clogging and cleaning difficulties. Our grate magnetic separator can be specified with integrated grounding points. This safely dissipates static electricity, ensuring consistent material flow and easier maintenance.

Ensuring Operational Safety

For explosive or sensitive powders, standard designs may not suffice. We offer optional inert gas purging interfaces. This allows for a safe atmosphere within the permanent magnetic separator during operation and cleaning, aligning with the strictest safety protocols.

The Result: A Partnership of Technology and Procedure

Ultimate success is a partnership. Our grate magnetic separator provides the advanced technological hardware. It delivers a powerful, sealed magnetic matrix in a robust housing. However, consistent results also require disciplined operating procedures. Regular cleaning and proper sealing are essential.

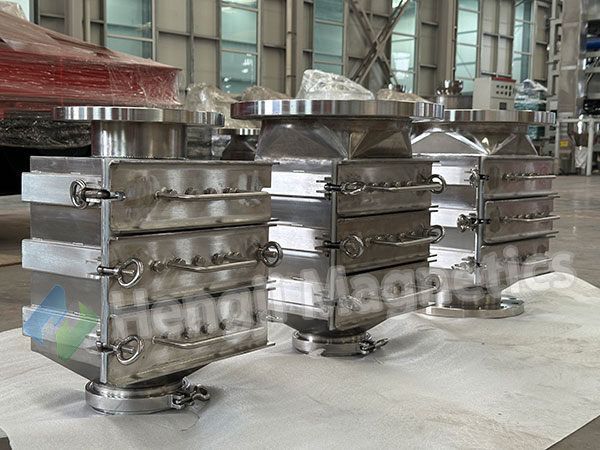

Your Reliable Guardian for Product Purity

Think of our permanent magnetic separator as a silent, vigilant guardian on your production line. It operates with zero energy consumption for separation. It provides unwavering protection for your highest-value powder streams. This makes it the most cost-effective and reliable form of quality insurance available.

Ready to Achieve Uncompromising Purity?

Do not let microscopic iron compromise your premium products. Discover how our purpose-built grate magnetic separator can solve your most demanding powder purification challenges. Contact our engineering team today for a detailed consultation. Let us specify the ideal permanent magnetic separator system for your critical application.
