High Intensity Ceramic Magnetic Separator: A Complete Solution to Iron Removal Challenges in Ceramic Raw Materials

2026-08-27

In the ceramic industry, iron impurities in raw materials are never a minor issue. Whether it is black spots in the body, discoloration in the glaze, or substandard product whiteness, the root cause often points in the same direction—insufficient iron removal. Many ceramic manufacturers have tried various iron removal equipment over the years, but results have often fallen short. Some lack sufficient field strength to capture fine iron powder. Others clog frequently, requiring constant shutdowns for cleaning. Still others simply cannot keep up with production line throughput. These pain points are well understood by every technical manager and procurement professional in the ceramic industry.

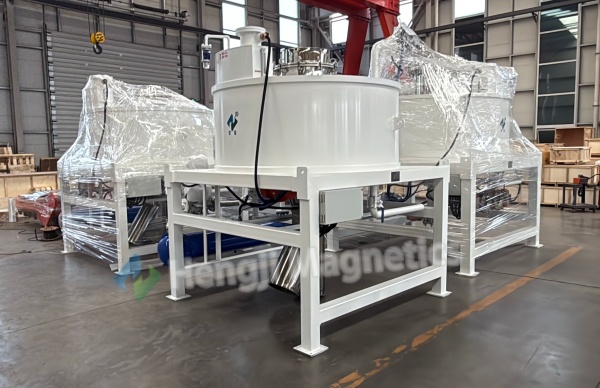

high intensity magnetic separator

Why Is Iron Removal in Ceramics So Difficult?

Iron impurities in ceramic raw materials take many forms. Some exist as free iron particles or filings, while others occur as weakly magnetic iron oxides embedded in the crystal lattice of minerals. Conventional permanent magnetic separators perform reasonably well on strongly magnetic iron filings, but they struggle with micron-sized, weakly magnetic iron oxides. To make matters worse, ceramic raw materials are generally fine-grained, and many separators clog easily when processing small particles. Material builds up in the magnetic zone, separation efficiency plummets, and carryover becomes severe—leading to raw material waste.

Ceramic manufacturers also face another pressure: cost. Equipment purchase costs, energy consumption, and maintenance expenses all directly affect final profit margins. In a highly competitive market, finding a way to achieve higher quality at lower cost is a constant challenge.

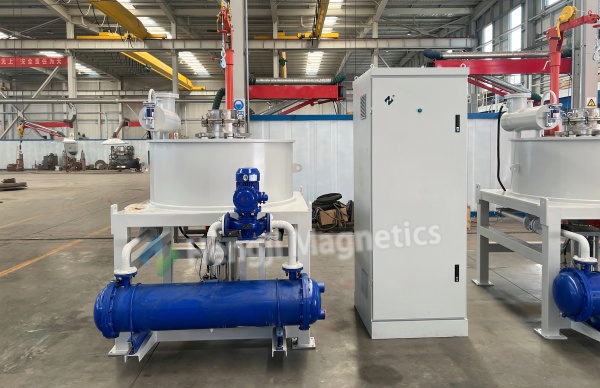

The High Intensity Ceramic Magnetic Separator: Integrating High-Intensity Technology with Ceramic-Specific Design

The high intensity magnetic separator designed as a ceramic magnetic separator was created specifically to solve these problems. It integrates the ultra-high field strength of high-intensity magnetic separation with the specific requirements of ceramic processing—cleanliness, continuous operation, and stable performance. This is not simply a combination of two machines; it is a complete, purpose-built solution for ceramic raw material iron removal.

The magnetic system of this ceramic magnetic separator uses advanced computer-optimized design with an opposed-pole arrangement, ensuring uniform field distribution across the working zone and maximizing capture area and capacity. The magnetic core is constructed entirely from high-strength rare earth Neodymium magnets—high purity, high volume, achieving peak field strengths up to 18,000 Gauss. What does this mean in practice? Even the most weakly magnetic iron particles in the material cannot escape capture—fine iron powder, weakly magnetic iron oxides—all are attracted and removed, delivering a qualitative improvement in ceramic raw material whiteness and purity.

The High Intensity Ceramic Magnetic Separator: Integrating High-Intensity Technology with Ceramic-Specific Design

Crucially, the high intensity ceramic magnetic separator fundamentally solves the clogging and carryover problems that have plagued traditional equipment when processing fine materials. A unique counter-current design separates material flow from the discharge system—non-magnetic material flows out by gravity, while magnetic particles are captured over an extended, multi-pass high-intensity field zone and then carried by the reverse-running discharge system to the iron outlet for complete rinsing. Throughout the process, material channels remain clear and unobstructed—clogging is eliminated.

How Does This High Intensity Ceramic Magnetic Separator Address Customer Concerns?

Question 1: How Effective Is the Iron Removal?

This is the core concern for every ceramic manufacturer. The high intensity magnetic separator achieves thorough iron removal through the combination of extreme field strength and an extended separation path. High-intensity magnetic fields are specifically designed to capture fine, weakly magnetic particles. Combined with the long, multi-pass adsorption zone, iron impurities have no place to hide. After processing, ceramic raw materials show significant whiteness improvement—glaze pinholes, discoloration, and other defects are greatly reduced, and finished product yield increases substantially.

How Does This High Intensity Ceramic Magnetic Separator Address Customer Concerns?

Question 2: Is the Equipment Stable and Durable? Can It Run Continuously for Long Periods?

Once a ceramic production line starts, operators want the equipment to keep up without frequent interruptions. The ceramic magnetic separator is designed for this. The magnetic system is fully sealed and oxidation-protected, ensuring less than 5% magnetic decay over ten years in harsh environments—meaning the unit delivers consistent iron removal for a decade. The variable-speed drive provides fully automatic continuous operation and iron discharge, saving labor and ensuring reliable, trouble-free performance. The unit can run 24/7 automatically, significantly reducing labor costs.

Question 3: Will the Equipment Cause Secondary Contamination?

This is a concern often overlooked but with serious consequences. If a separator's wetted parts are made of ordinary ferrous materials, wear over time introduces new iron particles into the product—defeating the purpose of iron removal. All product-contact parts of the high intensity ceramic magnetic separator are stainless steel or non-magnetic materials, eliminating secondary contamination at the source. Critical areas can also receive wear-resistant treatment for extended service life.

Question 4: Is the Investment Cost-Effective?

With ultra-high field strength (up to 18,000 Gauss), the high intensity magnetic separator costs only one-tenth of a conventional vertical ring high-gradient magnetic separator—offering value that traditional equipment cannot match. Low energy consumption, low maintenance requirements, and high automation further reduce total operating costs. For ceramic manufacturers, this means one investment delivers long-term returns.

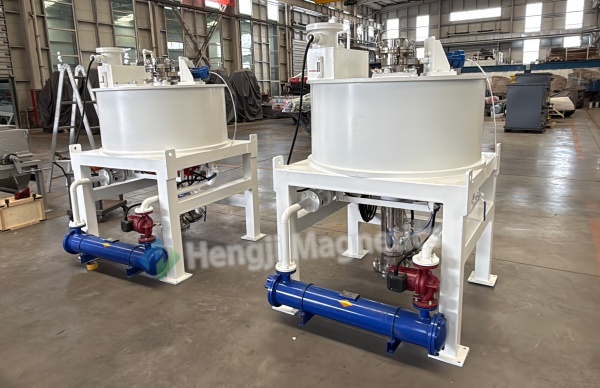

Why Choose the High Intensity Ceramic Magnetic Separator?

Customer Case Studies: From Headache to Confidence

Case 1: Large Ceramic Tile Manufacturer in Guangdong

This manufacturer produces polished tiles and interior wall tiles using a kaolin and feldspar blend. For years, product whiteness remained stuck at industry average levels, with occasional iron spots and discoloration limiting first-grade product yield. The company had tried multiple iron removal methods—magnetic rod boxes and electromagnetic separators—but results were unsatisfactory. Rod boxes had limited capture capacity, while electromagnetic units consumed high energy and required frequent maintenance.

After introducing the high intensity ceramic magnetic separator, the situation transformed completely. Whiteness increased by 3 to 5 colorimetric units, and first-grade product yield jumped from 82% to over 95%. The technical manager noted: "The reject losses we used to incur from iron contamination every month have virtually disappeared. The equipment runs stably with almost no manual intervention. We recovered our investment in less than a year."

Case 2: Daily-Use Ceramics Factory in Jiangxi

This factory produces bone china, which demands extremely high raw material whiteness and purity. Even trace iron impurities in the glaze would cause pinholes and discoloration, affecting product appearance and grade. Previously, the company relied on imported raw materials to maintain quality, with high procurement costs.

After using the ceramic magnetic separator to purify local raw materials, the company's raw material self-sufficiency rate increased significantly—imported material dropped from 70% to 20%. Processed raw materials fully met bone china production requirements, and per-ton raw material costs fell by nearly 40%. The factory manager commented: "We used to believe only imported materials could produce quality products. Now one machine has solved this problem."

Why Choose the High Intensity Ceramic Magnetic Separator?

The high intensity magnetic separator designed as a ceramic magnetic separator is not simply a combination of two technologies. It is a deep integration of the ultra-high field strength of high-intensity magnetic separation with the specific requirements of ceramic processing—fine iron removal, operational stability, and contamination prevention. It is one machine, one solution, one complete answer to the iron removal challenges in ceramic raw materials.

For ceramic manufacturers, choosing the high intensity ceramic magnetic separator means addressing multiple core issues—iron removal effectiveness, equipment stability, operating costs, and maintenance convenience—in a single investment. When raw material purity is no longer a bottleneck, product quality improvement has the strongest possible foundation.
