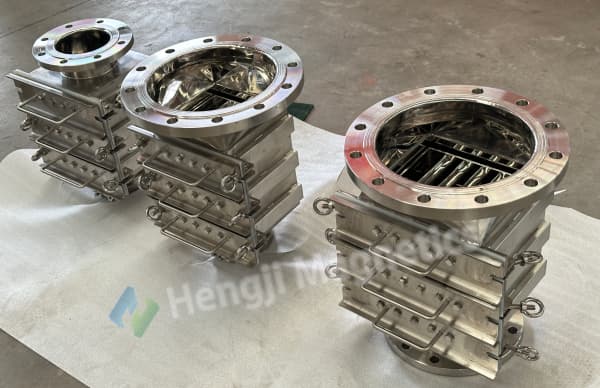

Magnetic Grate Separators: Achieving Zero Contamination with Food Grade Magnetic Separators

2025-11-13

In food processing, the term "zero contamination" represents the highest standard of product safety and quality. Our magnetic grate separators are specifically engineered to meet this challenge, providing comprehensive protection through advanced food grade magnetic separators technology. These systems address three critical aspects: eliminating metal contaminants from raw materials, preventing the equipment itself from becoming a contamination source, and ensuring thorough, hygienic cleaning processes.

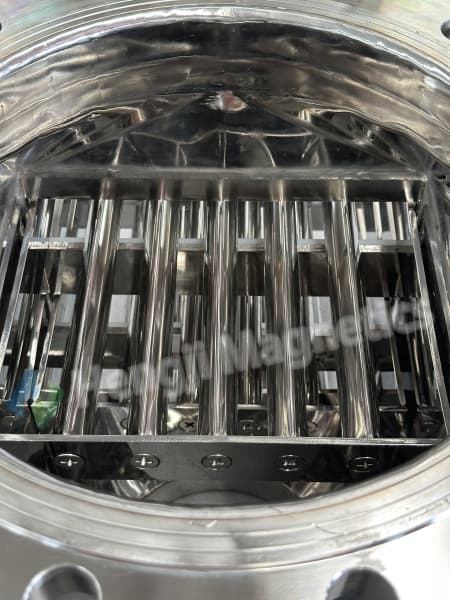

Premium Materials and Surface Finish: The Foundation of Safety

The first line of defense in our food grade magnetic separators begins with superior material selection. All product-contact surfaces utilize SUS 316L stainless steel, which offers enhanced corrosion resistance compared to standard grades. This premium material choice in our magnetic grate separators prevents metal ion migration and withstands exposure to acidic, alkaline, or chloride-containing food products.

The surface treatment of our food grade magnetic separators achieves mirror polish standards (Ra ≤ 0.8μm), creating exceptionally smooth surfaces that prevent material buildup and facilitate easy cleaning. This meticulous attention to detail in our magnetic grate separators ensures no bacterial harboring points exist, maintaining the highest hygiene standards throughout production cycles.

Premium Materials and Surface Finish: The Foundation of Safety

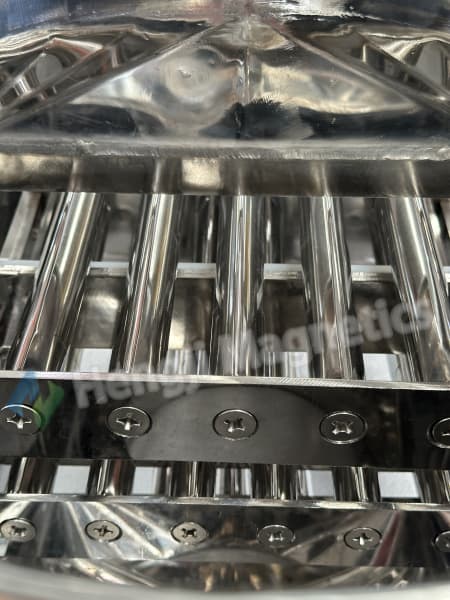

Fully Sealed Magnetic Bars: Eliminating Contamination Risks

The core innovation of our food grade magnetic separators lies in their completely sealed magnetic bar design. Each powerful neodymium magnetic rod in our magnetic grate separators is permanently encapsulated within food-grade stainless steel tubing, creating an absolute barrier between the magnetic source and processed materials.

This sealed construction in our magnetic grate separators prevents any possibility of magnetic material corrosion or contamination. The robust design of these food grade magnetic separators ensures structural integrity even under continuous operation in moist environments, guaranteeing lifetime protection against secondary contamination in your food products.

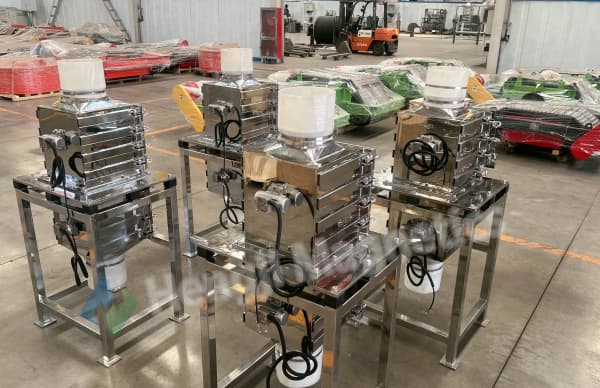

Sanitary Connections and Dead-Zone-Free Construction

Modern food processing demands equipment that supports Clean-in-Place protocols. Our magnetic grate separators feature sanitary quick-clamp connections and ISO standard flanges that create seamless transitions with your existing piping systems. These food grade magnetic separators are designed with radiused corners and smooth contours throughout, eliminating areas where product or cleaning solutions could accumulate.

The streamlined design of our magnetic grate separators ensures cleaning solutions and steam can effectively reach all surfaces during sanitation cycles. This thoughtful engineering in our food grade magnetic separators supports your facility's hygiene protocols while minimizing cleaning time and effort between production runs.

Sanitary Connections and Dead-Zone-Free Construction

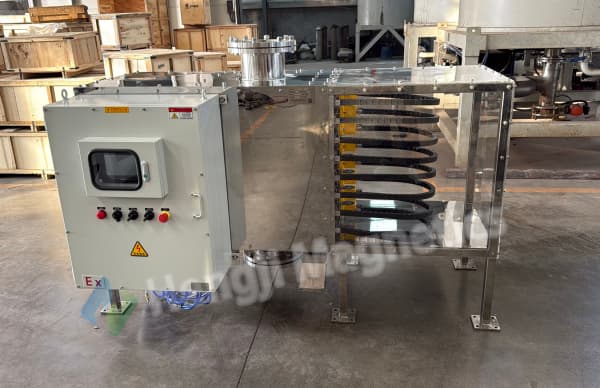

High-Efficiency Magnetic Array for Superior Protection

The functional excellence of our magnetic grate separators comes from their optimized magnetic configuration. Multiple sealed magnetic bars are arranged in parallel formation with minimal spacing, creating a comprehensive "magnetic fence" within these food grade magnetic separators. This dense magnetic array provides maximum exposure to magnetic forces as products flow through the system.

This advanced configuration in our magnetic grate separators captures even micron-sized ferrous and weakly magnetic stainless steel particles that conventional systems might miss. The design of these food grade magnetic separators ensures complete product protection while maintaining flow efficiency in high-capacity production environments.

Accessible Design and Safe Cleaning Procedures

Maintaining zero contamination standards requires equipment that supports simple, effective cleaning procedures. Our magnetic grate separators feature drawer-style or door-access designs that allow complete removal of the magnetic assembly from the housing. This accessibility in our food grade magnetic separators enables visual inspection and thorough manual cleaning of every magnetic tube.

Safety protocols for our magnetic grate separators emphasize using non-ferrous tools and appropriate personal protective equipment during cleaning. These procedures for our food grade magnetic separators prevent surface damage to polished finishes while ensuring operator safety during maintenance activities.

Commitment to Food Safety Excellence

Every design aspect of our magnetic grate separators reflects our commitment to achieving true zero contamination in food processing. From material selection and surface finishes to magnetic configuration and cleaning accessibility, these food grade magnetic separators provide comprehensive protection for your products and brand reputation.

Ready to enhance your food safety program? Contact us today to learn how our magnetic grate separators can provide the ultimate protection for your production line. Our specialists will help you select the perfect food grade magnetic separators configuration for your specific application and processing requirements.
