Magnetic Separator for Belt Conveyor – Self-Cleaning Design for True Non-Stop Iron Removal

2026-08-31

On continuous production lines in mining, building materials, power generation, and coal preparation, ferrous contamination in conveyed materials is almost inevitable. Excavator teeth, bolts, steel bars, and wire—once they enter downstream equipment—can jam crushers, damage grinding mills, or tear conveyor belts. Each failure means costly downtime and lost production. More operations are recognizing that a reliable magnetic separator for belt conveyor is essential for production line safety. The self cleaning magnetic separator, particularly with self-cleaning capability, is becoming the key solution to this persistent challenge.

Why a Self-Cleaning Magnetic Separator for Belt Conveyor Is Essential

A magnetic separator for belt conveyor is typically installed at the head or middle section of belt conveyors. Its strong magnetic field lifts ferrous contaminants from non-magnetic bulk materials—preventing longitudinal belt tearing and protecting crushers and grinding mills. It is widely used in power, mining, metallurgy, building materials, coal preparation, and chemicals. The magnetic circuit is computer-optimized for high field strength and deep penetration, making it suitable for iron removal from thick material layers.

The working principle is straightforward yet effective. As material passes beneath the self cleaning magnetic separator, the powerful magnetic field attracts ferrous particles to the bottom working face. The captured iron is then carried away by the continuously moving discharge belt and ejected into a collection bin. This automatic process ensures that tramp iron is removed before it can cause damage to downstream equipment, significantly reducing the risk of costly repairs and unplanned downtime.

The Core Problem: Easy to Remove, Hard to Clear – Solved by Self-Cleaning Magnetic Separator

Why a Self-Cleaning Magnetic Separator for Belt Conveyor Is Essential

However, customers face a core problem: removal is easy, but clearing the captured iron is not. Traditional methods require manual cleaning of accumulated tramp metal—increasing labor costs and forcing production stops. On high-volume, continuous lines, the capacity loss from frequent stoppages is significant. Even short interruptions can compound over time, leading to substantial productivity losses that directly impact the bottom line.

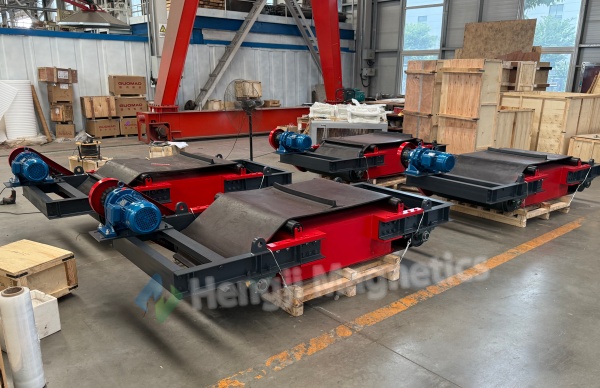

The self cleaning magnetic separator was designed to solve this. It adds a self-cleaning discharge mechanism to the separator body, consisting of a frame, geared motor, drive and tail pulleys, idlers, belt pulleys, V-belts, and a discharge belt with scrapers. In operation, the magnetic separator for belt conveyor lifts ferrous contaminants to the bottom working face. The discharge belt, driven continuously by the geared motor, uses scrapers to forcibly eject captured iron into a collection bin—achieving fully automatic removal.

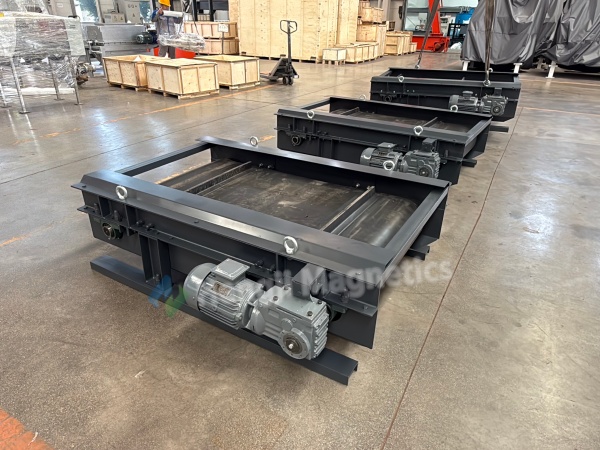

Key Features of the Self-Cleaning Magnetic Separator for Belt Conveyor

Belt tension and tracking adjustments are made without stopping production, using bearing adjustment devices—eliminating downtime for belt service. The crowned drive drum provides automatic belt tracking, preventing misalignment during high-speed operation. A rubber scraper at the discharge end—integrated with the endless belt—prevents captured iron from re-entering the magnetic field and avoids damage from external metal scrapers. This thoughtful design ensures that the self cleaning magnetic separator operates reliably even in demanding conditions.

The magnetic separator for belt conveyor offers two installation options: inclined mounting at the head pulley uses material trajectory to assist iron capture; horizontal mounting positions the discharge belt perpendicular to the main conveyor—suitable for installation above the belt, picking stations, or vibrating screens. Both configurations allow the self cleaning magnetic separator to adapt to different plant layouts and material handling requirements.

Customer Case Study: Self-Cleaning Magnetic Separator for Belt Conveyor in Action

A building materials manufacturer had long suffered from tramp iron contamination. Crushers required monthly maintenance stops due to iron-related damage, with high repair costs and frequent production interruptions. The plant operated around the clock, so any downtime directly affected output and delivery schedules.

Conventional separators required manual cleaning multiple times per shift, adding to labor costs and creating safety hazards for workers.

After installing a self cleaning magnetic separator from a reputable manufacturer at the conveyor head, the self-cleaning mechanism continuously captured and ejected tramp iron without manual intervention or production stops. Since installation, downstream equipment failures from tramp iron have been eliminated. The line runs continuously and stably, saving hundreds of thousands in annual repair costs and significantly improving production efficiency. Plant managers reported that the investment was recovered within the first year of operation.

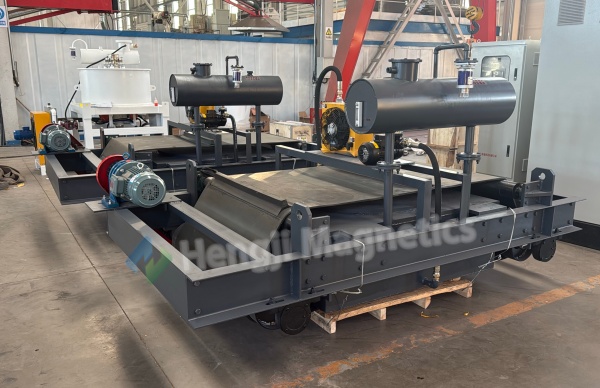

Maintenance Made Simple for Your Magnetic Separator for Belt Conveyor

The magnetic separator for belt conveyor with self cleaning magnetic separator design is built for easy maintenance. Routine checks are limited to cleaning dust from the unit and periodic bearing lubrication. The discharge belt is a wear part—replace it when necessary, ensuring the belt direction matches the drum tangent, with proper tension to avoid over-tightening or slack. Regular inspection of the scrapers and drive components ensures long service life and consistent performance.

Conclusion: Choose the Self-Cleaning Magnetic Separator for Belt Conveyor

For operations pursuing continuous, stable production, the magnetic separator for belt conveyor with self cleaning magnetic separator technology is both a protective barrier and a productivity enabler. It eliminates manual cleaning stops, protects downstream equipment, and ensures production lines run without interruption. If tramp iron is a concern on your conveyor line, this equipment deserves serious consideration.
