Self-Cleaning Overband Magnetic Separator: A Reliable Choice for Industrial Iron Removal and Purification

2026-08-13

On production lines in mining, building materials, ceramics, metallurgy, power generation, and coal preparation, ferrous contamination is a persistent pain point that affects product quality and equipment safety. Removing these iron impurities efficiently and reliably is a challenge every production manager faces. The self-cleaning magnetic separator configured as an overband magnetic separator is a proven solution designed to meet this challenge head-on.

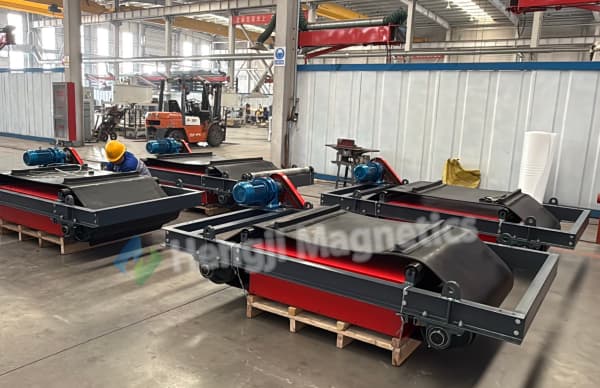

How It Works: Simple, Reliable, and Effective

The operating principle of a self-cleaning overband magnetic separator is straightforward, yet highly effective. As material passes beneath the unit on a belt conveyor or vibratory feeder, ferrous contaminants are instantly lifted out of the flow by a powerful magnetic field. A continuously running discharge belt then carries the captured iron away from the magnetic field and ejects it into a collection bin. Non-magnetic material continues along its normal path. This entire process is fully automatic—no manual intervention, no production stops.

The magnetic system of the overband magnetic separator is designed with a dual-pole structure that ensures maximum lifting force across the entire working distance. The large magnetic pole surface area provides sufficient exposure time for effective capture, even when material moves at high belt speeds. Whether it is large tramp iron buried deep in the material or fine iron dust, the self-cleaning magnetic separator removes it reliably, protecting downstream equipment and preserving product purity.

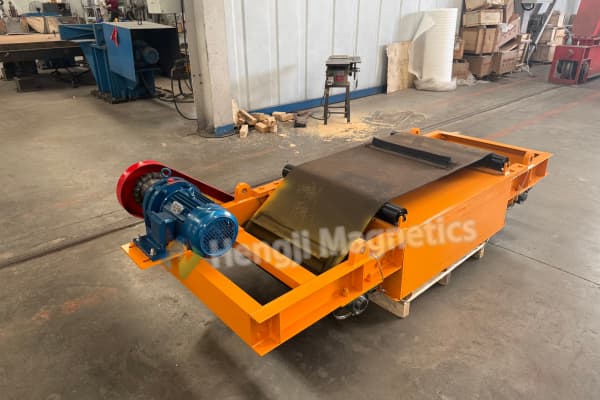

Addressing Your Core Concerns

1. Can the Separation Efficiency Be Guaranteed?

Yes. A self-cleaning overband magnetic separator uses high-performance permanent magnets (such as Neodymium) to generate a powerful, computer-optimized magnetic circuit. Its dual-pole structure ensures maximum lifting force across the entire working distance. With a large magnetic pole surface area, even fast-moving material on the belt has sufficient exposure time for effective capture. Whether it is large tramp iron buried deep in the material or fine iron dust, the overband magnetic separator removes it reliably. The field strength is sufficient to lift iron objects ranging from small fines to heavy tramp metal weighing several kilograms, ensuring comprehensive protection for your production line.

2. Is the Equipment Reliable in Harsh Industrial Environments?

Absolutely. The self-cleaning magnetic separator is built for continuous operation in demanding conditions—dust, moisture, heavy loads, and temperature variations. Its heavy-duty construction ensures long-term, trouble-free performance. Belt tension and tracking adjustments can be made without stopping production, using the bearing adjustment mechanism. This feature minimizes downtime and keeps your line running smoothly. The fully sealed housing provides protection against dust, rain, and corrosion, making the overband magnetic separator suitable for both indoor and outdoor installations. The robust design includes corrosion-resistant materials and sealed bearings that extend service life even in the most challenging environments.

3. Is Maintenance Complicated or Costly?

Not at all. Low maintenance is a key advantage of the self-cleaning magnetic separator. The compact design consumes minimal power, and the permanent magnet core requires no excitation energy—significantly reducing operating costs. Routine maintenance is limited to periodic cleaning of accumulated iron from the magnetic system and checking the drive motor and belt condition. The unit runs reliably for extended periods with minimal attention. The discharge belt is designed for long service life, with easy replacement when necessary. Overall, the overband magnetic separator offers exceptional reliability with very low total cost of ownership.

Why Choose a Self-Cleaning Overband Magnetic Separator?

4. How Versatile Is the Overband Magnetic Separator?

The self-cleaning overband magnetic separator is widely used across mining, metallurgy, building materials, ceramics, coal preparation, chemicals, and power generation. It can be installed at the head or middle of a belt conveyor, or above vibrating feeders and chutes. Whether processing lump or powdered materials, the overband magnetic separator delivers consistent iron removal. It also protects conveyor belts from longitudinal tearing and safeguards downstream crushers and mills from metal damage—reducing unplanned downtime and costly repairs. The unit can be customized with different suspension options to fit various conveyor configurations and space constraints.

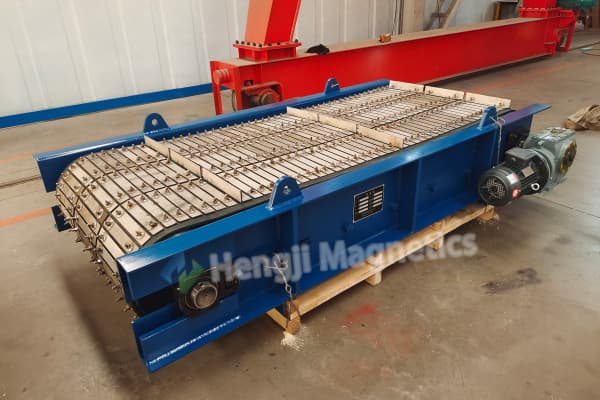

Why Choose a Self-Cleaning Overband Magnetic Separator?

The self-cleaning magnetic separator with overband magnetic separator design excels across four critical dimensions: separation efficiency, operational stability, maintenance cost, and application versatility. It automates the entire iron removal process—once started, it runs without supervision, automatically separating and discharging ferrous contaminants as material flows through. This saves labor costs and ensures continuous production. The energy-efficient permanent magnet design eliminates power consumption for field generation, further reducing operating expenses.

The overband magnetic separator is also designed with safety in mind. The self-cleaning mechanism eliminates the need for manual intervention in the magnetic field area, reducing the risk of accidents. The robust construction ensures safe operation even in high-vibration environments. With a service life exceeding ten years for the magnetic core, the self-cleaning magnetic separator offers long-term value and peace of mind.

Conclusion

For modern manufacturers pursuing high quality, high efficiency, and low operating costs, the self-cleaning overband magnetic separator is a trustworthy solution for iron removal and purification. If ferrous contamination is a concern on your production line, this equipment deserves your serious consideration. From mining to recycling, from bulk handling to fine powder processing, the overband magnetic separator consistently delivers reliable performance, helping you protect equipment, improve product quality, and reduce operating costs.
