Overhead Iron Ore Magnetic Separator: Boosting Pre-Concentration Efficiency from the Source

2026-07-14

In iron ore beneficiation, improving feed grade and reducing processing costs are the core objectives for every concentrator. If run‑of‑mine ore containing waste rock and low‑grade material is fed directly into the grinding circuit, it wastes energy and grinding media while compromising downstream separation efficiency and concentrate quality. Traditional pre‑concentration methods often rely on manual sorting or simple gravity separation—inefficient and imprecise. The overhead magnetic separator designed as an iron ore magnetic separator offers an efficient, automated solution to this challenge. Suspended above the conveyor line or at the head pulley, it uses a powerful magnetic field to separate gangue and waste rock from iron ore, achieving coarse‑fraction pre‑concentration. This overhead iron ore magnetic separator embeds pre‑concentration directly into the conveying stage, making "convey‑as‑you‑pre‑concentrate" a reality and significantly improving process integration.

How the Overhead Iron Ore Magnetic Separator Achieves Efficient Pre‑Concentration

The core strength of this iron ore magnetic separator lies in the precise match between its magnetic circuit design and magnetic system configuration. For strongly magnetic minerals like magnetite, the overhead magnetic separator uses a unique magnetic circuit to improve concentrate grade while effectively controlling tailings loss. The internally computer‑optimized magnetic circuit delivers high field strength and deep penetration, capturing fine iron particles to large ore chunks weighing several kilograms.

For weakly magnetic ores such as hematite and limonite, the iron ore magnetic separator can be equipped with electromagnetic excitation or high‑gradient matrices to generate stronger field gradients. The overhead magnetic separator is available in permanent or electromagnetic versions—permanent type offers zero‑energy, maintenance‑free operation; electromagnetic type allows adjustable field strength to suit varying ore grades and magnetic properties, truly achieving "one machine, multiple applications."

Key Customer Concerns About the Overhead Iron Ore Magnetic Separator

Throughput and Separation Performance

Iron ore processing involves large tonnages and wide particle size ranges (typically 0‑12 mm or larger). The overhead magnetic separator uses a variable‑frequency drive for speed control, achieving 1.5 times the throughput of standard units. Its unique material splitting structure allows flexible control of concentrate and tailings grade. For magnetite, the iron ore magnetic separator achieves very high capture rates, upgrading low‑grade ore by several percentage points in a single pass and significantly reducing downstream grinding and magnetic separation costs.

Installation Flexibility and Space Adaptability

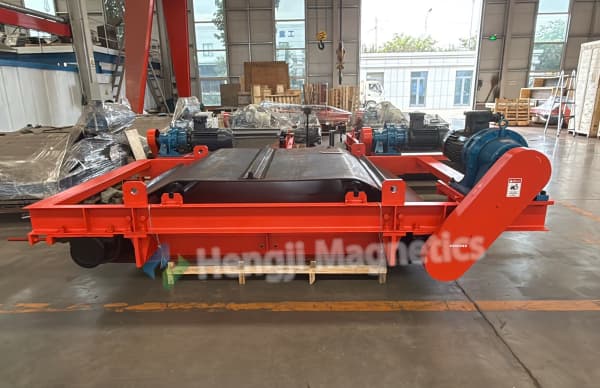

Conveyor layouts are usually fixed, so ease of integration affects project feasibility. The overhead magnetic separator offers flexible installation—suspended above the conveyor head or mid‑section, with bearing supports fixed and adjusted to level the drum centerline. Its compact footprint suits retrofit projects. The fully sealed, rugged construction adapts to dusty, high‑humidity mining environments. The iron ore magnetic separator consists of the separator body (magnetic system) and discharge mechanism, with a well‑designed magnetic circuit suitable for thick‑burden pre‑concentration.

Stability and Maintenance Convenience

Concentrators typically run 24/7, so equipment reliability is critical. The overhead magnetic separator discharge mechanism includes a frame, worm‑geared motor, drive and tail pulleys, and a discharge belt with scrapers. Belt tension and tracking adjustments are made without stopping the line. Permanent models require no external power, eliminating coil overheating risks; electromagnetic models feature silicon‑controlled rectifier control with intelligent protection (over‑temperature, over‑current alarms). Daily maintenance is limited to belt inspection and bearing greasing.

Applications of the Overhead Iron Ore Magnetic Separator

Economic Value and Return on Investment

While the initial cost of an iron ore magnetic separator may exceed some conventional pre‑concentration equipment, its lifecycle economics are compelling. By pre‑discarding waste, it reduces the tonnage fed to grinding, cutting energy consumption, media costs, and increasing mill throughput. The savings in energy and media over the separator's service life, plus increased concentrate production from higher feed grade, far exceed the equipment investment. This "small investment, big return" characteristic makes the overhead magnetic separator a key asset for concentrator profitability.

Applications of the Overhead Iron Ore Magnetic Separator

The overhead magnetic separator for iron ore magnetic separator applications is widely used in:

Magnetite ores: Pre‑concentration before grinding to upgrade feed grade and reduce downstream load.
Hematite and limonite ores: High‑intensity separation to recover weakly magnetic iron values.
Mixed iron ores: Separating magnetic and non‑magnetic fractions to improve overall recovery.
Scrap and tailings reprocessing: Recovering iron values from waste streams.

Conclusion

The overhead magnetic separator configured as an iron ore magnetic separator delivers efficient, automated pre‑concentration from the conveyor line. With high field strength, flexible installation, low maintenance, and exceptional economic returns, it helps concentrators reduce costs, improve feed grade, and increase profitability. For any operation seeking process optimization and competitive advantage, a reliable overhead iron ore magnetic separator is the strategic choice for integrating pre‑concentration and magnetic separation at the source.
