In mining, mineral processing, metallurgy, and non-metallic ore industries, efficiently separating valuable magnetic minerals while removing ferrous impurities and gangue to improve concentrate grade is a core challenge. The permanent magnetic drum separator—with its high field strength, deep penetration, simple structure, maintenance-free operation, and zero power consumption—is widely used in mineral beneficiation and iron removal. This permanent magnetic drum separator combines the rotation of a permanent magnetic drum with a powerful magnetic field, precisely capturing magnetic minerals on the drum surface while non-magnetic minerals separate by gravity and centrifugal force—achieving efficient, high-precision separation. The permanent magnetic drum separator has become a core equipment for mineral purification in modern concentrators, thanks to its unique physical separation principle and outstanding reliability in magnetic separation of minerals.

How the Permanent Magnetic Drum Separator Improves Mineral Beneficiation

The design of this permanent magnetic drum separator focuses on the core concerns of mineral processors, delivering separation efficiency and economic returns through advanced technology.

Enhancing Concentrate Grade and Reducing Impurities

In processing strongly magnetic minerals—magnetite, pyrrhotite, roasted ore—and in iron removal from non-metallic ores (quartz, feldspar, kaolin), the permanent magnetic drum separator uses a unique rotating drum design and optimized magnetic circuit to achieve efficient, precise separation. As mineral material enters the magnetic field, magnetic particles are attracted to the drum surface and carried out of the field, while non-magnetic particles pass through freely by gravity and centrifugal force, discharging from the tailings outlet. This design enables the magnetic separation of minerals process to achieve "high discard, low loss" purification targets across different particle sizes—improving concentrate grade and reducing processing costs. In wet applications, the permanent magnetic drum separator is typically used with a tank, where slurry flows through to achieve effective separation.

Magnetic Field Strength and Separation Precision

The core of the permanent magnetic drum separator lies in its magnetic field strength and distribution. The drum uses a composite magnetic system of high-performance permanent magnets, offering high field strength, deep penetration, and no demagnetization over years of service. Surface field strength ranges widely—standard models typically 150-250 mT, special models up to 300-600 mT, customizable to customer requirements. This configurable field strength allows the permanent magnetic drum separator to handle everything from strongly magnetic to weakly magnetic minerals with high precision and reliable performance in magnetic separation of minerals.

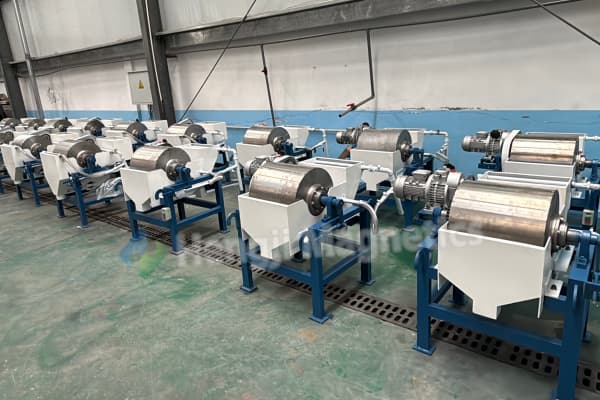

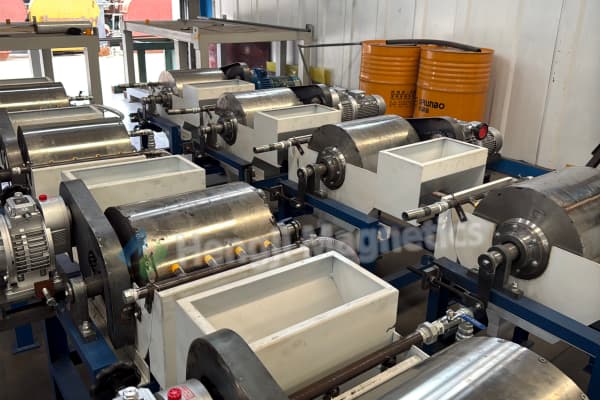

How the Permanent Magnetic Drum Separator Improves Mineral Beneficiation 1

Durability and Low Maintenance

The permanent magnetic drum separator is built for heavy-duty, continuous operation in harsh environments. The drum is rolled from stainless steel plate, supported on the shaft through end covers, bearing housings, and bearings, with a drum-to-magnetic system gap not exceeding 4 mm to ensure effective field transfer. The drum surface is available in plain stainless steel or rubber-lagged (plain, chevron, diamond pattern), directly vulcanized with high-wear rubber for long service life. The drive uses a cycloidal gearmotor, sprocket, chain, and drive shaft for smooth, reliable rotation. Daily maintenance is limited to greasing bearings with #2-#4 calcium-based grease monthly (fill to 2/3 capacity). Overall maintenance is low and straightforward.

Adaptability to Mineral Characteristics and Particle Size

The permanent magnetic drum separator allows flexible adjustment of the magnetic angle to suit different mineral characteristics. A magnetic angle adjustment mechanism—turning the nut on the pull rod to change the magnetic angle—enables operators to adapt to variations in ore properties across different deposits, maintaining stable separation performance. For wet applications, the tank is specially designed to resist plugging and material loss, with three tank types—semi-counter-current, concurrent, and counter-current—to suit different particle sizes, ensuring smooth slurry flow and effective separation.

Installation Flexibility and Space Adaptability

The permanent magnetic drum separator has a compact design. The frame is a welded structural member supporting the full weight of the unit, secured to the foundation with anchor bolts. The feed box is designed to generate proper slurry flow, significantly improving recovery. The unit integrates easily with existing beneficiation lines without complex civil work.

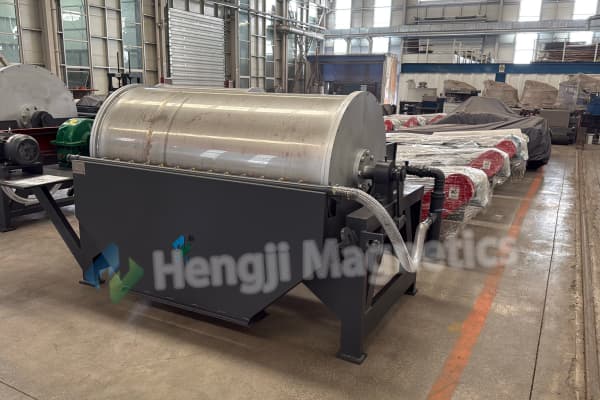

Applications of the Permanent Magnetic Drum Separator

The permanent magnetic drum separator is widely used in mineral processing applications:

Iron ore beneficiation: Upgrading magnetite, pyrrhotite, and roasted ores.
Non-metallic mineral purification: Removing iron from quartz, feldspar, kaolin, and other industrial minerals.
Coal processing: Recovering magnetite heavy media and removing tramp iron.
Scavenging and cleaning: Recovering magnetic values from tailings or intermediate streams.

Conclusion

The permanent magnetic drum separator is an essential tool for efficient magnetic separation of minerals. With high field strength, durable construction, flexible magnetic angle adjustment, and low maintenance, it helps concentrators improve grade, reduce impurities, and cut operating costs. For any operation committed to resource efficiency and cost-effective beneficiation, a reliable permanent magnetic drum separator is the strategic choice—maximizing value from every ton of mineral processed.
