Rare Earth Dry Drum Magnetic Separator: Rare Earth-Level Magnetic Force for Dry Processing

2026-09-30

In iron ore dry processing, non-metallic mineral iron removal, and dry powder purification, customers face a common challenge: ordinary dry drum magnetic separator units have limited field strength and struggle to capture weakly magnetic impurities and fine iron powder. Customers repeatedly ask: Can strong magnetic force be achieved in dry processing? Can deeply buried tramp iron be effectively lifted? Will the magnetic field decay over time? Are energy consumption and maintenance controllable? The rare earth drum magnetic separator was developed to meet these exact needs.

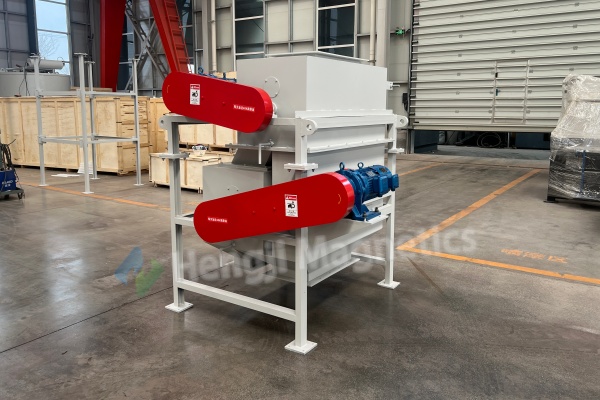

What Is a Rare Earth Drum Magnetic Separator?

A rare earth drum magnetic separator is a magnetic separation device that continuously and automatically removes iron from dry powders. It features automatic feeding and a steplessly adjustable magnetic roller speed. The dry drum magnetic separator is compact, energy-efficient, and easy to install and operate. Its magnetic roller uses a computer-optimized magnetic circuit with high-performance Neodymium magnets as the magnetic source. The roller surface delivers strong field strength, high lifting force, and high iron removal efficiency. The rare earth drum magnetic separator is maintenance-free, energy-saving, safe, and reliable. The vibratory feeder uses elastic supports for long service life and effective resonance avoidance, meeting the feeding requirements of different particle sizes.

How the Dry Drum Magnetic Separator Works in Rare Earth Separation

The dry drum magnetic separator works on differences in magnetic susceptibility between minerals. When feed material enters the separation zone, particles are acted upon by magnetic and mechanical forces—gravity, centrifugal force. Minerals with different magnetic properties follow different paths, achieving separation. The drum rotates along its centerline. Material is thrown out tangentially under gravity. Magnetic particles, acted upon by magnetic force greater than gravity, move with the drum surface. Beyond the magnetic field range, they detach by gravity and centrifugal force, completing separation. The rare earth drum magnetic separator uses a high-performance rare earth magnetic system with high field strength, deep penetration, and no demagnetization over years of use.

Key Features of the Rare Earth Drum Magnetic Separator

The rare earth drum magnetic separator offers several key advantages:

Strong magnetic field: High-performance Neodymium magnets and a computer-optimized circuit deliver high field strength and deep penetration.
No demagnetization: The rare earth composite magnetic system maintains full strength for over ten years.
Wide field strength range: Standard models reach 150–250 mT. Special models achieve 300–600 mT and can be customized.
Quality guarantee: The core magnetic circuit carries a quality guarantee.

Adjustable roller speed: Stepless speed control adapts to different materials and throughput requirements.
Effective vibration feeding: Elastic vibratory supports ensure long service life and consistent feed for different particle sizes.
Easy installation: The dry drum magnetic separator installs directly on level ground with reliable grounding.
Simple maintenance: Clear discharge port layout—rear port for iron, front port for non-magnetic material.
Energy efficient: No power consumption for field generation—saving energy.

These features make the rare earth drum magnetic separator a dependable choice for dry powder processing.

Customer Case: Rare Earth Dry Drum Magnetic Separator in Iron Ore Processing

An iron ore processing company struggled with unsatisfactory dry pre-concentration and tailings discard. Magnetic iron content in tailings was high. After introducing the rare earth drum magnetic separator, ore was fed evenly through the vibratory feeder. Under the strong magnetic field, deeply buried magnetic iron minerals were effectively captured and carried out of the magnetic zone as the drum rotated. Discharge was completed via scraper.

After the upgrade, concentrate grade improved significantly. Tailings iron content dropped sharply. Because the dry drum magnetic separator requires no external power to generate the magnetic field, operating energy consumption was significantly reduced. Overall economic benefits improved markedly. This case demonstrates the practical value of the rare earth drum magnetic separator in real-world production.

Applications of the Rare Earth Drum Magnetic Separator

The rare earth drum magnetic separator is widely used for iron removal from dry powders in abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, and chemical raw materials. It is also used for dry pre-concentration and tailings discard of iron ore, as well as dry purification of weakly magnetic minerals.

The dry drum magnetic separator is suitable for both new plants and retrofits. It can be installed directly on level ground with reliable grounding. Operators can check drum rotation direction through the viewing port. Feed gate opening and roller speed are adjustable based on hourly throughput. The bottom discharge ports are clearly arranged—rear port for iron collection, front port for non-magnetic product. If belt misalignment occurs, it is easily corrected by adjusting the bearing housing bolts. This simple maintenance feature keeps the rare earth drum magnetic separator running reliably.

Conclusion: Choose the Rare Earth Dry Drum Magnetic Separator

If your dry separation process suffers from insufficient magnetic force, the rare earth drum magnetic separator deserves serious consideration. It delivers rare earth-level magnetic force, automatic continuous operation, and maintenance-free reliability—making dry separation more effective.

From iron ore dry pre-concentration to non-metallic mineral purification, from abrasives to chemical powders, the dry drum magnetic separator and rare earth drum magnetic separator are improving dry separation performance. Contact us today for a free application review and find the right rare earth drum magnetic separator for your production line.
