The Evolution of Reliability: How Coil Innovation Built a Tougher Electro Magnetic Separator

2026-01-08

The heart of any electro magnetic separator is its electromagnetic coil. The quest for greater durability in harsh industrial environments has driven significant evolution in coil insulation and construction. This journey from basic, open designs to today's fully sealed systems represents a fundamental leap in reliability for electro magnetic separation equipment. Understanding this evolution reveals why modern systems offer unmatched performance and longevity.

The Early Challenge: Exposed Coils and Environmental Risk

Early generations of electro magnetic separator technology faced a core vulnerability. Coils, often protected only by Class F (155°C) insulation on the wire itself, relied on air circulation for cooling. This "open" or semi-open design left them exposed to the very elements they operated in.

The Problem: Moisture, conductive dust, and corrosive gases could infiltrate the windings.
The Result: This led to insulation degradation, short circuits, and premature coil failure, causing unexpected downtime in critical processes like mining or material handling.

The Early Challenge: Exposed Coils and Environmental Risk

The Reliability Breakthrough: Vacuum Encapsulation

The pivotal advancement in electro magnetic separation technology was the adoption of Vacuum Pressure Impregnation (VPI) or vacuum potting. This process transforms the coil from a vulnerable assembly into a solid, monolithic component.

The Process: The wound coil is placed in a vacuum chamber, where all air is removed from between the windings. It is then flooded with a thermosetting epoxy resin that completely fills every microscopic space.
The Outcome: The coil becomes a single, sealed block of insulation, achieving what technical manuals describe as "complete isolation from air."

How Sealed Coils Transform Separator Performance

This evolution directly tackles the primary failure modes of earlier designs, delivering concrete improvements for any electro magnetic separator application.

1. Unmatched Environmental Defense

Moisture & Dust Proof: The solid epoxy barrier is impervious to humidity, water spray, and abrasive or conductive dust. This allows the electro magnetic separator to reliably operate in environments with up to 90% relative humidity and heavy particulate matter.
Corrosion Resistance: Sealed coils resist corrosive industrial atmospheres, dramatically extending service life in chemical plants or coastal facilities.

2. Enhanced Mechanical Ruggedness

Vibration & Shock Resistance: The potted coil cannot move or abrade internally. It withstands the constant vibration of conveyors and material impact, eliminating a major cause of winding failure and maintaining consistent magnetic field strength.

3. Stable Thermal Management

Predictable Heat Dissipation: While epoxy is not a top conductor, it creates a stable, uniform thermal path from the windings to the external cooling fins or housing. This prevents localized hot spots.
Synergy with High-Temp Insulation: Combined with the inherent 155°C rating of Class F insulation, this design ensures stable operation within safe thermal limits, even during continuous duty cycles.

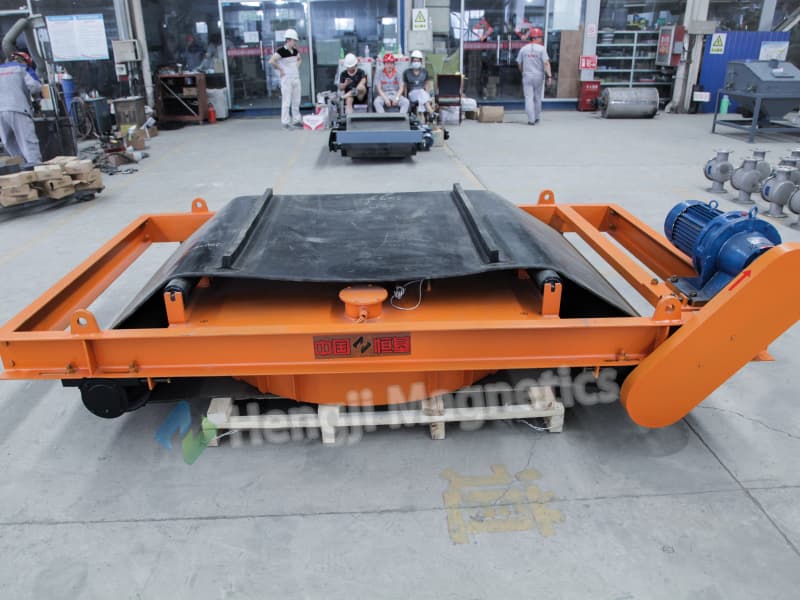

How Sealed Coils Transform Separator Performance1

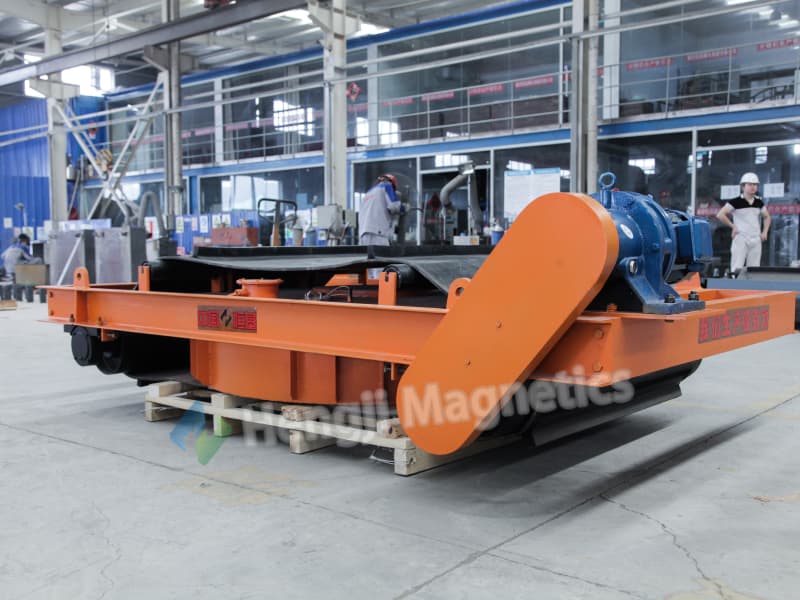

How Sealed Coils Transform Separator Performance 2

The Advanced Stage: Active Cooling for Peak Demand

For high-power electro magnetic separation applications, the evolution continued. Building on the foundation of a sealed coil, engineers integrated active cooling systems.

Oil-Cooled (RCDF-type) and Force-Air Cooled (RCDC-type) Separators: These systems circulate coolant directly around the encapsulated coil.
The Benefit: They manage the intense heat generated by powerful magnets, enabling higher magnetic strength and 100% duty cycle operation without thermal overload. This represents the peak of reliability for demanding electro magnetic separator installations.

The Tangible Results for Your Operation

This technological journey translates into direct benefits that impact your bottom line.

Dramatically Reduced Downtime: Eliminating environmental and vibration-induced coil failures means your electro magnetic separator stays online, protecting your process continuity.
Lower Total Cost of Ownership: With extended service life and minimal maintenance (no coil drying or cleaning), operational costs plummet.
Consistent Performance: A stable coil delivers a consistent magnetic field, ensuring uniform electro magnetic separation efficiency year after year.
Wider Application Range: This ruggedness allows deployment in previously unsuitable wet, dusty, or corrosive environments, expanding your operational flexibility.

Conclusion: The Foundation of Modern Magnetic Separation

The shift from air-cooled, exposed coils to vacuum-encapsulated, environmentally sealed units is not a minor detail—it is the cornerstone of modern electro magnetic separator reliability. It solved the historical Achilles' heel of the technology, transforming it from a precision electrical component into a durable industrial workhorse.

When evaluating an electro magnetic separator, the coil's construction is a critical indicator of its long-term value. A vacuum-encapsulated coil is a promise of resilience, signaling a device built for the realities of industrial life, not just laboratory specifications.
