Dry Drum Iron Ore Magnetic Separator: Improve Feed Grade & Reduce Costs in Dry Pre-Concentration

2026-10-13

In iron ore processing, customers often face a common challenge: dry powder ore grades fluctuate widely, and feeding directly into the mill significantly increases energy consumption and processing costs. Traditional wet magnetic separation requires large amounts of water and additional dewatering processes. Customers repeatedly ask: Can dry processing effectively improve feed grade and reduce costs? Is throughput large enough? Can concentrate grade and tailings loss be flexibly controlled? Will the magnetic field decay over time? The dry drum magnetic separator designed as an iron ore magnetic separator addresses these exact needs. This article explains how this equipment delivers efficient, cost-effective dry pre-concentration.

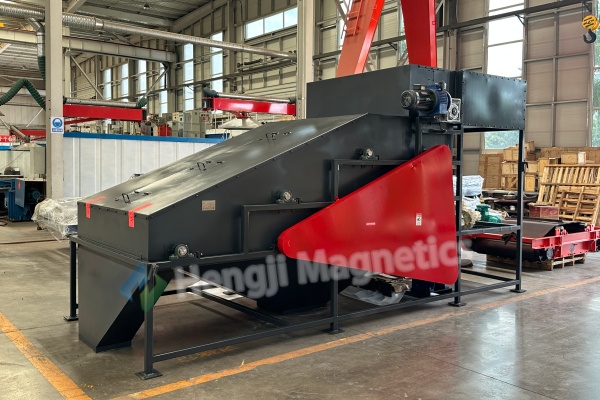

Why Dry Drum Magnetic Separator for Iron Ore Pre-Concentration?

A dry drum magnetic separator is a magnetic separation device that continuously and automatically removes iron from dry powders. As a dedicated iron ore magnetic separator, it is mainly designed for pre-concentration of magnetite and dry powder ores. It effectively improves feed grade, reduces beneficiation costs, and increases production efficiency. The dry drum magnetic separator delivers excellent separation results. Its unique magnetic circuit design improves concentrate grade while effectively controlling tailings loss. Throughput is large. A variable frequency drive controls working speed, achieving 1.5 times the throughput of standard equipment of the same size. The iron ore magnetic separator has a wide application range. Its unique material splitting structure flexibly controls concentrate and tailings grade. It is widely used for pre-concentration of 0 to 12 mm fine ore.

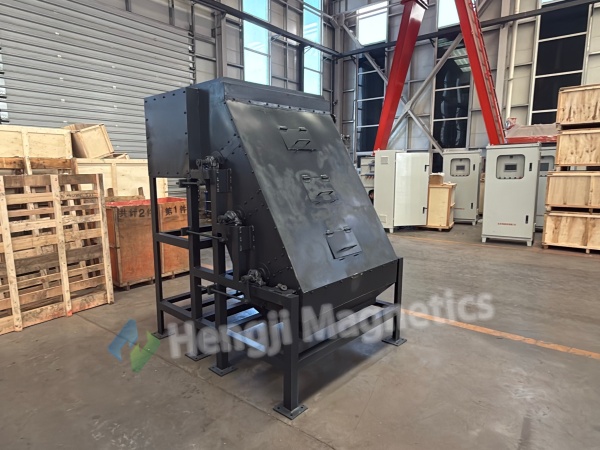

How the Iron Ore Magnetic Separator Achieves Dry Pre-Concentration

The iron ore magnetic separator uses a computer-simulated internal magnetic field with a unique magnetic circuit design. It uses high-performance Neodymium magnets as the magnetic source. The magnetic energy product is high, demagnetization is difficult, and the magnetic field remains stable over long-term use. The magnetic system inside the dry drum magnetic separator is stationary. The drum shell is stainless steel. Within the magnetic field range, magnetic particles are dragged along the drum surface. Beyond the magnetic zone, they detach by gravity and centrifugal force, achieving separation. The equipment features automatic feeding and stepless drum speed control. The speed range is flexible and adjustable. The dry drum magnetic separator is compact, energy-efficient, easy to install and operate, maintenance-free, safe, and reliable.

During operation, ore is fed by conveyor belt beneath the magnetic drum. Magnetic iron minerals are attracted to the drum surface by the strong magnetic field. They rotate with the drum until they leave the magnetic system and are no longer attracted. They then fall onto the magnetic material conveyor belt and are carried away as concentrate. Non-magnetic gangue is thrown forward by centrifugal force and discharged through the non-magnetic outlet as tailings. By adjusting the magnetic angle and material splitting structure, the iron ore magnetic separator flexibly controls concentrate grade and tailings iron content. This achieves excellent dry pre-concentration results. The control system can be interlocked with the belt conveyor for local manual or centralized control. The dry drum magnetic separator operates reliably without failure.

Key Features of the Dry Drum Magnetic Separator

The dry drum magnetic separator and iron ore magnetic separator offer several key advantages:

Improves feed grade: The dry drum magnetic separator effectively upgrades dry powder ore before grinding, reducing energy consumption and costs.
Large throughput: A variable frequency drive achieves 1.5 times the throughput of standard equipment of the same size.
Flexible control: The unique material splitting structure of the iron ore magnetic separator controls concentrate and tailings grade.
Wide application: Suitable for pre-concentration of 0 to 12 mm fine ore.
Strong magnetic source: High-performance Neodymium magnets deliver high magnetic energy product and resistance to demagnetization.
Stable magnetic field: The dry drum magnetic separator maintains stable magnetic force over long-term use.
No water required: Dry processing eliminates water consumption and dewatering processes.
Energy efficient: Stepless speed control and compact design save energy.
Reliable operation: The iron ore magnetic separator is maintenance-free, safe, and reliable.

These features make the dry drum magnetic separator ideal for iron ore dry pre-concentration.

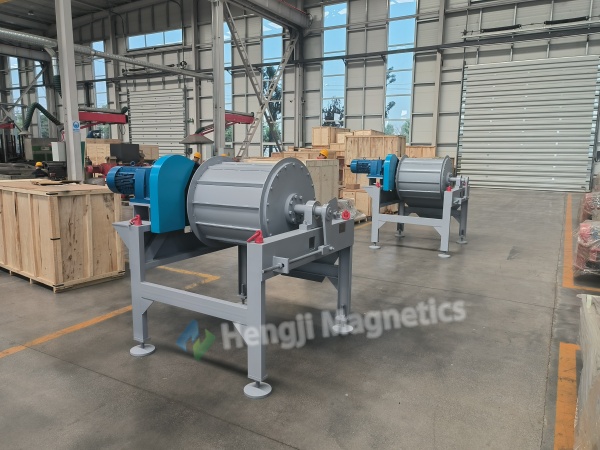

Customer Case: Dry Drum Magnetic Separator in Iron Ore Processing

An iron ore processing company faced large fluctuations in dry powder ore grade. Traditional equipment delivered unsatisfactory separation results. Magnetic iron content in tailings was high. Feeding directly into the mill caused high beneficiation costs. After introducing the dry drum magnetic separator, ore was driven by the variable speed motor to rotate the drum. Magnetic iron minerals were attracted to the drum surface. They rotated out of the magnetic system and fell onto the magnetic material conveyor belt, producing concentrate with stable grade. Non-magnetic gangue was thrown forward and discharged as tailings. After the upgrade, feed grade improved effectively. Tailings iron content dropped significantly. The iron ore magnetic separator delivered large throughput with flexible speed adjustment. No water was consumed, and no dewatering processes were needed. Beneficiation costs dropped substantially. Overall economic benefits improved markedly. This case demonstrates the practical value of the dry drum magnetic separator in real production.

Applications of the Dry Drum Iron Ore Magnetic Separator

The dry drum magnetic separator is widely used for pre-concentration of magnetite and dry powder ores, as well as iron removal from non-metallic minerals. It is particularly suitable for pre-concentration of 0 to 12 mm fine ore. With Neodymium magnetic source, variable frequency speed control, large throughput, and flexible material splitting structure, the iron ore magnetic separator is solving real challenges in dry pre-concentration. It improves grade and reduces costs. The dry drum magnetic separator makes iron ore processing more economical and worry-free.

Conclusion: Choose the Dry Drum Iron Ore Magnetic Separator

If your iron ore processing suffers from fluctuating feed grades or high beneficiation costs, the dry drum magnetic separator and iron ore magnetic separator deserve serious consideration. They deliver effective feed grade improvement, large throughput, flexible control, and stable magnetic performance—all without water consumption. From magnetite to dry powder ores, the dry drum magnetic separator and iron ore magnetic separator are the equipment of choice for efficient dry pre-concentration. Contact us today for a free application review and find the right dry drum magnetic separator or iron ore magnetic separator for your production line.
