Food Grade Magnetic Separators and Dry Electromagnetic Separator: Ensuring Safe and Thorough Iron Removal in Food Powders

How Does a Dry Electromagnetic Separator Work as Food Grade Magnetic Separators?

The vibration frequency and amplitude of the dry electromagnetic separator are steplessly adjustable. Users can adjust the vibration motor amplitude and frequency based on different materials to achieve ideal iron removal and throughput. The vibration motor frequency is controlled by a variable frequency drive. The electromagnetic coil of the dry electromagnetic separator uses a fully sealed oil-cooled design. The internal coil is immersed in transformer oil. A cooler effectively reduces oil temperature, resulting in low temperature rise and long coil life. The equipment includes over-temperature and over-current alarm protection to safeguard the electromagnetic coil. All product-contact parts of food grade magnetic separators are made of stainless steel with a smooth, dead-corner-free surface, easy to clean, and will not cause secondary contamination to food powders, meeting food processing hygiene requirements.

Key Features of Food Grade Magnetic Separators and Dry Electromagnetic Separator

• High magnetic flux density: The dry electromagnetic separator captures fine iron powder and weakly magnetic oxides effectively.
• Stepless vibration adjustment: Vibration frequency and amplitude are adjustable for different materials.
• Fully sealed oil cooling: The dry electromagnetic separator uses transformer oil cooling with low temperature rise and long coil life.
• Protection functions: Over-temperature and over-current alarms protect the electromagnetic coil.

• Hygienic construction: All product-contact parts of food grade magnetic separators are stainless steel, smooth, and easy to clean.
• No secondary contamination: The design prevents contamination of food powders.

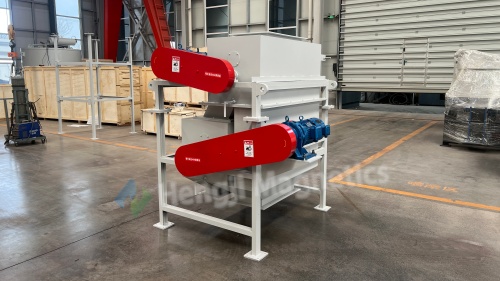

• Optional permanent magnet structure: The dry electromagnetic separator can also use high-performance Neodymium magnets with automatic feeding and stepless roller speed control—compact and energy-saving.
• Sealed structure: Low wear, low failure rate, and long service life.
