Dry Magnetic Roller Separator: Solving Stubborn Iron Removal Challenges in Dry Powders
2026-05-09
In abrasives, refractories, non-metallic minerals, carbon black, food, and chemical industries, the purity of dry powder directly determines product value. Removing ferrous contamination efficiently and reliably is a common challenge. This article addresses the most critical questions about the dry magnetic separator configured as a magnetic roller separator.
Problem 1: How Does a Dry Magnetic Roller Separator Handle Different Particle Sizes?
Conventional dry magnetic separator units often struggle with varying particle sizes: fine powders clog screens, coarse particles escape due to centrifugal force. The result is product discoloration or failed purity specs.
The magnetic roller separator solves this with a computer-optimized magnetic circuit using high-grade Neodymium magnets. The drum surface generates an intense, uniform field. Equally important is the elastic vibratory feeder, which evenly disperses the powder into a loose monolayer on the belt. From fine carbon black to coarse refractory grains, every particle passes through the strong field of the dry magnetic separator. Adjust the feeder frequency and amplitude to match your material.
Problem 2: Does the Dry Magnetic Roller Separator Lose Magnetism Over Time? Is Maintenance Costly?
Customers worry about magnetic decay and ongoing maintenance. A magnetic roller separator using Neodymium magnets has extremely low annual decay—less than 5% over eight years under normal conditions. The core of this dry magnetic separator requires no maintenance for its magnetic field. No power is needed to sustain the field, only for the drive motor. Simple design, long-life bearings, and a replaceable belt make this dry magnetic roller separator truly fit-and-forget.

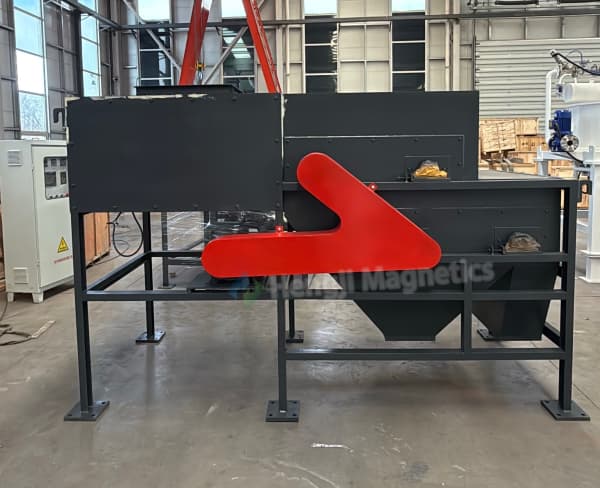

Problem 3: How to Adjust Iron Removal Precision and Throughput on a Dry Magnetic Roller Separator?
Production lines need flexibility. A dry magnetic separator should handle both high-volume coarse separation and precise, low-volume purification.
The magnetic roller separator offers two simple adjustments:
-
Feed rate: Adjust the hopper gate or vibratory feeder to control material flow.
-
Drum speed: Variable speed drive (VFD or mechanical variator) allows speed changes from 8–40 rpm or 40–200 rpm, depending on model. Lower speed gives longer magnetic exposure for fine or weakly magnetic particles. Higher speed boosts throughput for coarse, strongly magnetic materials. Any trained operator can quickly find the balance between capacity and purity for your dry magnetic separator.

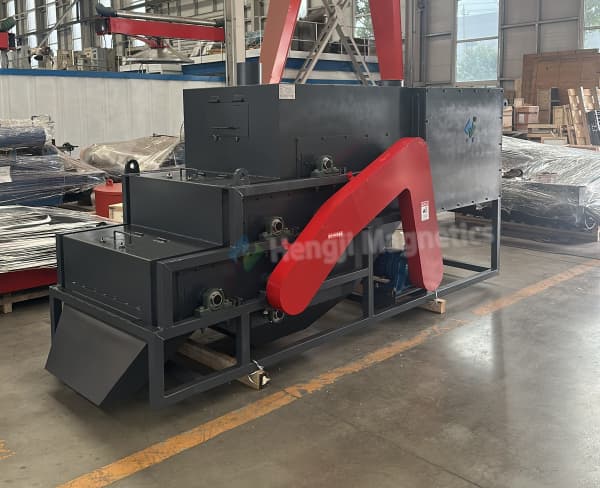

Problem 4: How Is the Discharge Port Layout on a Dry Magnetic Roller Separator?
Plant layout matters. The magnetic roller separator has a clear discharge design:
-
Rear port: Ferrous material (iron collected from the drum) exits at the back.
-
Front port: Purified non-ferrous product exits at the front.
This logical separation allows direct connection to bins, hoppers, or downstream conveyors without complex piping. Your dry magnetic separator line stays clean and efficient.
Summary: Why the Dry Magnetic Roller Separator Is the Ideal Solution
The magnetic roller separator operating as a dry magnetic separator solves four major pain points: poor capture of mixed particle sizes, fear of demagnetization, difficult adjustability, and awkward discharge layout. With computer-optimized magnetic circuit, high-grade Neodymium magnets, vibratory feeding, and variable drum speed, it delivers efficient, stable, energy-saving, and near-zero maintenance dry powder purification. For abrasives, refractories, non-metallic minerals, chemicals, and food industries, choosing the right dry magnetic separator is a strategic step toward higher product purity and lower operating costs.
