Magnetic Grate Separator: Redefining Inline Magnetic Separator Standards for Powder Purification

2026-06-06

In pneumatic conveying or gravity-fed pipelines handling milk powder, pharmaceutical powders, plastic pellets, and fine chemicals, a single tiny iron particle can downgrade an entire batch from premium to substandard. To remove this contamination without ever stopping production, the inline magnetic separator was developed. At its technical heart lies a precisely engineered magnetic grate separator unit. This is not a simple assembly of parts. It is a deep integration of a high-gradient magnetic grid with an in-line flow channel.

When powder or granular material flows through the pipe, it must pass through a “magnetic fence” formed by multiple high-strength permanent magnetic rods arranged in a staggered pattern. The magnetic grate separator, with its extremely high surface field and gradient, instantly captures ferrous particles onto the rod surfaces. Clean material flows through smoothly to the next process. This design—embedding the separation unit directly into the conveying line—is the foundation of non-stop, continuous purification for the inline magnetic separator.

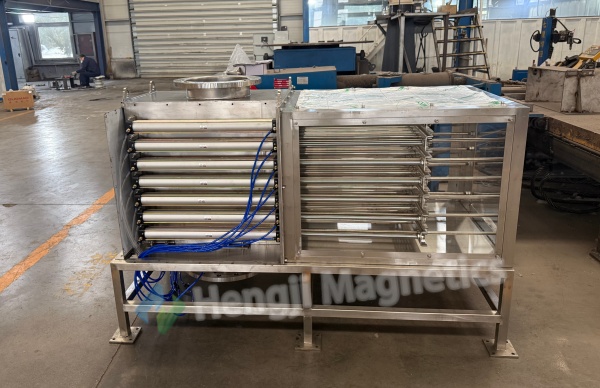

How Does an Inline Magnetic Separator Combine Capture Efficiency with Easy Cleaning?

For any precision iron removal equipment, customers care most about two things: “Does it work effectively?” and “Is cleaning a hassle?” The inline magnetic separator is widely trusted in high-end powder processing because it ingeniously combines the high capture efficiency of a magnetic grate separator with a “drawer‑type” quick‑release structure.

When ferrous powder accumulates on the magnetic grid to a certain level, operators do not need to disassemble pipes or use complex tools. Simply open the locking handle on the side of the unit, and the entire grid assembly—with all magnetic rods—slides out like a drawer. Once removed, use a specially designed demagnetizing sleeve to shield the magnetic field, or gently wipe with a non‑metallic scraper. The captured iron falls off instantly. The entire cleaning operation takes only a few tens of seconds.

After cleaning, push the clean grid assembly back into place and lock it. The inline magnetic separator immediately returns to full iron removal performance. This design completely eliminates the history of frequent shutdowns and tedious cleaning associated with conventional separators, raising overall equipment effectiveness to a new level.

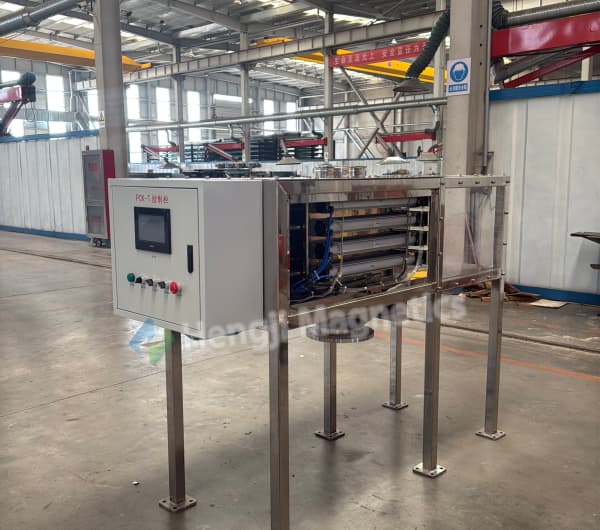

What About Magnetic Longevity and Material Adaptability?

Long‑term users also care about magnetic durability and adaptability to different materials. The core elements of the magnetic grate separator inside the inline magnetic separator are made of high‑grade rare earth Neodymium magnets that have undergone strict aging stabilization treatment. These magnets have extremely high initial field strength and strong resistance to demagnetization. Over a service life exceeding eight years, magnetic decay is kept at a very low level, ensuring stable iron removal performance.

For different material flow characteristics, the rod spacing and number of layers of the magnetic grate separator can be flexibly customized.

For free‑flowing, coarse particles: Use wider spacing and fewer layers to reduce flow resistance.
For fine powders prone to containing micro‑iron particles: Design tighter rod spacing and multi‑layer grids to form a more intense “magnetic filter net,” ensuring no contaminant escapes.

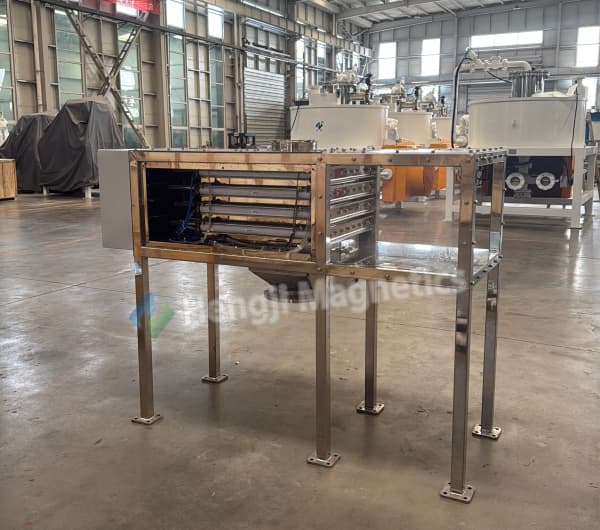

Why Choose a Magnetic Grate Separator for Your Inline Magnetic Separator?

The inline magnetic separator equipped with a magnetic grate separator offers several compelling advantages for high‑purity powder processing:

Continuous operation: No need to stop production for cleaning. The drawer‑type design makes cleaning fast and simple.
High capture efficiency: Staggered, multi‑layer magnetic rods create a high‑gradient field that captures fine, weakly magnetic particles.
Long magnetic life: Premium Neodymium magnets with low decay guarantee consistent performance for over eight years.
Customizable design: Rod spacing, layer count, and housing materials can be tailored to your specific powder characteristics and flow rates.
Easy maintenance: No tools required for cleaning. No complex disassembly. Minimal downtime.

Why Choose a Magnetic Grate Separator for Your Inline Magnetic Separator?

Conclusion: Setting a New Standard for In‑Line Powder Purification

Applications Across High‑Value Powder Industries

The inline magnetic separator with a magnetic grate separator is now standard equipment in industries where product purity is paramount:

Food & dairy: Removing iron contaminants from milk powder, protein powders, and spice blends.
Pharmaceuticals: Protecting tablet presses and ensuring API purity in powder conveying lines.
Plastics & polymers: Eliminating ferrous debris from pellets and regrind to protect extruders and injection molding machines.
Fine chemicals & pigments: Achieving color consistency by removing trace iron from catalysts, titanium dioxide, and other sensitive materials.

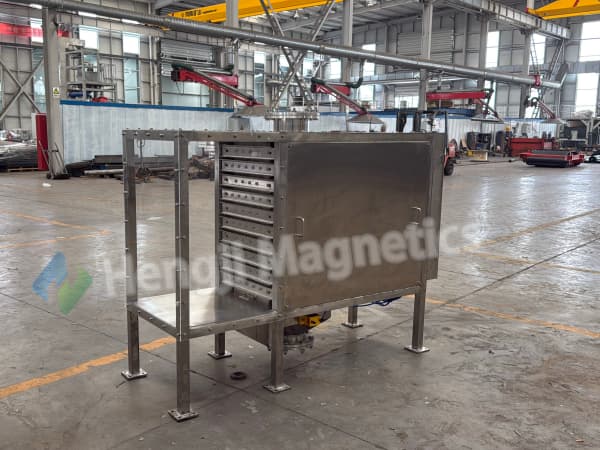

Conclusion: Setting a New Standard for In‑Line Powder Purification

The magnetic grate separator has fundamentally reshaped what an inline magnetic separator can achieve. By combining high‑gradient capture, quick‑release cleaning, and customizable magnetic grids, it delivers continuous, reliable, and ultra‑pure powder processing. For manufacturers who cannot afford batch contamination or unplanned downtime, this technology is not just an upgrade—it is the new standard. Choose the inline magnetic separator built around a magnetic grate separator and secure your product quality at every ton.
