Model No: HCG

Dry Drum Magnetic Pre Separator

● High Efficiency : Rare-earth NdFeB magnetic system ensures precise separation

● High Capacity : Variable speed control up to 300t/h processing capacity

● Wide Adaptability : Handles 0.1-12mm materials with <3% moisture content

● Energy Efficient : Permanent magnet design reduces energy consumption by 80%

● Smart Adjustment : ±15° magnetic angle adjustment for optimal performance

● Quick Maintenance : Fast-disassembly drum replacement within 30 minutes

● Safe & Reliable : Explosion-proof and corrosion-resistant options available
Quantity :
Contact Now

 HCG Dry Drum Magnetic Pre SeparatorOverview



The HCG Series Dry Magnetic Separator from Hengji Magnetoelectric Equipment Co., Ltd. represents advanced technology for dry material processing. This efficient dry drum magnetic separator utilizes rare earth neodymium iron boron materials to form a composite magnetic system.

Engineered for continuous automatic iron removal from dry powders, this pre-separator features optimized magnetic circuit design and material distribution structures. It efficiently processes 0-12mm powdered ores with high separation precision.

With variable frequency drive systems achieving 1.5 times the capacity of similar equipment, this industrial dry drum magnetic separator ensures stable operation for magnetic iron ore pre-concentration and non-metallic mineral purification applications.

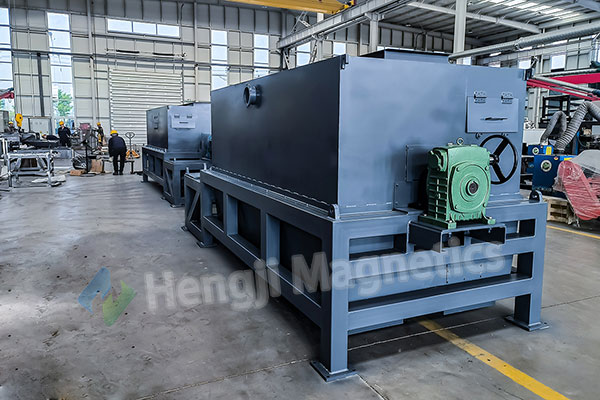

HCG type dry pre selection machine


HCG Dry Drum Magnetic Pre Separator Specifications & Features

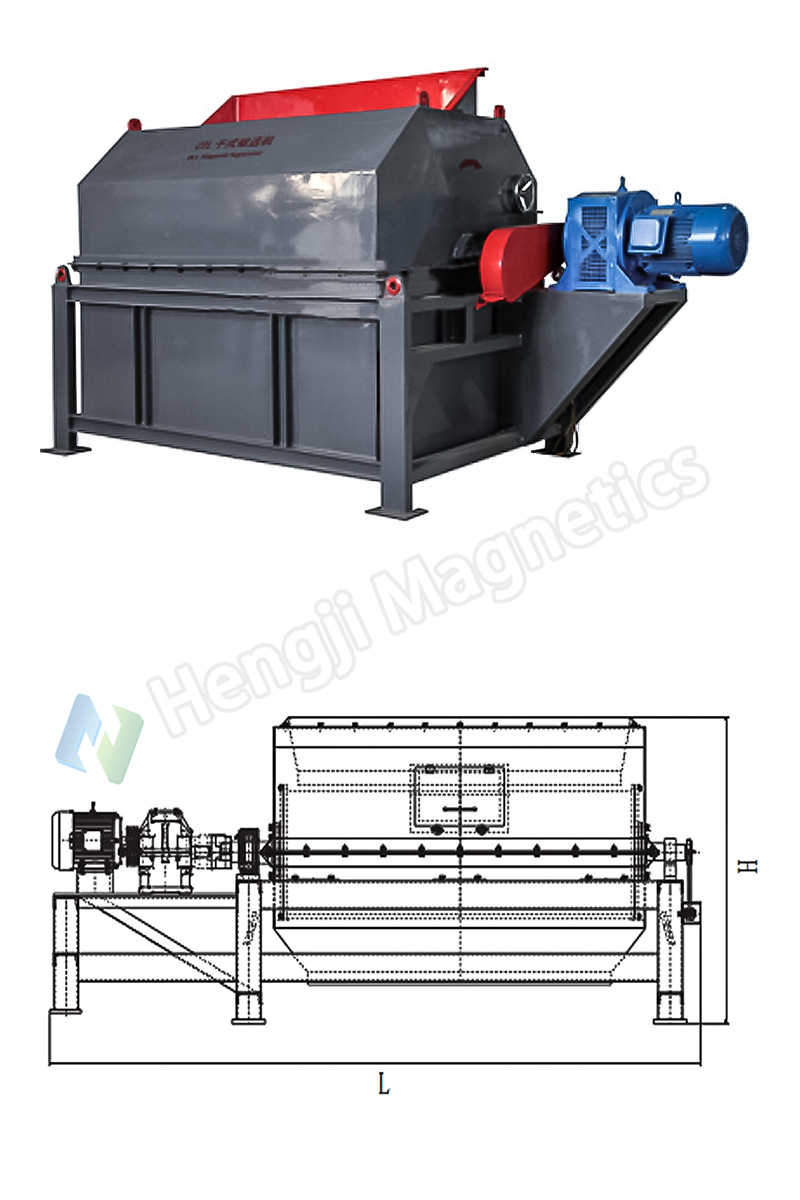

HCG Dry Drum Magnetic Pre Separator Schematic Diagram
High-Precision Separation
This dry drum magnetic separator improves concentrate grade by over 15% through its unique magnetic system design. The optimized magnetic field ensures accurate material separation across various operating conditions.

High Processing Capacity

Featuring variable speed control (40-200 RPM), this pre separator handles capacities from 50-300 t/h, adapting to different production requirements through flexible speed adjustment.

Wide Application Range

This dry drum magnetic separator processes materials with particle sizes from 0.1-12mm and moisture content below 3%, making it suitable for various industrial applications.

Energy Efficiency & Durability

The permanent magnetic system requires no maintenance while consuming 80% less energy than electromagnetic alternatives. This pre separator delivers reliable performance with minimal operational costs.

Intelligent Adjustment

Online magnetic system deflection adjustment (±15°) allows real-time optimization, making this dry drum magnetic separator adaptable to varying material properties without shutdown.

Modular Design

Quick-disassembly drum design enables replacement within 30 minutes, significantly reducing maintenance downtime for this pre separator system.


 HCG Dry Drum Magnetic Pre Separator Parameters



Model Specification

Specifications

Speed (r/min)

Surface Magnetic Field Intensity (GS)

Processing Capacity (T/h)

Overall Dimensions (L×B×H, mm)

Motor Power (kw)

Weight (kg)

Drum Diameter (mm)

Drum Length (mm)

HCG-0816

800

1600

0 - 63

According to the mineral properties, the magnetic induction intensity is determined to be 1000-5000

35 - 55

3053×1295×1671

7.5

2750

HCG-0818

800

1800

0 - 63

55 - 70

3296×1295×1671

11

3300

HCG-0821

800

2100

0 - 63

70 - 85

3363×1295×1671

15

3900

HCG-0824

800

2400

0 - 63

85 - 100

4235×1295×1671

18.5

4450

HCG-1021

1050

2100

0 - 50

100 - 130

4030×1545×2046

18.5

4800

HCG-1021

1050

2100

0 - 50

100 - 130

4150×1545×1850

18.5

4680

HCG-1224

1200

2400

0 - 50

115 - 150

4720×1545×1850

22

5180

Note: Determine the magnetic induction intensity according to the mineral properties (1000 - 5000).

→ Click here to get HCG Dry Drum Magnetic Pre Separator quotation

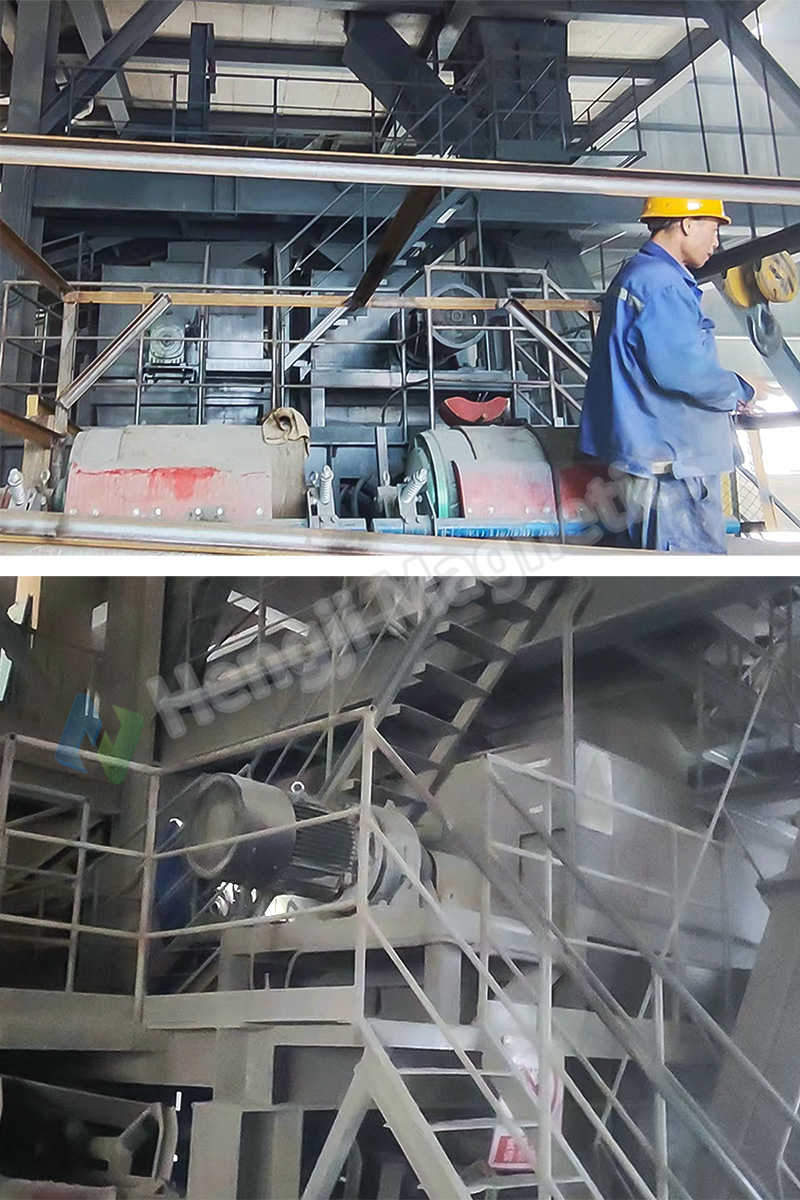

 HCG Dry Drum Magnetic Pre Separator Key Application Scenarios

Mining Industry

This dry drum magnetic separator serves as an efficient pre separator for magnetite/hematite pre-concentration and tailings reprocessing, recovering valuable minerals while reducing processing costs.

Construction Materials

For quartz sand, feldspar powder purification and ceramic raw material cleaning, this dry drum magnetic separator ensures product quality by effectively removing iron contaminants from various building materials.

Chemical Processing

The pre separator handles carbon black/titanium dioxide purification and catalyst recovery, maintaining product purity in chemical manufacturing processes where contamination control is critical.

Food Processing

In flour and starch processing, this dry drum magnetic separator removes metal impurities, ensuring food safety standards compliance while protecting processing equipment from damage.

Recycling Industry

For electronic waste metal separation and scrap steel processing, this pre separator enables efficient material recovery and recycling, supporting sustainable resource utilization practices.

 → Click here  for more application information

HCG Dry Drum Magnetic Pre Separator Key Application Scenarios

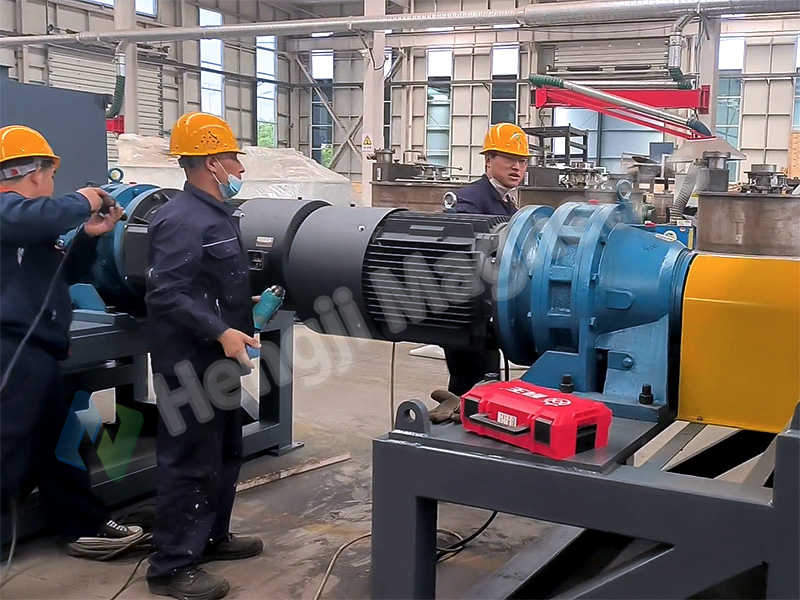

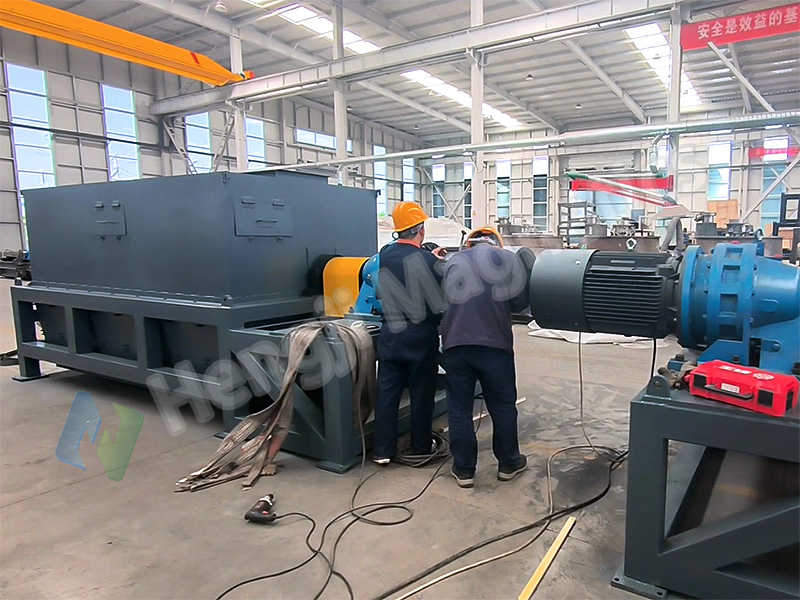

 HCG Dry Drum Magnetic Pre Separator Operation & Maintenance Guide




Installation & Startup

▪ Install on a level floor (≤2mm/m²). Power supply: 380V±10%. Ambient temperature: -20°C to 60°C.

▪ Pre-start check: Ensure drum rotation matches directional markings. Lubricate bearings with No. 2 calcium-based grease. Verify gearbox oil level.

Operation

Start the pre separator or system empty for 30 minutes. Gradually feed material up to 50% load. Adjust drum speed (40-200 RPM) via the frequency converter.
Key adjustment: Fine-tune the magnetic angle using the adjustment rod.




         HCG Dry Drum Magnetic Pre Separator Operation & Maintenance Guide
HCG Dry Drum Magnetic Pre Separator Operation & Maintenance Guide

Maintenance

▪Daily: Clean the drum surface; check rubber wear (repair if >3mm).
▪Weekly: Replenish bearing grease; check gearbox oil.
▪Quarterly: Replace gearbox oil; check drum roundness (radial runout <1.5mm).

Safety

▪ Never open doors during operation or exceed 110% rated current.

▪ Always allow a 24-hour cooldown before servicing the magnetic assembly and wear a dust mask.

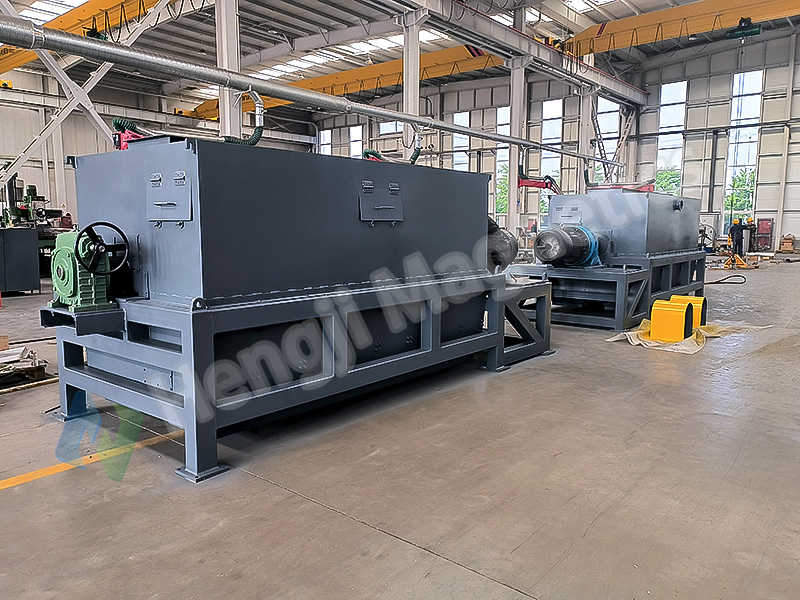

HCG Dry Drum Magnetic Pre Separator Customized Design


HCG Dry Drum Magnetic Pre Separator Customized Design

Operating Condition Adaptation

High-altitude version: Special heat dissipation design for >3000m elevation. Explosion-proof type: Ex dⅡBT4 protection rating. Corrosive environments: Full stainless steel 304/316L construction.

Performance Enhancement

High-intensity version: Surface magnetic intensity ≥1500mT. Precision separation: Added eddy current separation module. Intelligent version: Online grade analysis system integration.

Structural Adaptation

Drum dimensions: Φ600-Φ1500mm, customizable lengths. Feeding methods: Vibratory feeder/belt conveyor options. Connection types: Flange (GB/T9119) or flexible connections.

The complete customization process includes technical consultation → operational condition analysis → solution design (3-5 working days) → trial operation verification → mass production delivery (4-6 weeks cycle). Each dry drum magnetic separator is engineered to meet specific customer requirements while maintaining the high performance standards of HCG series equipment.
