Troubleshooting Guide: When Your Suspended Electromagnetic Separator Won't Energize

Is your suspended electromagnetic separator failing to magnetize? This critical issue can halt your entire operation. Before you worry about major downtime, follow our systematic troubleshooting guide to identify and resolve the problem quickly and safely.

Safety First: Essential Precautions
Always disconnect power before inspection. Leave electrical work to qualified professionals. Your safety is paramount when dealing with electromagnetic separator equipment.

Step 1: Power Supply & Control Checks
Start with the basics - your power and control systems for the suspended electromagnetic separator.

Listen for the control contactor's "click" when activating your electromagnetic separator. No sound? Check these areas:

Verify main power (AC380V) reaches the control cabinet. Ensure all three phases show correct voltage.

Inspect circuit breakers and fuses in the suspended electromagnetic separator control cabinet. Replace any blown fuses.

Check control power for PLC/microprocessor systems (typically AC220V/DC24V).

Test the excitation signal. For local control, listen for contactor engagement. For remote systems, confirm proper start signals from DCS/PLC.

Step 2: Rectifier & Output Circuit Analysis
If control circuits work but no magnetization occurs, examine DC power generation in your electromagnetic separator.

Measure DC output voltage at cabinet terminals (use DC1000V range):

• Normal voltage (~DC540V)? Problem is in separator or cables

• No/low voltage? Issue is in control cabinet

Check rectifier modules for damage in your suspended electromagnetic separator system.

Inspect DC contactors and fast-acting fuses.

Look for protection system triggers - check warning lights and reset buttons.

Step 3: Separator & Cable Inspection
With proper DC output but no magnetic field, focus on physical components of your suspended electromagnetic separator.

Test connection cables for breaks or insulation issues (resistance should be ≥5MΩ).

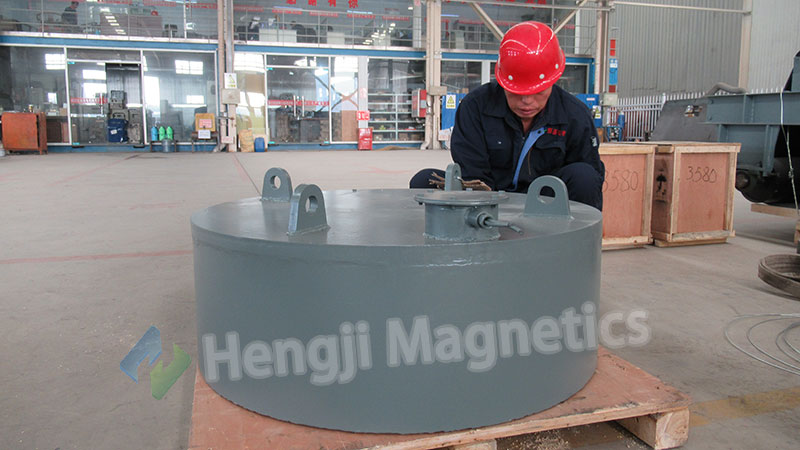

Check the electromagnetic separator coil itself:

• Measure DC resistance across terminals

• Normal reading matches factory specs

• Infinite reading indicates open circuit

• Near-zero reading shows short circuits

Test insulation resistance between coil and ground.

Professional Support for Complex Issues
Some situations require expert help:

• Confirmed coil damage

• Complex rectifier repairs

• Vacuum impregnation needs

Most suspended electromagnetic separator excitation failures occur in control circuits and cables. Coil issues, while serious, are less common.
