In iron ore and non-metallic mineral processing plants, the most difficult separation challenge is often not strongly magnetic minerals, but weakly magnetic minerals hidden in fine particles. Hematite, limonite, and manganese ore have low magnetic susceptibility. Ordinary magnetic separators cannot capture them effectively. These valuable minerals are lost to tailings. Even when separation is possible, uneven magnetic fields and frequent clogging cause unstable performance. Customers repeatedly ask: Is the magnetic field strong and uniform enough to capture fine weakly magnetic particles? Will the equipment clog and can it run continuously? Will the coil overheat and burn out? The high gradient ore magnetic separator was developed to solve these exact problems. This powerful high gradient magnetic separator and ore magnetic separator combined into one wet separation device delivers reliable recovery of fine weakly magnetic minerals.

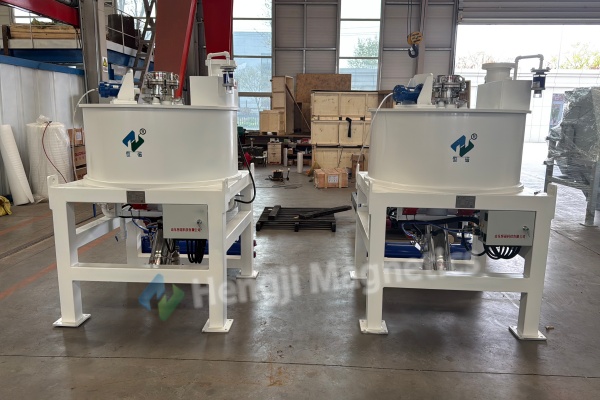

What Is a High Gradient Ore Magnetic Separator?

A high gradient ore magnetic separator is a strong magnetic wet separation device designed specifically for weakly magnetic and non-magnetic ores. As a high gradient magnetic separator, it generates a magnetic field above 1 Tesla in the separation zone. The field is uniformly distributed with no magnetic flux leakage points. During operation, the rotating ring contains induction magnetic media made of high-permeability stainless steel rods. These media are magnetized in the background magnetic field. A very high gradient magnetic field forms on the media surface. Magnetic particles in the slurry are attracted to the media and carried by the rotating ring to the non-magnetic zone. Flushing water then washes them into the concentrate hopper. This completes the separation. The ore magnetic separator is suitable for wet separation of fine weakly magnetic metal ores below -1.3 mm, including hematite, limonite, siderite, manganese ore, ilmenite, and wolframite. It is also used for black and white tungsten separation, wolframite-cassiterite separation, and iron removal from non-metallic minerals such as quartz, feldspar, nepheline, and kaolin.

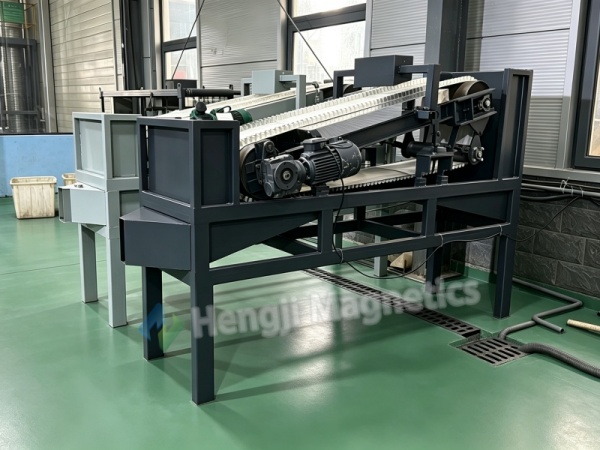

How the High Gradient Magnetic Separator Prevents Clogging and Overheating

Customers worry most about magnetic field strength and clogging. The high gradient ore magnetic separator uses a unique magnetic circuit design. The ring rotates vertically and counter-current concentrate flushing is used. A pulsation mechanism is installed. The pulsation speed can be precisely adjusted via a variable frequency drive to suit different minerals. The pulsation mechanism keeps the ore particle group in a loose state. This eliminates mechanical entrainment of non-magnetic particles and significantly improves concentrate grade. It also helps prevent clogging of the magnetic media. The entire high gradient magnetic separator offers high recovery, resistance to clogging, strong adaptability to fluctuations in feed particle size, concentration, and grade, reliable operation, and convenient maintenance.

For coil overheating, the ore magnetic separator uses a fully sealed oil-cooled external circulation system. The internal coil is completely immersed in transformer oil. The coil uses a laminar interval distribution. A dedicated transformer oil pump circulates the oil. Heat is dissipated through a condenser with forced air cooling by axial fans. This delivers low temperature rise, slow coil aging, long service life, and no pollution. The high gradient ore magnetic separator therefore operates reliably for long continuous periods.

Key Features of the High Gradient Ore Magnetic Separator

The high gradient ore magnetic separator offers several key advantages:

Strong and uniform magnetic field: The high gradient magnetic separator produces over 1 Tesla with no flux leakage points.
High gradient magnetic media: Stainless steel rods create extremely high gradient zones for capturing fine weakly magnetic particles.
Pulsation mechanism: Keeps particles loose, eliminates mechanical entrainment, and prevents media clogging.
Adjustable pulsation speed: Variable frequency drive adapts to different minerals and feed conditions.
Fully sealed oil cooling: Low temperature rise, slow coil aging, long service life, and no pollution.
High recovery: The ore magnetic separator effectively recovers fine weakly magnetic minerals from tailings.
Reliable operation: Resistant to clogging and adaptable to feed fluctuations.
Easy maintenance: Simple structure and accessible components reduce downtime.

These features make the high gradient ore magnetic separator ideal for recovering fine weakly magnetic minerals.

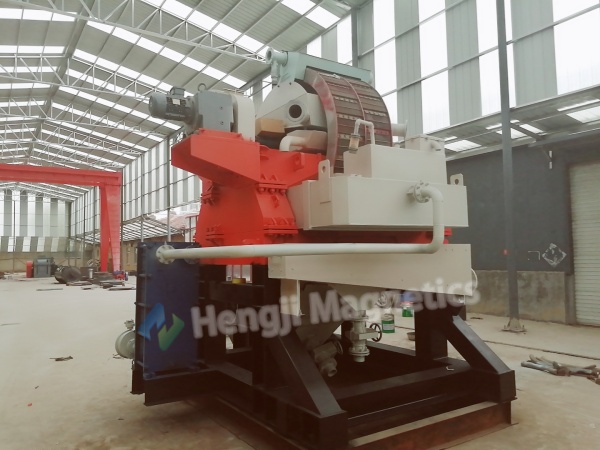

Customer Case: High Gradient Ore Magnetic Separator in Limonite Processing

A mineral processing plant processed fine limonite. Ordinary magnetic separators failed to recover weakly magnetic minerals effectively. Tailings still contained valuable magnetic minerals. Concentrate grade and recovery remained low, causing serious resource waste. After introducing the high gradient ore magnetic separator, the ultra-strong uniform magnetic field efficiently captured and recovered weakly magnetic minerals from the slurry. The pulsation mechanism prevented media clogging. Concentrate grade and recovery improved significantly. Tailings loss dropped sharply. The fully sealed oil-cooled external circulation system delivered low temperature rise and stable long-term continuous operation. Overall economic benefits improved markedly. This case demonstrates the practical value of the high gradient magnetic separator and ore magnetic separator in real production.

Applications of the High Gradient Magnetic Separator

The high gradient ore magnetic separator is widely used for wet separation of fine weakly magnetic metal ores and iron removal from non-metallic minerals. Applications include hematite, limonite, siderite, manganese ore, ilmenite, and wolframite. It is also used for quartz, feldspar, and kaolin purification. With a strong and uniform magnetic field, anti-clogging pulsation structure, fully sealed oil cooling, and stable continuous operation, the high gradient magnetic separator and ore magnetic separator are solving real challenges in weakly magnetic mineral recovery. They address low recovery, substandard grade, clogging, and frequent maintenance. The high gradient ore magnetic separator makes ore processing more complete, resource utilization more efficient, and production more stable.

Conclusion: Choose the High Gradient Ore Magnetic Separator

If your plant struggles with weakly magnetic mineral recovery, substandard concentrate grade, or frequent clogging, the high gradient ore magnetic separator deserves serious consideration. It combines the power of a high gradient magnetic separator with the robust performance of an ore magnetic separator. From hematite to limonite, from manganese to tungsten, the high gradient ore magnetic separator is the equipment of choice for fine weakly magnetic mineral recovery. Contact us today for a free application review and find the right high gradient ore magnetic separator for your production line.
