Suspended Magnetic Separator: The Automatic Iron Removal Guardian Above Your Conveyor Belt

2026-10-20

In power generation, mining, and building materials, tramp iron such as nails, screws, iron blocks, and metal chips in bulk materials is a constant headache for equipment managers. These ferrous pieces travel along the conveyor belt. They can tear the belt, contaminate the product, or jam downstream crushers and mills—causing costly production stops. Customers repeatedly ask: Where should the separator be mounted to lift iron buried deep in the material layer? Can iron removal be continuous and automatic without frequent manual cleaning shutdowns? Will the equipment operate reliably in dusty, rainy, and harsh environments? The suspended magnetic separator designed as a magnetic separator for conveyor belt was developed to answer these exact needs. This article explains how this suspended installation device delivers automatic iron removal and protects the entire conveyor line.

What Is a Suspended Magnetic Separator for Conveyor Belt?

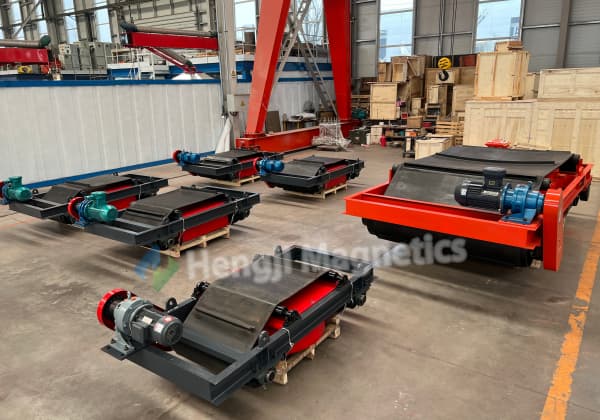

A magnetic separator for conveyor belt removes ferrous contaminants from bulk non-magnetic materials. It is typically installed at the head or middle section of a belt conveyor. It lifts ferrous pieces from the material and ejects them via a discharge belt. This achieves automatic iron removal. It also effectively prevents longitudinal belt tearing and protects crushers and mills. As a suspended magnetic separator, it is widely used in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries. The entire unit is suspended above the conveyor or at the head end using four lifting eyes. It does not occupy floor space. Installation is flexible, and it can be used indoors or outdoors. The suspended magnetic separator and magnetic separator for conveyor belt together provide a reliable solution for conveyor iron removal.

How the Suspended Magnetic Separator Lifts Deep-Buried Tramp Iron

Magnetic field strength is the top customer concern. The suspended magnetic separator features a well-designed magnetic circuit with high field strength and deep penetration. It is suitable for iron removal from thick material layers. Even ferrous pieces buried deep in the material are effectively lifted. As a magnetic separator for conveyor belt, the permanent magnet model uses high-coercivity, high-remanence Neodymium magnets in a composite circuit. It offers maintenance-free operation, strong magnetic force, long service life, simple installation, easy use, and reliable performance. It can remove ferrous materials weighing 0.1 to 25 kg. The internal permanent magnetic system has a service life of over 10 years. The technical specifications meet JB/T8711-2006 standards. The suspended magnetic separator therefore delivers dependable magnetic force for demanding conveyor applications.

Automatic Discharge with the Magnetic Separator for Conveyor Belt

Continuous discharge is another key concern. The magnetic separator for conveyor belt consists of two main parts: the separator body and the discharge mechanism. The discharge mechanism includes a frame, geared motor, drive and tail pulleys, idlers, and a discharge belt with scrapers. Belt tension and tracking can be adjusted without stopping production using bearing adjustment devices. The entire discharge process is automatic and continuous—no dedicated supervision is required. The electromagnetic model of the suspended magnetic separator uses electrical-grade resin casting and a self-cooling, fully sealed structure. It offers deep magnetic penetration, strong lifting force, dust resistance, rain resistance, corrosion resistance, and automatic belt tracking. It operates reliably even in extremely harsh environments. The magnetic separator for conveyor belt therefore ensures continuous production without frequent manual cleaning.

Installation Positions for the Suspended Magnetic Separator

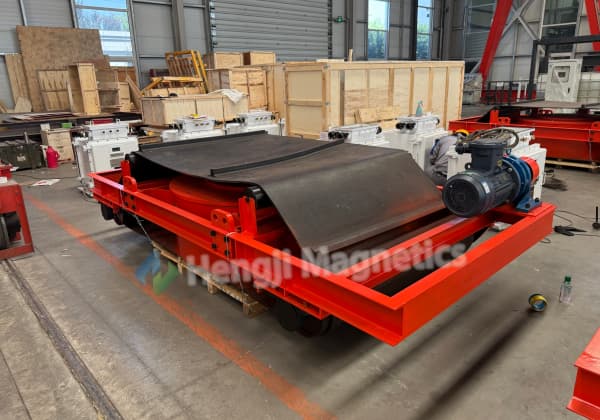

Installation position is a common customer question. When installed at the head of the belt conveyor, the suspended magnetic separator uses an inclined configuration. At belt speeds above 2 m/s, it can be installed slightly away from the pulley. The material trajectory helps the separator lift tramp iron. At belt speeds below 2 m/s, the separator should be moved closer to the pulley. For mid-conveyor installation, the magnetic separator for conveyor belt uses a horizontal configuration. It is installed above the belt, picking stations, or vibrating screens. The discharge belt runs perpendicular to the material conveyor. The suspension height should be as low as possible without interfering with material flow, while meeting the rated suspension height requirement. The suspended magnetic separator offers flexible installation for different site conditions.

Customer Case: Suspended Magnetic Separator in Building Materials Production

A building materials production line had long suffered from tramp iron in conveyed raw coal and ore. The conveyor belt frequently tore. The crusher jammed multiple times. The site was dusty and often exposed to rain, causing high maintenance costs. After introducing the suspended magnetic separator, ferrous pieces were powerfully lifted and automatically ejected into the collection bin as material passed. Belt tearing and crusher failures dropped sharply. The fully sealed structure allowed the magnetic separator for conveyor belt to operate stably in dusty and rainy conditions. The equipment ran continuously with automatic discharge—no frequent shutdowns for cleaning. Production stability and maintenance costs improved markedly. Overall economic benefits increased significantly. This case demonstrates the practical value of the suspended magnetic separator in real production.

Key Features of the Suspended Magnetic Separator for Conveyor Belt

The suspended magnetic separator offers several key advantages for conveyor line protection:

Strong magnetic field: The magnetic separator for conveyor belt delivers high field strength and deep penetration for thick layers.
Suspended installation: The suspended magnetic separator mounts above the conveyor with four lifting eyes—no floor space required.
Automatic continuous discharge: The discharge belt ejects tramp iron without manual cleaning or production stops.
Fully sealed construction: The electromagnetic model resists dust, rain, and corrosion in harsh environments.
Easy maintenance: Belt tension and tracking are adjusted without stopping the line.
Long service life: The permanent magnetic system lasts over 10 years with no demagnetization.
Flexible installation: The magnetic separator for conveyor belt suits head or mid-conveyor positions, indoors or outdoors.
Proven protection: Prevents belt tearing and protects downstream crushers and mills.

These features make the suspended magnetic separator a dependable choice for conveyor iron removal.

Applications of the Suspended Magnetic Separator

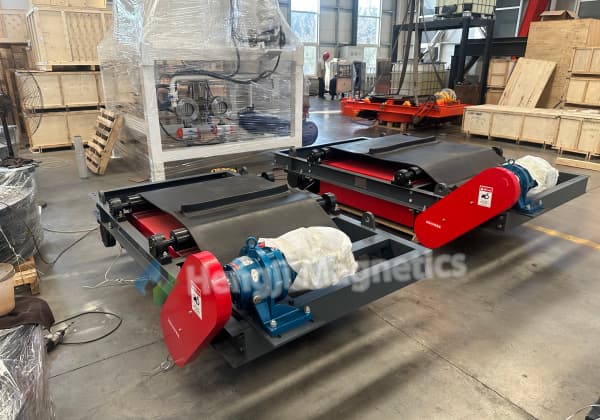

The suspended magnetic separator and magnetic separator for conveyor belt are widely used for iron removal from bulk non-magnetic materials in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries. They can be installed at the head or middle section of a belt conveyor, above picking stations, or above vibrating screens. With strong magnetic force, deep penetration, continuous automatic discharge, and fully sealed moisture-proof and dust-proof construction, the suspended magnetic separator is solving real conveyor line challenges. It addresses tramp iron contamination, belt tearing, equipment jams, and frequent maintenance in harsh environments. The magnetic separator for conveyor belt makes production more continuous, equipment more durable, and maintenance less troublesome.

Conclusion: Choose the Suspended Magnetic Separator for Conveyor Belt

If your conveyor line suffers from tramp iron, belt tearing, crusher jams, or frequent maintenance in harsh environments, the suspended magnetic separator and magnetic separator for conveyor belt deserve serious consideration. They deliver strong magnetic force, deep penetration, and continuous automatic discharge—protecting the entire production line. From power generation to building materials, the suspended magnetic separator is the equipment of choice for automatic conveyor iron removal. Contact us today for a free application review and find the right suspended magnetic separator or magnetic separator for conveyor belt for your production line.
