Rotary Drum Magnetic Separator: Achieving Clean Magnetic Separation of Minerals

2026-10-21

In mining, cement, and building materials processing, separating magnetic minerals from non-magnetic gangue is a persistent challenge. Plant managers often ask: Is the drum’s magnetic force strong enough to lift tramp iron and magnetic minerals from deep within the material bed? Will the field decay after a period of use? Where should the unit be installed to save space without affecting conveyor operation? The rotary drum magnetic separator is designed around these practical needs in magnetic separation of minerals.

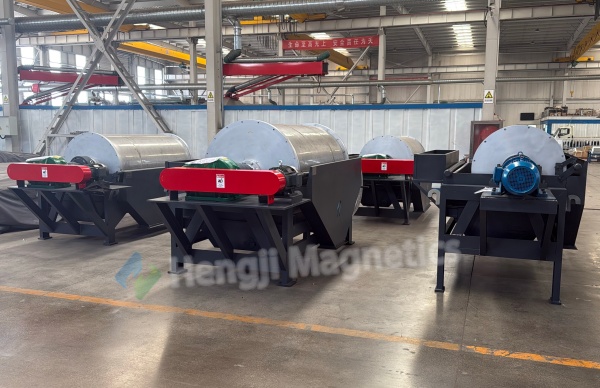

What Is a Rotary Drum Magnetic Separator in Magnetic Separation of Minerals?

A rotary drum magnetic separator is a rotary permanent magnetic separation device. It uses the rotation of a permanent magnetic drum to separate magnetic minerals from non-magnetic minerals in a magnetic field. It is widely used for magnetic separation or iron removal in cement, mining, steel, abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, chemicals, and waste processing. In magnetic separation of minerals, the principle is straightforward: materials with different magnetic susceptibility follow different paths under magnetic force and mechanical forces such as gravity and centrifugal force. This is the foundation of efficient magnetic separation of minerals.

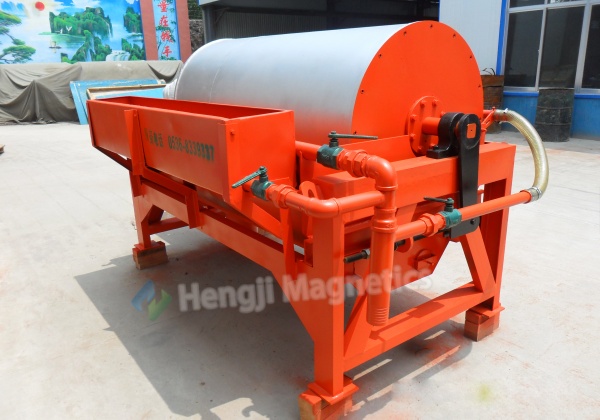

How the Rotary Drum Magnetic Separator Solves Magnetic Strength Concerns

Customers care most about magnetic strength. The rotary drum magnetic separator uses high-performance strong magnetic materials in a composite magnetic circuit inside the drum. It delivers high field strength, deep magnetic penetration, and no demagnetization after years of use. Drum surface field strength is available in a wide range to match different applications. The rotary drum magnetic separator can lift tramp iron from deeper material layers and effectively separate magnetic minerals. In magnetic separation of minerals, this reliable magnetic force is essential for clean separation.

Stable Magnetic Field and Low Maintenance in Magnetic Separation of Minerals

Customers also worry about magnetic decay. The rotary drum magnetic separator provides a stable, maintenance-free magnetic field with a long service life. It consumes no power to generate the magnetic field, saving energy. Under normal conditions, the rotary drum magnetic separator maintains stable magnetic force over long-term operation. The compact structure is easy to install and use. The drum shell is stainless steel. The outer surface can be supplied as plain stainless steel or rubber-lagged. Rubber lagging options include plain, diamond, and herringbone patterns to suit different materials and working conditions. These features make the rotary drum magnetic separator a dependable solution for magnetic separation of minerals.

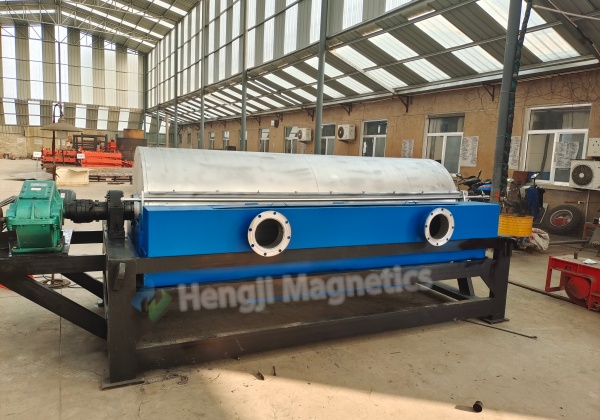

Flexible Installation for Magnetic Separation of Minerals

Installation flexibility is a key advantage of the rotary drum magnetic separator. It can be used as a standalone separation device to continuously and automatically remove ferrous materials from conveyed material. It can also be installed in fixed conveying machinery as a drive pulley for separation. When combined with a suspended magnetic separator, the rotary drum magnetic separator can remove tramp iron from thicker material layers. For standalone use, mount the bearing supports in the designated positions, adjust the drum centerline parallel to the horizontal plane, and fine-tune the magnetic system tie rod to achieve the desired separation effect. This flexibility supports efficient magnetic separation of minerals in different plant layouts.

Customer Case: Rotary Drum Magnetic Separator in Non-Metallic Mineral Processing

A non-metallic mineral processing plant had long struggled with incomplete separation of magnetic and non-magnetic minerals. Product purity failed to meet standards. Tramp iron on the conveyor scratched the belt and jammed downstream equipment. After introducing the rotary drum magnetic separator, material was separated on the drum surface by magnetic and mechanical forces. Magnetic minerals were attracted to the drum surface and carried to the non-magnetic zone, where they detached by gravity and centrifugal force. Non-magnetic minerals were thrown off tangentially. The two streams separated cleanly. The rotary drum magnetic separator operated for years without demagnetization and required no maintenance. It was installed on the conveyor without taking up extra space. Belt scratching and downstream jams dropped sharply. Product purity improved significantly, and overall benefits improved markedly. This case demonstrates the value of the rotary drum magnetic separator in real magnetic separation of minerals.

Key Features of the Rotary Drum Magnetic Separator for Magnetic Separation of Minerals

The rotary drum magnetic separator offers several key advantages:

Strong magnetic field: High-performance composite magnetic circuit delivers high field strength and deep penetration.
No demagnetization: The rotary drum magnetic separator maintains stable magnetic force over years of use.
Maintenance-free and energy-saving: No power is consumed to generate the magnetic field.
Wide field strength range: Drum surface field strength can be customized for different materials.
Flexible installation: Standalone use, drive pulley integration, or combined use with a suspended separator.
Durable drum shell: Stainless steel shell with optional plain or rubber-lagged surface.
Reliable separation: Suitable for both tramp iron removal and magnetic mineral separation.
Compact structure: Easy to install and operate in space-limited plants.

These features make the rotary drum magnetic separator a reliable choice for magnetic separation of minerals.

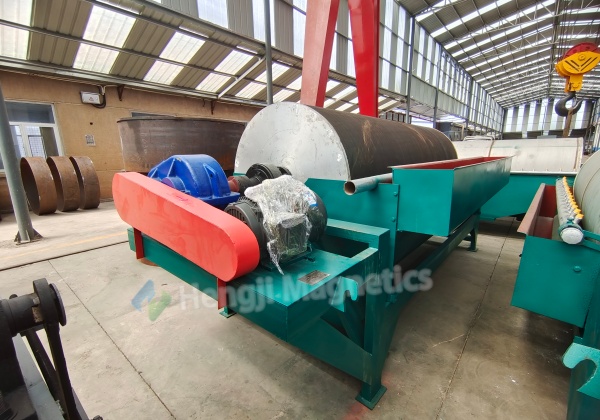

Applications of the Rotary Drum Magnetic Separator

The rotary drum magnetic separator is widely used in cement, mining, steel, abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, chemicals, and waste processing. It can be used alone, installed as a drive pulley in fixed conveying machinery, or combined with a suspended magnetic separator. With strong magnetic force, deep penetration, no demagnetization, maintenance-free operation, energy savings, and flexible installation, the rotary drum magnetic separator is solving real challenges in magnetic separation of minerals. It addresses weak lifting force, incomplete separation, fast demagnetization, and space constraints. The rotary drum magnetic separator makes mineral processing cleaner, equipment more durable, and operation more worry-free.

Conclusion: Choose the Rotary Drum Magnetic Separator

If your mineral processing line suffers from incomplete separation, fast magnetic decay, or space constraints, the rotary drum magnetic separator deserves serious consideration. It delivers strong magnetic force, stable performance, and flexible installation—taking magnetic separation of minerals from “lifting” to “clean separation.” From cement to mining, from non-metallic minerals to chemicals, the rotary drum magnetic separator is the equipment of choice for reliable magnetic separation of minerals. Contact us today for a free application review and find the right rotary drum magnetic separator for your production line.
