Wet Belt Type Magnetic Separator
● 99%+ Removal Rate - For ≤5mm weakly magnetic minerals
● Anti-Clogging Design - Reverse discharge system
● Smart Frequency Control - 1-20t/h capacity
● 90% Energy Saving - <5% decay in 10 years
● Multiple Configurations - 304/316L materials available

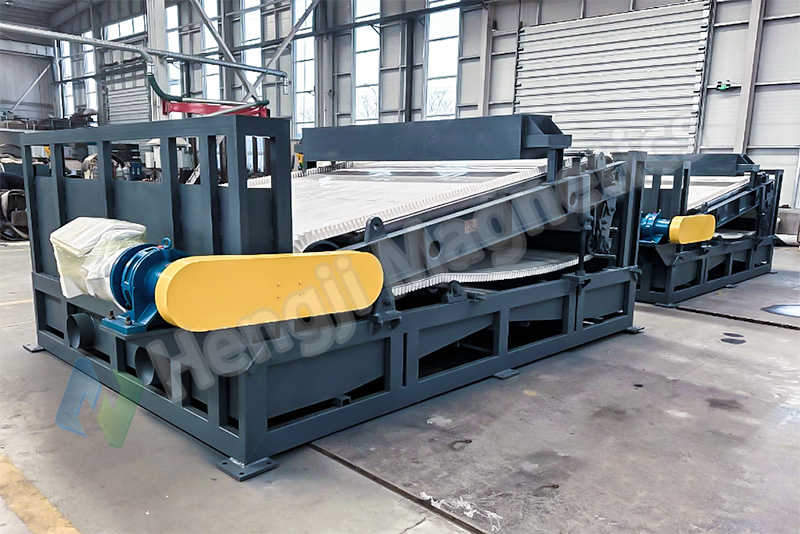

GTC Wet Belt Type Magnetic Separator Overview
The GTC Series delivers breakthrough magnetic separation technology for mineral processing and material purification. This plate magnetic separator features rare earth neodymium magnets achieving 18,000 Gauss intensity - triple conventional strength.
Its anti-clogging design handles ≤5mm particles while sealed construction ensures ≤5% magnetic loss over 10 years. This wet separator system reduces maintenance costs by 60% and operates reliably in harsh conditions.
This belt type magnetic separator combines superior performance with operational economy, ideal for demanding separation applications requiring both precision and durability.
GTC Wet Belt Type Magnetic Separator Specifications & Features
2. Intelligent Operation
3. Universal Application
4. Exceptional Durability
GTC Wet Belt Type Magnetic SeparatorParameters
Model | Magnetic Separation Zone Dimensions (mm) | Processing Capacity (T/h) | Feeding Concentration (%) | Maximum Magnetic Field Intensity (GS) | Separation Particle Size (mm) | Power (kw) |
GTC-520 | 500×2000 | 3 | 20 - 25 | 9000 - 15000 | ≤2 | 1.1 |
GTC-620 | 600×2000 | 5 | 20 - 25 | 9000 - 15000 | ≤2 | 1.5 |
GTC-820 | 800×2000 | 10 | 20 - 25 | 9000 - 15000 | ≤2 | 2.2 |
GTC-1020 | 1000×2000 | 15 | 20 - 25 | 9000 - 15000 | ≤2 | 3.0 |
GTC-1220 | 1200×2000 | 20 | 20 - 25 | 9000 - 15000 | ≤2 | 4.0 |
GTC-1520 | 1500×2000 | 25 | 20 - 25 | 9000 - 15000 | ≤2 | 5.5 |
GTC-1820 | 1800×2000 | 30 | 20 - 25 | 9000 - 15000 | ≤2 | 5.5 |
GTC-2025 | 2000×2500 | 35 | 20 - 25 | 9000 - 15000 | ≤2 | 7.5 |
GTC-2030 | 2000×3000 | 40 | 20 - 25 | 9000 - 15000 | ≤2 | 7.5 |
→ Click here to get GTC Wet Belt Type Magnetic Separator quotation

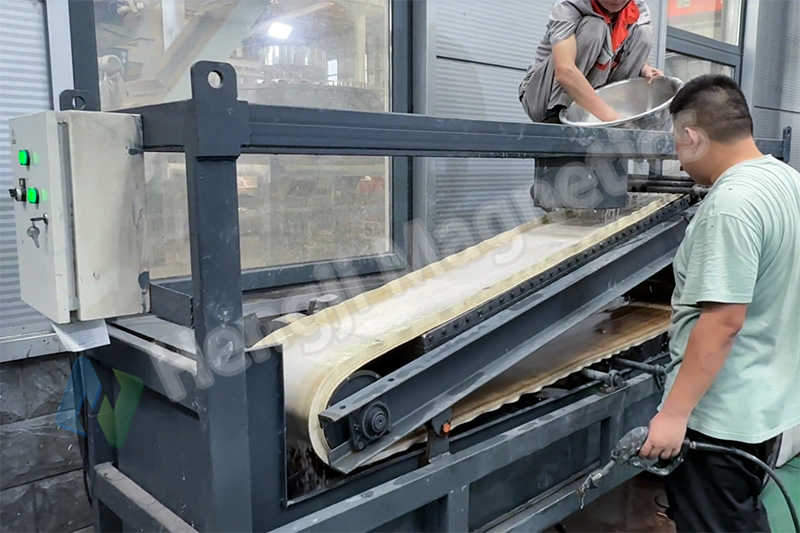

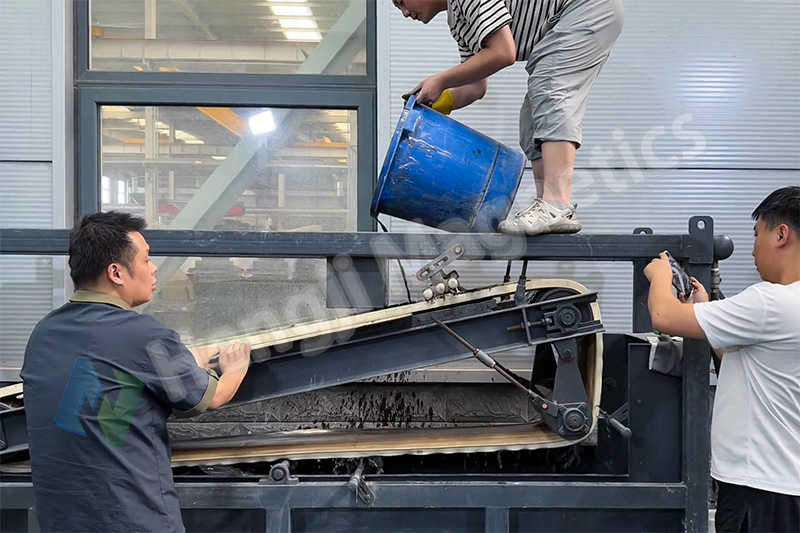

GTC Wet Belt Type Magnetic Separator Key Application Scenarios
Non-Metallic Mineral Purification
Weakly Magnetic Mineral Concentration
Waste Resource Recovery
This belt type magnetic separator extracts iron from red mud at 8t/h efficiency and removes ≥95% impurities from coal gangue, improving combustion value.Special Material Refinement
GTC Wet Belt Type Magnetic Separator Operation & Maintenance Guide

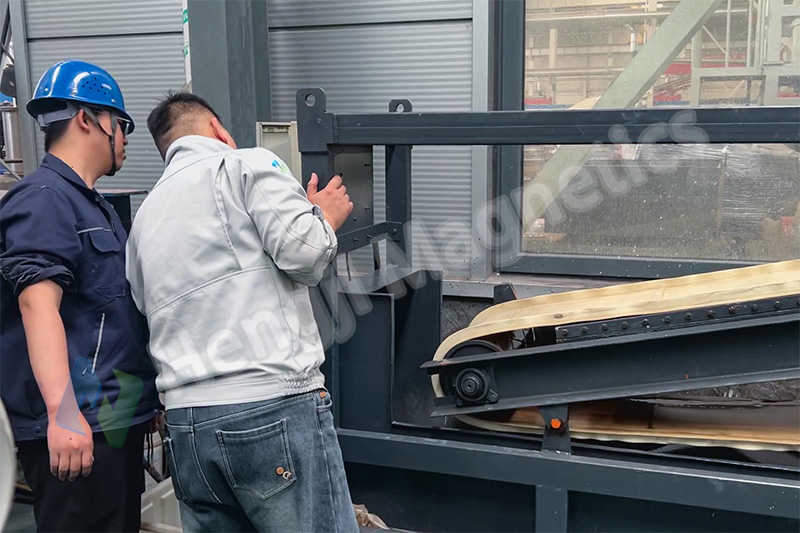

I.Startup Procedure

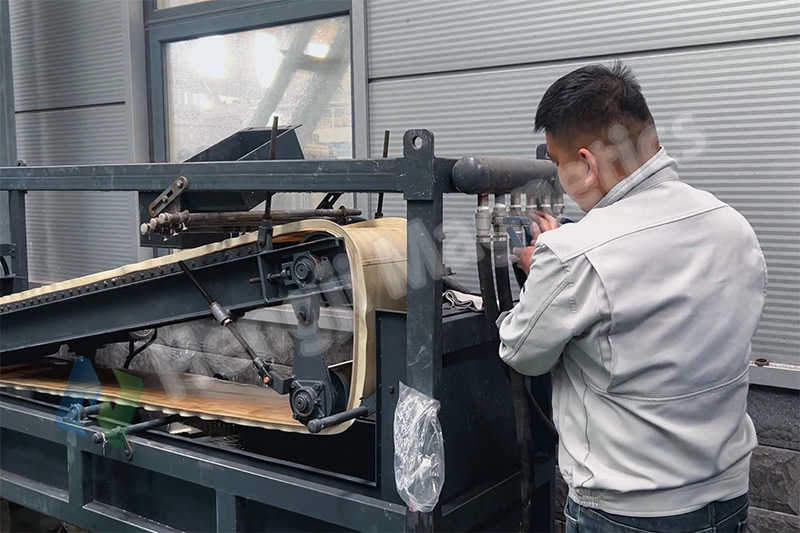

II.Maintenance Protocol
Daily:Lubricate bearings with No. 2 calcium-based grease
Monthly:Inspect magnetic circuit sealing, clean residual deposits
Biannually: Replace reducer mechanical oil (Grade HJ40/HJ50)

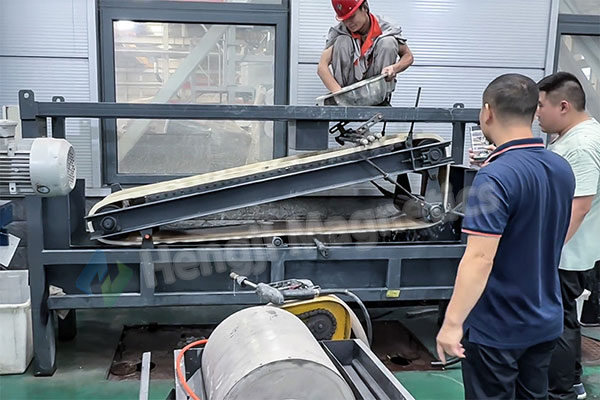

III.Critical Safety Requirements
⚠️ STRICTLY PROHIBITED: Carrying iron tools within 3m radius during operation
⚠️ STRICTLY PROHIBITED: Placing magnetic-sensitive devices near equipment
⚠️ REQUIRED: Complete power disconnect before cable connection
⚠️ REQUIRED: Avoid speed regulator adjustment after main motor stop

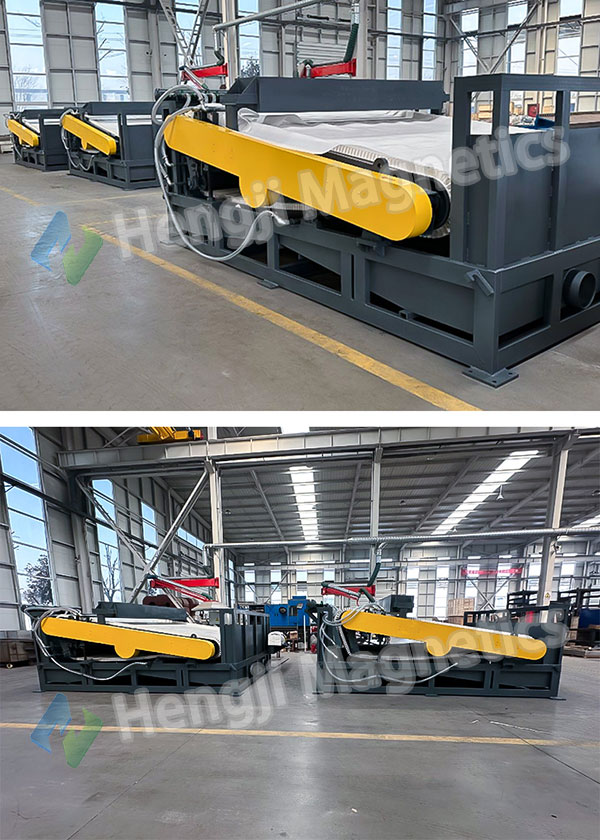

GTC Wet Belt Type Magnetic Separator Customized Design
Technical Specifications
- Magnetic Systems: Standard NdFeB (9,000-18,000Gs) / Enhanced Rare-earth (20,000+Gs)
- Processing Capacity: 1-20t/h models available
- Special Design: Reverse discharge system prevents clogging
- Materials: 304 or 316L stainless steel options
- Protection Level: IP54-65 rated
Performance Features
- 30% increased adsorption area
- Frequency control (0-50Hz) for slurry adaptation
- 40% water reduction with ≥0.25MPa pressure
- 99.8% removal efficiency proven in quartz applications
Service Support
- Material testing and 72-hour trials
- Lifetime maintenance with 5-year magnetic recalibration
- 30-day delivery including installation
Services Available for HengJI Magnetic Separator Purchasers
Full Lifecycle Support Custom Design, Installation & Lifetime Maintenance.
Industry-Specific Solutions Hazardous & Sterile Applications, Metal Recovery.
Rapid Response 24/7 Consultation & 48-Hour Repairs.
Certification Support Training & Compliance Guidance.
