Slurry Electro Magnetic Separator
● Intelligent Protection: Auto-shutdown for over-temperature (>80°C) and over-current conditions
● Energy Efficient: 0.37KW oil pump power with 10+ years service life
● Automatic Self-Cleaning: Zero residual adsorption with precision flow control
● Wide Compatibility: Effective for lithium battery materials, silicon powder and ceramic slurries

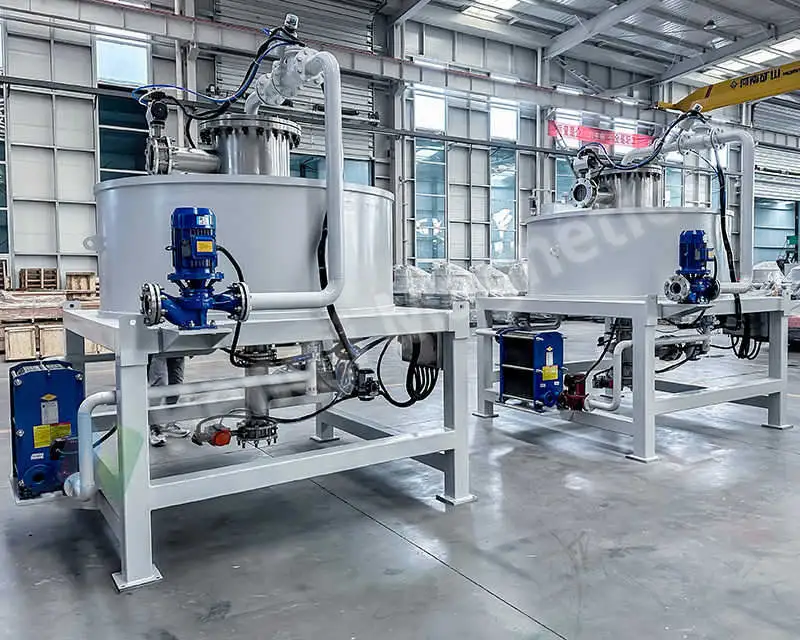

DCX Slurry Electro Magnetic Separator Overview
DCX Electro Magnetic Separator: Advanced Purification Technology
Engineered with DC excitation technology and 430 stainless-steel magnetic matrices, this system delivers 0-20,000 Gauss adjustable magnetic fields for precision operation.
Unmatched Performance in Critical Applications
The automated slurry separator achieves micron-level purification for lithium battery materials, ceramics processing, and high-purity mineral refinement.
Efficiency Redefined
Featuring fully automatic self-cleaning capabilities, it sets new standards for operational efficiency in demanding industrial environments.
DCX Slurry Electro Magnetic Separator Specifications & Features
≥12,000 Gauss magnetic intensity (DCX-200 model) eliminates micron-scale iron particles
Achieves ≤5ppm Fe₂O₃ in lithium mica processing
Self-flushing design prevents residual buildup
2. Intelligent Protection System
Auto-shutdown at >80°C coil temperature
Overload current protection
3. Energy-Efficient Performance
40% lower energy consumption vs conventional systems
Oil pump power: 0.37-1.5 kW (DCX-80 to DCX-500)
Corrosion-resistant construction ensures 10+ year service life
4. Adaptive Processing
Real-time magnetic field adjustment:
12,000 Gs for quartz purification
18,000 Gs for rare earth separation
DCX Slurry Electro Magnetic SeparatorParameters
Item | Parameters | |||||||
Model | DCX-100 | DCX-150 | DCX-200 | DCX-250 | DCX-300 | DCX-350 | DCX-400 | DCX-500 |
Inlet Diameter | DN100mm | DN150mm | DN200mm | DN250mm | DN300mm | DN350mm | DN400mm | DN500mm |
Initial Current | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 40A |
Thermal Equilibrium Current | 35A | 35A | 35A | 35A | 35A | 35A | 35A | 35A |
Excitation Power | 8kw | 10kw | 12kw | 14kw | 17kw | 20kw | 22kw | 24kw |
Processing Capacity | 1T | 2T | 4T | 5T | 6T | 7T | 8T | 10T |
Weight | 410kg | 680kg | 960kg | 1250kg | 1650kg | 2010kg | 2650kg | 3990kg |
Input Voltage | AC380V | |||||||
Pump Power | 0.75kw | |||||||
Magnetic Field Intensity | 10000 - 25000GS (Determined by Material Properties and Magnetic Separation Requirements) | |||||||
Cooling Method | Built - in oil circulation system, external air cooling and water cooling optional. | |||||||
Note: The processing capacity will vary due to factors such as the particle size, iron content, specific gravity, and moisture of the material. The actual situation shall prevail. | ||||||||
→ Click here to get DCX Slurry Electro Magnetic Separator quotation

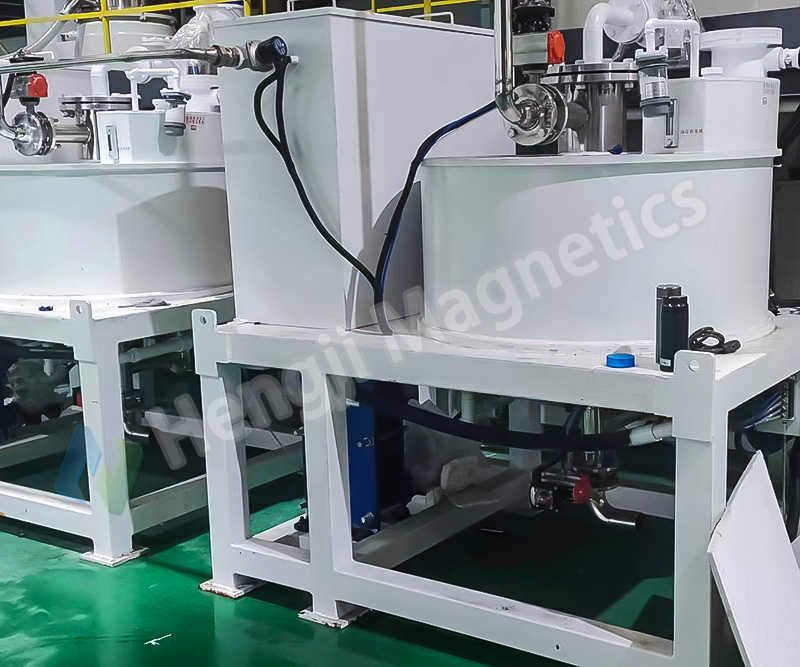

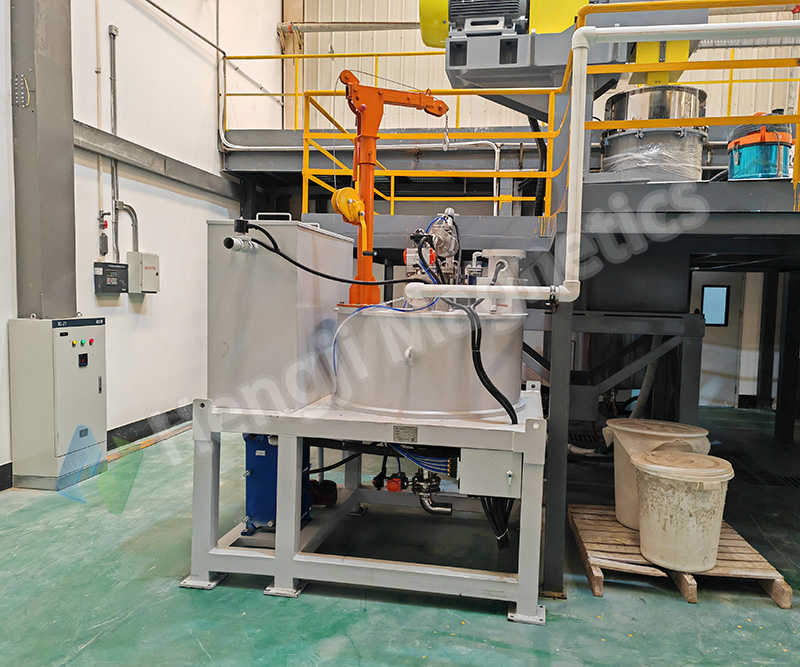

DCX Slurry Electro Magnetic Separator Key Application Scenarios
New Energy Materials
Our advanced electro magnetic separator precisely removes iron contaminants from lithium battery slurries and photovoltaic silicon materials, preventing self-discharge and improving energy conversion efficiency.
Ceramics Industry
As specialized magnetic separators for the ceramics industry, the system effectively purifies glaze and clay slurries, eliminating iron particles to prevent discoloration and black spots in final products.
Food & Pharmaceutical
This slurry separator features FDA-compliant design that ensures metallic contamination removal from liquid food products and pharmaceutical solutions, meeting strict hygiene standards.
Mining & Metallurgy
The electro magnetic separator enables efficient mineral recovery from tailing slurries and purifies metal leaching solutions for enhanced electrolytic processing.
Chemical Processing
This reliable slurry separator maintains product purity in chemical production by removing iron contamination from various slurry materials and wastewater streams.
DCX Slurry Electro Magnetic Separator Operation & Maintenance Guide

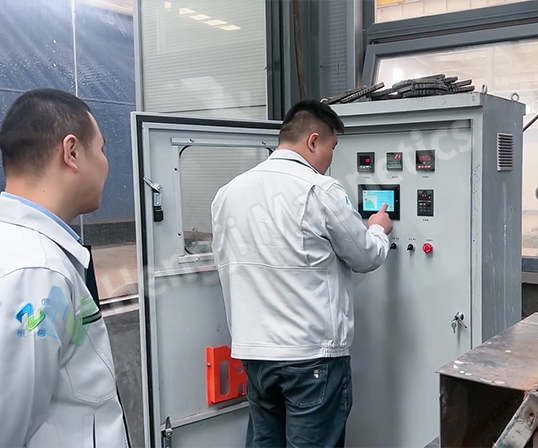

1. Debugging Process
No-load Debugging: Verify oil pump rotation direction and initial valve status (closed). Test excitation start/stop after power-on.
Operation with Material:
① Turn the control panel knob to"Auto"mode.
② Open the feed valve → Process slurry (customizable duration) → Open the flushing valve to discharge iron.
③ Completion of cycle: Close feed → Discharge iron → Close flushing valve.

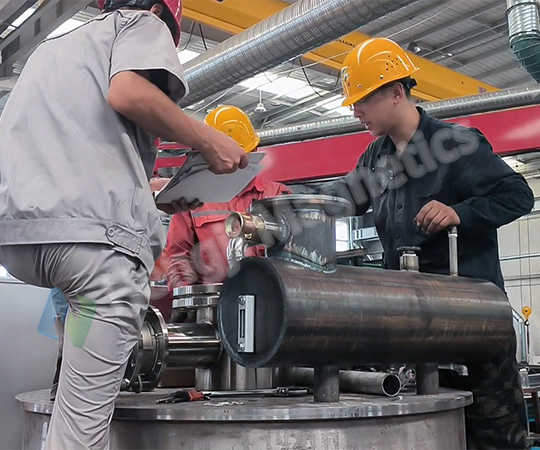

2. Maintenance Guidelines
Daily: Check oil level (refill with the same type of transformer oil if insufficient).
Monthly: Clean the oil filter and inspect seal gaskets.
Annually: Replace transformer oil and inspect coil insulation

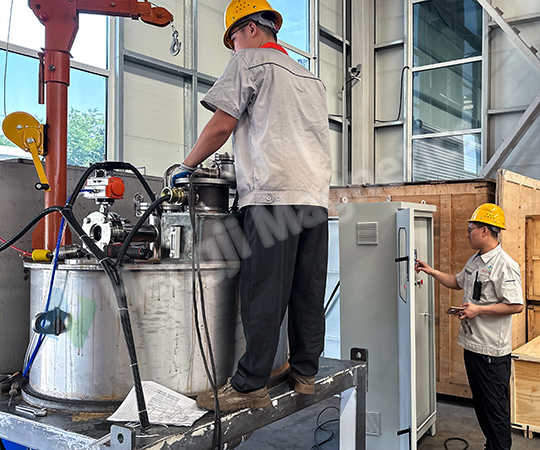

3. Safety Warnings
Strictly prohibit opening the terminal box while powered on (to prevent electric shock).
Never use non-original control cabinets (may cause coil burnout).
Do not disassemble inlet/outlet connections during material flow (to avoid splashing).

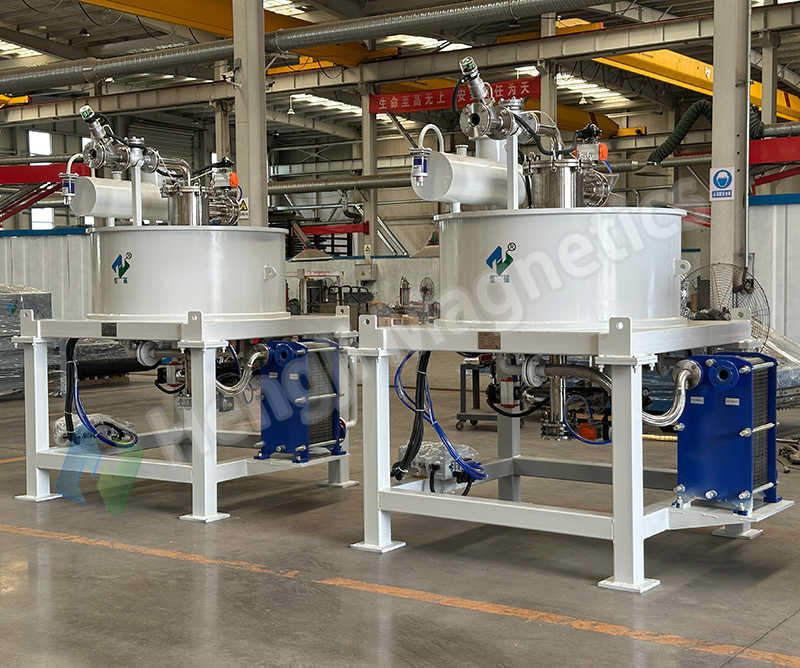

DCX Slurry Electro Magnetic Separator Customized Design
Hengji offers specialized customization for its DCX Series electromagnetic slurry separator, tailored to slurry characteristics, iron removal precision, and operational environments. Key customization options include:
Magnetic Circuit Design: Adjustable magnetic intensity (1.2T–2.0T) with automatic current reduction protection. Optimized magnetic guide plate layout (honeycomb/grid) for high-viscosity slurries like ceramics and lithium battery materials.
Mechanical Adaptation: Customized chamber dimensions (diameter: 100–500 mm) supporting flows from 5–200 m³/h. Options include water-flushing or water-free cleaning and anti-clogging designs.
Material & Protection: Corrosion-resistant (316L stainless steel + EPDM seals) or explosion-proof (Ex dⅡBT4) configurations.
Smart Control: AI-based current adjustment (±5% accuracy) and 4G remote monitoring for real-time data tracking.
Industry-Specific Solutions: Zero metallic pollution design for lithium battery slurry, food-grade (FDA compliant) versions, and large-flow wear-resistant models for mining tailings.
Ideal for applications such as the ceramics industry, this advanced electromagnetic separator ensures high efficiency, adaptability, and reliability in challenging industrial environments.
Services Available for HengJI Magnetic Separator Purchasers
Full Lifecycle Support Custom Design, Installation & Lifetime Maintenance.
Industry-Specific Solutions Hazardous & Sterile Applications, Metal Recovery.
Rapid Response 24/7 Consultation & 48-Hour Repairs.
Certification Support Training & Compliance Guidance.
Hengji Magnetic Separator Application
Successful application cases of magnetic separation equipment in multiple industries
