Optimizing Pyrolysis Carbon Black Purity: The Dry Magnetic Drum Separator Design Solution

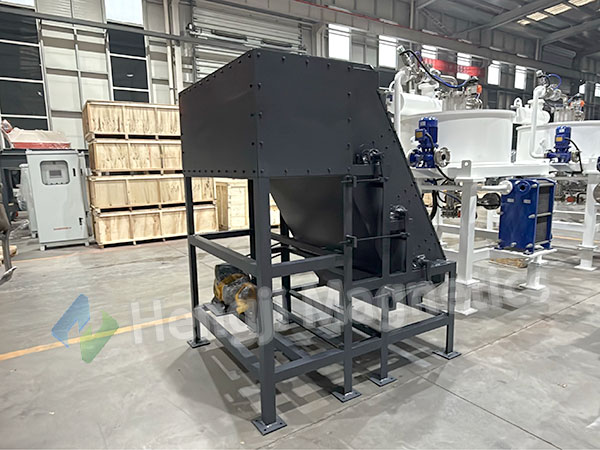

Our Core Technology: How the Dry Magnetic Drum Separator Works

• Continuous Capture: Dry carbon black powder is fed onto the rotating drum. As it moves, ferrous contaminants are instantly and powerfully captured on the drum's surface.
• Automatic Discharge: The captured metal is carried by the drum's rotation out of the magnetic field, where it is automatically released into a collection bin.
• Key Benefit: This creates a truly hands-free, continuous process that integrates seamlessly into your production flow.

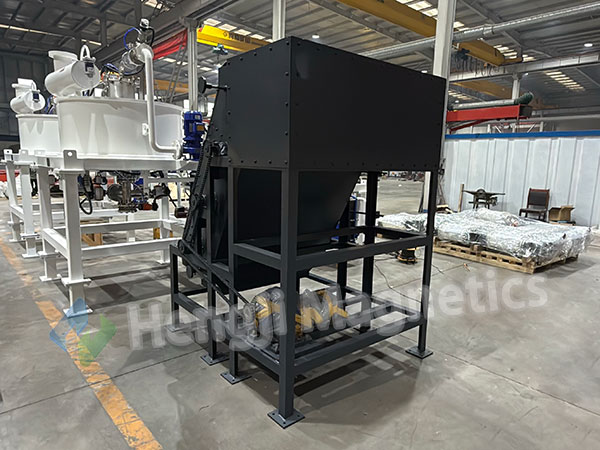

Precision Engineering for Maximum Efficiency

• Strong, Focused Magnetic Field: Computer-optimized magnetic circuits create a high-intensity field that penetrates the material bed, ensuring deep contaminant removal.
• Robust Construction: The drum is made from wear-resistant stainless steel to withstand the abrasive nature of carbon black, ensuring long service life.
• Minimal Gap Design: The precise engineering between the magnetic core and the drum surface (often <4mm) maximizes magnetic force where it's needed most.

Adaptable to Your Specific Process Needs

• Adjustable Parameters: Features like magnetic angle adjustment and variable drum speed control allow operators to fine-tune the unit for different feedstock qualities or target purity levels.
• Controlled Feeding: Compatible with vibratory feeders for a uniform, controlled material flow onto the drum, which is critical for achieving consistent separation results.
• Modular Integration: The compact and robust design allows for easy installation into new or existing conveyor lines without major layout changes.

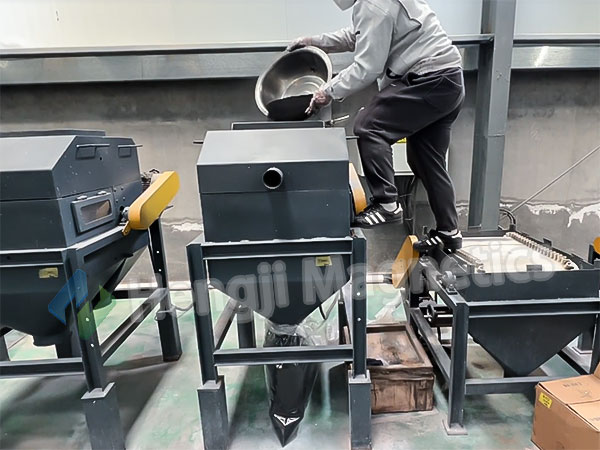

Delivering Tangible Operational and Economic Benefits

• Enhanced Product Quality: Dramatically reduces ferrous contamination, meeting stringent specifications for downstream applications in rubber, plastics, and coatings.
• Increased Production Uptime: Eliminates manual cleaning stops associated with static magnets, enabling continuous, high-volume processing.
• Reduced Operational Costs: Low energy consumption, minimal maintenance (primarily emptying the collection bin), and no consumables lead to a low total cost of ownership.
• Protection of Downstream Equipment: Removing abrasive metal particles prevents premature wear on mills, mixers, and packaging machinery.
