Pipeline Magnetic Separator: A Direct‑Pass Solution for Magnetic Separation in Industry
2026-08-12
On continuous production lines handling powders and slurries, ferrous contamination is almost inevitable—metal fragments from equipment wear, iron particles from raw materials, rust flakes from pipeline corrosion. If not removed promptly, these impurities can reduce product purity or damage downstream equipment. The pipeline magnetic separator is a specialized device designed for magnetic separation in industry, embedding separation functionality directly into material conveying pipelines to achieve simultaneous material flow and iron removal.
How Does the Pipeline Magnetic Separator Perform Magnetic Separation in Industry?
The pipeline magnetic separator is installed in‑line with the material conveying pipe at an inclination angle of 55 to 60 degrees. Material flows by gravity along the pipe, passing through the separation zone where ferrous impurities are attracted to moving magnetic assemblies on the pipe floor. As the magnetic assemblies rotate, they carry the captured iron toward the discharge area, where the iron loses magnetic attraction and exits through a concealed iron outlet. Non‑magnetic material continues along its original path. This magnetic separation in industry process is continuous and automatic, requiring no manual intervention once started.
The pipeline magnetic separator is suitable for powders and granular materials with particle sizes ranging from 0.1 to 15 mm, with a minimum pipeline negative pressure of ‑50 Pa. Operating temperature limits range from 45°C to 125°C depending on the magnet grade, accommodating various process conditions.

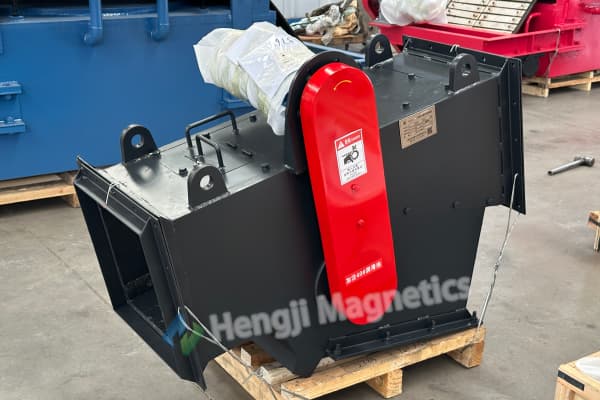

Can the Pipeline Magnetic Separator Handle Different Materials and Temperature Conditions?
Customers often face challenges with high material temperatures and complex operating conditions. The pipeline magnetic separator uses magnet materials selected for different temperature ratings—when material temperatures exceed 80°C, heat‑resistant magnets are available to ensure stable field performance. The installation inclination must be strictly maintained between 55 and 60 degrees; deviation may cause material leakage and compromise magnetic separation in industry. For sites with special angle requirements, custom designs are available based on installation drawings.
Does Iron Removal Performance Guarantee Product Purity?
The pipeline magnetic separator uses high‑performance rare earth Neodymium magnets as the magnetic source, delivering strong field strength and sufficient penetration depth to effectively capture ferrous impurities in the material. The moving magnetic assembly design ensures that ferrous materials are carried to the discharge area, where they lose magnetic attraction and fall out naturally—achieving precise separation of magnetic from non‑magnetic materials. The iron outlet is optimally connected to the separation device, so discharged iron carries minimal product, preserving iron removal effectiveness while reducing material waste.

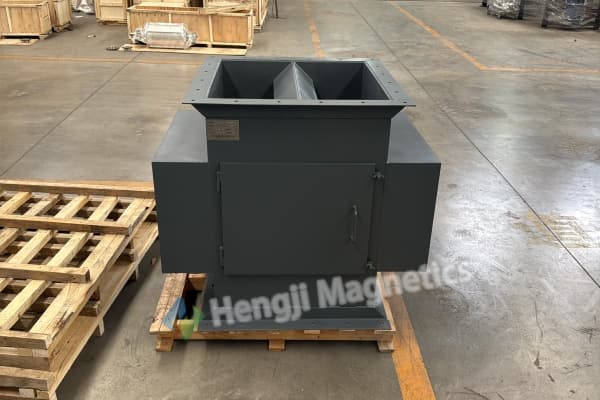

How Automated Is the Pipeline Magnetic Separator? Is Maintenance Convenient?
The pipeline magnetic separator operates continuously and automatically—once started, it requires no dedicated attendant, with magnetic impurities automatically separated and discharged. Daily maintenance mainly involves cleaning dust from the unit surroundings; at the end of each work cycle, accumulated iron on the magnetic system should be cleaned promptly to prevent magnetic loss. When removing iron, only non‑magnetic tools and gloves should be used—ferrous tools are prohibited to ensure safety and equipment longevity.

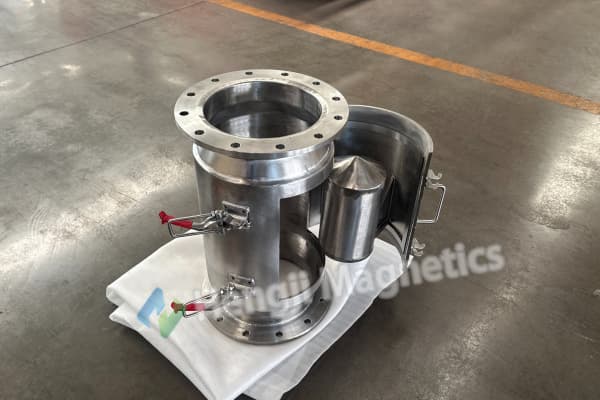

Are Installation and Space Requirements Restrictive?
A key advantage of the pipeline magnetic separator is its simple installation—the unit is connected in‑line with the powder conveying pipe, with external dimensions customizable to site conditions. For indoor installation, the unit is ready for use; outdoor installation requires a weather cover. The pipeline magnetic separator requires negative pressure inside the pipe; if the conveying system already has negative pressure, no additional measures are needed; otherwise, a dust collection pipe must be connected to prevent dust emission during iron discharge.
Conclusion
From conveying continuity to iron removal stability, from installation convenience to maintenance simplicity, the pipeline magnetic separator offers a direct‑pass, automated solution for magnetic separation in industry. By integrating separation functionality into every stage of material conveying, it helps customers continuously improve product purity without interrupting production flow.
