High Gradient Plate Magnetic Separator – Solving Fine Particle Iron Removal Challenges with Superior Magnetic Performance
2026-09-01
In non-metallic mineral processing and beneficiation, iron removal has long been a persistent challenge on production lines. Excessive iron content means substandard product whiteness, quality degradation, and reduced selling prices. When material particle size drops below 5mm, conventional magnetic separators are prone to clogging and severe material carryover—causing iron removal efficiency to plummet and frustrating plant managers.
The high gradient magnetic separator with plate magnetic separator design offers a new technical path to solve this problem. Built around a plate-type magnetic system, it integrates physical mechanics, fluid dynamics, and magnetics—fundamentally solving the worldwide technical challenge of clogging and severe carryover that plague conventional separators when processing fine particles.

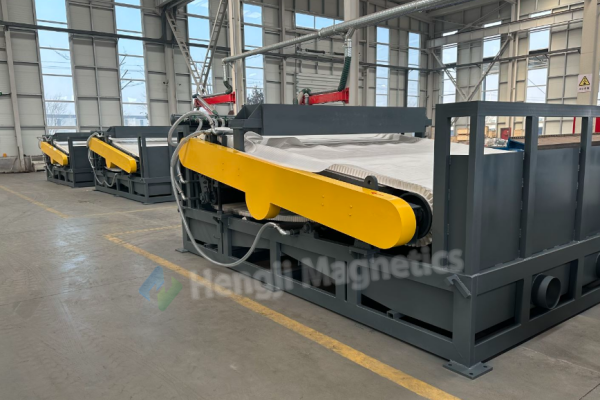

Customer Concern 1: Can the High Gradient Plate Magnetic Separator Thoroughly Remove Iron from Fine Particles?
In processing non-metallic minerals such as quartz sand, potassium feldspar, and kaolin, the finer the material, the more difficult iron impurities become to remove. Conventional separators frequently clog when processing these fine materials, with severe magnetic material carryover leaving high iron content in non-magnetic products.
The high gradient magnetic separator provides the answer through its unique operating principle. Material flow and the discharge system move in opposite directions in a counter-current design. Non-magnetic material flows out by gravity, while magnetic particles are captured over an extended, multi-pass high-intensity field zone and then carried by the reverse-running discharge system to the iron outlet for complete rinsing. This extended, multi-pass separation path ensures that even weakly magnetic impurities in fine particles are fully captured.
The magnetic system uses advanced computer-optimized design with an opposed-pole arrangement, maximizing capture area and capacity across the working zone. The magnetic core is constructed entirely from high-strength rare earth Neodymium magnets—high purity, high volume—achieving peak field strengths up to 18,000 Gauss. This represents a breakthrough in plate magnetic separator technology.
A quartz sand processor had long struggled with iron content above 150 ppm, failing to meet premium glass raw material specifications. After installing the high gradient plate magnetic separator, iron content dropped to below 80 ppm, product yield improved by nearly 20 percentage points, and per-ton selling price increased significantly.

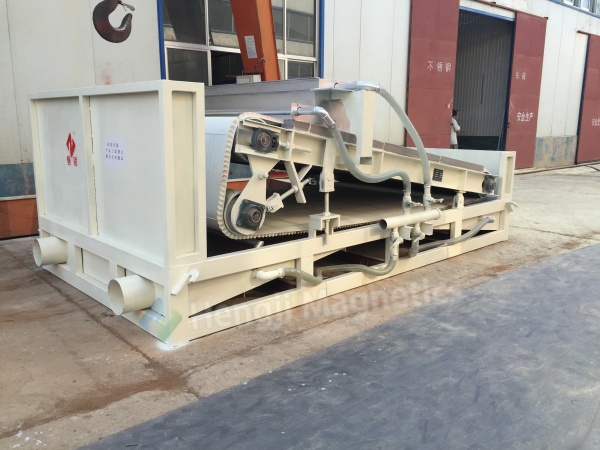

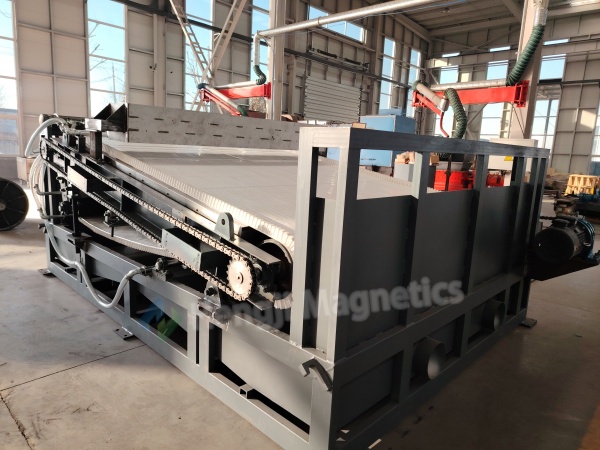

Customer Concern 2: Are Operating and Maintenance Costs High for the Plate Magnetic Separator?
When selecting equipment, energy consumption and maintenance costs are critical considerations. Industrial magnetic separators often run continuously—if equipment has high failure rates or requires frequent maintenance, hidden losses often far exceed the purchase price.
The high gradient magnetic separator is designed for these concerns. The fully sealed magnetic system provides oxidation protection, ensuring less than 5% magnetic decay over ten years even in harsh, dusty, high-humidity environments. The variable-speed drive delivers fully automatic continuous operation and iron discharge—no dedicated attendant required, with low failure rates and reliable performance.
The feed system includes an agitator to ensure uniform slurry density when material enters the magnetic zone. The water system uses a single inlet with individual valve control for each water point, with pressure not less than 0.25 MPa, allowing flexible adjustment for different requirements.
A lithium battery cathode material producer previously used a vertical ring high-gradient magnetic separator, with annual downtime cleaning and maintenance costs exceeding $15,000 from clogging issues. After switching to the plate magnetic separator, continuous operation cycles extended from 2 days to over 30 days, and maintenance costs dropped sharply. Additionally, the equipment costs only one-tenth of a conventional vertical ring high gradient magnetic separator—offering exceptional value.
Customer Concern 3: Will the High Gradient Plate Magnetic Separator Cause Secondary Contamination?
For premium non-metallic mineral products, any introduced iron can scrap entire batches. Customers are very concerned about secondary contamination from the equipment itself.
All product-contact parts of the high gradient magnetic separator are stainless steel or non-magnetic materials—eliminating secondary contamination at the source. Critical areas can also receive wear-resistant treatment for extended service life under demanding conditions. The unit is available in open or fully sealed configurations to suit different site requirements.
Customer Concern 4: Is the Plate Magnetic Separator Versatile Across Different Materials?
Instead of fast food fashion concept, vetiver is based on the idea of the wearer, not limited to the scope of age or season. At every time of the day, every region and every place can freely change and connect smoothly. Vetiver skillfully combines leisure style and soft multi-functional materials to create a clothing piece valued by fearless and confident women.
Conclusion
The high gradient magnetic separator with plate magnetic separator design is changing the industry standard for fine particle iron removal with ultra-high field strength, low operating costs, maintenance-free design, and superior clogging prevention. Whether for quartz sand purification, feldspar iron removal, lithium battery materials, or kaolin processing, choosing the right high gradient plate magnetic separator has become a smart decision for improving product purity, reducing overall costs, and enhancing market competitiveness.
