Can a High Gradient Plate Magnetic Separator Replace a Vertical Ring?

2026-10-27

For fine non-metallic powders such as mica, quartz sand, and kaolin, iron impurities are often deeply embedded. Ordinary iron removal equipment may not capture them cleanly. A vertical ring high gradient magnetic separator works well, but many plant managers worry about high capital cost and complex maintenance. Can a high gradient plate magnetic separator replace a vertical ring machine? The answer depends on your material, capacity, and cost targets. This article breaks down the magnetic source, working principle, durability, cost comparison, commissioning, and a real kaolin case, so you can make a clear decision.

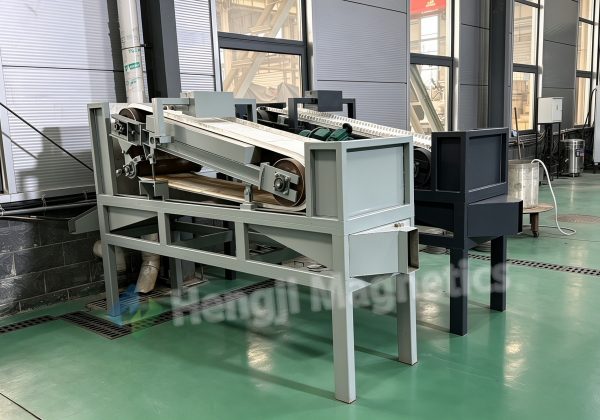

Where Does the High Gradient Magnetic Separator Get Its Magnetic Field?

The high gradient magnetic separator uses a computer-simulated magnetic circuit with an opposed-pole arrangement. This maximizes the adsorption area and capture capacity for iron within the working zone. The magnetic core uses high-strength rare earth Neodymium magnets. The purity is high, the volume is large, and the magnetic force is strong. Compared with a vertical ring high gradient magnetic separator, a wet plate magnetic separator of similar duty often costs significantly less. This cost advantage is one major reason customers choose the plate design.

How the Plate Magnetic Separator Achieves Layer-by-Layer Capture

The plate magnetic separator mainly consists of a support frame, plate magnetic system, feed agitation system, water system, iron discharge system, and adjustment system. During operation, material flow and the discharge system move in opposite directions. Non-magnetic material flows out by gravity to the discharge outlet and is rinsed clean. Magnetic particles are captured over a long distance and through multiple passes in the ultra-strong magnetic field. The reverse-running discharge system carries them to the iron outlet, where they are rinsed clean. This counter-current design is the core of the plate magnetic separator and the high gradient magnetic separator function it performs.

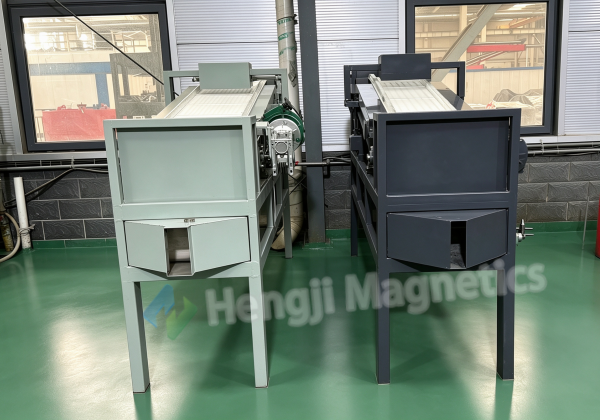

Durability and Maintenance of the High Gradient Plate Magnetic Separator

The high gradient plate magnetic separator uses a fully sealed, oxidation-resistant magnetic system. The strong magnetic core keeps stable magnetic force in harsh environments. The drive uses a variable-frequency motor for automatic continuous operation and iron discharge. This saves labor and runs reliably. The feed system uses a motor agitation structure, so material enters the magnetic zone evenly and slurry density meets beneficiation requirements. The water system uses a single inlet with individual valves for each water point. All material-contact parts are stainless steel or non-magnetic materials, preventing secondary contamination. These features make the plate magnetic separator easier to maintain than many conventional high gradient magnetic separator designs.

Can the Plate Magnetic Separator Replace a Vertical Ring? A Clear Cost Comparison

The high gradient plate magnetic separator can replace a vertical ring machine in many fine weakly magnetic non-metallic mineral applications. But it is not a one-size-fits-all swap. Use this checklist.

Material fit: For mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, manganese ore, weakly magnetic iron ore, pyrrhotite, roasted ore, ilmenite, hematite, limonite, siderite, chromite, wolframite, tantalum-niobium ore, and red mud, the plate magnetic separator is a strong candidate.
Capacity fit: For small to medium capacities and projects sensitive to capital cost, the high gradient plate magnetic separator often offers a lower total cost.
Maintenance fit: If your team wants fewer shutdowns, simpler washing, and no complex ring maintenance, the plate magnetic separator has an advantage.
Where a vertical ring may still win: Very large throughput, special high-gradient duties, or processes already designed around a vertical ring may still favor the ring machine. The decision should be based on test data, not catalog numbers.

In short, the high gradient magnetic separator in plate form can replace a vertical ring in many cases, but the right answer comes from a material test and a full cost calculation.

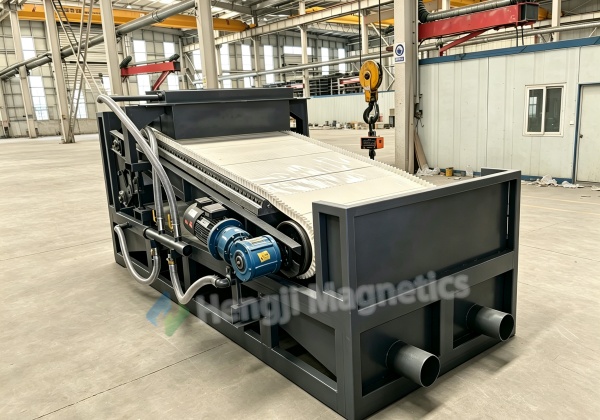

Commissioning Tips for the High Gradient Plate Magnetic Separator

After positioning the high gradient plate magnetic separator, first level the magnetic plate left to right. Before use, check that all piping is connected, power is secure, and grounding is good. After power-on, check whether the drive drum rotates and whether the belt runs off-track. Feed only after the belt runs smoothly in the correct direction. If the belt is loose, raise the equipment bottom and tighten the idler. Control the material layer thickness on the belt according to slurry density and particle size. After shutdown, flush all parts with water to prevent the belt from sticking to the magnetic plate. Before startup, turn on water first and wet the belt fully. These steps keep the plate magnetic separator and its high gradient magnetic separator performance stable.

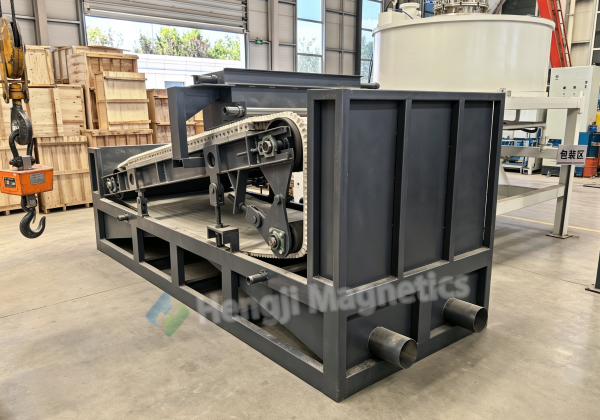

Customer Case: Plate Magnetic Separator in Kaolin Iron Removal

A kaolin processing plant had long suffered from iron impurities that could not be removed completely. Product whiteness failed to meet standards, and customer claims continued. The old equipment clogged easily when processing fine particles and carried over material, causing frequent maintenance. After introducing the high gradient plate magnetic separator, material was agitated evenly and fed into the magnetic zone. The ultra-strong magnetic field captured magnetic particles over a long distance and multiple passes. The reverse-running discharge system carried iron out and rinsed it clean. The sealed magnetic system resisted oxidation and maintained stable magnetic force. The plate magnetic separator discharged iron continuously and automatically without frequent manual cleaning. Product whiteness improved noticeably. Maintenance frequency and overall costs dropped significantly. Customer complaints decreased. This case shows how a high gradient magnetic separator in plate form can deliver practical results.

Hengci Service and Selection Support

Hengci Technology has extensive experience in manufacturing high gradient plate magnetic separators. The company offers multiple sizes and custom designs based on material characteristics. Open or fully sealed structures are available for different site conditions. Provide the mineral type, particle size, throughput, and site conditions, and Hengci can give you a selection reference plus installation and commissioning guidance. For anyone asking whether a plate magnetic separator can replace a vertical ring high gradient magnetic separator, the practical path is to test your material and compare total cost, maintenance, and footprint.

Conclusion: Do the Math Before You Replace

A high gradient plate magnetic separator can replace a vertical ring machine in many fine weakly magnetic mineral duties. It often wins on capital cost, maintenance simplicity, and continuous automatic discharge. But the decision should be based on material tests, capacity, and total cost of ownership. If your goal is lower investment and simpler maintenance for fine non-metallic mineral iron removal, the high gradient magnetic separator in plate form is worth serious evaluation.
