Neodymium Magnet Separator: Powerful Magnetic Separation in Industry for Fine Powder Iron Removal
2026-10-16
In mining, building materials, and chemical production lines, iron filings, iron powder, and metal oxides mixed into powdery materials are a persistent headache for quality control teams. The finer the material, the harder it is to extract iron impurities. Ordinary weak magnetic equipment often struggles with fine iron powder, resulting in incomplete iron removal, declining product quality, and constant customer complaints. Customers repeatedly ask: Is the magnetic source strong enough to capture fine iron powder? Can iron removal be continuous and automatic without frequent shutdowns? Will the equipment lose magnetism over time or require frequent maintenance? The neodymium magnet separator was developed to solve these exact challenges in magnetic separation in industry. This article explains how this ultra-strong dry powder magnetic separation equipment delivers reliable iron removal.

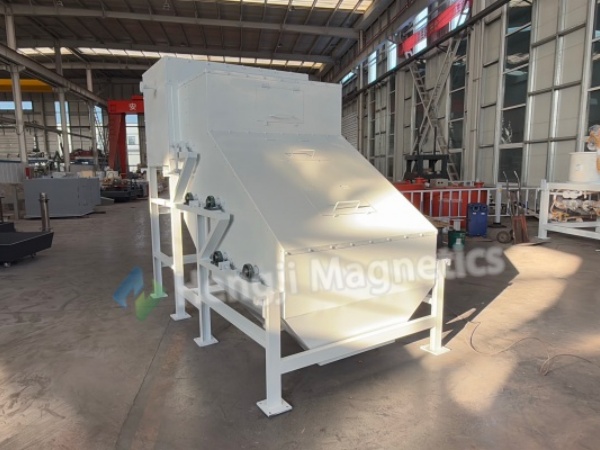

What Is a Neodymium Magnet Separator and How Does It Work?
The neodymium magnet separator uses high-performance permanent magnet material—Neodymium—as the magnetic source. The magnetic circuit is computer-simulated and uniquely designed. The drum surface delivers strong magnetic field strength, high lifting force, and high iron removal efficiency. Based on differences in magnetic susceptibility between materials, it uses magnetic and mechanical forces to make magnetic particles and non-magnetic particles follow different paths. This achieves separation and purification. With a strong Neodymium magnetic source, even fine iron particles buried deep in the material layer are firmly lifted. This provides sufficient magnetic force for effective iron removal in magnetic separation in industry.
How the Neodymium Magnet Separator Addresses Demagnetization Concerns
Customers often worry about demagnetization. The magnetic roll of the neodymium magnet separator uses a computer-simulated magnetic circuit with high-performance Neodymium magnets. The magnetic energy product is high, and demagnetization is difficult—less than 5% over eight years. This ensures long-term, trouble-free continuous operation. The equipment is maintenance-free, energy-saving, safe, and reliable. The vibratory feeder uses elastic vibration supports for long service life and effective vibration isolation. It meets the feeding requirements of different particle sizes.
Material is fed evenly onto the conveyor belt by the vibratory feeder. Ferrous particles are attracted by the ultra-strong magnetic roll and carried to the lower rear section. A discharge scraper pushes them out of the magnetic zone. They lose magnetic attraction and fall naturally into the iron discharge outlet. Non-magnetic material is thrown by inertia to the next conveyor section. This achieves continuous separation of material from ferrous contaminants. The entire iron removal process requires no dedicated supervision. This is how the neodymium magnet separator delivers efficient magnetic separation in industry.

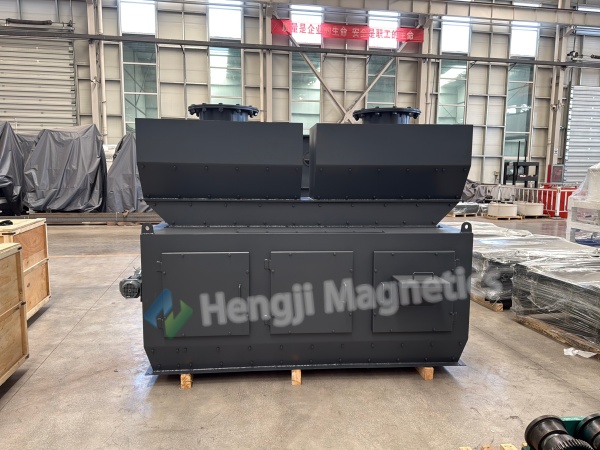

Key Features of the Neodymium Magnet Separator for Magnetic Separation in Industry
The neodymium magnet separator offers several key advantages for industrial applications:
-
Ultra-strong magnetic force: The neodymium magnet separator uses high-performance Neodymium magnets. It captures fine iron particles buried deep in the material layer.
-
No demagnetization: The magnetic circuit is computer-simulated. Demagnetization is less than 5% over eight years.
-
Continuous automatic operation: The neodymium magnet separator provides automatic feeding, separation, and discharge. No manual cleaning shutdowns are required.
-
Maintenance-free: The equipment is designed for reliable long-term operation with minimal maintenance.
-
Energy efficient: No external power is required to generate the magnetic field—saving energy.
-
Effective vibration feeding: Elastic vibratory supports ensure long service life and consistent feed for different particle sizes.
-
Reliable separation: The neodymium magnet separator ensures continuous separation of magnetic from non-magnetic materials.
These features make the neodymium magnet separator a dependable choice for magnetic separation in industry.

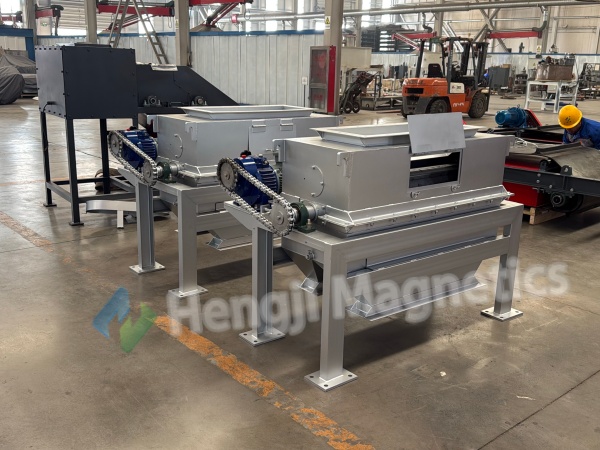

Customer Case: Neodymium Magnet Separator in Building Ceramics and Materials Production
A building ceramics and materials manufacturer faced excessive fine iron impurities in its powder. Product surfaces repeatedly showed black spots and discoloration. The first-grade product rate remained low, and rework costs were high. After introducing the neodymium magnet separator, the ultra-strong magnetic roll powerfully attracted and automatically discharged ferrous materials. After iron removal, powder purity improved significantly. Surface defects were effectively controlled, and the first-grade product rate increased substantially. The equipment ran continuously and automatically without frequent shutdowns for cleaning. The magnetic source remained stable and resistant to demagnetization. Even during long production runs, iron removal performance remained consistent. Overall output and economic benefits improved markedly. This case demonstrates the practical value of the neodymium magnet separator in real production. It shows how magnetic separation in industry can solve persistent iron contamination problems.

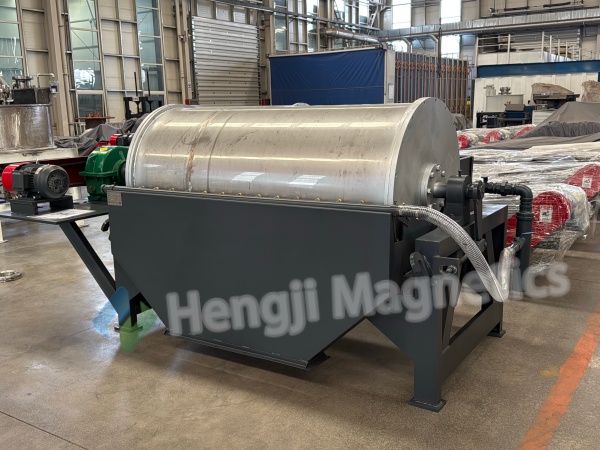

Applications of the Neodymium Magnet Separator in Magnetic Separation in Industry
The neodymium magnet separator is widely used for magnetic separation and iron removal from powdery and granular materials in iron ore, quartz sand, potassium feldspar, ceramic raw materials, chemical powders, plastics, and recycled materials. With a strong Neodymium magnetic source, continuous automatic discharge, long-term resistance to demagnetization, and maintenance-free operation, the neodymium magnet separator is solving real challenges in magnetic separation in industry. It addresses incomplete iron removal, magnetic decay, and frequent maintenance. The neodymium magnet separator ensures material purity and strengthens product quality.
Conclusion: Choose the Neodymium Magnet Separator for Magnetic Separation in Industry
If your industrial processing line suffers from incomplete iron removal, magnetic decay, or frequent maintenance, the neodymium magnet separator deserves serious consideration. It delivers ultra-strong magnetic force, continuous automatic operation, and long-term stability. From iron ore to quartz sand, from ceramic raw materials to chemical powders, the neodymium magnet separator is the equipment of choice for efficient magnetic separation in industry. Contact us today for a free application review and find the right neodymium magnet separator for your production line.
