Crossbelt Permanent Magnetic Separator: Automatic Iron Removal on Conveyor Belts

2026-10-17

In power generation, mining, and building materials, ferrous contaminants in bulk materials—nails, screws, iron blocks, and metal chips—are a constant headache for equipment managers. These tramp iron pieces travel along the conveyor belt. They can tear the belt, contaminate the product, or jam downstream crushers and mills, causing costly production stops. Customers repeatedly ask: Is the magnetic field strong enough to lift iron buried deep in the material layer? Can iron removal be continuous and automatic without frequent manual cleaning? Will a suspended unit affect production, and is it easy to maintain? The crossbelt permanent magnetic separator was developed to address these exact needs. This integrated device combines a crossbelt magnetic separator with a permanent magnetic separator to deliver automatic iron removal for conveyor belts.

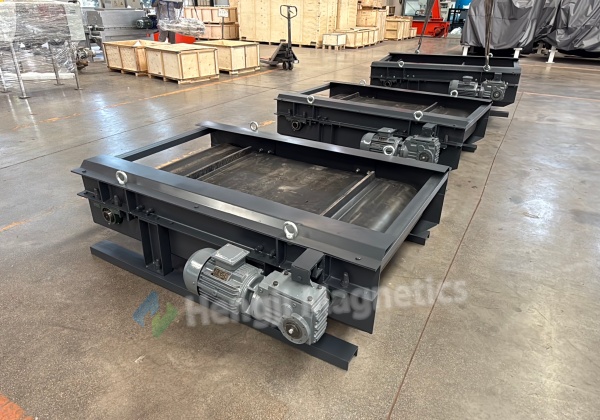

What Is a Crossbelt Permanent Magnetic Separator?

A crossbelt permanent magnetic separator is a self-cleaning permanent magnetic iron removal device designed for conveyor belts. It removes ferrous contaminants from bulk non-magnetic materials. It is typically installed at the head or middle section of a belt conveyor. When material passes beneath the separator, ferrous pieces are lifted by magnetic force. The discharge belt then ejects them into a collection bin. This achieves automatic iron removal. It also effectively prevents longitudinal belt tearing and protects crushers and mills. As a crossbelt magnetic separator, it is widely used in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries. As a permanent magnetic separator, it requires no external power to generate the magnetic field—making it maintenance-free and energy-efficient.

How the Crossbelt Magnetic Separator Lifts Deep-Buried Tramp Iron

The core of the crossbelt permanent magnetic separator is its well-designed magnetic circuit. It delivers high field strength and deep magnetic penetration. This makes it suitable for iron removal from thick material layers. Even tramp iron buried deep in the material is effectively lifted. The internal magnetic system uses high-coercivity, high-remanence Neodymium magnets in a composite circuit. The permanent magnetic separator design ensures strong magnetic force, long service life, simple installation, easy operation, and reliable performance. The crossbelt magnetic separator therefore solves the common problem of insufficient lifting force on thick material layers.

Automatic Discharge: How the Permanent Magnetic Separator Cleans Itself

Continuous iron removal is a key customer concern. The crossbelt permanent magnetic separator consists of two main parts: the separator body and the discharge mechanism. The discharge mechanism includes a frame, geared motor, drive and tail pulleys, idlers, and a discharge belt with scrapers. The discharge belt tension and tracking can be adjusted without stopping production using bearing adjustment devices. As a permanent magnetic separator, the discharge process is fully automatic and continuous—no dedicated supervision is required. The crossbelt magnetic separator therefore delivers true self-cleaning operation.

Durability and Maintenance of the Crossbelt Permanent Magnetic Separator

Maintenance is a major concern for equipment managers. The crossbelt permanent magnetic separator is designed for reliability. The magnetic core is fully sealed and protected. The discharge belt uses wear-resistant materials. The permanent magnetic separator has no excitation coil or cooling system, eliminating common failure points. The crossbelt magnetic separator requires minimal daily maintenance. Periodic checks of the discharge belt and bearing lubrication are sufficient. This makes the crossbelt permanent magnetic separator a cost-effective long-term solution.

Customer Case: Crossbelt Permanent Magnetic Separator in Building Materials Production

A building materials production line had long suffered from tramp iron in its conveyed raw coal and ore. The conveyor belt frequently tore, and the crusher jammed multiple times. Maintenance costs were high. After introducing the crossbelt permanent magnetic separator, ferrous pieces were powerfully lifted as material passed and automatically ejected into the collection bin. Belt tearing and crusher failures dropped sharply. The equipment ran continuously and automatically without frequent shutdowns for cleaning. Production stability and maintenance costs improved markedly. Overall economic benefits increased significantly. This case demonstrates the practical value of the crossbelt magnetic separator and permanent magnetic separator in real production.

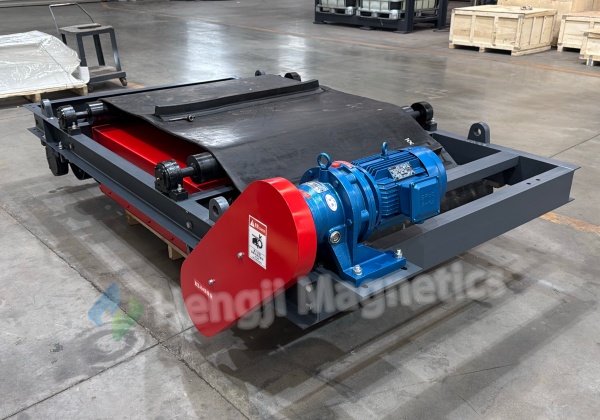

Applications of the Crossbelt Permanent Magnetic Separator

The crossbelt permanent magnetic separator is widely used for iron removal from bulk non-magnetic materials in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries. It can be installed at the head or middle section of a belt conveyor. It is also suitable above picking stations and vibrating screens. With strong magnetic force, deep penetration, continuous automatic discharge, and maintenance-free operation, the crossbelt magnetic separator and permanent magnetic separator are solving real conveyor belt iron contamination problems. They make production more continuous, equipment more durable, and maintenance less troublesome. The crossbelt permanent magnetic separator ensures product purity and protects downstream equipment.

Conclusion: Choose the Crossbelt Permanent Magnetic Separator

If your conveyor line suffers from tramp iron, belt tearing, or frequent crusher jams, the crossbelt permanent magnetic separator deserves serious consideration. It combines the robust performance of a crossbelt magnetic separator with the maintenance-free reliability of a permanent magnetic separator. From power generation to building materials, the crossbelt permanent magnetic separator is the equipment of choice for automatic conveyor belt iron removal. Contact us today for a free application review and find the right crossbelt permanent magnetic separator for your production line.
