Model No: RCYD

Permanent Self Cleaning Belt magnet For Conveyor

The RCYD permanent magnet self dumping iron remover is equivalent to the RCYC series models. This RCYD permanent magnet self dumping iron remover is highly suitable for removing iron from conveyor belt transportation across various industries.
Quantity :
Contact Now

RCYD Permanent Self Cleaning Belt magnet For ConveyorOverview


The RCYD Series Permanent Magnet Self-Cleaning Separator provides an efficient magnetic separation solution for removing ferrous impurities from bulk materials. This advanced self cleaning belt magnet utilizes high-performance NdFeB rare-earth magnets, delivering exceptional magnetic strength, deep penetration, and extended service life.
The system combines a permanent magnetic assembly with automatic cleaning mechanism, enabling continuous operation without manual intervention. This permanent magnet for belt conveyor applications is widely used in power generation, mining, metallurgy, building materials, and chemical industries.
The equipment effectively protects downstream machinery including conveyors, crushers, and grinding mills. The self cleaning belt magnet ensures reliable performance while the permanent magnet for belt conveyor system offers maintenance-free operation in various industrial environments.

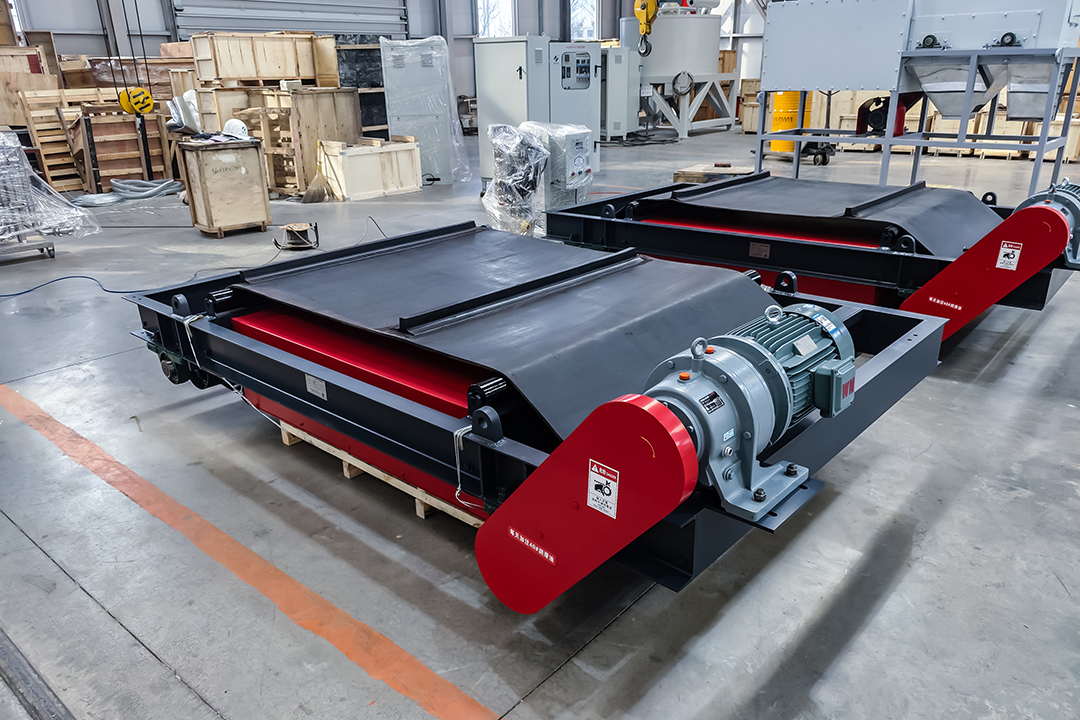

RCYD permanent magnet self dumping iron remover


RCYD Permanent Self Cleaning Belt magnet For Conveyor Specifications & Features

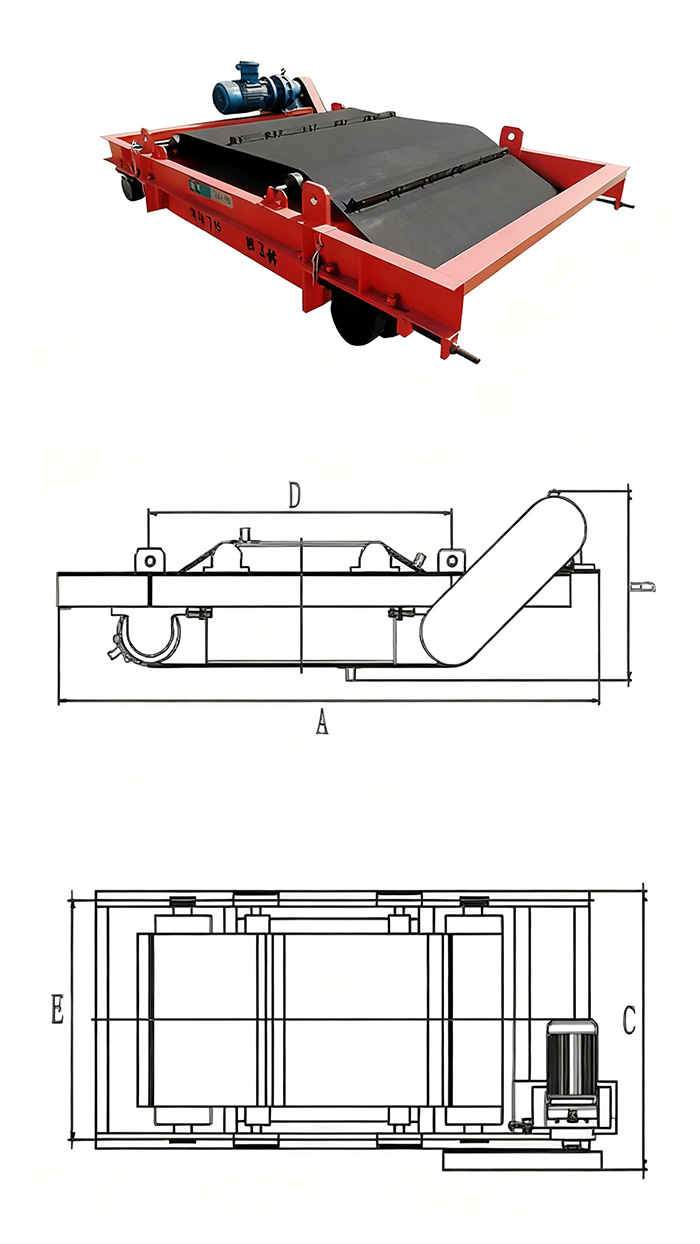

RCYD Permanent Self Cleaning Belt magnet For Conveyor Schematic Diagram


High-Efficiency Separation

Utilizing high-energy NdFeB magnetic materials, this self cleaning belt magnet delivers strong magnetic field intensity, effectively removing ferrous impurities weighing 0.1-35kg. The deep penetration capability makes this permanent magnet for belt conveyor systems suitable for thick material layer applications.

Automatic Cleaning Operation

Equipped with cycloidal reducer and discharge belt system, this self cleaning belt magnet enables continuous automatic operation without production interruptions. The permanent magnet for belt conveyor design significantly improves processing efficiency while eliminating manual intervention.

Energy Efficiency & Reliability

Requiring no electrical power for magnetic operation, the system minimizes energy consumption while operating without noise pollution. The optimized magnetic circuit ensures minimal magnetic decay, providing service life exceeding 10 years for this self cleaning belt magnet.

Environmental Adaptability

Featuring fully enclosed construction with IP54 protection, this permanent magnet for belt conveyor resists dust, moisture, and corrosion. Suitable for temperatures from -20℃ to +40℃, making it ideal for both indoor and outdoor applications.

Maintenance-Friendly Design

The discharge belt tension can be adjusted during operation, while self-lubricating bearings minimize maintenance needs for this self cleaning belt magnet. The permanent magnet for belt conveyor system ensures stable and safe performance with low operational requirements.


 RCYD Permanent Self Cleaning Belt magnet For ConveyorMagnetic SeparatorParameters



Model

Applicable Belt Width (mm)

Rated Lifting Height (mm)

Magnetic Field Intensity (mT)

Motor Power (kw)

Overall Dimensions (mm)

Weight (kg)
ABCDE

RCYD-6.5

650

200

70

1.5

2010

656

1030

1200

888

1200

T1

650

200

90

2.2

2010

656

1030

1200

888

1300

T2

650

200

120

2.2

2010

656

1030

1200

888

1420

T3

650

200

150

2.2

2010

656

1030

1200

888

1750

RCYD-8

800

250

70

2.2

2217

704

1230

1386

1088

1400

T1

800

250

90

2.2

2271

704

1230

1386

1088

1920

T2

800

250

120

2.2

2271

704

1230

1386

1088

2180

T3

800

250

150

3.0

2271

704

1230

1386

1088

2820

RCYD-10

1000

300

70

3.0

2608

706

1486

1660

1335

2120

T1

1000

300

90

3.0

2608

706

1486

1660

1335

2350

T2

1000

300

120

3.0

2608

706

1486

1660

1335

2700

T3

1000

300

150

4.0

2648

726

1486

1660

1335

3680

RCYD-12

1200

350

70

4.0

3006

805

1662

2000

1515

2650

T1

1200

350

90

4.0

3006

805

1662

2000

1515

3250

T2

1200

350

120

5.5

3006

805

1662

2000

1515

4100

T3

1200

350

150

5.5

3006

805

1662

2000

1515

5150

RCYD-14

1400

400

70

4.0

3135

825

1909

1800

1755

3860

T1

1400

400

90

4.0

3135

825

1909

1800

1755

4800

T2

1400

400

120

5.5

3135

825

1909

1800

1755

5600

T3

1400

400

150

5.5

3135

825

1909

1800

1755

7450

RCYD-16

1600

450

70

5.5

3350

845

1961

1270

1720

4390

T1

1600

450

90

5.5

3350

845

1961

1270

1720

6200

T2

1600

450

120

5.5

3350

845

1961

1270

1720

7750

T3

1600

450

150

7.5

3370

885

1961

1270

1720

8790

RCYD-18

1800

500

70

5.5

3580

870

2167

2600

2025

5830

T1

1800

500

90

7.5

3580

870

2167

2600

2025

8050

T2

1800

500

120

7.5

3580

870

2167

2600

2025

10850

T3

1800

500

150

11

3580

870

2167

2600

2025

14800

RCYD-20

2000

550

70

7.5

3830

895

2417

2840

2229

7120

T1

2000

550

90

7.5

3830

895

2417

2840

2229

11500

T2

2000

550

120

11

3830

895

2417

2840

2229

14270

T3

2000

550

150

11

3830

895

2417

2840

2229

19260

→ Click here to get RCYD Permanent Self Cleaning Belt Magnet For Conveyor quotation

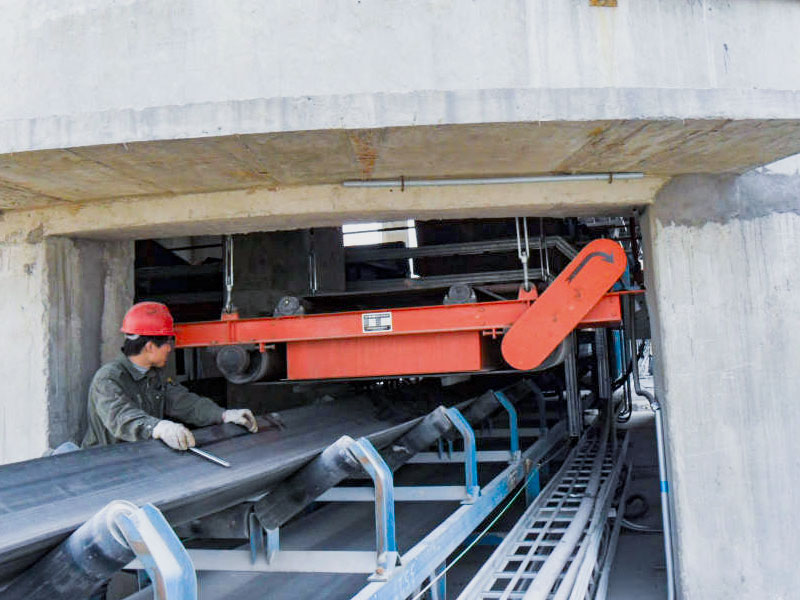

 RCYD Permanent Self Cleaning Belt magnet For Conveyor Key Application Scenarios

Power Generation Industry

This self cleaning belt magnet protects coal crushers and pulverizers in thermal power plants, preventing equipment damage from ferrous contamination. The permanent magnet for belt conveyor systems ensures continuous operation in coal handling processes.

Mining and Metallurgy

Enhancing raw material preprocessing for iron ore and copper ore operations, this self cleaning belt magnet improves mineral purity while reducing equipment wear. The permanent magnet for belt conveyor applications supports efficient mineral processing.

Building Materials Production

Removing ferrous contaminants from limestone and sandstone materials, this self cleaning belt magnet prevents damage to roller presses and crushers. The permanent magnet for belt conveyor system ensures production continuity in cement plants.

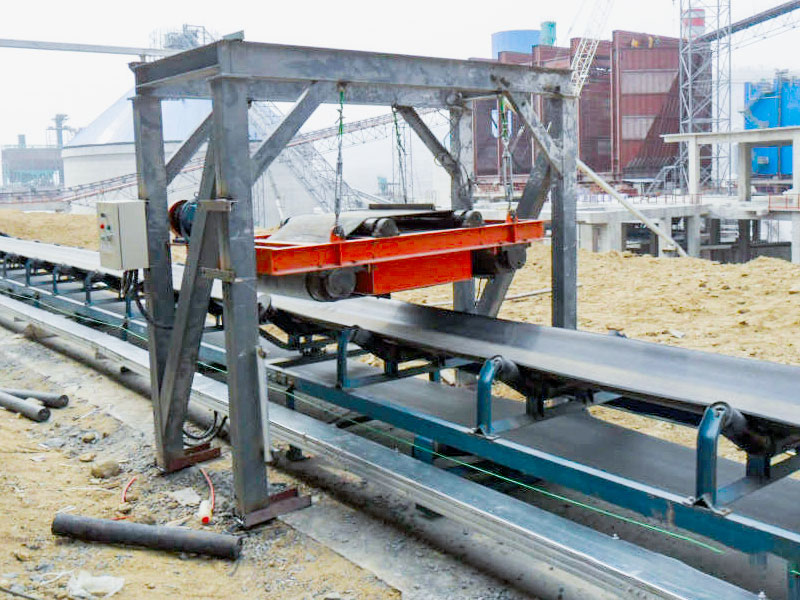

RCYD Permanent Self Cleaning Belt magnet For Conveyor Key Application ScenariosRCYD Permanent Self Cleaning Belt magnet For Conveyor Key Application Scenarios

Chemical Industry

Purifying raw materials in fertilizer and plastic pellet production, this self cleaning belt magnet maintains product quality standards. The permanent magnet for belt conveyor technology supports chemical processing applications.

Coal Processing and Waste Treatment

Eliminating metal contaminants from raw coal transportation, this self cleaning belt magnet improves washing efficiency. The permanent magnet for belt conveyor also facilitates metal recovery in waste sorting operations.

Port Operations

Separating ferrous impurities during bulk material handling, this self cleaning belt magnet ensures safe operation of conveying systems. The permanent magnet for belt conveyor protects equipment in port and terminal applications.

 RCYD Permanent Self Cleaning Belt magnet For Conveyor Operation & Maintenance Guide




Installation Requirements

Install the self cleaning belt magnet above conveyor head or middle sections, ensuring uniform material flow through the magnetic area. Maintain suspension height between 300-500mm based on material thickness for optimal permanent magnet for belt conveyor performance. Ensure stable mounting to prevent vibration affecting separation efficiency.

Operational Procedures

Check discharge belt tension and tracking before starting the self cleaning belt magnet. Monitor separation performance during operation and regularly clean collected iron from collection bins. Periodically inspect reducer lubrication condition for the permanent magnet for belt conveyor system.

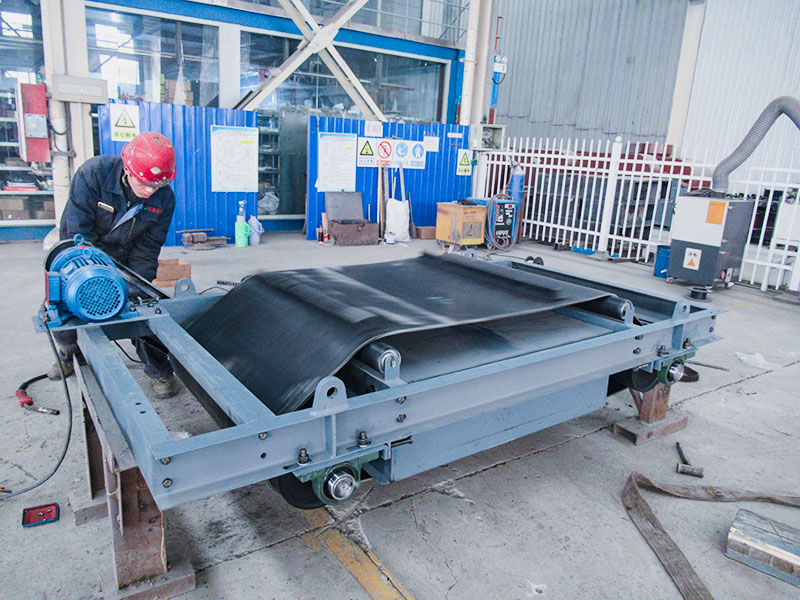

         RCYD Permanent Self Cleaning Belt magnet For Conveyor Operation & Maintenance Guide

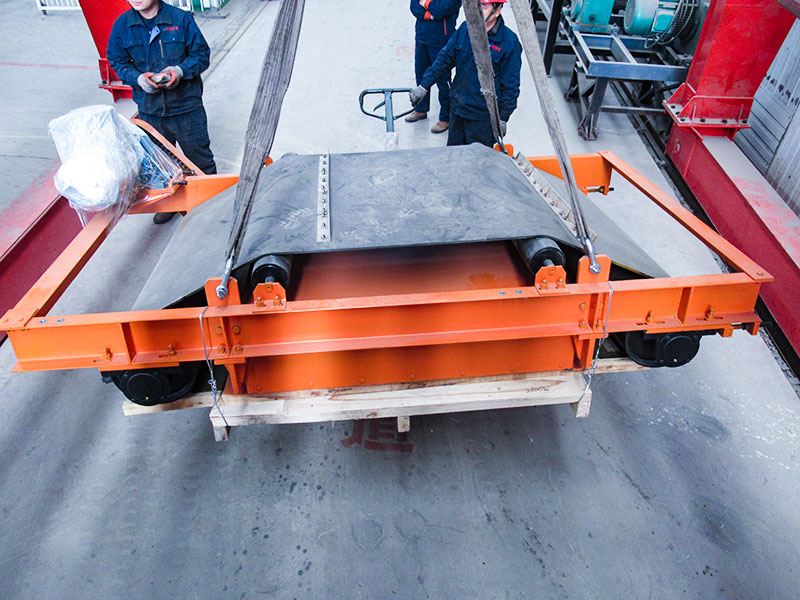

RCYD Permanent Self Cleaning Belt magnet For Conveyor Operation & Maintenance Guide

Maintenance Schedule

Conduct weekly inspection of belt wear condition with timely adjustment or replacement. Perform monthly checking of magnetic system fastening bolts. Implement quarterly bearing lubrication to extend service life of both the self cleaning belt magnet and permanent magnet for belt conveyor.

Safety Precautions

Avoid prolonged overload operation affecting equipment longevity. Prevent usage in strongly corrosive environments. Regularly clean equipment surface and remove debris during shutdown periods to maintain optimal performance of the self cleaning belt magnet and permanent magnet for belt conveyor systems.



RCYD Permanent Self Cleaning Belt magnet For Conveyor Customized Design

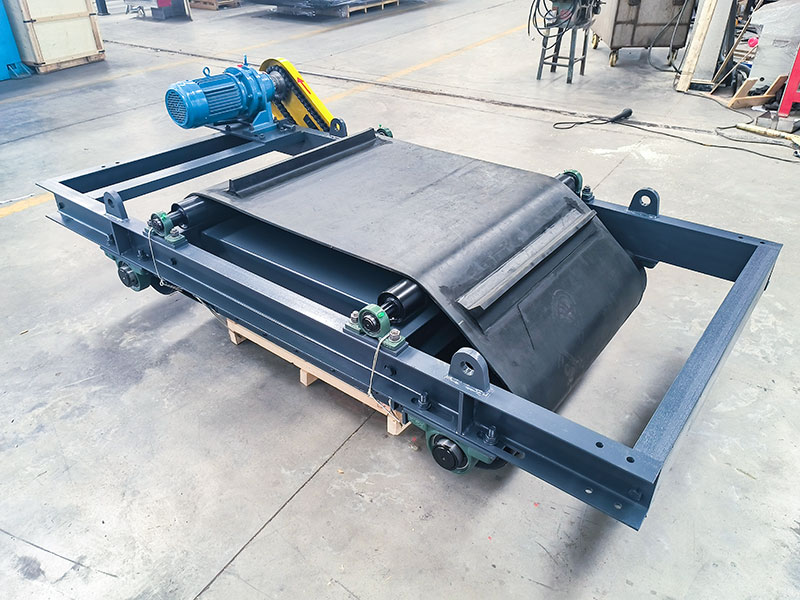

RCYA Hump Magnet Magnetic Separator Customized Design

Dimensional Customization

Tailored equipment dimensions based on customer conveyor widths (500-2000mm), ensuring perfect integration for both self cleaning belt magnet and permanent magnet for belt conveyor systems.

Magnetic Strength Adjustment

Optimized magnetic field strength based on material characteristics, including particle size and iron content, to enhance the performance of self cleaning belt magnet applications.

Special Environment Adaptations

High-temperature models for environments up to 150℃ using heat-resistant materials. Explosion-proof versions compliant with safety standards. Corrosion-resistant designs with stainless steel construction for permanent magnet for belt conveyor systems in harsh conditions.

Intelligent Control Integration

Optional PLC control systems enabling integration with metal detectors for automated operation of self cleaning belt magnet units.

Accessory Customization

Various collection bins, support frames, and protective covers available to meet different application requirements for permanent magnet for belt conveyor installations.

The RCYD series separator offers efficient, durable, and low-consumption performance, providing economical and reliable iron removal solutions for various production lines.
