Model No: RCYP

Neodymium Magnet Hand Magnetic Separator

● Strong Magnetic Force: NdFeB magnetic system, stable field, lasting power

● Manual Cleaning: Handle-driven scraper, simple and reliable operation

● Maintenance-Free: No power needed, no wear parts, 10+ year lifespan

● Wide Tolerance: -20℃ to 60℃, dust and moisture resistant

● Zero Energy: No electricity required

● Compact & Light: Easy to install and maintain

● Fits Various Conveyors: Belt feeders, vibratory conveyors, etc.

● Cost-Effective: Low operating cost, minimal upkeep
Quantity :
Contact Now

 RCYP Neodymium Magnet Hand Magnetic SeparatorOverview



The RCYP Series Permanent Magnetic Separator from Hengji Magnetoelectric Machinery provides an efficient solution for manual iron removal applications. This neodymium magnet separator utilizes high-performance neodymium iron boron materials to create a powerful magnetic system.

Featuring simple structure and convenient operation, this hand magnetic separator effectively removes ferromagnetic impurities from bulk non-magnetic materials. The equipment is widely used in power generation, mining, construction materials, chemical processing, and food industries.

This suspended neodymium magnet separator can be integrated with belt conveyors, vibrating conveyors, and other material handling equipment to effectively protect downstream machinery such as crushers and grinding mills from iron damage.

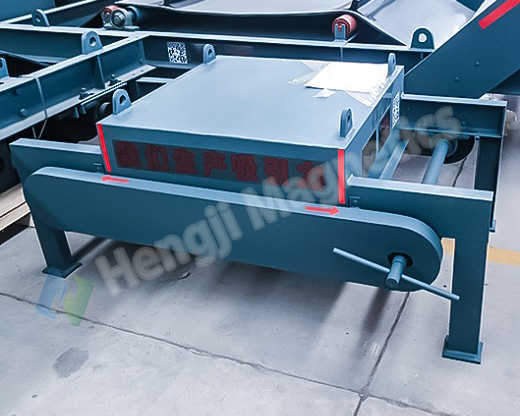

 RCYA Hump Magnet Magnetic Separator Overview


RCYP Neodymium Magnet Hand Magnetic Separator Specifications & Features

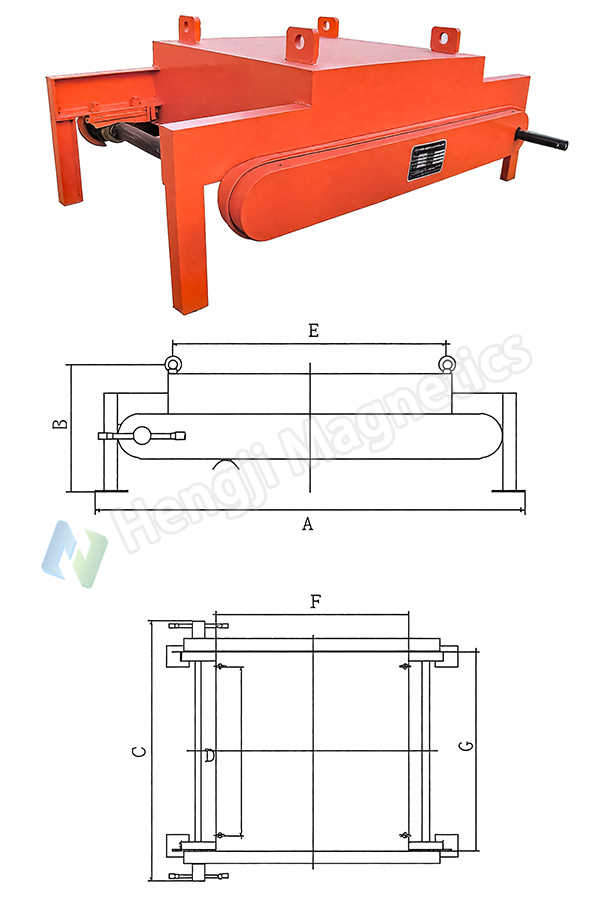

RCYA Hump Magnet Magnetic Separator Schematic Diagram

Exceptional Magnetic Performance

This hand magnetic separator uses high-coercivity neodymium iron boron materials to generate strong magnetic fields, effectively removing deeply buried ferromagnetic contaminants. The neodymium magnet separator maintains consistent performance throughout operation.

Manual Iron Removal System

Featuring a handle-driven scraper mechanism, this neodymium magnet separator enables easy iron removal without electrical power. The manual operation makes this hand magnetic separator energy-efficient and environmentally friendly.

Simple and Robust Construction

With no complex mechanisms, the RCYP neodymium magnet separator ensures low failure rates and minimal maintenance. The durable construction guarantees long service life, making this hand magnetic separator an economical choice.

Flexible Installation Options

The suspended design allows adjustable height and angle installation. This neodymium magnet separator adapts to various working conditions and material handling configurations.

Wear-Resistant Design

Utilizing wear-resistant materials, the scraper mechanism ensures long-term durability. This hand magnetic separator delivers reliable operation even in demanding environments.


 RCYP Neodymium Magnet Hand Magnetic SeparatorParameters

Model

Applicable Belt Width (mm)

Rated Lifting Height (mm)

Magnetic Field Intensity (mT)

Max. Material Thickness (≤mm)

Weight (kg)

Suspension Dimension (D×E, mm)

Overall Dimension (A×C×B, mm)

Magnetic Pole Dimension (F×G, mm)

RCYP-4

400

125

70

70

250

470×340

1100×910×500

500×500

RCYP-5

500

150

70

90

580

570×440

1200×1020×550

600×600

RCYP-6

600

175

70

125

680

670×500

1300×1120×560

700×700

RCYP-6.5

650

200

70

150

820

715×550

1380×1170×550

750×750

RCYP-8

800

250

70

200

1500

915×750

1630×1300×560

950×950

RCYP-10

1000

300

70

250

2300

1050×900

1765×1500×560

1100×1100

RCYP-12

1200

350

70

300

3300

1250×1140

1960×1750×580

1300×1340

RCYP-14

1400

400

70

350

3800

1450×1350

2180×1950×620

1500×1550

→ Click here to get RCYP Neodymium Magnet Hand Magnetic Separator quotation

 RCYP Neodymium Magnet Hand Magnetic Separator Key Application Scenarios

Power Generation

The neodymium magnet separator effectively removes iron contaminants from coal in power plant conveying systems, protecting crushers and ensuring continuous operation.

Mining Operations

This hand magnetic separator removes iron impurities during ore conveying processes, improving equipment longevity and maintaining production efficiency.

Construction Materials

For cement and sand processing, the neodymium magnet separator eliminates iron contaminants that might damage ball mills and roller presses.

Chemical Industry

The equipment handles fertilizer and plastic pellets, providing effective iron separation to ensure product purity in chemical manufacturing.

Food Processing

In grain conveying systems, this hand magnetic separator removes metal contaminants, ensuring food safety standards compliance.

Additional Applications

The versatile neodymium magnet separator serves various iron separation needs in waste processing, metallurgy, and paper manufacturing industries.

 → Click here  for more application information

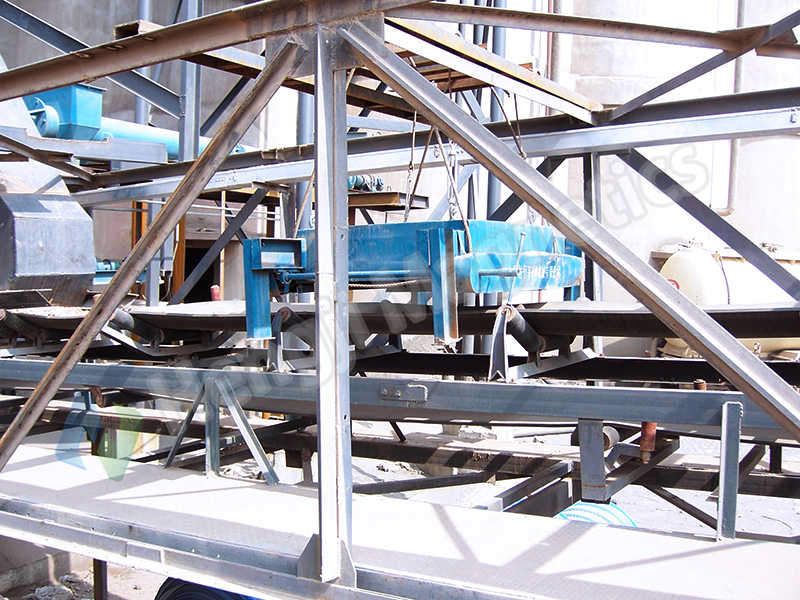

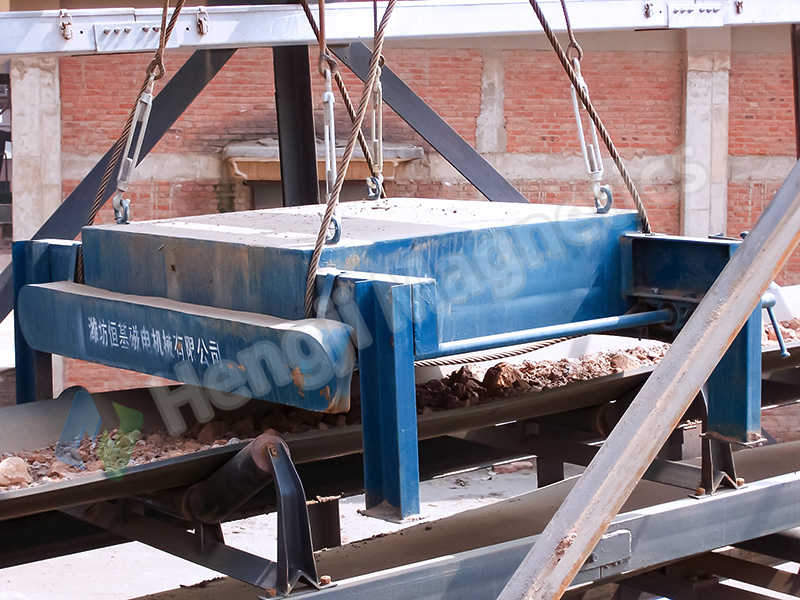

 RCYA Hump Magnet Magnetic Separator Key Application ScenariosRCYA Hump Magnet Magnetic Separator Key Application Scenarios

 RCYP Neodymium Magnet Hand Magnetic Separator Operation & Maintenance Guide


Installation

Suspend the neodymium magnet separator above conveyor belts using lifting rings. Maintain 100-300mm distance from material surface with magnetic face parallel to belt. Adjust tilt angle based on material flow speed and iron distribution for optimal performance.

Operation

Pre-start: Ensure clean magnetic surface and smooth scraper mechanism. During operation: Monitor iron collection status and magnetic strength regularly. Manual cleaning: Rotate handle to activate scraper, removing iron debris into collection box.

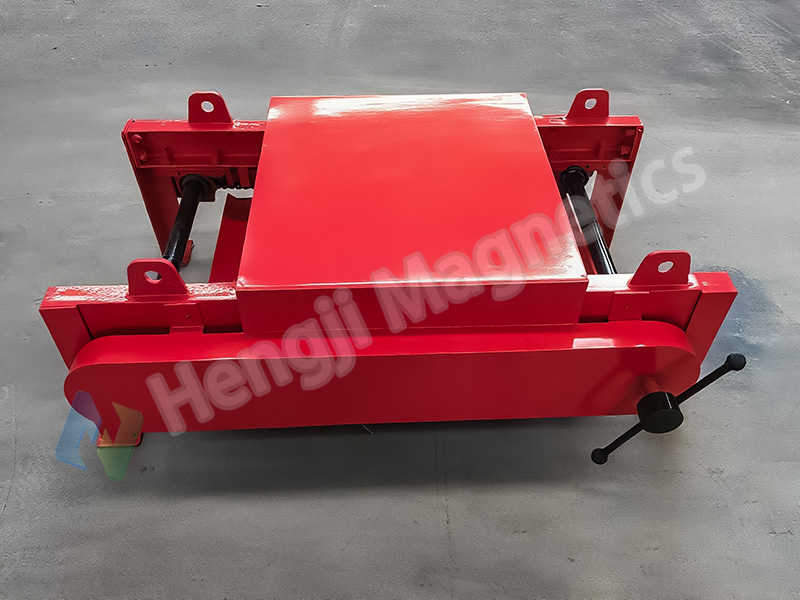

                            RCYP Neodymium Magnet Hand Magnetic Separator Operation & Maintenance Guide



Maintenance

Regular cleaning: Remove dust and iron particles from magnetic surface. Lubrication: Grease moving parts every 3 months for smooth operation. Magnetic testing: Annual strength verification; replace magnets if significant degradation occurs.

Safety Notes

Keep magnetic items (watches, phones) away during operation. Avoid overload operation - clear collected iron promptly. Choose specialized hand magnetic separator models for high-temperature or corrosive environments.

This neodymium magnet separator offers reliable manual iron removal with minimal maintenance requirements. The hand magnetic separator design ensures operational safety and efficiency across various industrial applications.



RCYP Neodymium Magnet Hand Magnetic Separator Customized Design

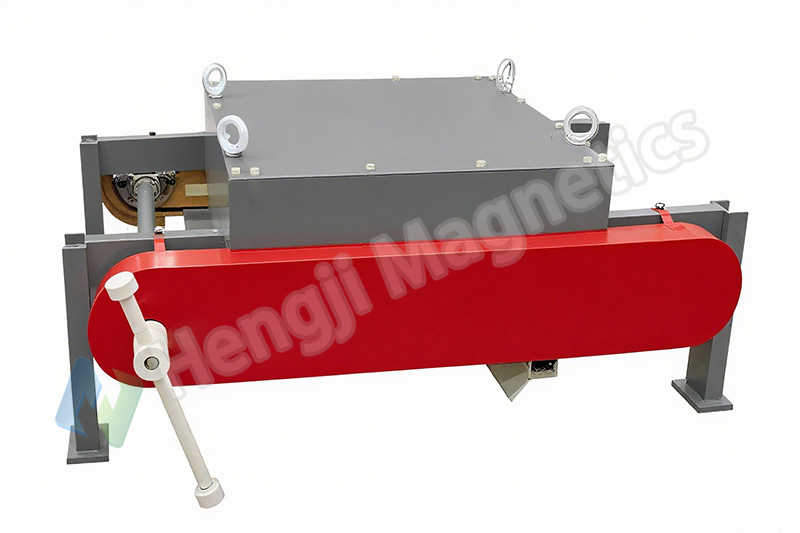

RCYA Hump Magnet Magnetic Separator Customized Design

Magnetic Strength Adjustment

Magnetic field intensity can be customized based on material characteristics, with high-intensity models available for thick material layer applications

Dimensional Adaptation

Various magnetic assembly widths and lengths to accommodate different conveyor specifications

Material Enhancement

Stainless steel housings or special coatings for corrosive environments, improving corrosion resistance

Installation Configuration

Non-standard installation designs including side-mounted and tilted configurations for special space limitations

Additional Features

Optional iron collection boxes, alarm systems, and other accessories to enhance automation level and operational safety

The RCYP Series Permanent Magnetic Separator combines high efficiency, reliability, and energy savings, making it the preferred choice for iron removal across various industries. Hengji Magnetoelectric provides complete services from selection design to after-sales support, ensuring customers achieve optimal performance and user experience with their neodymium magnet separator and hand magnetic separator investments.
