Model No: RCDE

Belt Conveyor Suspended Magnetic Separator​

● Oil-Cooled System
Internal transformer oil circulation ensures efficient heat dissipation, maintaining stable magnetic strength.

● Fully Sealed Design
Protects against dust, rain, and moisture for reliable operation in harsh environments.

● Powerful Magnetic Field
Optimized magnetic circuit delivers deep penetration and strong force for high-volume applications.

● Auto-Cleaning Mechanism
Continuous self-cleaning via discharge belt eliminates manual iron removal.

● Energy Efficient
Permanent magnet technology requires zero operating power, providing an eco-friendly solution.

● Robust Construction
Durable design ensures long-term reliability with minimal maintenance needs.
Quantity :
Contact Now

 RCDE Belt Conveyor Suspended Magnetic Separator​Overview


The RCDE Series Oil-Cooled Electromagnetic Separator from Hengji Magnetoelectric Machinery provides an advanced solution for industrial iron removal. This high-performance suspended magnetic separator incorporates innovative oil-circulation cooling technology and unique excitation coil winding techniques to deliver exceptional magnetic strength and thermal management.

The fully sealed construction of this conveyor magnetic separator ensures reliable operation in demanding industrial environments, making it ideal for continuous high-intensity applications where efficient iron removal is critical. This premium belt conveyor magnetic separator effectively eliminates ferromagnetic contaminants from non-magnetic materials across various production lines.

Designed for heavy-duty applications, this suspended magnetic separator offers superior performance in protecting downstream equipment and maintaining product purity in industrial processing operations.

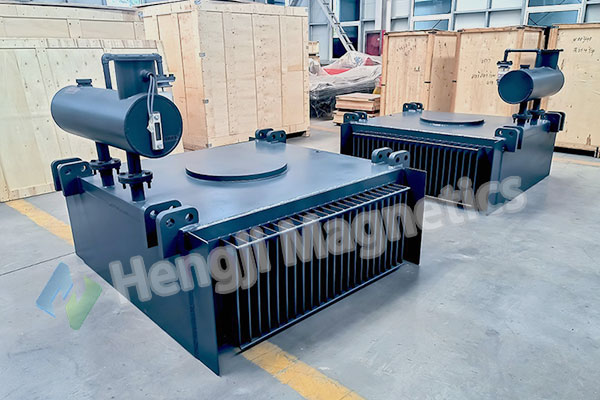

oil-cooled iron remover


RCDE Belt Conveyor Suspended Magnetic Separator Specifications & Features

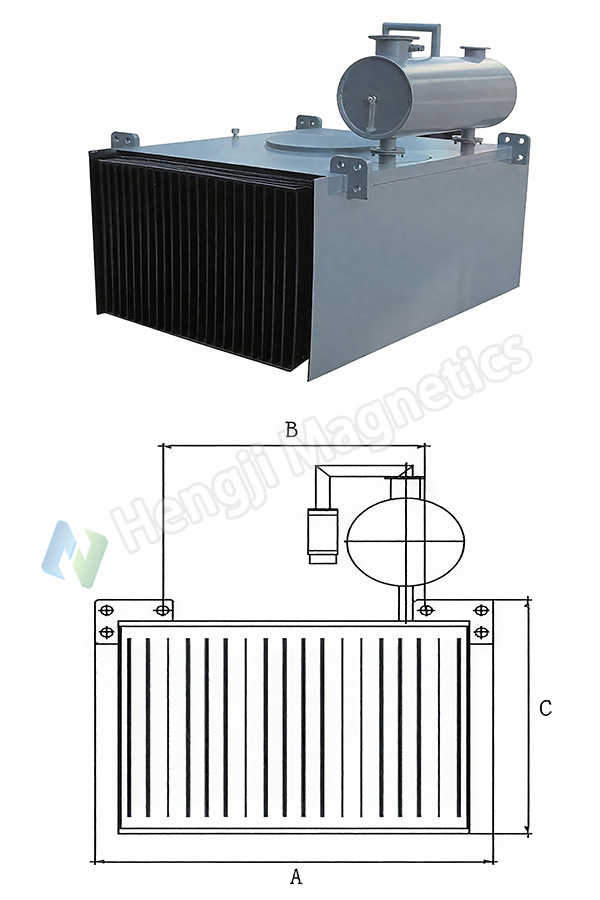

RCYA Hump Magnet Magnetic Separator Schematic Diagram


Advanced Cooling System

The RCDE suspended magnetic separator features integrated oil-circulation cooling pipes that provide superior heat dissipation with minimal temperature rise. This technology enables continuous operation without performance degradation.

Exceptional Magnetic Performance

Utilizing specialized excitation coil technology, this conveyor magnetic separator generates powerful magnetic fields with superior iron capture capability. The design ensures efficient removal of deeply buried contaminants while consuming 30% less energy.

Robust Sealed Construction

The completely sealed enclosure offers comprehensive protection against dust and moisture, making this belt conveyor magnetic separator suitable for challenging environmental conditions. The leak-proof design ensures long-term operational safety.

Low Maintenance & Energy Efficiency

With maintenance-free cooling and reliable structure, this suspended magnetic separator minimizes downtime. The optimized electromagnetic circuit reduces power consumption while maintaining high separation efficiency.


 RCDE Belt Conveyor Suspended Magnetic SeparatorParameters

Model

Sub - model

Applicable Belt Width (mm)

Rated Lifting Height (mm)

Magnetic Field Intensity (mT)

Excitation Power (kw)

Overall Dimensions (mm)

Applicable Belt Speed (≤m/s)

Weight (Kg)

ABC

RCDE-6.5

T1

650

200

90

3.0

1090

710

860

4.5

950

T2

120

5.0

1090

750

890

1200

T3

150

8.0

1090

750

920

1470

RCDE-8

T1

800

250

90

5.0

1180

900

920

4.5

1570

T2

120

9.0

1180

900

960

2000

T3

150

13.0

1180

900

1010

2470

RCDE-10

T1

1000

300

90

7.5

1380

1100

1030

4.5

2430

T2

120

12.5

1380

1100

1090

3090

T3

150

16.5

1380

1100

1120

3850

RCDE-12

T1

1200

350

90

10.0

1600

1300

1150

4.5

3500

T2

120

14.0

1600

1300

1210

4550

T3

150

21.0

1600

1300

1250

5640

RCDE-14

T1

1400

400

90

14.0

1780

1460

1270

4.5

4950

T2

120

18.0

1780

1460

1300

6990

T3

150

26.0

1780

1460

1350

7940

RCDE-16

T1

1600

450

90

15.0

1980

1600

1340

4.5

6770

T2

120

22.0

1980

1600

1400

8720

T3

150

32.0

1980

1600

1460

10820

RCDE-18

T1

1800

500

90

19.0

2050

1950

1440

4.5

9000

T2

120

28.0

2050

1950

1540

11790

T3

150

38.0

2050

1950

1610

14800

RCDE-20

T1

2000

550

90

24.0

2660

2300

1540

4.5

12100

T2

120

32.5

2660

2300

1610

15300

T3

150

45.0

2660

2300

1650

19200

RCDE-22

T1

2200

600

90

28.0

2410

2610

1630

4.5

15300

T2

120

36.0

2410

2610

1660

18600

T3

150

52.0

2410

2610

1690

22930

→ Click here to get RCDE Belt Conveyor Suspended Magnetic Separator quotation

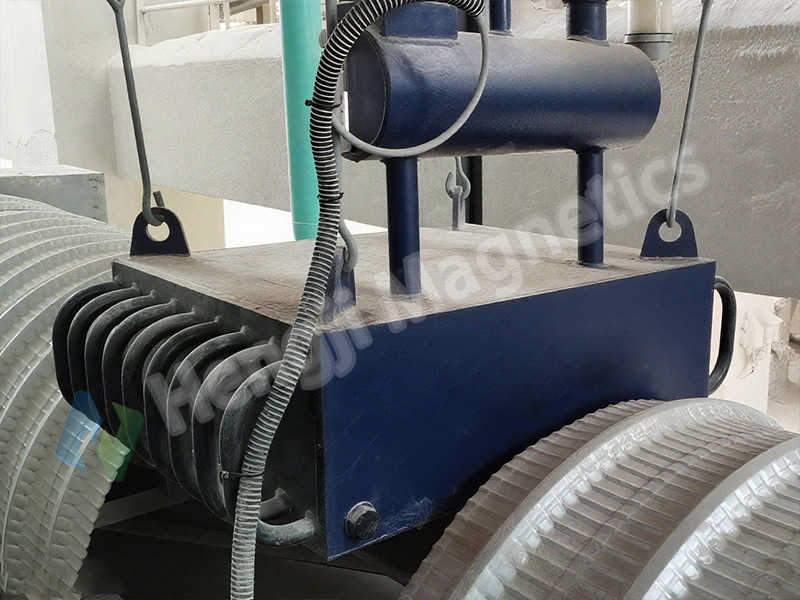

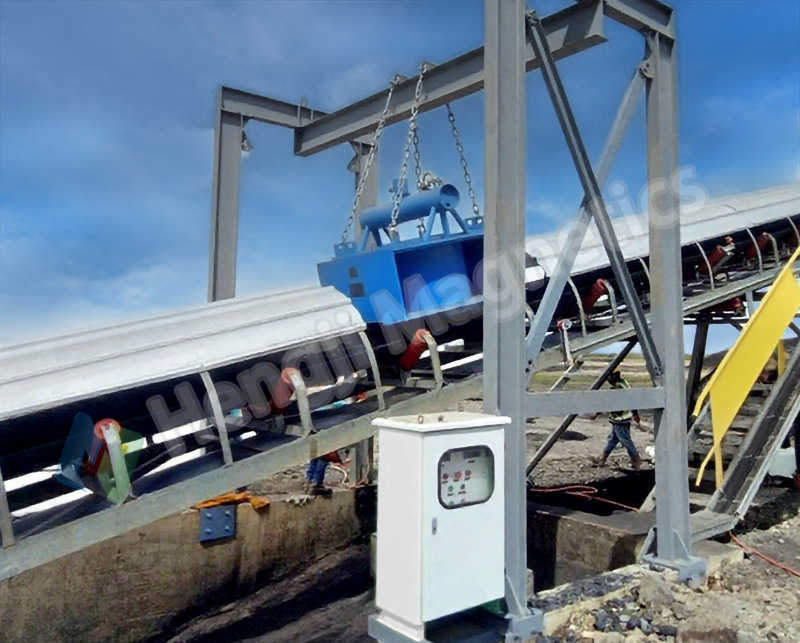

 RCDE Belt Conveyor Suspended Magnetic Separator Key Application Scenarios

Power Generation
The belt conveyor magnetic separator protects coal handling systems in thermal power plants, safeguarding crushers and ensuring uninterrupted operation.

Mining Operations

This suspended magnetic separator removes tramp iron from valuable minerals, enhancing equipment longevity and operational efficiency in ore processing.

Metallurgical Industry

The conveyor magnetic separator improves material purity by eliminating ferrous contaminants in raw material preprocessing systems.

Construction Materials

In cement production lines, this belt conveyor magnetic separator protects grinding equipment from iron damage, maintaining product quality.

Chemical Processing

The equipment ensures product purity by removing iron contaminants from raw materials in chemical manufacturing processes.

Port Operations

For bulk material handling, the suspended magnetic separator protects conveying equipment during loading and unloading operations.

Waste Management

This conveyor magnetic separator facilitates metal separation from waste streams, supporting recycling and environmental sustainability.


 → Click here  for more application information

RCDE Belt Conveyor Suspended Magnetic Separator Key Application ScenariosRCDE Belt Conveyor Suspended Magnetic Separator Key Application Scenarios

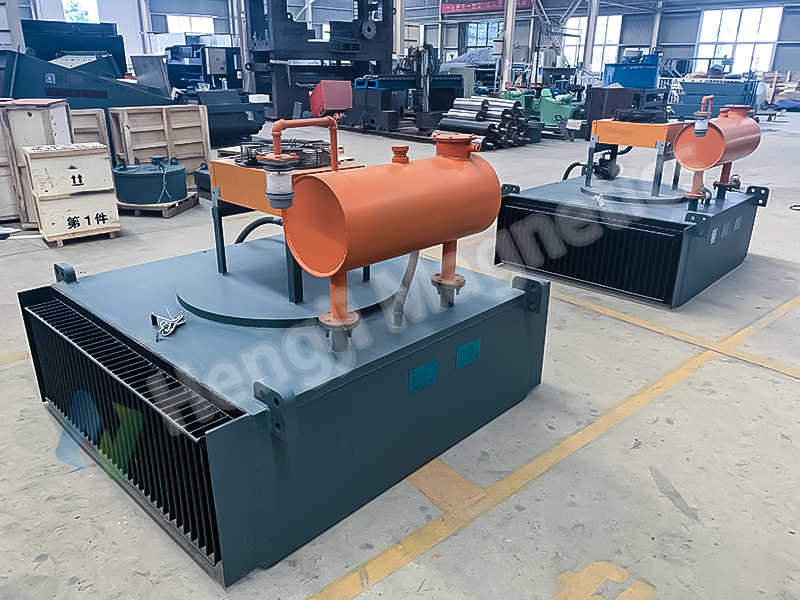

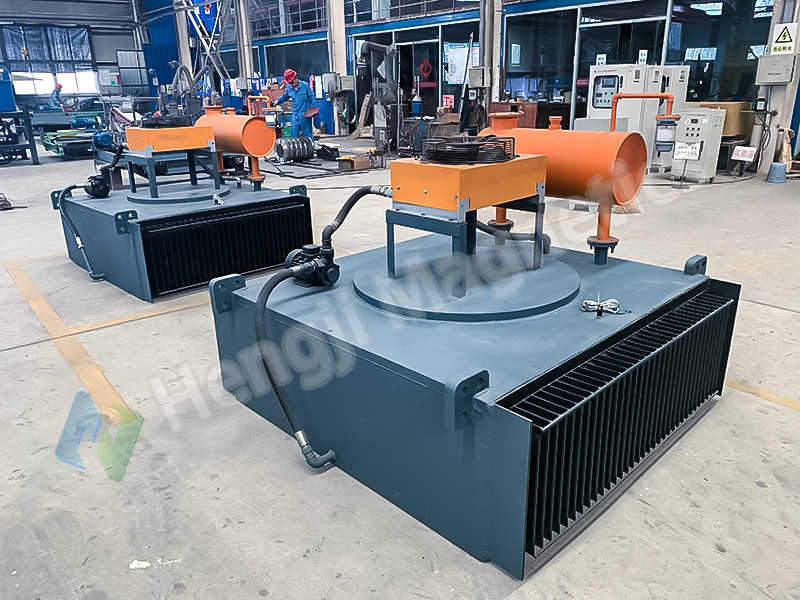

RCDE Belt Conveyor Suspended Magnetic Separator Operation & Maintenance Guide


Installation Requirements

Typically installed at the head or middle section of belt conveyors with 300-500mm clearance from material surface. Ensure sturdy mounting support for stable operation. Install weather protection for outdoor applications.

Operating Procedures

Check oil level and temperature before startup. Verify normal operation indicators after power connection. Monitor oil temperature (not exceeding 65℃) and oil pressure during operation. Allow complete cooling before maintenance after shutdown.







             RCDE Belt Conveyor Suspended Magnetic Separator Operation & Maintenance Guide
RCDE Belt Conveyor Suspended Magnetic Separator Operation & Maintenance Guide

Maintenance Protocol

Monthly inspection of oil level and quality with necessary replenishment or replacement. Quarterly cleaning of equipment surface and removal of accumulated iron contaminants. Annual comprehensive inspection of electromagnetic coils and cooling system. Regular checking of electrical connections and insulation performance.

Safety Precautions

Never operate with excessive oil temperature or insufficient oil level. Keep inspection ports closed during operation. Regularly inspect oil circuit system for potential leaks. Drain cooling oil for shutdown periods exceeding one month.

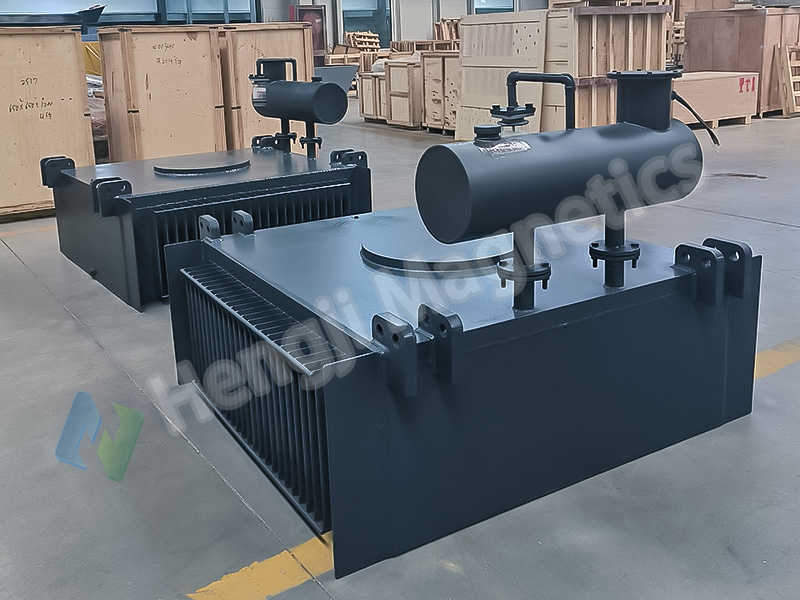

RCDE Belt Conveyor Suspended Magnetic Separator Customized Design


RCDE Belt Conveyor Suspended Magnetic Separator Customized Design

Magnetic Strength Adjustment

Customizable magnetic field intensity from 80-150mT

Dimensional Adaptation

Various sizes available to accommodate belt widths from 500-2000mm

Cooling System Enhancement

Optional high-efficiency radiators or forced cooling systems

Protection Level

High protection models available

Control Systems

Remote control and automatic iron discharge options

Special Environments

Explosion-proof and high-temperature resistant models

The RCDE Series Oil-Cooled Electromagnetic Separator combines excellent thermal management with reliable performance, making it the preferred choice for heavy industrial iron removal applications. Professional technical support and after-sales services ensure long-term operational stability and performance optimization.
