Self-Cleaning Crossbelt Magnetic Separator: The Permanent Magnet Guardian for Your Production Line
2026-09-07
On production lines in mining, metallurgy, building materials, power generation, and coal processing, ferrous contamination is never a minor issue. A single piece of tramp iron can tear an entire conveyor belt, shatter crusher hammers, or cause mill shutdowns—each interruption bringing high repair costs and production losses. The challenge is clear: how to remove tramp iron efficiently and continuously without affecting material conveying. The self cleaning magnetic separator configured as a crossbelt magnetic separator was designed to solve this problem.

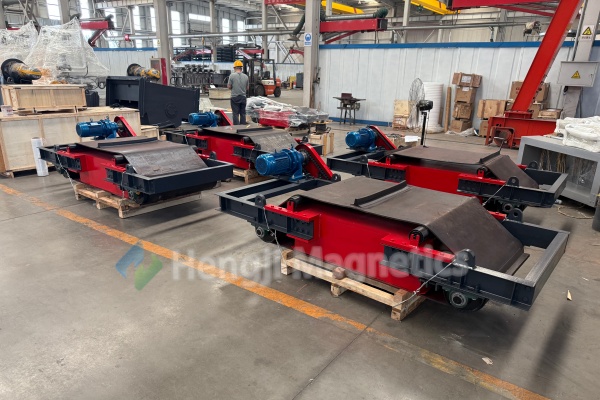

How the Self-Cleaning Crossbelt Magnetic Separator Works
Suspended at the head or middle section of belt conveyors, the self cleaning crossbelt magnetic separator performs iron removal continuously during material conveying. Its high-performance permanent magnetic system delivers high field strength and deep penetration—instantly attracting tramp iron even from thick material layers. Captured iron is automatically ejected by the discharge belt, requiring no manual intervention. This means truly non-stop, continuous automatic iron removal—eliminating the inefficiency, risk, and cost of traditional manual cleaning methods.
The magnetic circuit is computer-optimized with a dual-pole structure that ensures maximum lifting force across the entire working distance. This design allows the crossbelt magnetic separator to maintain consistent performance even when material burden thickness or iron content varies. The discharge belt mechanism includes scraper assemblies that positively eject captured iron into collection bins, preventing recontamination of the material stream.
Customer Concern 1: Is the Iron Removal Efficiency Stable?
A large coal preparation plant had long struggled with anchor rods, wire, and other tramp iron in raw coal. Once these entered crushers, they caused accelerated wear or complete shutdowns. The old magnetic equipment lacked sufficient field strength, and the discharge mechanism frequently clogged—requiring shutdown cleaning at least twice per month, severely impacting uptime.
After installing the self cleaning crossbelt magnetic separator, the situation transformed completely. The computer-optimized magnetic circuit with dual-pole structure ensures maximum lifting force across the working distance. Even with fluctuating iron content, it consistently captures ferrous materials ranging from 0.1 kg to 35 kg. The discharge belt includes a scraper mechanism, with belt tension and tracking adjustments made without stopping production.
The plant's maintenance records show that after one year of operation, iron removal efficiency exceeded 99%. No further crusher failures from tramp iron occurred. Conveyor belt service life nearly doubled, and annual maintenance costs dropped by over 40%. The plant manager noted that the equipment paid for itself within the first eight months of operation.

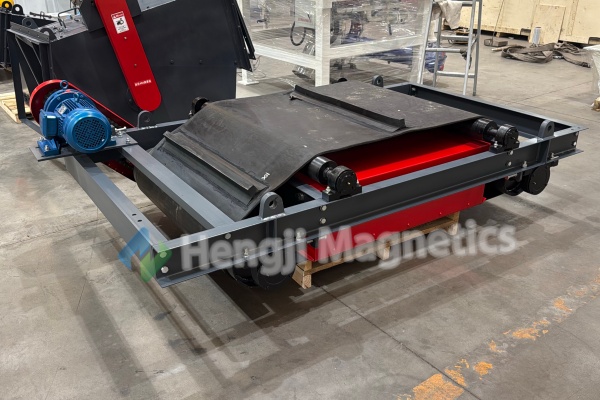

Customer Concern 2: Can the Self-Cleaning Crossbelt Magnetic Separator Withstand Harsh Conditions?
A large cement clinker production line faced high temperatures and heavy dust—conditions that had caused frequent motor failures, magnet demagnetization, and belt misalignment in previous iron removal attempts.
The self cleaning crossbelt magnetic separator is specifically optimized for such conditions. The heavy-duty construction features high-reliability components—geared motors, drums—operating reliably at ambient temperatures from -20°C to +40°C, suitable for both indoor and outdoor use without additional protection. The wear-resistant discharge belt, combined with adjustable bearing housings, allows quick, precise correction of belt tracking even during operation.
After installation, the cement plant reported that the crossbelt magnetic separator operated continuously without failure for over 18 months, with no core components replaced. The unit achieved true "zero-downtime maintenance" for iron removal operations, significantly improving overall plant reliability.

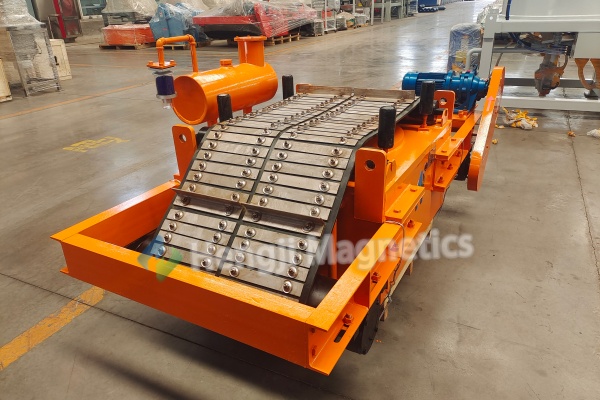

Customer Concern 3: Does Installation Affect Existing Production Lines?
The self cleaning crossbelt magnetic separator offers two flexible installation options: inclined mounting at the conveyor head uses material trajectory to improve iron capture; horizontal mounting positions the unit above the belt, picking stations, or vibrating screens—without changing the original conveying path. The magnetic centerline aligns with the belt centerline for maximum field coverage. From installation to commissioning typically takes only half a day, without disrupting normal production schedules.
Wide Application, Proven Performance
From coal preparation to cement, mining to power generation, building materials to chemicals, the self cleaning crossbelt magnetic separator is helping more operations eliminate tramp iron problems. If tramp iron on your production line is a concern, the self cleaning magnetic separator with crossbelt magnetic separator design is the equipment to consider—a reliable permanent magnet guardian for your production line.
