Dry Magnetic Drum Separator: Reliable Choice for Magnetic Separation Iron Ore

2026-09-10

In iron ore beneficiation, effectively separating magnetic minerals from non-magnetic ones is a core concern for every processing plant. Fluctuating feed grades, unstable dry separation performance, and frequent maintenance shutdowns are common challenges. Customers repeatedly ask: Is there equipment that can handle dry ore, ensure separation performance, and reduce operating costs? The dry magnetic drum separator, continuously improved for magnetic separation iron ore, is the answer to these practical needs.

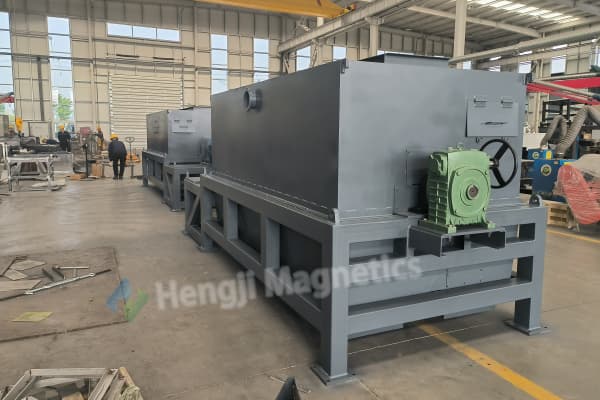

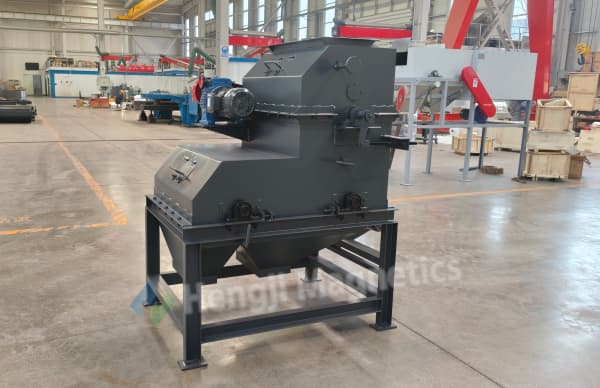

How Does a Dry Magnetic Drum Separator Work for Magnetic Separation Iron Ore?

The dry magnetic drum separator uses differences in magnetic susceptibility between minerals. When feed enters the separation zone, particles are acted upon by magnetic force and mechanical forces—gravity, centrifugal force. Minerals with different magnetic properties follow different paths, achieving separation.

Inside the unit, a high-intensity magnetic system remains stationary. The drum shell is made of stainless steel. Within the magnetic field range, magnetic particles are dragged along the drum surface. Once beyond the magnetic zone, they detach by gravity and centrifugal force, completing the separation cycle.

Material is fed evenly by a vibratory feeder. As it passes through the magnetic roll zone, ferrous particles are strongly attracted and carried by the rotating drum. A scraper forcibly pushes them out of the magnetic zone, and they fall naturally through the iron discharge outlet. Non-magnetic minerals continue along the conveying direction to the product outlet—achieving separation of material from ferrous contaminants.

The dry magnetic drum separator is maintenance-free, energy-saving, safe, and reliable. The vibratory feeder uses elastic supports for long service life and effective resonance avoidance, adapting to different particle sizes.

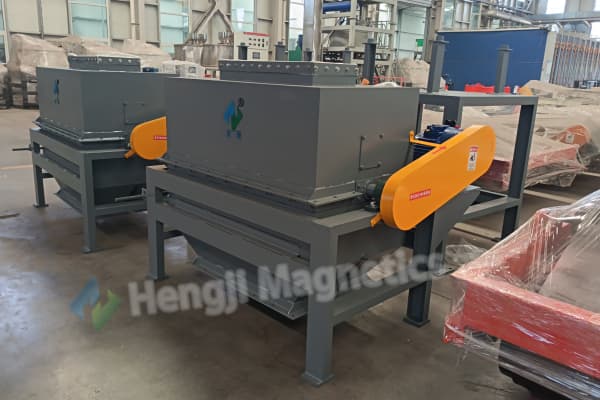

Key Features and Benefits of Dry Magnetic Drum Separator

The magnetic roll is designed using computer simulation for the magnetic circuit. High-performance permanent magnets serve as the magnetic source. The drum surface delivers strong field strength and high lifting force, resulting in high iron removal efficiency.

Flexible adjustment: Magnetic angle and drum speed are adjustable to suit different ore grades and throughput requirements.
Simple installation: The unit can be installed directly on level ground without complex civil works.
Easy operation: Operators can check drum rotation direction through the viewing port and adjust feed gate opening and drum speed based on material conditions.
Energy efficient: Permanent magnet design requires no power for field generation—delivering significant energy savings.
Low maintenance: No complex cooling systems or frequent part replacement. The vibratory feeder uses elastic supports to prevent resonance and extend service life.

These features make the dry magnetic drum separator a reliable choice for magnetic separation iron ore in dry processing circuits.

Customer Case Study: Dry Magnetic Drum Separator in Iron Ore Processing

A small-to-medium iron mine had long struggled with low feed grade and poor dry separation performance. Magnetic iron content in tailings was high, resulting in significant resource waste.

After introducing the dry magnetic drum separator, the plant adjusted the magnetic angle and drum speed to suit different ore grades. Concentrate grade improved significantly, and magnetic iron content in tailings dropped sharply. The mine increased concentrate production by thousands of tons annually, effectively unlocking the value of low-grade ore resources. Economic benefits improved markedly.

This case demonstrates the practical value of magnetic separation iron ore using a well-designed dry magnetic drum separator. The equipment delivered stable performance and flexible adjustment—key requirements for dry processing.

Installation and Operation of Dry Magnetic Drum Separator

The dry magnetic drum separator can be installed directly on level ground—no complex foundation required. Operators can check drum rotation direction through the viewing port. Feed gate opening and drum speed are adjustable based on material characteristics, allowing flexible adaptation to different operating conditions.

The simple, compact design makes the dry magnetic drum separator suitable for both new plants and retrofits. Maintenance is minimal—primarily periodic inspection and cleaning. This ease of operation reduces labor costs and downtime.

Applications Beyond Iron Ore: Magnetic Separation Iron Ore and More

From dry pre-concentration and tailings discard in iron ore processing to iron removal and purification in non-metallic minerals, the dry magnetic drum separator delivers reliable performance. Its stable magnetic output, flexible operation, and energy-saving, maintenance-free design make it a valuable asset in dry separation circuits.

The same technology used for magnetic separation iron ore can be applied to other dry materials requiring ferrous contaminant removal. This versatility extends the equipment's value across multiple industries.

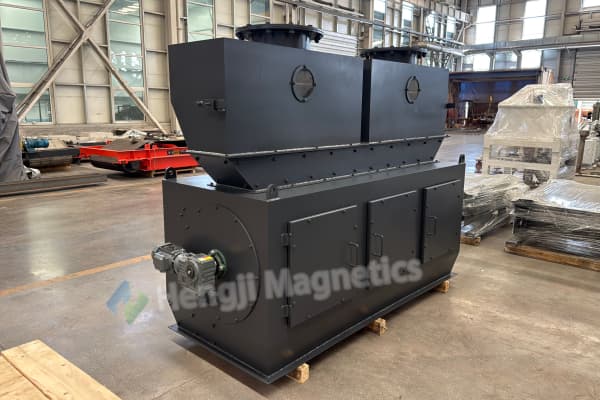

Applications Beyond Iron Ore: Magnetic Separation Iron Ore and More

Conclusion: Why Choose Dry Magnetic Drum Separator for Magnetic Separation Iron Ore?

If you are struggling with unsatisfactory iron ore grade, high operating costs, or frequent maintenance, the dry magnetic drum separator deserves serious consideration. It delivers stable magnetic performance, flexible adjustment, and low maintenance—making it a reliable choice for magnetic separation iron ore.

With its proven performance in real-world applications and its ability to handle dry ore efficiently, the dry magnetic drum separator helps processing plants improve concentrate grade, reduce tailings losses, and increase economic returns. For any operation seeking a dependable dry separation solution, this equipment is a smart investment.
