Dry Magnetic Separator: Unlocking the Core Value of Mining Magnetic Separators in Mineral Processing
2026-08-07
In the production chain of mining operations, the beneficiation stage directly determines the utilization value of ore and subsequent processing costs. With tightening environmental regulations and declining resource grades year by year, achieving efficient separation under water‑free or low‑water conditions has become a focal point in the industry. Against this backdrop, the dry magnetic separator is demonstrating increasingly prominent technical advantages in the field of mining magnetic separators, gradually becoming a key piece of equipment for mining enterprises to improve quality and efficiency.
Unlike traditional wet processes that require large volumes of water and complex tailings management systems, dry magnetic separation offers a streamlined approach that reduces both capital and operating expenses. For mines located in arid regions or facing strict water usage restrictions, the dry magnetic separator provides a practical and sustainable path to upgrading ore value.

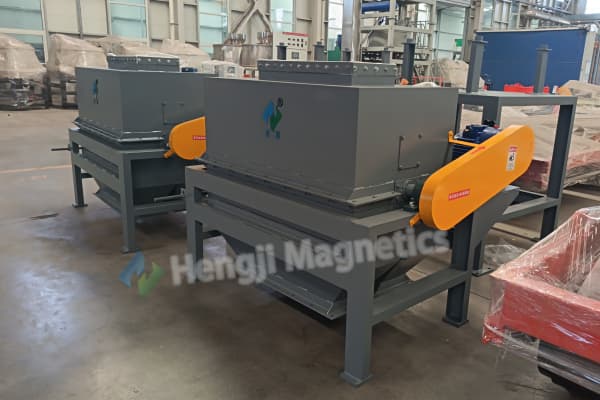

Customer Concern #1: Can the Dry Magnetic Separator Truly Improve Concentrate Grade?
For mining operations, concentrate grade directly affects economic returns. The dry magnetic separator uses a computer‑optimized magnetic circuit design combined with high‑performance permanent magnet materials, delivering strong field strength and high lifting force on the drum surface to effectively capture magnetic minerals. The magnetic circuit is arranged to maximize field gradient and penetration depth, ensuring that even weakly magnetic particles are attracted and held.
At the same time, its unique magnetic circuit structure not only improves concentrate grade but also precisely controls tailings loss—preventing the loss of valuable minerals and achieving ideal beneficiation results. The separation process is clean and sharp: magnetic particles are held to the drum surface while non‑magnetic gangue is ejected by centrifugal force and gravity. Whether for pre‑concentration of magnetite or upgrading of dry mineral powders, the mining magnetic separator consistently delivers high‑quality concentrate with low impurity content.
Field data from operating mines show that a well‑tuned dry magnetic separator can upgrade feed grade by 3–5 percentage points in a single pass, significantly reducing the amount of material sent to downstream grinding and further processing. This directly translates into lower energy consumption and higher mill throughput.

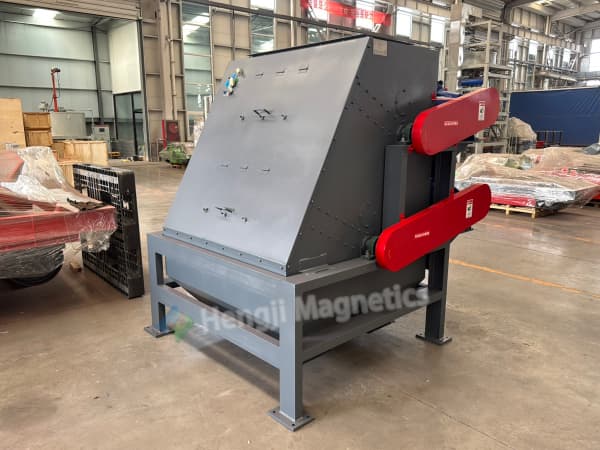

Customer Concern #2: Can the Dry Magnetic Separator Meet Large‑Scale Production Throughput?
Throughput capacity is a core metric for mining operations evaluating equipment. The dry magnetic separator incorporates variable frequency drive control for roll speed, allowing flexible adjustment of separation speed based on ore characteristics. Compared to conventional units of the same size, it achieves approximately 1.5 times higher throughput. This means that within the same footprint, operations can process more ore, effectively reducing unit production costs.
Additionally, the unique material splitting structure enables flexible control of concentrate and tailings grade, making the mining magnetic separator widely applicable for pre‑concentration of 0–12 mm fine ores—from roughing to cleaning stages. The feed system is designed to handle a wide range of particle sizes without clogging, ensuring consistent performance even when feed conditions vary.
The variable speed feature also allows operators to adapt to changes in ore hardness and magnetic content. For harder, less magnetic ores, slower speeds increase retention time in the field, improving recovery. For softer, highly magnetic feeds, faster speeds boost throughput without sacrificing separation quality. This operational flexibility makes the dry magnetic separator a versatile tool in any mining plant.
Customer Concern #3: Can the Dry Magnetic Separator Operate Reliably Under Harsh Mining Conditions?
Mining environments are demanding—high dust levels, long continuous operating hours, temperature extremes, and vibration. Equipment stability and durability directly affect production line uptime. The dry magnetic separator uses high‑performance permanent magnets as the magnetic source, with high energy product and minimal demagnetization—less than 5% over eight years—ensuring long‑term, continuous, trouble‑free operation.
The equipment is maintenance‑free, energy‑efficient, and inherently safe and reliable. The control system can be interlocked with the belt conveyor, supporting both local manual control and centralized control—flexibly adapting to different scales of mining magnetic separator production lines.
The drum shell is fabricated from wear‑resistant stainless steel, with an optional rubber lining for high‑abrasion applications. Bearings are sealed to prevent dust ingress, and the drive system is protected against overload. These design features ensure that the dry magnetic separator maintains its performance even in the most challenging conditions, with minimal downtime for repairs.
Customer Concern #4: How Does the Dry Magnetic Separator Perform in Terms of Energy Efficiency and Operating Costs?
Energy consumption is a major component of operating costs in mining. The dry magnetic separator requires no water, eliminating pumping, treatment, and dewatering costs. The only energy input is for the drive motor and the variable frequency drive—no power is needed to sustain the magnetic field, as it is generated by permanent magnets.
Compared to electromagnetic separators, which draw continuous current to maintain the field, the dry magnetic separator offers substantial energy savings over its lifetime. With no coils to overheat and no cooling systems to maintain, the equipment has a very low total cost of ownership. Maintenance is limited to periodic bearing lubrication and belt inspection, further reducing operating expenses.
From Mine to Mill: Dry Magnetic Separation Is Reshaping Mining Magnetic Separators
Whether for pre‑concentration upgrading in iron ore mines or iron removal and purification in non‑metallic ores, the dry magnetic separator offers unique advantages that traditional wet processes cannot match—no water consumption, small footprint, low operating costs, and reduced environmental burden. As mining operations face increasing pressure to improve economic returns while meeting environmental standards, dry magnetic separation technology is playing an increasingly important role in the field of mining magnetic separators.
In many operations, the dry magnetic separator is deployed as a pre‑concentration stage before grinding. By discarding a significant portion of waste rock early, it reduces the tonnage entering the mill, lowering energy and media consumption while increasing overall plant capacity. This application alone can improve the economics of a mine by 10–20% in many cases.
From Run‑of‑Mine to Concentrate, From Low Grade to High Value
A reliable dry magnetic separator is helping more and more mining operations extract maximum value from every ton of ore. By delivering consistent grade improvement, higher throughput, and reliable performance under demanding conditions, the dry magnetic separator is proving its worth as a core technology for modern mineral processing.
For new projects, the dry magnetic separator offers a lower‑cost, faster‑to‑implement alternative to wet plants. For existing operations, it provides a retrofit option that can unlock value from low‑grade stockpiles or tailings without major infrastructure changes.
Conclusion
The dry magnetic separator represents a fundamental shift in how mining operations approach beneficiation. With its ability to improve concentrate grade, increase throughput, reduce operating costs, and eliminate water consumption, it is becoming an indispensable tool for mines seeking to remain competitive in a resource‑constrained world. For any mining operation looking to maximize ore value and minimize environmental impact, the dry magnetic separator is the strategic choice.
