Electro Magnetic Separator: High Gradient Magnetic Separation for Deep Iron Removal
2026-06-04
In the cutting-edge processes of purifying quartz for photovoltaic-grade silicon, whitening kaolin for paper coatings, and removing magnetic impurities from lithium battery precursor materials, iron removal is no longer about capturing visible iron pieces or chips. Customers demand iron content reduction from parts per million (ppm) down to parts per billion (ppb)—or even lower. Conventional permanent magnets, with their relatively fixed and limited field strength, cannot handle these ultra-fine, weakly magnetic particles. This is where the electro magnetic separator excels. By combining controllable electromagnetic excitation with high gradient magnetic separation principles, it delivers adjustable ultra-high fields and intense gradients. Understanding how this technology breaks through deep iron removal barriers is the key to upgrading your purification process.
How Does an Electro Magnetic Separator Solve the Trade‑off Between Ultimate Iron Removal and Stable Consistency?

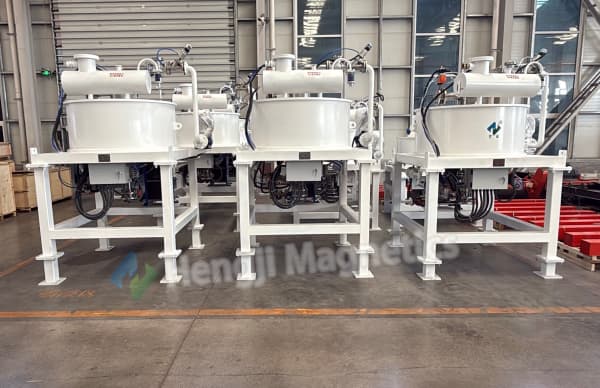

Many customers evaluating advanced magnetic separators ask: can the equipment consistently generate a strong enough field to capture micron‑sized, weakly magnetic particles without performance decay after hours of continuous operation? The electro magnetic separator answers with a robust electromagnetic circuit and a stable constant‑current control system.
Inside the machine, a high‑power excitation coil made of copper wire is the core. An intelligent rectifier control cabinet supplies highly stable DC current. This current generates magnetomotive force, acting on a fully sealed magnetic yoke made of pure iron or low‑carbon steel, creating a uniform and adjustable background magnetic field.
Within this background field, the matrix—made of magnetic stainless steel wool or profiled plates—is instantly magnetized. At the sharp edges or tips, field gradients reach tens of thousands of Gauss. When slurry passes through, fine magnetic particles are captured under these extreme gradients.
Unlike permanent magnets, the electro magnetic separator allows stepless field adjustment by changing the excitation current. Operators can adapt to fluctuations in feed iron content in real time, ensuring maximum removal while avoiding unnecessary energy waste. Furthermore, a closed‑loop current negative‑feedback circuit automatically compensates for grid voltage variations or coil resistance changes caused by temperature rise. This keeps the high gradient magnetic separation field constant, guaranteeing long‑term consistency in iron removal performance.
How to Solve Coil Overheating and Matrix Clogging – Two Pain Points That Worry Customers Most?
When discussing electro magnetic separator technology, two technical concerns dominate: “Will the coil burn out after prolonged energization?” and “What happens when the matrix clogs?”
Solving coil overheating:

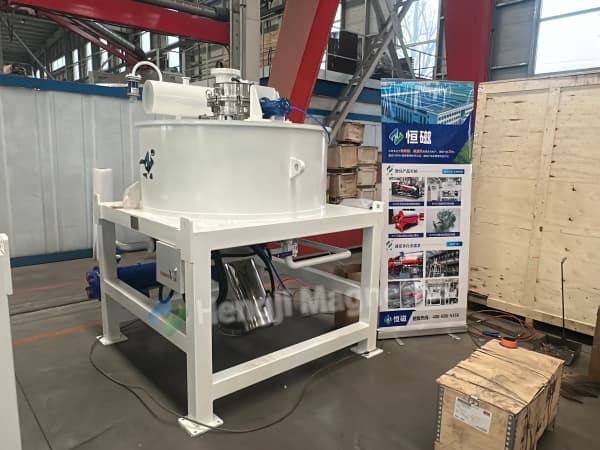

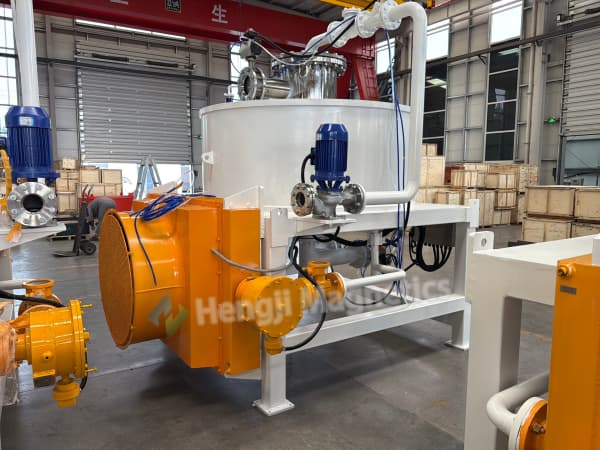

The coil uses Class H (180°C) or Class C (220°C) insulation with vacuum impregnation, greatly improving heat resistance and thermal conductivity. A high‑efficiency forced circulation cooling system is integrated. In oil‑cooled models, the coil is fully immersed in high‑insulation transformer oil. An oil pump circulates the hot oil through an external radiator, where axial fans force‑cool it. In water‑cooled models, cooling water runs through copper tubes inside the coil. This combined cooling design allows the electro magnetic separator to run at 100% load continuously without overheating.
The coil uses Class H (180°C) or Class C (220°C) insulation with vacuum impregnation, greatly improving heat resistance and thermal conductivity. A high‑efficiency forced circulation cooling system is integrated. In oil‑cooled models, the coil is fully immersed in high‑insulation transformer oil. An oil pump circulates the hot oil through an external radiator, where axial fans force‑cool it. In water‑cooled models, cooling water runs through copper tubes inside the coil. This combined cooling design allows the electro magnetic separator to run at 100% load continuously without overheating.
Solving matrix clogging:
Modern electro magnetic separator units have developed mature automatic cleaning and regeneration mechanisms. The machine typically features two or more matrix chambers that work alternately.
Modern electro magnetic separator units have developed mature automatic cleaning and regeneration mechanisms. The machine typically features two or more matrix chambers that work alternately.
When one matrix becomes saturated with captured iron, a PLC system automatically pushes it out of the magnetic field using hydraulic or pneumatic actuators. Simultaneously, a pre‑cleaned matrix enters the working zone. In the offline “washing station,” the excitation current is cut off or shielded, so the matrix loses its magnetism. High‑pressure backwash water or compressed air pulses then thoroughly flush away the iron sludge from the surface and gaps.
The entire cycle is triggered automatically by a timer or an iron content sensor, requiring no manual intervention. This solves the pain point of frequent shutdowns for manual cleaning, truly realizing continuous, automated high gradient magnetic separation operation.
What Demanding Applications Can an Electro Magnetic Separator Handle? How to Assess Its Overall Value?

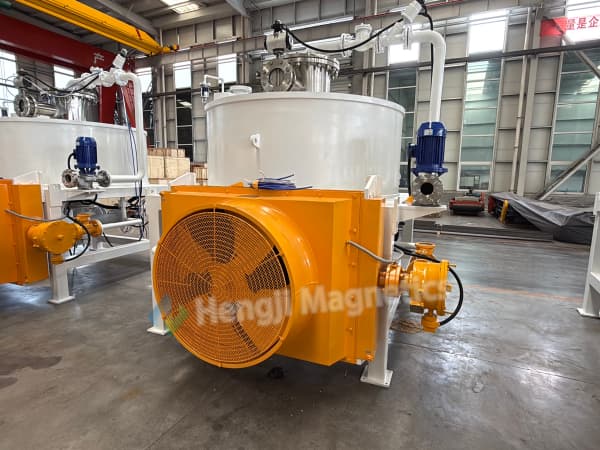

Thanks to its extremely high field strength and adjustable flexibility, the electro magnetic separator covers the most demanding purification fields.
Non‑metallic minerals:
It removes fine iron‑bearing minerals from p hotovoltaic quartz sand, potassium feldspar, and fluorite powder, boosting whiteness from 80% to over 95%.
It removes fine iron‑bearing minerals from p hotovoltaic quartz sand, potassium feldspar, and fluorite powder, boosting whiteness from 80% to over 95%.
Fine chemicals:
It eliminates harmful metal ions (iron, chromium, nickel) from catalyst carriers, titanium dioxide, and electronic ceramic powders, helping products meet electronic‑grade standards.
It eliminates harmful metal ions (iron, chromium, nickel) from catalyst carriers, titanium dioxide, and electronic ceramic powders, helping products meet electronic‑grade standards.
Industrial wastewater and tailings recovery:
Its powerful field efficiently recovers fine‑grained hematite, manganese, or ilmenite, maximizing resource utilization.
Its powerful field efficiently recovers fine‑grained hematite, manganese, or ilmenite, maximizing resource utilization.
Assessing total cost of ownership:
Customers should look beyond the initial purchase price. Consider energy consumption, maintenance costs, and the value added by purification.
Customers should look beyond the initial purchase price. Consider energy consumption, maintenance costs, and the value added by purification.
An electro magnetic separator does require electrical power, but its intelligent excitation control automatically reduces power when maximum field is not needed, saving energy. The core matrix and magnetic circuit have almost no direct wear. Daily maintenance focuses on checking the cooling oil/water system, cleaning pipeline filters, and observing minor matrix wear. Overall maintenance costs are much lower than traditional perception.
Choosing a well‑designed, precision‑manufactured electro magnetic separator means selecting a solution that meets international high‑purity standards. With the technical depth of high gradient magnetic separation, it opens the door to high‑value markets for your enterprise.
