Electromagnetic Iron Separator: The Ceramic Magnetic Separator for Superior Slurry Purification
2026-09-15
In ceramics, glass, chemicals, and food processing, ferrous contamination in slurries is a persistent problem affecting product purity and quality. Fine iron powder in ceramic slips causes black spots and discoloration after firing. Iron impurities in glass raw materials reduce light transmittance. In chemical slurries, excessive iron ions directly downgrade product quality. Customers repeatedly ask: Can fine iron particles in slurry be effectively captured? Is the magnetic field strong enough for weakly magnetic impurities? Does iron removal require frequent shutdowns for cleaning? Are operating and maintenance costs controllable? The electromagnetic iron separator designed as a ceramic magnetic separator was developed specifically to address these slurry iron removal needs.

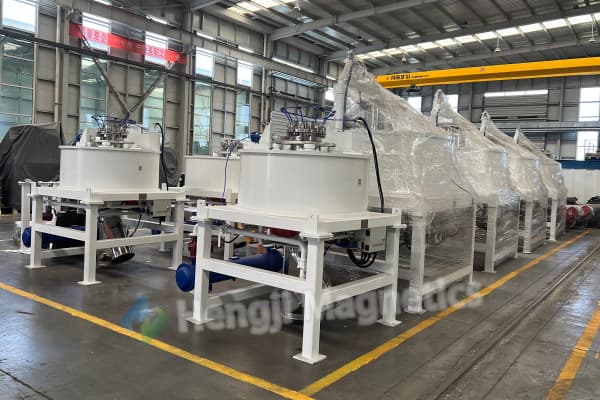

How the Electromagnetic Iron Separator Works as a Ceramic Magnetic Separator
The electromagnetic iron separator is powered by a dedicated control cabinet supplying DC excitation power. Once energized, the internal stainless steel magnetic conductive plates are magnetized. Slurry enters the magnetic plate zone from bottom to top. As it passes through the plates, magnetic particles in the slurry are attracted to the stainless steel plates. The working chamber achieves magnetic flux density of over 12,000 Gauss, effectively capturing fine iron powder and weakly magnetic impurities.
For iron discharge, high-pressure water scours the plates in a de-energized state, thoroughly removing captured magnetic material from the plate surfaces. This keeps iron removal performance at a high level. Water flow is flexibly controlled via valves. The ceramic magnetic separator design ensures that every batch of slurry receives consistent, thorough purification.

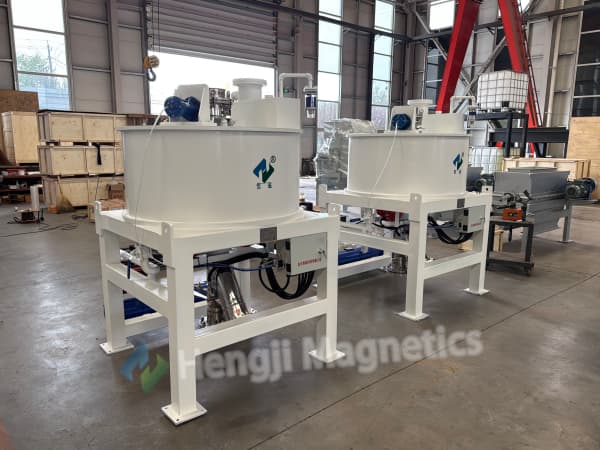

Cooling System and Protection Features of the Electromagnetic Iron Separator

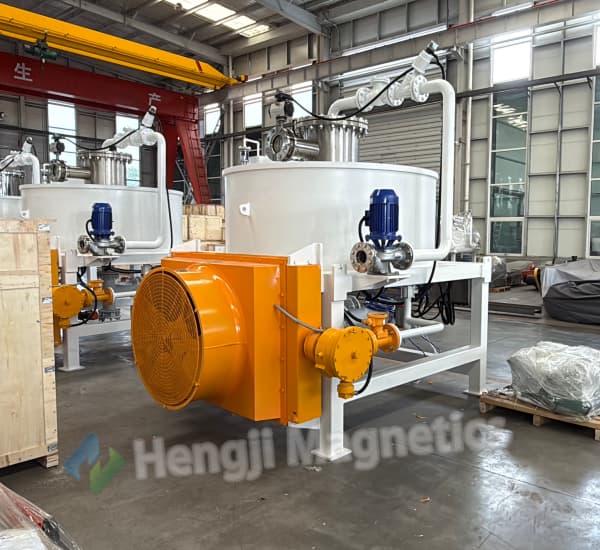

The electromagnetic coil of the electromagnetic iron separator uses a fully sealed oil-cooled external circulation system. The coil is completely immersed in transformer oil, circulated by a dedicated oil pump. Heat is dissipated through a condenser with forced air cooling by axial fans. This delivers low temperature rise, slow coil aging, and long service life.
The ceramic magnetic separator includes over-temperature and over-current alarm protection—effectively safeguarding the electromagnetic coil during operation. The overall structure is rationally designed for stable operation and simple handling. These features make the electromagnetic iron separator a reliable choice for continuous slurry processing.
Customer Case: Ceramic Magnetic Separator Solves Glaze Defects
A ceramic glaze manufacturer had long suffered from iron contamination causing firing defects. After glazing and firing, product surfaces frequently showed black spots and pinholes, resulting in high reject rates. The company had tried permanent magnetic separators, but insufficient field strength failed to capture fine iron powder effectively.
After introducing the electromagnetic iron separator, slurry passed through the magnetic plate zone from bottom to top. Under the strong magnetic field, fine iron powder was effectively captured. During discharge, high-pressure water thoroughly flushed out iron impurities. Iron removal performance improved significantly. Treated glaze met purity requirements, surface quality after firing improved markedly, and reject rates dropped substantially.
The plant manager noted that the ceramic magnetic separator delivers sufficient magnetic field strength and stable, reliable iron removal—making it core equipment for ensuring glaze quality.
Key Features of the Electromagnetic Iron Separator and Ceramic Magnetic Separator
-
High magnetic flux density: Over 12,000 Gauss in the working chamber—effectively captures fine iron powder and weakly magnetic impurities.
-
Efficient oil cooling: Fully sealed external oil circulation with transformer oil, pump, condenser, and forced air cooling—low temperature rise and long coil life.
-
Automatic protection: Over-temperature and over-current alarms safeguard the electromagnetic coil.
-
Thorough discharge: High-pressure water scouring in de-energized state removes captured iron completely.
-
Contamination-free construction: Stainless steel product-contact parts with non-magnetic properties prevent secondary contamination.
-
Flexible water control: Valve adjustment for optimal discharge water flow.
-
Stable operation: Rationally designed structure for reliable, simple operation.
These features make the electromagnetic iron separator an indispensable ceramic magnetic separator for demanding slurry applications.
Applications of the Electromagnetic Iron Separator and Ceramic Magnetic Separator
The electromagnetic iron separator is suitable for iron removal and purification of ceramic slurries, glazes, glass raw material slurries, chemical liquids, and food slurries. The ceramic magnetic separator uses stainless steel construction with non-magnetic contact parts—effectively preventing secondary contamination.
From ceramic slurry iron removal to glass raw material purification, from chemical product cleaning to metal contaminant removal in food processing, the electromagnetic iron separator with its strong electromagnetic field, stable oil cooling system, and reliable automatic discharge is solving real slurry iron removal challenges.
If iron contamination in your slurry is affecting product quality, the electromagnetic iron separator and ceramic magnetic separator deserve serious consideration. It delivers stronger magnetic field and higher purity for your slurry processing.
