Grate Magnetic Separator: Precision Protection for Food Industry Magnetic Separator Applications

2026-07-20

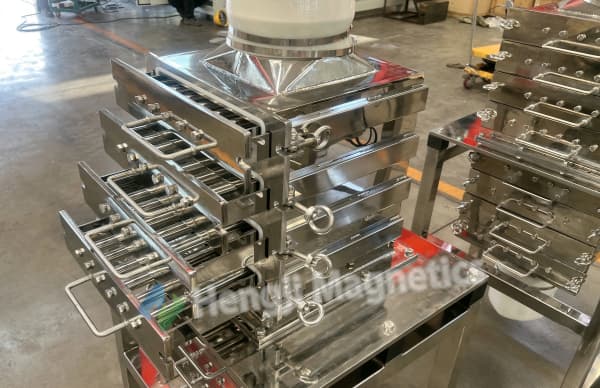

In food processing, from raw material intake to final packaging, ferrous contamination is a persistent threat to product safety and quality. Iron filings from mining operations or metal wear particles from processing equipment—if they reach the final product—can cause consumer complaints, product recalls, or even brand damage. Traditional iron removal relies on manual cleaning of magnetic rods, which is inefficient and often leads to performance decline due to inconsistent maintenance. The grate magnetic separator designed as a food industry magnetic separator offers an automated, high‑efficiency in‑line solution. Multiple high‑strength permanent magnetic rods arranged in a grid structure are installed directly in conveying pipes or chutes, where the strong magnetic field captures ferrous impurities layer by layer. This grate magnetic separator integrates grid‑type magnetic design with the stringent hygiene requirements of food processing, ensuring iron interception from raw material intake to finished product output.

Hygienic Design for Food Industry Standards

Food‑grade equipment must prevent secondary contamination and be easy to clean and sanitize. The food industry magnetic separator addresses this with all product‑contact parts made from food‑grade stainless steel—safe, non‑reactive, and free from harmful leaching. Internal surfaces are high‑polished to minimize material buildup and residue, reducing cross‑contamination risk between batches. Seals are food‑grade silicone or PTFE, ensuring no degradation‑related contamination over long service. The grate magnetic separator uses advanced no‑fill cold‑welding with polished seams—smooth, crevice‑free, and easy to clean, fully compliant with GMP hygiene standards for food processing.

Separation Efficiency and Precision

Food‑grade iron contaminants are often micron‑sized, difficult to capture with conventional equipment yet capable of affecting product appearance and texture. The food industry magnetic separator uses rare earth Neodymium magnets with high energy product and strong lifting force, effectively capturing micron‑sized ferrous impurities. The full‑grid magnetic array is precisely spaced to maximize field coverage. Each layer forms a strong magnetic barrier, and material must change direction multiple times as it passes through—layer‑by‑layer filtration achieving thorough, high‑precision iron removal. The grate magnetic separator can be designed with single or multiple rod layers to increase contact opportunities, ensuring no material bypasses the high‑field zone—leaving no blind spots and achieving food‑grade separation precision.

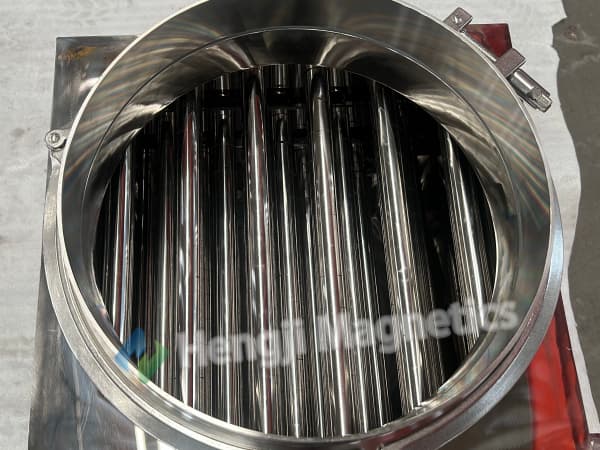

Hygienic Design for Food Industry Standards

Automation and Maintenance Convenience

Food plants often run 24/7. Frequent manual rod cleaning reduces efficiency and can lead to performance inconsistency. The food industry magnetic separator features an intelligent control system with HMI for fully automatic operation—performing iron capture and discharge cycles on programmed schedules. When the magnetic rods reach saturation, the unit automatically withdraws them from the product stream, removes captured iron via strong air blast or scraper in the de‑energized state, then resets to continue operation—all without manual intervention. For scheduled maintenance, rods are simply pulled from their tubes and wiped with soft cloths or cotton gloves; low‑temperature water rinse may also be used. Maintenance costs are minimal.

Adaptability to Diverse Food Materials

Food materials vary widely—powders, granules, liquids, slurries—each with different flow and particle characteristics. The grate magnetic separator is designed for this diversity. All product channels are engineered with angles exceeding the material’s repose angle, minimizing residue while maximizing throughput—ensuring smooth flow without clogging. Standard sizes range from 50mm to 150mm, with custom dimensions and connection types (flange or quick‑connect) available to integrate seamlessly into existing lines. Whether for dry powders (flour, starch, spices), liquids, or slurries (chocolate, jam, dairy), the food industry magnetic separator provides tailored iron removal solutions for each application.

Applications of the Grate Magnetic Separator in Food Processing

The food industry magnetic separator with grate magnetic separator technology is widely used in:

Dry powder processing: Flour, starch, milk powder, spices, sugar, cocoa powder.
Liquid and slurry processing: Chocolate mass, fruit purées, syrups, dairy products.
Granular materials: Grains, nuts, coffee beans, seeds.
Beverage and brewing: Removing metal particles from liquid streams before filtration or packaging.

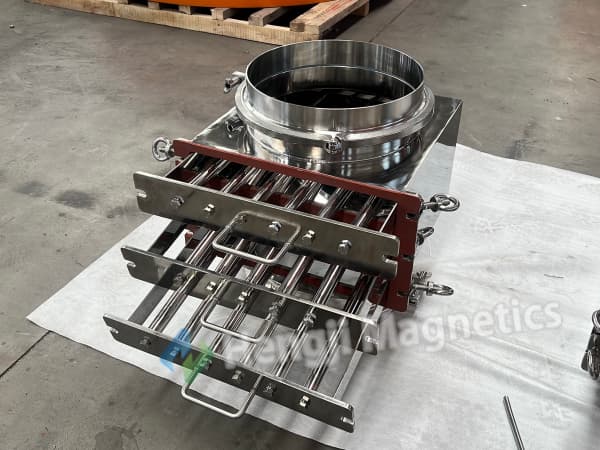

Applications of the Grate Magnetic Separator in Food Processing

Conclusion

The grate magnetic separator designed as a food industry magnetic separator offers a reliable, hygienic, and automated solution for ferrous contamination control in food processing. With food‑grade materials, precision grid‑type magnetic design, fully automatic operation, and adaptability to diverse materials, it protects product purity and brand integrity. For any food processor committed to safety, quality, and consumer trust, a reliable grate magnetic separator is the strategic choice—building a precision barrier against iron contamination from the source, ensuring every batch meets the highest quality standards.
