High Intensity Dry Magnetic Drum Separator: Strong Magnetic Force for Dry Powder Iron Removal

2026-09-28

In non-metallic mineral processing, weakly magnetic mineral separation, and dry powder purification, customers face a common challenge: ordinary dry magnetic drum separator units have limited field strength and struggle to capture weakly magnetic impurities and fine iron powder. Customers repeatedly ask: Can high intensity magnetic separator performance be achieved in dry conditions? Can weakly magnetic minerals be recovered in a dry state? Does the equipment handle different particle sizes? Are energy consumption and maintenance controllable? The high intensity dry magnetic drum separator was developed to meet these exact needs.

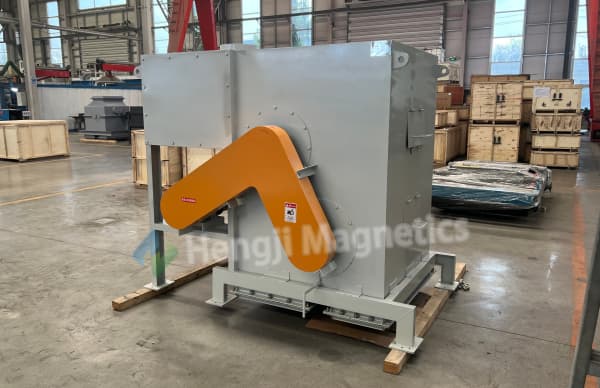

What Is a High Intensity Dry Magnetic Drum Separator?

A high intensity dry magnetic drum separator is a magnetic separation device that continuously and automatically removes iron from dry powders. It features automatic feeding and a steplessly adjustable magnetic roller speed. The dry magnetic drum separator is compact, energy-efficient, and easy to install and operate. Its magnetic roller uses a computer-optimized magnetic circuit with high-performance Neodymium magnets as the magnetic source. The roller surface delivers strong field strength and high lifting force, resulting in high iron removal efficiency.

Drum surface field strength is available in a wide range. Standard models reach 150–250 mT. Special models achieve 300–400 mT and can be customized. The vibratory feeder uses elastic supports for long service life and effective resonance avoidance, meeting the feeding requirements of different particle sizes. This high intensity magnetic separator is a powerful solution for dry processing.

How the High Intensity Magnetic Separator Works in Dry Processing

The high intensity magnetic separator works on differences in magnetic susceptibility between minerals. When feed material enters the separation zone, particles are acted upon by magnetic and mechanical forces—gravity, centrifugal force. Minerals with different magnetic properties follow different paths, achieving separation.

Inside the unit, a high-intensity magnetic system remains stationary. The drum shell is stainless steel. Within the magnetic field range, magnetic particles are dragged along the drum surface. Beyond the magnetic zone, they detach by gravity and centrifugal force, completing separation. The dry magnetic drum separator uses a front roller with an ultra-strong full-magnetic structure and a rear drive roller.

Material is fed evenly onto the conveyor belt by the vibratory feeder. When material reaches the front magnetic roller zone, ferrous particles are strongly attracted and carried to the rear section. A discharge scraper forcibly pushes them out of the magnetic zone. The ferrous material loses magnetic attraction and falls naturally through the iron discharge outlet. Non-magnetic material is thrown by inertia to the next conveyor section—achieving separation. This high intensity magnetic separator delivers reliable dry separation.

Key Features of the Dry Magnetic Drum Separator

The dry magnetic drum separator offers several key advantages:

Strong magnetic field: High-performance Neodymium magnets and a computer-optimized circuit deliver high field strength and deep penetration.
No demagnetization: The composite magnetic system maintains full strength over years of use.
Adjustable roller speed: Stepless speed control adapts to different materials and throughput requirements.
Effective vibration feeding: Elastic vibratory supports ensure long service life and consistent feed for different particle sizes.
Easy installation: The high intensity magnetic separator installs directly on level ground with reliable grounding.
Simple maintenance: Clear discharge port layout—rear port for iron, front port for non-magnetic material.
Energy efficient: No power consumption for field generation—saving energy.

These features make the high intensity dry magnetic drum separator a dependable choice for dry powder processing.

Addressing Customer Concerns with the High Intensity Magnetic Separator

Customers often worry about magnetic force in dry conditions. The high intensity magnetic separator uses a high-intensity magnetic system with deep penetration. Weakly magnetic impurities and fine iron powder are effectively captured. The dry magnetic drum separator delivers stable separation performance.

Another concern is material adaptability. The dry magnetic drum separator handles different particle sizes by adjusting roller speed and feed gate opening. The high intensity magnetic separator is suitable for weakly magnetic minerals and dry powders. Energy consumption is low because the permanent magnetic system requires no power for field generation. Maintenance is minimal—periodic cleaning and bearing lubrication are sufficient.

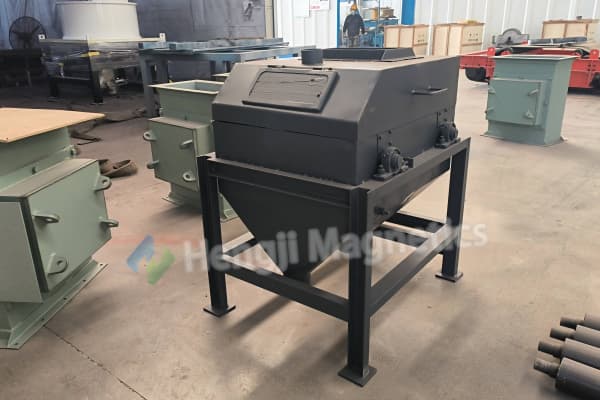

Addressing Customer Concerns with the High Intensity Magnetic Separator

Customer Case: Dry Magnetic Drum Separator in Refractory Production

A refractory material manufacturer faced weakly magnetic impurities and fine iron powder in raw powder, affecting product whiteness and purity. Conventional dry magnetic equipment lacked sufficient field strength to capture fine iron powder. Product quality often failed to meet customer requirements.

After introducing the high intensity dry magnetic drum separator, material was fed evenly through the vibratory feeder. Under the strong magnetic field, fine iron powder and weakly magnetic impurities were effectively captured and continuously discharged. Whiteness and purity of the treated powder improved significantly. Product quality was enhanced. The production manager stated that the high intensity magnetic separator operates stably and reliably with ideal iron removal—making it a powerful asset in the dry iron removal line. This case demonstrates the practical value of the dry magnetic drum separator in real production.

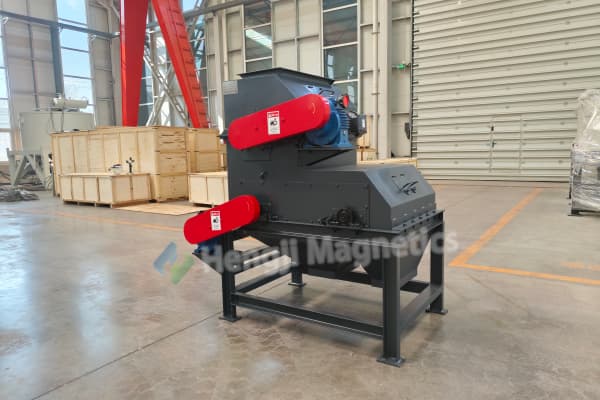

Applications of the High Intensity Magnetic Separator and Dry Magnetic Drum Separator

The high intensity dry magnetic drum separator is widely used for iron removal from dry powders in abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, and chemical raw materials. It is also used for dry pre-concentration and purification of weakly magnetic minerals.

The high intensity magnetic separator and dry magnetic drum separator deliver strong magnetic force, automatic continuous operation, and flexible adjustment. They are solving real dry separation challenges where conventional dry magnetic separators lack sufficient field strength.

Installation and Maintenance of the Dry Magnetic Drum Separator

The dry magnetic drum separator can be installed directly on level ground with reliable grounding. Installation location is flexible. Operators can check drum rotation direction through the viewing port. Feed gate opening and roller speed are adjustable based on hourly throughput. The bottom discharge ports are clearly arranged—rear port for iron collection, front port for non-magnetic product. If belt misalignment occurs, it is easily corrected by adjusting the bearing housing bolts.

The high intensity magnetic separator requires minimal maintenance. The magnetic field is stable and maintenance-free. Routine checks include cleaning the drum surface and lubricating bearings. This keeps the dry magnetic drum separator running reliably with low downtime.

Conclusion: Choose the High Intensity Dry Magnetic Drum Separator

If your dry separation process suffers from insufficient magnetic force, the high intensity dry magnetic drum separator deserves serious consideration. It delivers strong magnetic force, automatic continuous operation, and flexible adjustment—making dry separation as effective as wet processing.

From refractories to non-metallic minerals, from abrasives to chemical powders, the high intensity magnetic separator and dry magnetic drum separator are improving dry separation performance. Contact us today for a free application review and find the right high intensity dry magnetic drum separator for your production line.
