High Intensity Magnetic Separator: How Industrial Magnetic Separation Equipment Breaks Purification Limits

2026-05-25

In mining, metallurgy, non-metallic mineral processing, and new energy materials, ferrous impurity content directly determines product grade and price. From micron-scale iron powder to coarse steel bars, removing these contaminants efficiently and stably is a universal challenge. Industrial magnetic separation equipment is the core solution, and the high intensity magnetic separator leads the way in purification technology. This article explains how it achieves deep iron removal, installation best practices, performance factors, and key industrial applications.

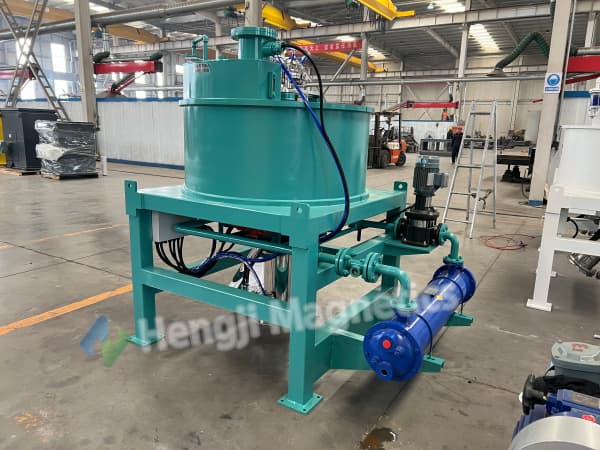

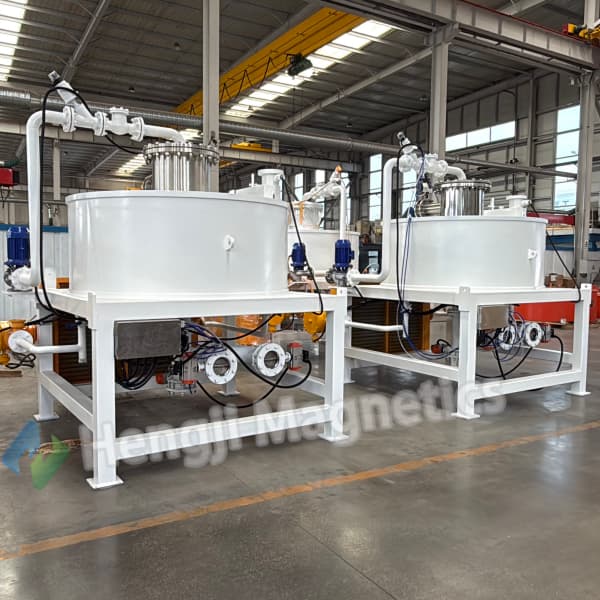

How Does a High Intensity Magnetic Separator Achieve Deep Iron Removal?

Many customers ask: when ordinary magnetic equipment fails on fine, weakly magnetic impurities or thick burdens, how does a high intensity magnetic separator succeed?

The secret lies in its magnetic circuit design and high-performance magnetic source. A high intensity magnetic separator uses computer-optimized circuits with either high-grade Neodymium permanent magnets or energized electromagnet coils. The goal is to generate far higher field strength and gradient in the separation zone than conventional industrial magnetic separation equipment. This high-gradient field creates enormous magnetic forces at the microscale, overcoming gravity, fluid drag, and friction that hold weakly magnetic particles (hematite, limonite, wolframite) in non-magnetic material. By boosting field intensity, the high intensity magnetic separator lowers the particle size and magnetic susceptibility limits for separation, turning previously unrecoverable "waste" into valuable concentrate.

How Does a High Intensity Magnetic Separator Achieve Deep Iron Removal?

Many customers ask: when ordinary magnetic equipment fails on fine, weakly magnetic impurities or thick burdens, how does a high intensity magnetic separator succeed?

The secret lies in its magnetic circuit design and high-performance magnetic source. A high intensity magnetic separator uses computer-optimized circuits with either high-grade Neodymium permanent magnets or energized electromagnet coils. The goal is to generate far higher field strength and gradient in the separation zone than conventional industrial magnetic separation equipment. This high-gradient field creates enormous magnetic forces at the microscale, overcoming gravity, fluid drag, and friction that hold weakly magnetic particles (hematite, limonite, wolframite) in non-magnetic material. By boosting field intensity, the high intensity magnetic separator lowers the particle size and magnetic susceptibility limits for separation, turning previously unrecoverable "waste" into valuable concentrate.

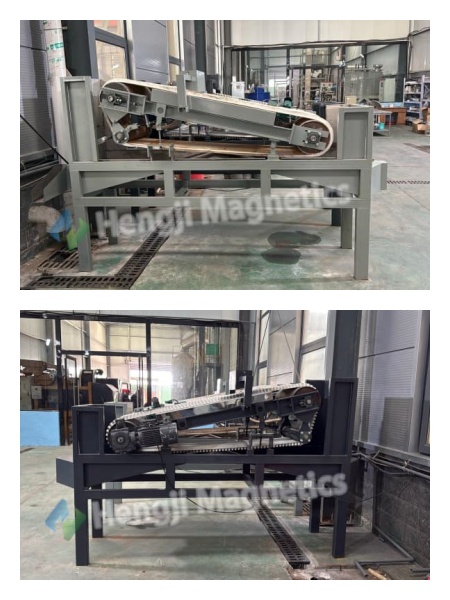

Is Installation Complex? How to Ensure Optimal Performance?

Practical users care about installation and adaptability. Quality industrial magnetic separation equipment is designed for easy retrofit.

For overhead high intensity magnetic separator units suspended over belt conveyors, there are two standard mounting methods:

Horizontal mounting (mid-conveyor): Suspend directly over the belt, aligning the magnetic center with the belt center for full coverage.
Inclined mounting (head pulley): Place near the head pulley, adjusting distance based on belt speed and material trajectory to capture tramp iron at the peak of its parabola.

For drum or roll-type industrial magnetic separation equipment, focus on feed uniformity and gap control:

Wet drum: Ensure proper clearance between tank and drum, smooth slurry flow.
Dry roll: Adjust vibratory feeder frequency and amplitude for uniform, monolayer feed over the magnetic roll.

Properly installed and tuned, the high intensity magnetic separator delivers full separation capability.

Is Installation Complex? How to Ensure Optimal Performance?

What Affects Iron Removal Efficiency? Is Maintenance Complicated?

Customers prioritize final results and total cost of ownership. Industrial magnetic separation equipment efficiency depends on material characteristics (particle size, magnetic susceptibility, moisture), field strength, throughput, and feed uniformity.

To maintain peak performance, quality high intensity magnetic separator units feature self-cleaning belts (for overbelt designs) or automatic scrapers/brush rolls (for drum types). These continuously discharge captured iron, preventing magnetic shielding.

Maintenance is straightforward:

Permanent magnet type: No power needed for the field. No coils, no cooling. Magnetic decay is minimal; core is maintenance-free. Only occasional belt and bearing checks.
Electromagnetic type: Requires power but with advanced oil or air cooling ensures continuous operation. Routine checks include wear parts (belts, scrapers, bearings) and lubrication.

A well-built high intensity magnetic separator offers long-term reliability with low upkeep.

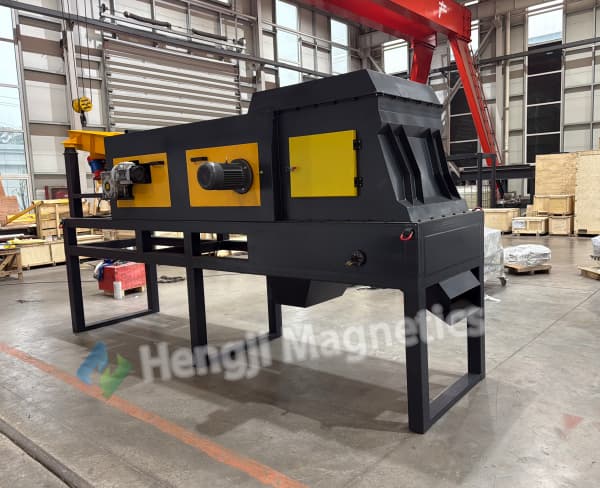

Which Industrial Applications Need a High Intensity Magnetic Separator?

Industrial magnetic separation equipment with high intensity is essential wherever purity is critical:

Metal ore processing: Beneficiation of hematite, limonite, manganese, and other weakly magnetic ores to improve grade and recovery.
Non-metallic mineral purification: Iron removal from quartz sand, feldspar, kaolin, fluorite to enhance brightness and high-end value.
New energy materials: Removing ppb-level iron from lithium battery anode/cathode materials and carbon black to ensure battery safety and performance.
Fine chemicals & food: Catalyst recovery and magnetic contaminant removal from food ingredients to ensure process safety and product purity.

Conclusion

The high intensity magnetic separator represents the pinnacle of industrial magnetic separation equipment technology. With exceptional field penetration and fine capture capability, it opens new possibilities for purification and efficiency across mining, non-metallic minerals, new materials, and recycling. Choosing the right high intensity magnetic separator is not just a solution to current iron removal challenges—it is a strategic investment in product upgrading and market competitiveness.
