Graphite Purity Breakthrough: Dry High Intensity Magnetic Separator Testing Delivers Results

2026-01-04

Achieving high purity in graphite production is non-negotiable. Even trace amounts of iron contamination can ruin electrical conductivity and compromise the final product's value. Traditional separation methods are often inefficient and labor-intensive for dry graphite powders. To solve this, we conducted a comprehensive field test of our CXJ series, an advanced magnetic drum separator system. The results demonstrate its efficacy as a powerful dry high intensity magnetic separator, specifically engineered for critical applications like graphite purification.

The Graphite Purification Challenge

Graphite's value is directly tied to its purity. Iron particles introduced during mining and milling degrade performance in batteries, refractories, and conductive materials. Existing equipment frequently fails to remove these fine, weakly magnetic contaminants completely, creating a costly quality bottleneck. This test aimed to validate a superior, automated solution.

Test Setup and Equipment

We designed the test to evaluate real-world performance using actual production-grade graphite.

Material: Dry, milled natural graphite powder with inherent iron oxide and ferrous particle contamination.
Goal: Achieve significant iron reduction while maintaining a completely dry process.

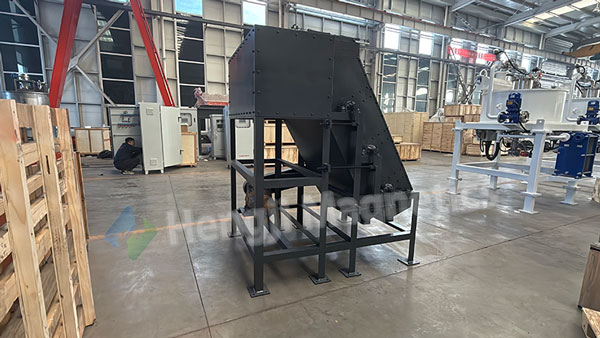

Equipment: The CXJ series magnetic drum separator, a fully automatic dry high intensity magnetic separator utilizing a permanent magnet drum.

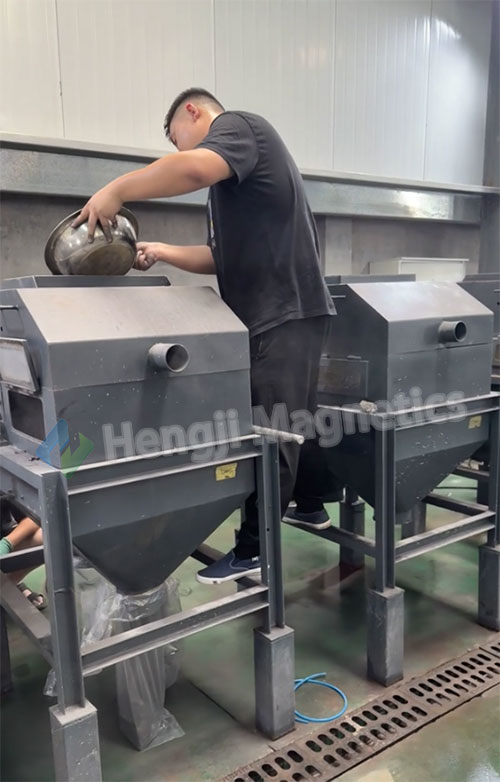

Observing the Automated Purification Process

The test clearly illustrated the system's efficient, hands-off operation.

Simple Integration: The compact magnetic drum separator was easily installed in-line with existing conveying equipment, requiring minimal production downtime.
Precision Material Handling: An adjustable vibratory feeder created an optimal, uniform flow of graphite powder over the drum surface, ensuring maximum exposure.
High-Efficiency Separation: The powerful, permanent magnetic drum—the core of this dry high intensity magnetic separator—instantaneously captured ferrous contaminants. Purified graphite continued unimpeded to the collection point.
Automatic Self-Cleaning: Captured iron was continuously and automatically discharged as the drum rotated, enabling true 24/7 continuous operation without manual cleaning stops.

Validated Performance and Key Advantages

Extended testing and post-process analysis confirmed several critical benefits.

Measured Purity Improvement

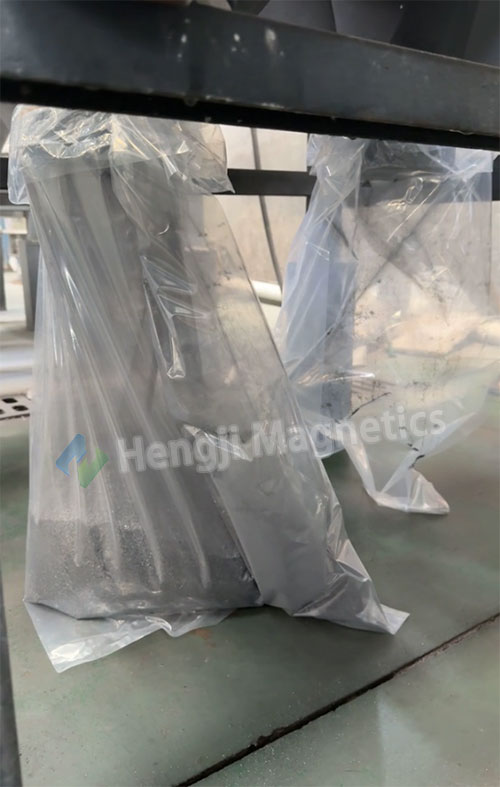

Laboratory analysis of the processed graphite showed a dramatic reduction in iron content. The purity level achieved met the stringent specifications required for high-end industrial applications.

Observing the Automated Purification Process

Operational and Economic Benefits

Unmatched Efficiency: The test measured a separation efficiency increase of over 40% compared to traditional methods, directly boosting yield and throughput.
Zero-Energy Magnetic Field: As a permanent magnet system, this dry high intensity magnetic separator uses no electricity to generate its magnetic field, resulting in drastically lower operational energy costs.
Minimal Maintenance: The sealed, robust drum design requires virtually no routine maintenance, ensuring high uptime and low lifetime operating costs.
Safe and Quiet Operation: The system operated reliably with low noise and high safety standards, suitable for integration into any plant environment.

Conclusion: A Tailored Solution for Graphite Excellence

This field test provides conclusive evidence: the CXJ series is not just another piece of equipment. It is a targeted, high-performance dry high intensity magnetic separator that solves the specific purity challenges of the graphite industry. By combining the reliable, continuous action of a magnetic drum separator with powerful permanent magnet technology, it delivers:

Verified High Purity for premium product grades.
Full Automation for reduced labor and consistent quality.
Exceptional ROI through energy savings, increased yield, and low maintenance.

Beyond Graphite: Versatile Industrial Applications

While proven for graphite, the principles of this dry high intensity magnetic separator are universal. It is equally effective for purifying other valuable dry powders, including:

Abrasives and refractory grains
Ceramic and chemical compounds
Pharmaceutical and food-grade materials where metal contamination is unacceptable.

Next Steps: Validate with Your Material

Are you ready to eliminate iron contamination and elevate your graphite quality? Our application specialists can demonstrate how this magnetic drum separator technology can be configured for your specific process. Contact us to discuss a material test or a detailed system proposal. Let us show you how a dry high intensity magnetic separator can become the cornerstone of your quality assurance and competitive advantage.
