Wet Drum Magnetic Separator: Achieving Maximum Iron Ore Recovery with Efficient Magnetic Separation

2026-07-28

In iron ore beneficiation plants, efficiently recovering strongly magnetic minerals like magnetite and pyrrhotite while minimizing metal loss in tailings is a core challenge. Conventional processes often face bottlenecks—limited throughput, low separation precision, poor adaptability to particle size—failing to meet demands for high output, high grade, and low energy consumption. The wet drum magnetic separator designed as a magnetic iron ore separator addresses these challenges. Using a powerful field generated by a permanent magnetic drum, it efficiently captures strongly magnetic iron minerals on the drum surface while non-magnetic gangue is carried away by slurry flow—achieving efficient separation of iron concentrate from tailings. This wet drum magnetic separator combines advanced magnetic circuit design with proven wet separation technology, significantly improving magnetite beneficiation efficiency and concentrate grade, making it an essential asset in modern iron ore processing plants.

How the Wet Drum Magnetic Separator Improves Iron Ore Beneficiation

The design of this magnetic iron ore separator focuses on the core concerns of iron ore processors, delivering separation efficiency and economic returns through advanced technology.

Enhancing Concentrate Grade and Reducing Iron Loss

In processing magnetite, roasted ore, and other strongly magnetic minerals, the wet drum magnetic separator uses a rare earth composite magnetic system with high field strength and deep penetration. Magnetic iron particles are firmly held to the drum surface, while non-magnetic gangue—quartz, feldspar—flows out through the tailings discharge, achieving efficient separation. This design enables the magnetic iron ore separator to achieve "high discard, low recovery" roughing targets in coarse, strongly magnetic feeds—improving mill feed grade and reducing processing costs. In heavy media circuits, a second unit is often used to reprocess the first unit's tailings, further reducing metal loss and increasing overall recovery.

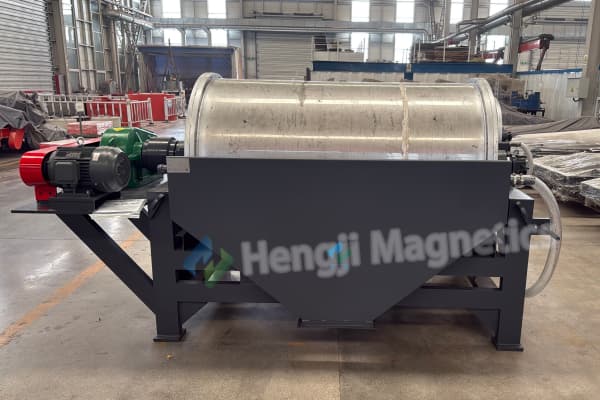

How the Wet Drum Magnetic Separator Improves Iron Ore Beneficiation 1

Throughput and Particle Size Adaptability

The wet drum magnetic separator features a specially designed tank to accommodate different particle sizes. For coarse feeds (6–0 mm), concurrent or fully counter‑current tank designs ensure smooth slurry flow without plugging or material loss, while maintaining full contact between magnetic minerals and the drum surface. For fine separation applications, the magnetic angle can be adjusted to suit different ore characteristics, achieving optimal separation. This adjustability allows the magnetic iron ore separator to handle variations in ore properties across different deposits, maintaining stable beneficiation performance.

Durability and Low Maintenance

Built for heavy-duty, continuous operation in harsh mining environments, the wet drum magnetic separator features a rugged design. The permanent magnetic drum uses a rare earth composite magnetic system, reinforced with stainless steel strapping and epoxy‑potted to prevent loosening or detachment. End seals with gaskets and sealant prevent water ingress. The drum rubber lining is directly vulcanized with a 4mm thick high‑wear rubber layer, providing 2‑3 years service life with high bond strength. These design features ensure stable performance even under prolonged slurry contact and abrasive wear, minimizing downtime. Maintenance points are clearly defined—operators follow simple lubrication schedules to ensure long‑term reliability.

Installation Flexibility and Space Adaptability

The wet drum magnetic separator has a compact design with left‑hand or right‑hand drive options to suit site layouts. Motor controls are installed in accessible locations with moisture protection for safe operation in wet processing environments. Pre‑installation checks ensure no damage, deformation, or corrosion; the frame is leveled; and the tank‑to‑drum clearance is adjusted for throughput. This ensures the magnetic iron ore separator is ready for efficient production immediately after installation.

Applications in Iron Ore Beneficiation

The wet drum magnetic separator is widely used in iron ore processing applications:

Primary and secondary magnetic separation: Upgrading magnetite, roasted ore, and other strongly magnetic iron ores.
Heavy media recovery: Recovering magnetite or ferrosilicon from dense‑medium circuits.
Scavenging: Reprocessing tailings to recover residual magnetic values.
Pre‑concentration: Improving feed grade before grinding.

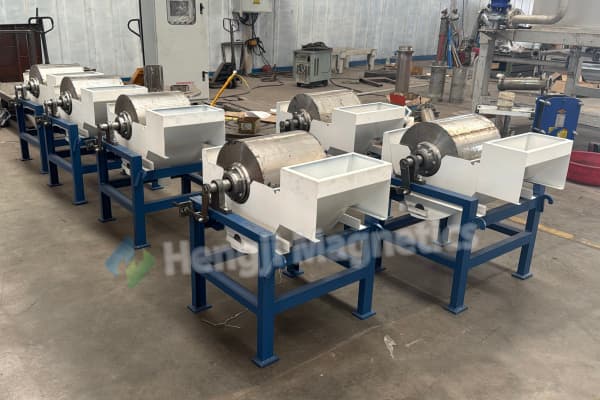

How the Wet Drum Magnetic Separator Improves Iron Ore Beneficiation 2

Conclusion

The wet drum magnetic separator designed as a magnetic iron ore separator is an essential tool for maximizing iron ore recovery and concentrate grade. With powerful magnetic field, efficient separation, adjustable operation, rugged durability, and flexible installation, it helps concentrators reduce tailings losses and improve economic returns. For any mining operation committed to resource efficiency and cost‑effective beneficiation, a reliable wet drum magnetic separator is the strategic choice—maximizing value from every ton of iron ore processed.
