The Secret of Magnetic Grate Separators: Eliminating Blind Spots with Magnetic Rod Arrays

2026-03-02

Have you ever wondered why some magnetic separators catch every tiny metal fragment while others let contaminants slip through? The answer lies not in the number of magnetic rod elements, but in how they are arranged. In a magnetic grate separators, the space between rods can become a "blind spot"—a zone where magnetic force is too weak to capture passing ferrous particles. But here's the truth: blind spots are not inevitable. They are a design flaw. Understanding how they form reveals the engineering secret behind truly effective separation.

What Exactly is a Magnetic Blind Spot?

A blind spot in a magnetic grate separators is any area within the rod array where the magnetic field strength falls below the threshold needed to attract and hold ferrous contaminants. When material flows through these zones, impurities pass through untouched. The existence of blind spots is not a mystery—it is the direct result of two specific design failures in the placement of magnetic rod elements.

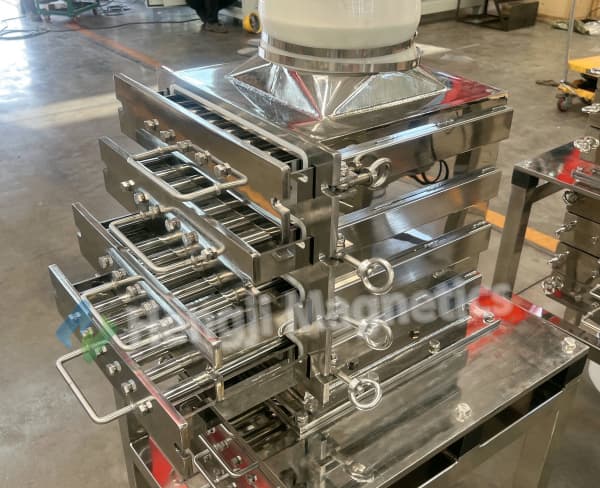

Root Cause #1: The Planar Gap Trap

This is the most common and visible cause of blind spots. When magnetic rod elements are arranged in a simple, single-plane grid with equal spacing, the magnetic field between any two adjacent rods follows a predictable pattern. The field is strongest at each rod surface and weakest exactly midway between them.

If the spacing between magnetic rod elements exceeds the effective capture radius of the magnets, this midpoint becomes a "magnetic dead zone." Fine iron particles flowing precisely through this gap experience insufficient magnetic pull to overcome the drag of the moving product. They slip right through, contaminating your downstream process. A single-row grid, no matter how strong the individual magnetic rod units, will always have these planar gaps.

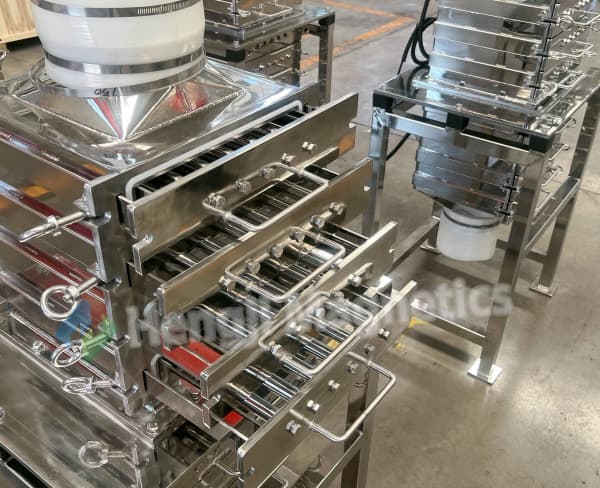

Root Cause #2: The Depth Cancellation Effect

This second cause is more subtle but potentially more damaging. It occurs in multi-layer magnetic grate separators when the magnetic poles of rods in different layers are aligned. Imagine an upper magnetic rod with its north pole facing downward, and directly beneath it, a lower magnetic rod with its north pole facing upward.

According to the fundamental law that like poles repel, the magnetic fields between these two aligned rods push against each other. This creates a zone of cancelled or severely weakened magnetism in the space between the layers. Product flowing through this inter-layer region experiences dramatically reduced separation efficiency, effectively creating a three-dimensional blind spot.

Root Cause #2: The Depth Cancellation Effect

The Engineering Solution: The Staggered Array

Premium magnetic grate separators eliminate these blind spots through a meticulously engineered staggered pattern. This approach addresses both root causes simultaneously.

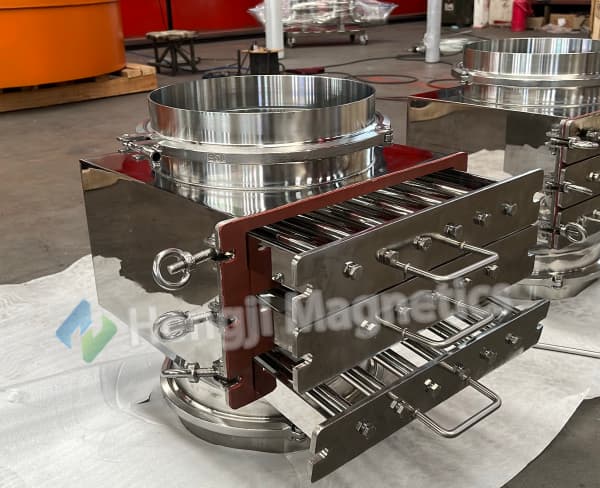

Planar Staggering: Closing the Gaps

Within a single layer, instead of a single row of magnetic rod elements, the design uses multiple offset rows. The critical detail is that each magnetic rod in the second row is positioned precisely behind the gap between two rods in the first row. A particle that slips through the magnetic weak zone of the first row immediately encounters the full-strength field of a magnetic rod in the second row. This achieves complete magnetic coverage across the entire flow cross-section.

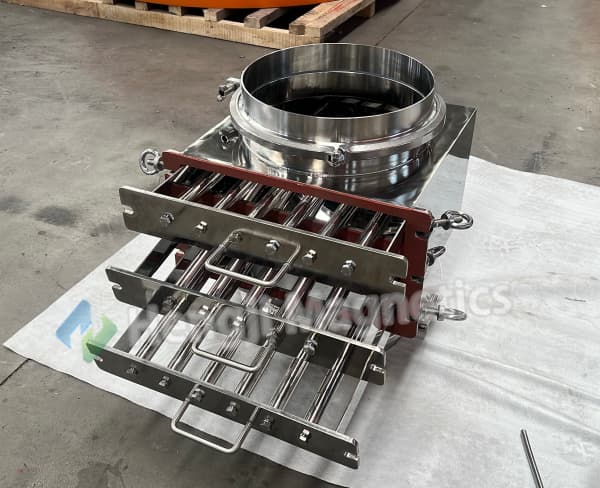

Depth Staggering: Preventing Field Cancellation

Between multiple layers, the magnetic rod positions are shifted both horizontally and vertically. This ensures that the strong magnetic zone of an upper magnetic rod aligns with the potential weak zone between rods in the layer below. As material weaves through the multi-layer magnetic grate separators, it follows a path where it is continuously exposed to powerful, uniform magnetic force from multiple magnetic rod elements. There is no straight-line path through a cancelled field zone.

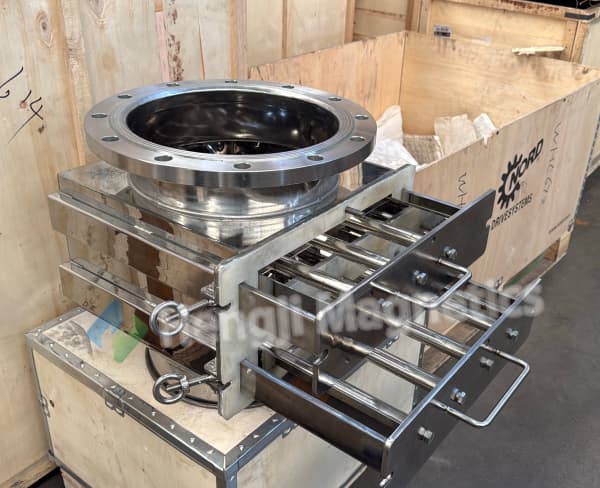

Practical Takeaways for Your Operation

When Selecting Equipment:

Ask your supplier directly: "Are the magnetic rod arrays in your magnetic grate separators designed with staggered multi-row and multi-layer patterns?" Request internal diagrams or photographs to verify that there are no straight, aligned gaps through which material can flow unimpeded.

During Maintenance:

Clean every magnetic rod in every layer regularly. Do not assume that because the top layer looks "full," the lower layers are not working. Each magnetic rod in the staggered array is an essential part of an integrated defense system. Inspect for missing or damaged rods—a single compromised element can break the staggered pattern and reintroduce a blind spot.

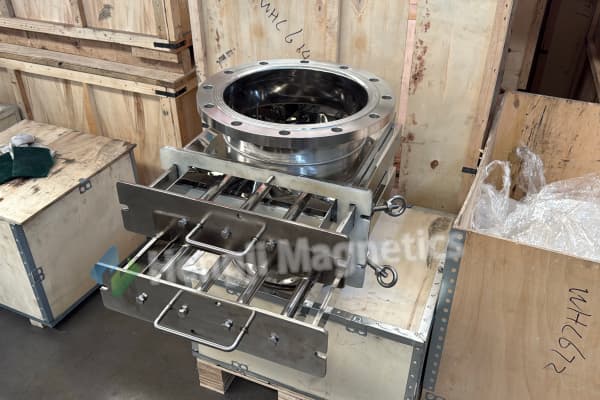

Conclusion: The Intelligence is in the Arrangement

The true power of a magnetic grate separators lies not in how many magnetic rod elements it contains, but in the intelligence of their arrangement. Through the elegant geometry of staggered arrays, what might otherwise be a collection of individual magnets is transformed into a seamless, three-dimensional magnetic filter. This is the engineering secret that enables the promise of "layer by layer, complete iron removal." A well-designed magnetic grate separators has no hiding places for ferrous contamination.
