Mining Magnetic Separators: The Core Equipment for Improving Ore Processing Quality and Efficiency – A Deep Dive into the Magnetic Drum Separator
2026-08-11
On the front lines of mineral processing, low recovery rates, off-spec concentrate grades, and excessive loss of valuable minerals in tailings are the most persistent headaches for customers. The root cause of these issues often lies in the magnetic field performance and structural design of the mining magnetic separators they rely on. At the heart of these systems is the magnetic drum separator, a workhorse that directly determines whether a processing plant can turn a profit or continue losing value to the waste stream.

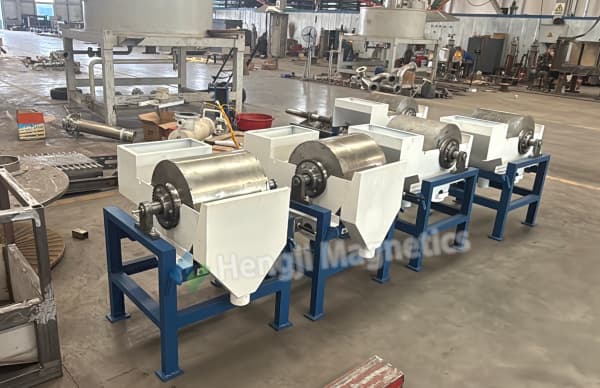

Does the Magnetic Field Strength Deliver? The Foundation of Every Beneficiation Metric
The first and most critical question customers ask is whether the equipment can generate enough magnetic force to capture fine magnetic particles and pull them out of the slurry. The mining magnetic separators equipped with a high-performance magnetic drum separator address this with a rare earth composite magnetic system, optimized through computer simulation. The result is high surface field strength, steep magnetic gradients, and sufficient penetration depth to capture even fine-grained magnetic minerals.
This strong magnetic field directly translates into higher recovery rates and reduced magnetic iron loss in tailings. For ferromagnetic materials like magnetite and ilmenite, the magnetic performance of the magnetic drum separator is the decisive factor in whether concentrate grade meets saleable specifications. Some models achieve field strengths up to 5500 Gauss, with the ability to upgrade concentrate grade by 15–20% while maintaining recovery rates above 98%. High-grade Neodymium magnets with high energy product and high coercivity ensure that the mining magnetic separators maintain their magnetic density with less than 5% demagnetization over eight years of service.
Is the Structural Design Reliable? The Key to Uptime and Low Maintenance
Mineral processing sites are harsh environments—continuous operation, high dust levels, and abrasive slurries. Equipment stability and maintenance convenience are therefore major concerns for customers evaluating mining magnetic separators. A well-designed magnetic drum separator features a simple, compact structure that is easy to operate and maintain, with low ongoing maintenance costs.

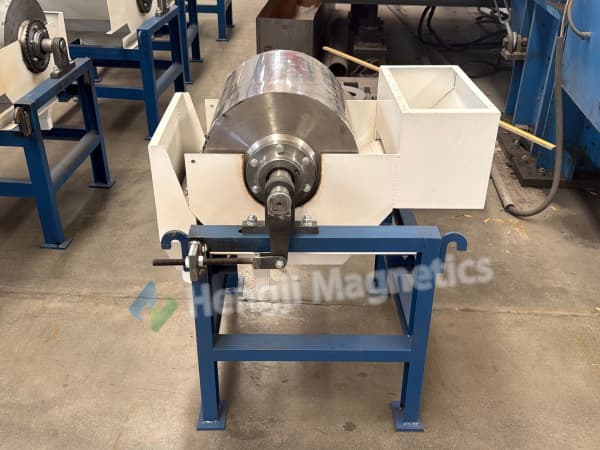

The drum is fabricated from stainless steel with excellent sealing to prevent water and ore ingress. The drum surface can be specified as plain stainless steel or rubber‑lagged depending on operating conditions; rubber lagging uses a direct vulcanization process for superior wear and corrosion resistance, significantly extending service life and reducing scheduled maintenance frequency. A large magnetic wrap angle design increases the separation zone length and the number of magnetic flips, enabling effective separation of magnetic from non‑magnetic or weakly magnetic minerals.
The permanent magnetic drum requires no electrical power to generate its field, delivering significant energy savings and reducing long-term operating costs. The through-shaft design ensures reliable, safe drum rotation, and the magnetic angle can be adjusted to suit different ore types and operating conditions, ensuring the mining magnetic separators always operate at peak separation performance.
Does the Throughput Meet Production Targets? Handling Capacity Without Compromise
As mines scale up production, customers demand ever-higher processing capacity from their mining magnetic separators. The magnetic drum separator addresses this with a specially designed tank that resists clogging and material loss. Combined with a feed box engineered to generate proper slurry flow, the equipment achieves stable, high‑throughput operation without compromising separation performance.
Different tank configurations are available to suit different separation requirements: concurrent tanks for 6–0 mm ore in roughing and cleaning, counter‑current tanks for 0.6–0 mm ore in roughing and scavenging, and semi‑counter‑current tanks for 0.5–0 mm ore in cleaning—particularly effective for 0.15–0 mm fines. The drive system uses a cycloidal gearmotor for smooth, reliable operation, with a flexible magnetic angle adjustment mechanism that allows operators to fine‑tune the equipment for changing feed conditions.
The Bottom Line: From Recovery Rate to Concentrate Grade, Every Metric Matters
From recovery rate and concentrate grade to equipment stability and processing capacity, every link in the chain affects the economic performance of a mining operation. A high-performance magnetic drum separator is not just a machine that performs magnetic separation—it is the core asset that continuously creates value for its customers.
Whether upgrading magnetite before grinding, recovering heavy media in coal preparation, or removing iron from non‑metallic minerals, the mining magnetic separators equipped with a robust magnetic drum separator deliver the magnetic strength, structural reliability, and processing capacity that modern concentrators demand. When selecting equipment, customers should evaluate field strength, structural design, tank configuration, and maintenance requirements to ensure they choose a magnetic drum separator that will maximize recovery and minimize operating costs over the long term. The right choice in mining magnetic separators is the difference between ore that pays and ore that stays in the tailings.
