Perm Roll Magnetic Separator: The Core Tool for Magnetic Separation of Minerals

2026-08-24

In non-metallic mineral processing, iron impurities have always been a core pain point affecting product quality and value. Whether it is quartz sand, feldspar, kaolin, spodumene, or refractories, the ferrous content in raw materials directly determines whiteness, purity, and final market price. Achieving high-efficiency iron removal while maintaining throughput and controlling costs is a continuous concern for every mineral processing plant manager.

The perm roll magnetic separator was designed to solve this problem. As a core equipment for magnetic separation of minerals, the perm roll magnetic separator exploits differences in magnetic susceptibility between minerals—when material enters the separation zone, particles with different magnetic properties follow different paths under the combined action of magnetic force and mechanical forces (gravity, centrifugal force), achieving precise separation. The magnetic roll features a computer-optimized magnetic circuit design, using high-performance Neodymium magnets as the magnetic source. The roll surface delivers strong field strength and high lifting force, with high iron removal efficiency, maintenance-free operation, energy savings, and reliable performance.

In practical magnetic separation of minerals, customers typically focus on three key concerns: whether separation precision meets requirements, whether the equipment operates reliably, and whether long-term operating costs are controllable. The perm roll magnetic separator addresses each of these concerns through its advanced design and proven performance in demanding industrial environments. Let us examine how this equipment performs in real-world applications.

Case Study 1: Quartz Sand Purification

A quartz sand processing company had long struggled with excessive iron content, preventing its product from meeting premium glass raw material whiteness standards. The company had tried various iron removal methods, but none delivered satisfactory results. After introducing the perm roll magnetic separator, material was fed uniformly onto the conveyor belt via a vibratory feeder. When the material reached the magnetic roll zone, ferrous particles were firmly attracted and carried as the roll rotated to the lower rear section, where a discharge scraper pushed them out of the magnetic field—the ferrous particles then lost magnetic attraction and fell by gravity through the iron discharge outlet, while purified non-magnetic mineral continued forward and discharged through the product outlet.

The entire continuous automatic process significantly improved iron removal efficiency. Before installation, the product's iron content was consistently above acceptable levels for premium applications. After the perm roll magnetic separator was put into operation, iron content dropped to well below the required threshold, and whiteness increased by several percentage points. The plant achieved the required whiteness target and successfully entered premium glass raw material markets. The equipment has been running continuously without clogging or carryover issues, and the automatic discharge function has eliminated frequent production stops.

Case Study 2: Spodumene Beneficiation

In spodumene processing, the challenge in magnetic separation of minerals lies in separating weakly magnetic minerals from target minerals. The magnetic susceptibility difference between spodumene and its associated iron-bearing minerals is often subtle, requiring a high-gradient field for effective separation.

The perm roll magnetic separator features an ultra-strong full-magnetic roll structure with stepless speed adjustment (40–200 rpm), allowing flexible speed control based on material characteristics for precise separation.

After adoption by a lithium ore processing plant, the equipment not only effectively removed iron impurities but also significantly improved concentrate grade and overall recovery. The plant reported that the perm roll magnetic separator delivered consistent performance despite variations in feed grade and particle size. Operators appreciated the simple control interface and the ability to fine-tune roll speed to match changing feed conditions. Maintenance requirements were minimal—routine checks of belt tension and bearing lubrication were sufficient to keep the unit running smoothly. The equipment earned high recognition from plant operators and management alike.

Case Study 3: Refractories and Abrasives

For refractories and abrasives, trace iron impurities in raw materials often cause defects such as discoloration and reduced strength in finished products. The perm roll magnetic separator uses a vibratory feeder with elastic supports for long service life, effective vibration isolation, and resonance avoidance, adapting to different particle sizes. Its automatic feeding and continuous operation design requires no dedicated attendant after startup, substantially reducing labor costs.

A refractory materials producer had been experiencing quality inconsistencies due to iron contamination in their raw feed. After installing the perm roll magnetic separator, they observed a marked improvement in product consistency. The equipment reliably captured ferrous particles that had previously slipped through their existing separation system.

The permanent magnet technology requires no additional excitation energy, delivering very low operating costs—truly "one investment, long-term benefit." The plant manager noted that the payback period for the equipment was significantly shorter than expected, thanks to reduced reject rates and lower maintenance expenses.

Why Choose the Perm Roll Magnetic Separator?

From the overall process of magnetic separation of minerals, the perm roll magnetic separator is suitable not only for dry processing but also for integration with wet magnetic separation circuits to build complete purification lines.

Whether processing micron-sized dry powders or fine mineral particles, it maintains stable separation performance. The simple, compact structure ensures easy installation, small footprint, and direct floor mounting with reliable grounding.

The key advantages of the perm roll magnetic separator in magnetic separation of minerals can be summarized as follows: it delivers strong, consistent magnetic capture across a wide range of particle sizes; it operates continuously without supervision, reducing labor costs; it requires no external power for field generation, keeping energy consumption low; and its robust construction ensures long service life with minimal maintenance. These features make the perm roll magnetic separator the preferred choice for mineral processors seeking reliable, cost-effective iron removal.

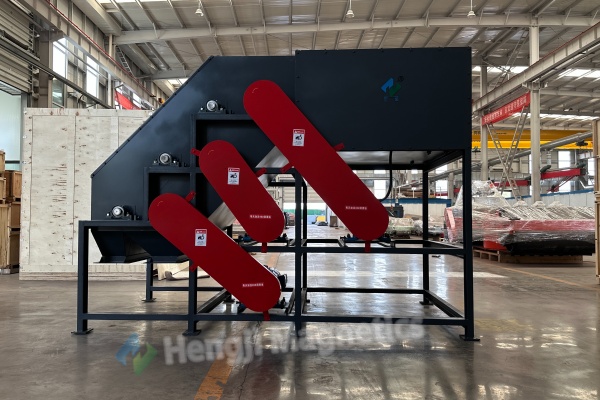

Why Choose the Perm Roll Magnetic Separator?

Conclusion

As non-metallic mineral resources become increasingly scarce and downstream quality requirements continue to rise, choosing efficient, reliable equipment for magnetic separation of minerals is a critical step for companies seeking to enhance product competitiveness and access premium markets. The perm roll magnetic separator—with its outstanding iron removal performance, stable operation, and extremely low maintenance costs—has become the preferred solution for many mineral processors. As purification demands continue to increase, perm roll magnetic separation technology will play an increasingly vital role in magnetic separation of minerals. For any mineral processing operation looking to improve product quality, reduce operating costs, and gain a competitive edge, the perm roll magnetic separator is the equipment to consider.
