Permanent Wet Drum Magnetic Separator: Boost Slurry Separation and Reduce Tailings
2026-09-22
In wet beneficiation of magnetic minerals such as magnetite, pyrrhotite, and roasted ore, the separation efficiency of magnetic minerals from non-magnetic gangue directly determines concentrate grade and metal recovery. Customers consistently ask: Can concentrate grade meet standards consistently? Can magnetic iron content in tailings be further reduced? Is the equipment prone to clogging or material loss, and does it require frequent maintenance? Can throughput meet production line requirements? The permanent wet magnetic separator and wet drum magnetic separator are designed to answer these exact concerns.

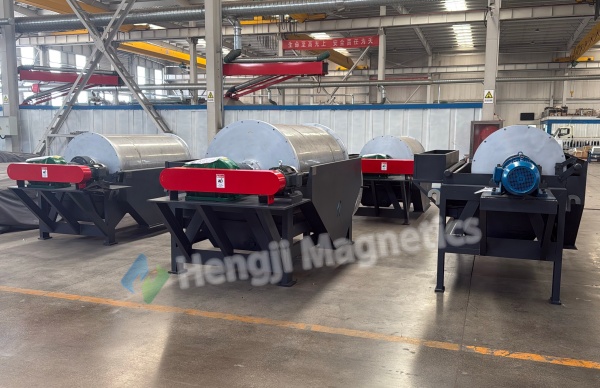

How Permanent Wet Magnetic Separator and Wet Drum Magnetic Separator Work
The permanent wet magnetic separator is suitable for wet magnetic separation of ferromagnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite. It is also used for iron removal from coal, non-metallic minerals, and building materials, as well as magnetite heavy media recovery in coal preparation. In heavy media separation, a specially designed dual-drum tailings reprocessing configuration can be used to re-separate tailings from the first unit, improving recovery, increasing concentrate grade, reducing tailings loss, and simplifying the beneficiation process.
The wet drum magnetic separator mainly consists of a permanent magnetic drum, adjustment mechanism, tank, gearbox, motor, feed box, concentrate box, and frame. Slurry enters the feed box through a flange, is initially diluted by the feed water pipe, and is washed to the lower part of the permanent magnetic drum by a spray pipe. The rotating drum separates the slurry into concentrate and tailings. The concentrate is rinsed into the concentrate box through the concentrate pipe.

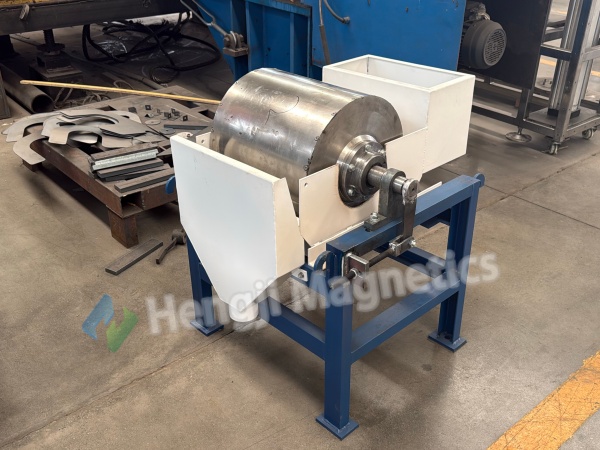

Key Components and Design Features of Wet Drum Magnetic Separator
The permanent magnetic drum is the key component of the wet drum magnetic separator. It consists of a cylinder, permanent magnetic system, end covers, shaft, bearing housings, and bearings. The cylinder is rolled from stainless steel plate, with the distance between the cylinder and the magnetic system not exceeding 4 mm. The drum uses high-performance strong magnetic materials in a composite magnetic system, featuring high field strength, deep penetration, and no demagnetization over years of use. Drum surface field strength can be customized. The shell is stainless steel, available with plain or rubber-lagged surfaces. Rubber lagging options include plain, diamond, and herringbone patterns to suit different conditions.
The permanent wet magnetic separator uses a rare earth composite magnetic system, bonded with high-strength adhesive and epoxy-potted, with the surface reinforced by stainless steel strapping to prevent detachment. End seals with gaskets and sealant prevent water ingress. The drum rubber is directly vulcanized rather than bonded, using high-wear rubber for long service life. The tank is specially designed to resist clogging and material loss. The semi-counter-current tank design ensures full slurry flow and more thorough separation. The feed box is designed to generate proper slurry flow, significantly improving magnetic mineral recovery.
The drive system uses a cycloidal gearmotor, sprocket, chain, and drive shaft connected to the drum, ensuring smooth and reliable rotation. The magnetic angle adjustment device allows easy adjustment of the magnetic system angle to suit different separation requirements. These features make the wet drum magnetic separator a reliable choice for demanding wet separation duties.

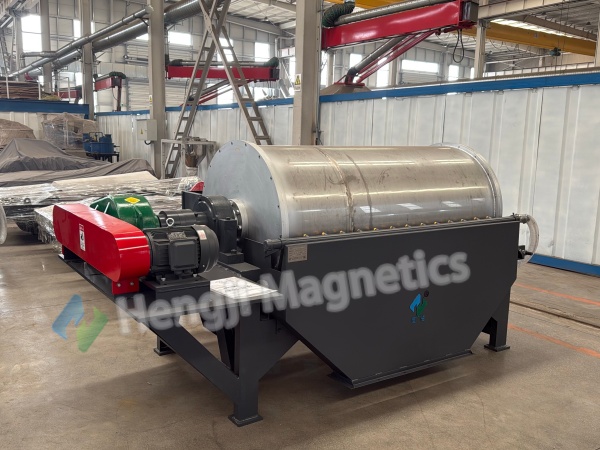

Customer Case: Permanent Wet Magnetic Separator in Iron Ore Plant
An iron ore concentrator processing magnetite faced fluctuating feed grades. The existing equipment delivered unsatisfactory separation, with high magnetic iron content in tailings and serious resource waste. After introducing the permanent wet magnetic separator, slurry was fully dispersed and separated in the tank. Magnetic minerals were effectively attracted to the permanent magnetic drum surface, carried out of the magnetic field as the drum rotated, and rinsed into the concentrate box. After the upgrade, concentrate grade stabilized and improved, magnetic iron content in tailings dropped significantly, and the plant increased concentrate production by thousands of tons annually, achieving remarkable economic benefits.
This case demonstrates the practical value of the wet drum magnetic separator in real-world iron ore processing. The equipment delivered stable performance and flexible adjustment—key requirements for wet slurry separation.
Why Choose Permanent Wet Magnetic Separator and Wet Drum Magnetic Separator?
The permanent wet magnetic separator and wet drum magnetic separator offer several key advantages:
-
Simple structure and high throughput: The wet drum magnetic separator handles large volumes with ease.
-
Easy operation and maintenance: The permanent wet magnetic separator is designed for simple, low-maintenance operation.
-
Stable and maintenance-free magnetic field: The permanent magnetic system delivers long service life without demagnetization.
-
Compact and reliable: The wet drum magnetic separator is compact, easy to install, and reliable in operation.
-
Energy efficient: No power consumption for field generation—saving energy.
-
Clog-resistant tank design: The semi-counter-current tank prevents material loss and clogging.
-
Adjustable magnetic angle: The permanent wet magnetic separator adapts to different operating conditions.
These features make the permanent wet magnetic separator and wet drum magnetic separator ideal for magnetite beneficiation, heavy media recovery, non-metallic mineral iron removal, and building material purification.

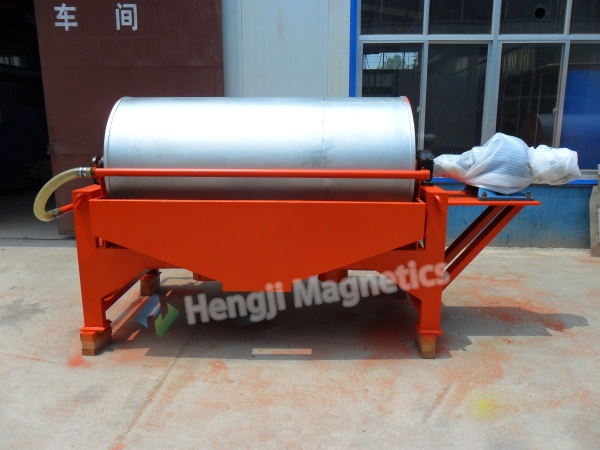

Applications of Permanent Wet Magnetic Separator and Wet Drum Magnetic Separator
From magnetite beneficiation to heavy media recovery, from non-metallic mineral iron removal to building material purification, the permanent wet magnetic separator and wet drum magnetic separator are solving real wet slurry separation challenges. The wet drum magnetic separator is widely used in iron ore processing, coal preparation, and non-metallic mineral processing.
The permanent wet magnetic separator helps improve concentrate grade and resource utilization. If you are struggling with unsatisfactory slurry separation, the permanent wet magnetic separator and wet drum magnetic separator deserve serious consideration. They deliver stable magnetic design, clog-resistant tank structure, and flexible magnetic adjustment—helping you improve concentrate grade and reduce tailings loss.
Conclusion: Choose Permanent Wet Magnetic Separator and Wet Drum Magnetic Separator
The permanent wet magnetic separator and wet drum magnetic separator provide reliable solutions for wet slurry separation in mineral processing. With their stable magnetic systems, high throughput, low maintenance, and energy-saving operation, they help concentrators improve concentrate grade and reduce tailings loss.
From magnetite to heavy media recovery, from non-metallic minerals to building materials, the permanent wet magnetic separator and wet drum magnetic separator are the equipment of choice for efficient wet separation. Contact us today for a free application review and find the right permanent wet magnetic separator or wet drum magnetic separator for your production line.
