Plate Rare Earth Magnetic Separators: High-Intensity Solution for Fine Weakly Magnetic Minerals

2026-10-10

In the purification of non-metallic minerals such as mica powder, quartz sand, potassium feldspar, and kaolin—and in the separation of weakly magnetic minerals like manganese, weakly magnetic iron ore, hematite, and limonite—customers often face a common dilemma. Traditional magnetic separators tend to clog and carry over material when processing fine particles. At the same time, insufficient magnetic field strength leads to poor capture of weakly magnetic impurities. Customers repeatedly ask: Will a plate magnetic separator handle particles below 5 mm without clogging? Can recovery of weakly magnetic minerals be improved? Is the magnetic force strong enough? Will carryover cause secondary contamination? The rare earth magnetic separators designed with a plate-type high-gradient structure and rare earth magnetic technology provide the answer.

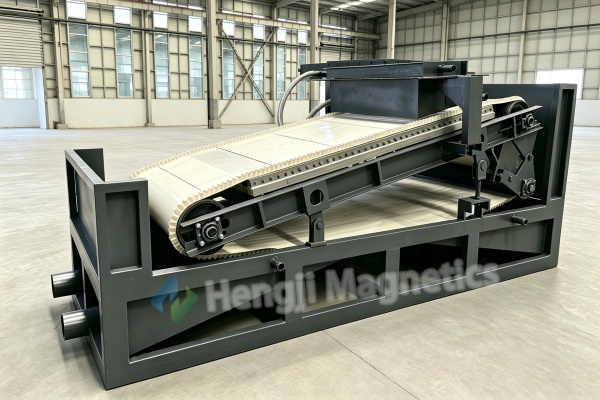

Why Plate Magnetic Separator with Rare Earth Magnetic Separators?

The plate magnetic separator integrates a plate-type high-gradient separation structure with rare earth magnetic technology. It is a new type of iron removal and purification equipment. Unlike conventional drum or ring separators, the rare earth magnetic separators use an opposed-pole magnetic circuit arrangement. This design maximizes the capture area and magnetic attraction within the working zone. The result is effective separation of fine, weakly magnetic particles that other equipment misses. For industries struggling with fine particle processing, the plate magnetic separator offers a reliable path to higher purity.

How Plate Rare Earth Magnetic Separators Work

The plate magnetic separator consists of a support frame, plate magnetic system, feed agitation system, water system, iron discharge system, and adjustment system. During operation, material flow and the discharge system move in opposite directions. Non-magnetic material flows out by gravity to the discharge outlet. Magnetic particles, however, are captured over a long distance and through multiple passes in the strong magnetic field. The reverse-running discharge system carries them to the iron outlet. This counter-current design is the core of the rare earth magnetic separators. It ensures thorough separation without clogging.

The magnetic system of the plate magnetic separator uses advanced computer simulation and an opposed-pole arrangement. This guarantees maximum adsorption area and capture capacity. The magnetic material is entirely made of high-strength rare earth Neodymium. The purity is high, the volume is large, and the magnetic force is strong. The rare earth magnetic separators achieve peak field strength up to 18,000 Gauss. This is what enables the plate magnetic separator to capture weakly magnetic particles that conventional equipment cannot handle.

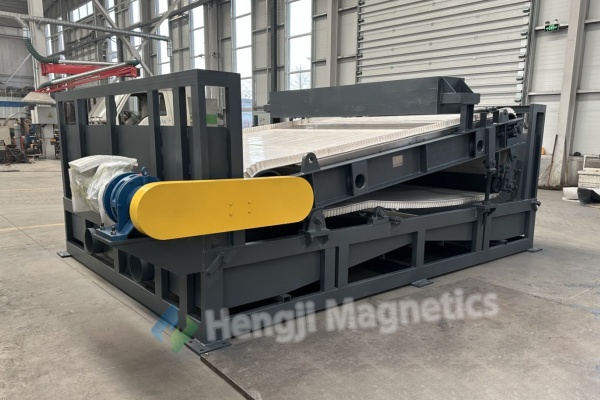

Key Features of Plate Magnetic Separator and Rare Earth Magnetic Separators

The plate magnetic separator and rare earth magnetic separators offer several key advantages:

No clogging with fine particles: The plate-type structure and counter-current flow prevent material buildup. This solves the worldwide technical challenge of clogging and carryover in fine particle separation.
Strong magnetic force: High-strength Neodymium magnets deliver up to 18,000 Gauss. The rare earth magnetic separators effectively capture weakly magnetic impurities.
Fully sealed magnetic system: Oxidation protection ensures that magnetic decay is less than 5% over ten years. The plate magnetic separator maintains stable performance even in harsh environments.
Automatic continuous operation: A stepless speed motor enables fully automatic continuous operation and iron discharge. The rare earth magnetic separators save labor and run reliably without failure.
No secondary contamination: All product-contact parts are stainless steel or non-magnetic materials. This prevents the plate magnetic separator from contaminating the material.
Flexible adjustment: The magnetic system is optimized for different materials. The rare earth magnetic separators adapt to various separation requirements.

These features make the plate magnetic separator and rare earth magnetic separators ideal for fine particle processing.

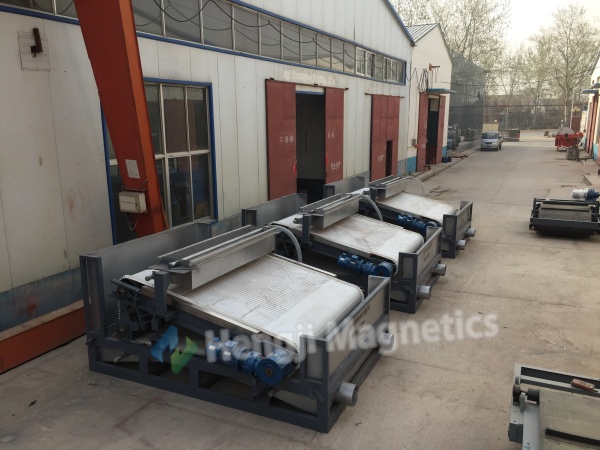

Customer Case: Plate Rare Earth Magnetic Separators in Quartz Purification

A quartz sand purification company faced high levels of weakly magnetic iron impurities. Traditional equipment lacked sufficient field strength and frequently clogged when processing fine particles. Iron removal failed to meet customer requirements, and product whiteness was substandard.

After introducing the plate magnetic separator, slurry was fed evenly through the agitation system into the magnetic zone. Material flow and the discharge system operated in a counter-current configuration. Weakly magnetic iron impurities were captured over a long distance and multiple passes in the strong magnetic field. The reverse-running discharge system removed the magnetic material. Non-magnetic material flowed out by gravity.

After the upgrade, product whiteness and purity improved significantly. The clogging problem with fine particles was completely solved. The rare earth magnetic separators operated for years with no noticeable magnetic decay. Overall economic benefits improved markedly. The plant manager stated that the plate magnetic separator has sufficient magnetic strength, does not clog, and requires no maintenance—making it the ideal choice for fine particle iron removal and purification. This case demonstrates the practical value of rare earth magnetic separators in real production.

Customer Case: Plate Rare Earth Magnetic Separators in Quartz Purification

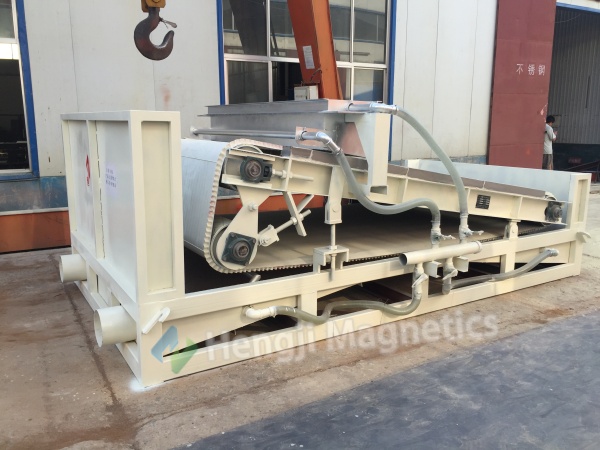

Applications of Plate Magnetic Separator and Rare Earth Magnetic Separators

The plate magnetic separator is mainly used for weakly magnetic minerals below 5 mm and for iron removal from non-metallic minerals. Applications include mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, manganese, weakly magnetic iron ore, pyrrhotite, roasted ore, ilmenite, hematite, limonite, siderite, chromite, wolframite, tantalum-niobium ores, and red mud. It is also used for iron removal from coal, non-metallic minerals, and building materials.

With rare earth-level magnetic force, a non-clogging separation structure, and long-term stable magnetic performance, the plate magnetic separator and rare earth magnetic separators are solving real challenges in fine particle separation. They address insufficient magnetic strength, clogging, and carryover. The plate magnetic separator improves iron removal and purification results significantly.

Conclusion: Choose Plate Rare Earth Magnetic Separators

If your fine particle separation process suffers from insufficient magnetic force, clogging, or carryover, the plate magnetic separator and rare earth magnetic separators deserve serious consideration. They deliver rare earth-level magnetic force, a non-clogging structure, and long-term stability. From quartz sand to kaolin, from manganese to hematite, the plate magnetic separator and rare earth magnetic separators are the equipment of choice for fine weakly magnetic mineral processing. Contact us today for a free application review and find the right plate magnetic separator or rare earth magnetic separators for your production line.
