Model No: CYG
Easy Cleaning Magnetic liquid Magnet Traps
● Strong Magnetic Filtration: NdFeB magnets with multi-layer filtration for complete iron removal
● Simple Structure: Flange/quick-connect for easy installation and maintenance
● Zero Energy: Permanent magnet design requires no electricity, zero operating costs
● Reliable Material: 304/316L stainless steel, corrosion-resistant and easy to clean
● Safety Protection: Fully enclosed structure prevents material contamination
● Wide Application: Suitable for liquid/slurry applications in food & chemical industries
● Simple Structure: Flange/quick-connect for easy installation and maintenance
● Zero Energy: Permanent magnet design requires no electricity, zero operating costs
● Reliable Material: 304/316L stainless steel, corrosion-resistant and easy to clean
● Safety Protection: Fully enclosed structure prevents material contamination
● Wide Application: Suitable for liquid/slurry applications in food & chemical industries
Quantity :

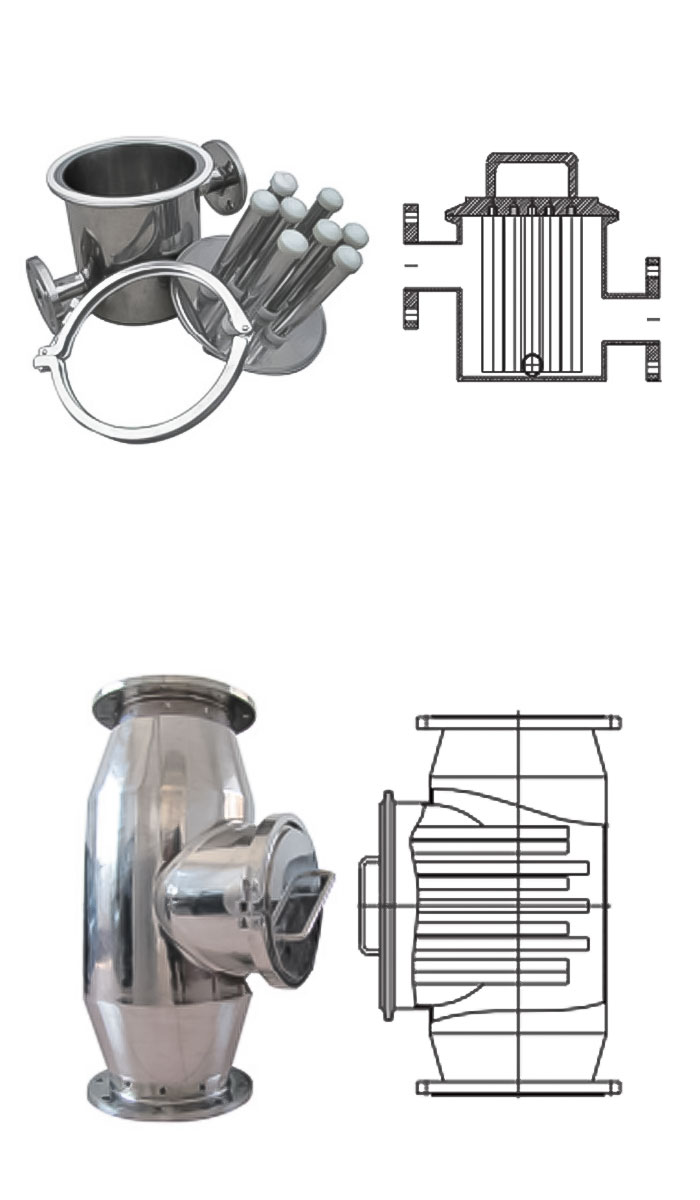

CYG Easy Cleaning Magnetic liquid Magnet TrapsOverview
The CYG Series Pipeline Magnetic Separator is a specialized liquid magnet trap solution for removing ferromagnetic impurities from liquids and slurries. Utilizing NdFeB rare-earth magnets, this innovative magnetic liquid trap achieves efficient contamination removal without external power.
Featuring full stainless steel construction with flange or quick-connect interfaces, these easy cleaning magnetic liquid traps are ideal for food, chemical, and pharmaceutical industries. Certified under ISO9001, the equipment offers reliable protection for downstream equipment while enhancing product purity.
The compact design integrates seamlessly into production lines, providing continuous protection against ferrous contamination. With robust construction and maintenance-friendly features, the CYG series ensures long-term performance in demanding industrial environments.
CYG Easy Cleaning Magnetic liquid Magnet TrapsSpecifications & Features
High-Efficiency Separation
The NdFeB rare-earth magnetic source delivers strong magnetic field intensity, effectively capturing microscopic iron particles. This liquid magnet trap ensures thorough contamination removal while maintaining optimal flow characteristics.
Multi-Layer Filtration System
The full grid-type magnetic arrangement provides staged filtration, enhancing separation efficiency. This magnetic liquid trap design maximizes contaminant capture while minimizing pressure drop.
Energy-Saving Operation
Permanent magnetic structure requires no electrical power, reducing operational costs. The easy cleaning magnetic liquid trap supports sustainable production through zero-energy operation.
Compact Installation & Maintenance
Direct in-line installation requires minimal space, making the liquid magnet trap ideal for constrained environments. Removable magnetic rods simplify cleaning procedures for this magnetic liquid trap.
Durable Construction
304/316L stainless steel materials offer excellent corrosion resistance. The easy cleaning magnetic liquid trap maintains performance under challenging conditions with 8-10 year service life.
Safe Operation
Radiation-free operation preserves material quality and ensures workplace safety. This liquid magnet trap design prioritizes both product integrity and personnel protection.
CYG Easy Cleaning Magnetic liquid Magnet TrapsParameters
Standard diameter (mm): 50, 80, 100, 120, 150, 200, 250, 300, 350, 400, 450, 500. It can be customized according to customer's on-site requirements.
→ Click here to get CYG Easy Cleaning Magnetic Liquid Magnet Traps Separator quotation
CYG Easy Cleaning Magnetic liquid Magnet Traps Key Application Scenarios
Food Processing Industry
This liquid magnet trap effectively removes iron contaminants from liquid food products including soy sauce, vinegar, and fruit juices, ensuring compliance with food safety standards and maintaining product quality.
Chemical & Pharmaceutical Manufacturing
The magnetic liquid trap purifies chemical slurries, coatings, and pigments while separating metallic impurities from pharmaceutical liquids. These easy cleaning magnetic liquid traps meet stringent industry requirements for product purity.
Ceramic & Paper Production
Processing glaze materials and ceramic slurries, this liquid magnet trap improves finished product quality. In paper manufacturing, the magnetic liquid trap eliminates iron fragments from paper pulp, protecting processing machinery.
Environmental Protection
These easy cleaning magnetic liquid traps filter metal contaminants from wastewater streams, supporting environmental compliance and resource recovery initiatives across various industries.
Plastics & Power Generation
The liquid magnet trap removes iron particles from raw material slurries in plastics production, while in power generation, the magnetic liquid trap filters impurities from boiler feed water systems, ensuring operational safety.

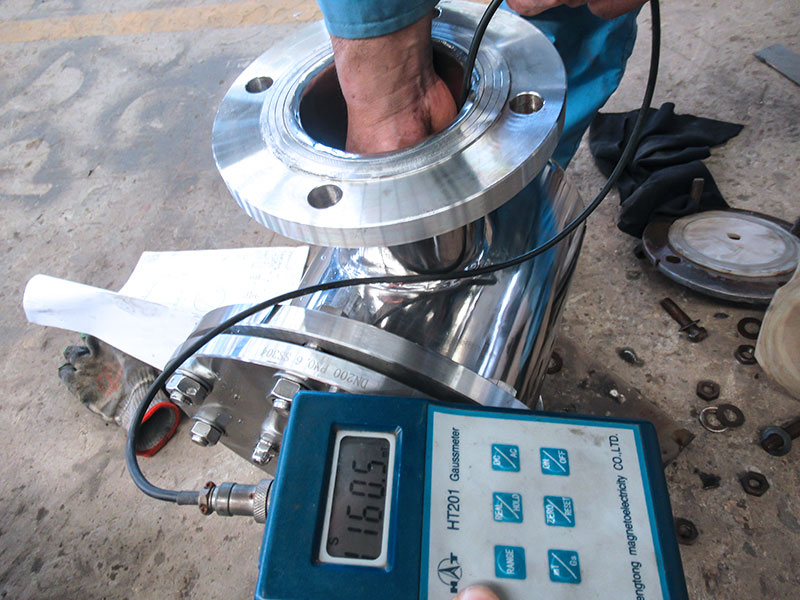

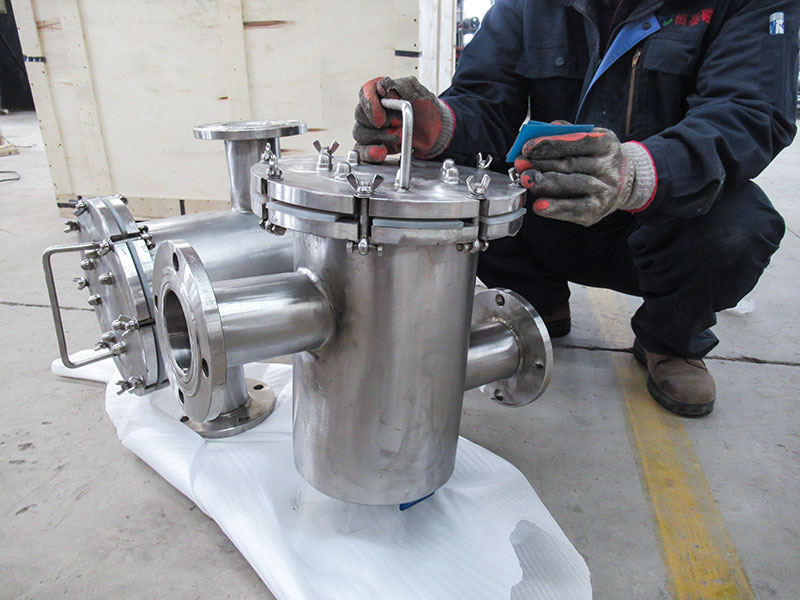

CYG Easy Cleaning Magnetic liquid Magnet Traps Operation & Maintenance Guide
Installation Requirements
Install the liquid magnet trap horizontally in pipeline systems to ensure smooth material flow. Recommended positions include after pumps or before discharge points. Clean pipelines thoroughly before installing this magnetic liquid trap to remove welding slag and contaminants.
Operating Procedures
Verify magnetic rod security before starting the easy cleaning magnetic liquid traps. Regularly monitor iron accumulation levels during operation. Avoid severe vibration or impact to maintain equipment integrity of the liquid magnet trap.
Maintenance Schedule
Clean adsorbed iron particles after each operational cycle of the magnetic liquid trap. Regularly inspect sealing components to prevent leakage. Drain and clean internal components during extended shutdown periods for easy cleaning magnetic liquid traps.
Safety Precautions
Avoid using ferrous tools near magnetic fields of the liquid magnet trap. Wear protective gloves during iron removal procedures. Maintain safe distance for personnel with pacemakers and keep magnetic storage devices away from operational areas of magnetic liquid trap systems.

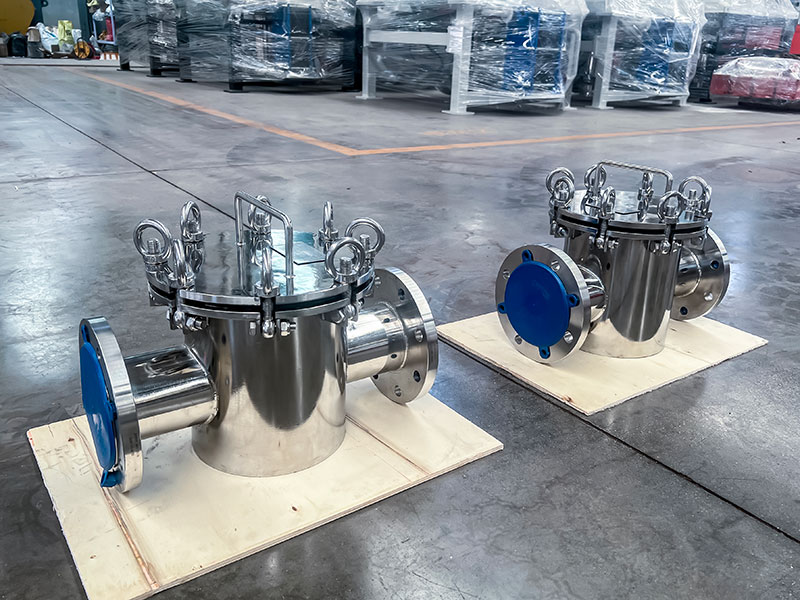

CYG Easy Cleaning Magnetic liquid Magnet Traps Customized Design
Dimensional Adaptations
The liquid magnet trap is available in diameters from DN40 to DN500 with custom connection methods. Non-standard length designs accommodate specific spatial constraints for these magnetic liquid trap installations.
Material Upgrades
Food-grade 316L stainless steel options ensure hygiene compliance. Special anti-corrosion coatings and high-temperature designs (withstanding up to 150℃) enhance durability of these easy cleaning magnetic liquid traps.
Functional Enhancements
Automatic cleaning systems improve operational efficiency. Online monitoring devices enable real-time performance tracking. Pressure balance systems maintain optimal functionality under varying conditions for these liquid magnet trap units.
Special Application Versions
Models for high-viscosity materials ensure consistent performance. Units for strong acid/alkali environments provide corrosion resistance. Explosion-proof designs guarantee safety in hazardous locations for these magnetic liquid trap systems.
The CYG series easy cleaning magnetic liquid traps have become essential components in production lines due to exceptional performance and flexible customization. This liquid magnet trap technology effectively protects machinery while enhancing product quality, delivering substantial economic benefits through reliable contamination removal.
